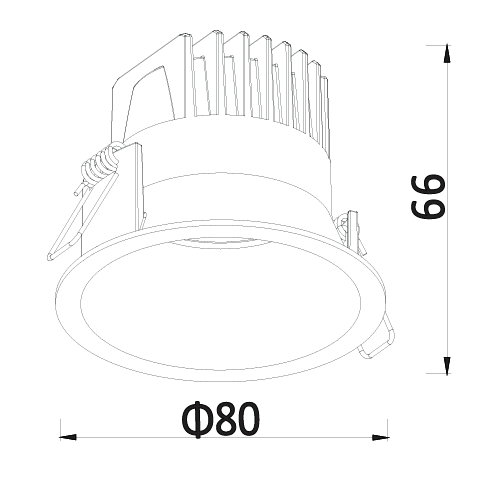

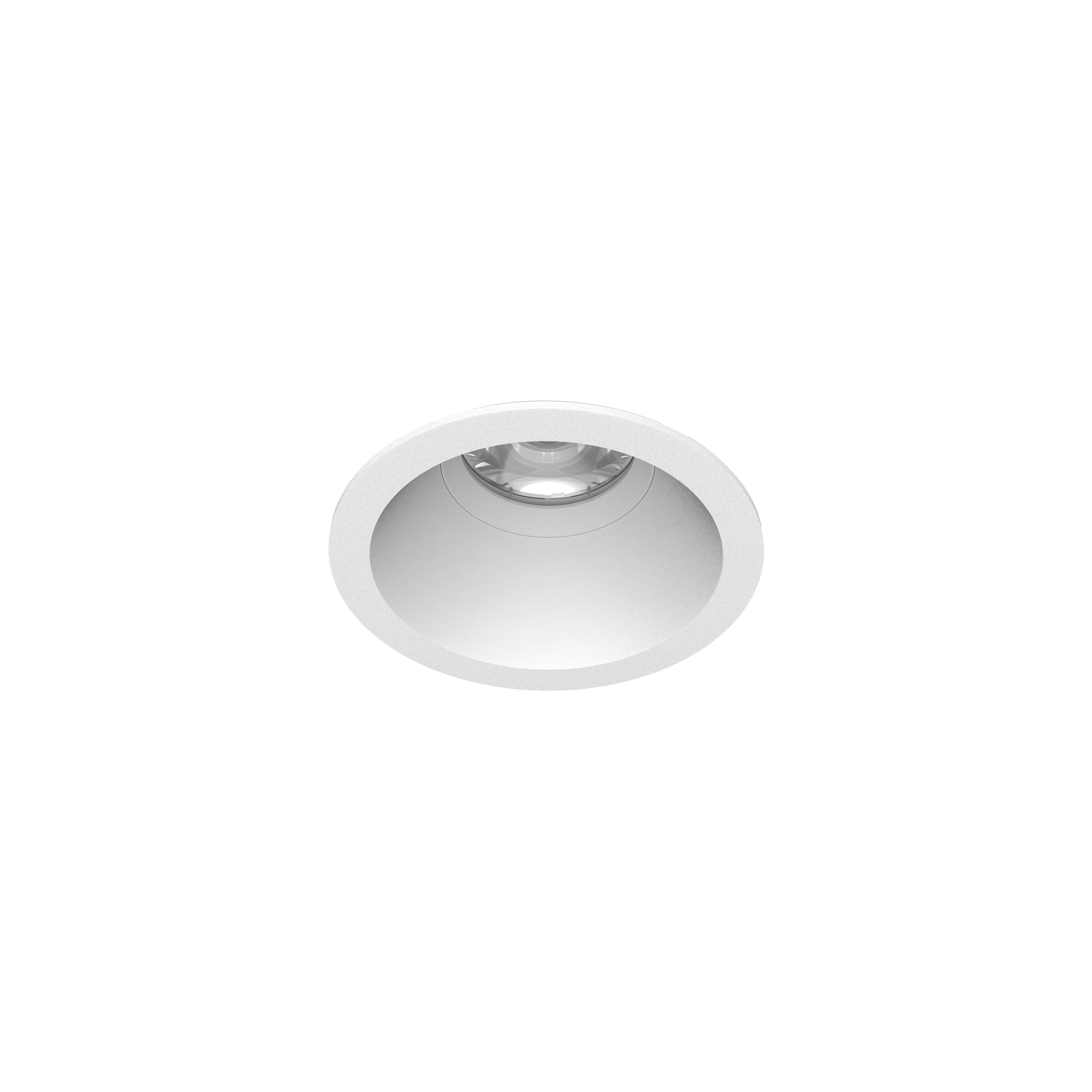

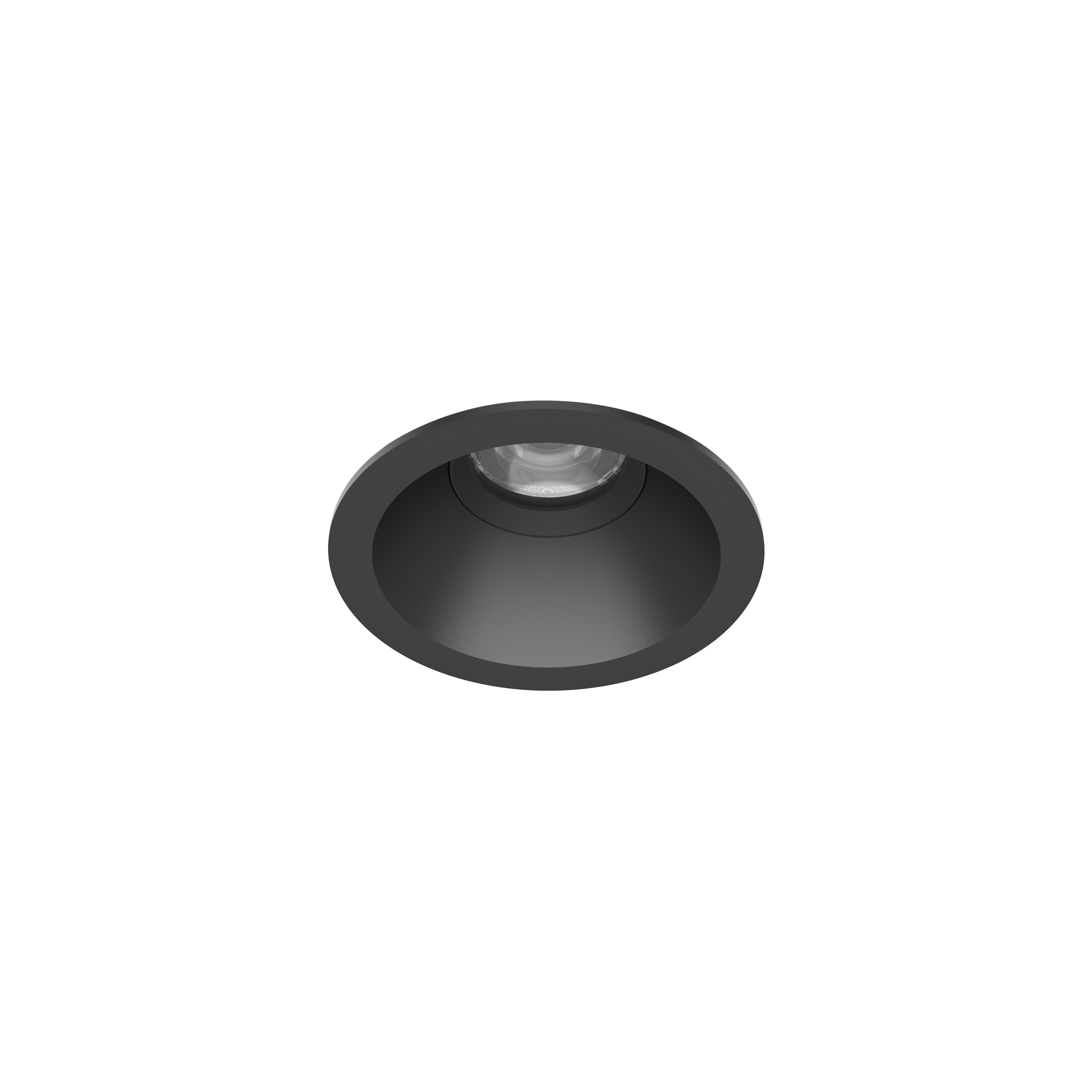

DR-VISS
Visi Downlight Small
- Source Power:
- 5W | 9W
- System Power:
- 6W | 10W
- Source Lumens:
- Up to 1560lm
- Delivered Lumens:
- Up to 1345Lm
- Beam Angle:
- 23° | 32° | 44° | 52°
- Efficacy:
- Up to 138lm/W
- Cut out:
- 75mm

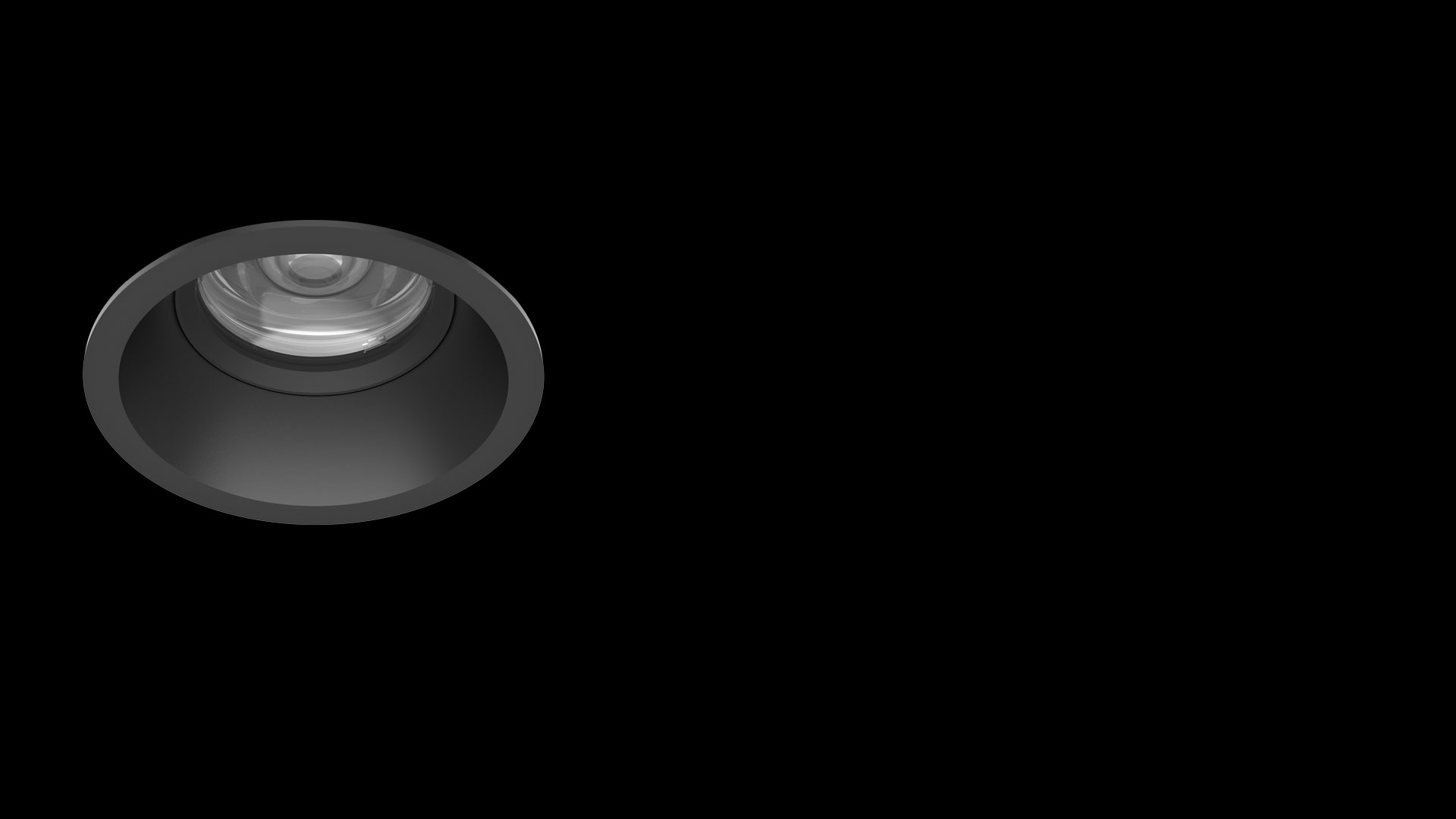

Visi
Recessed Downlight

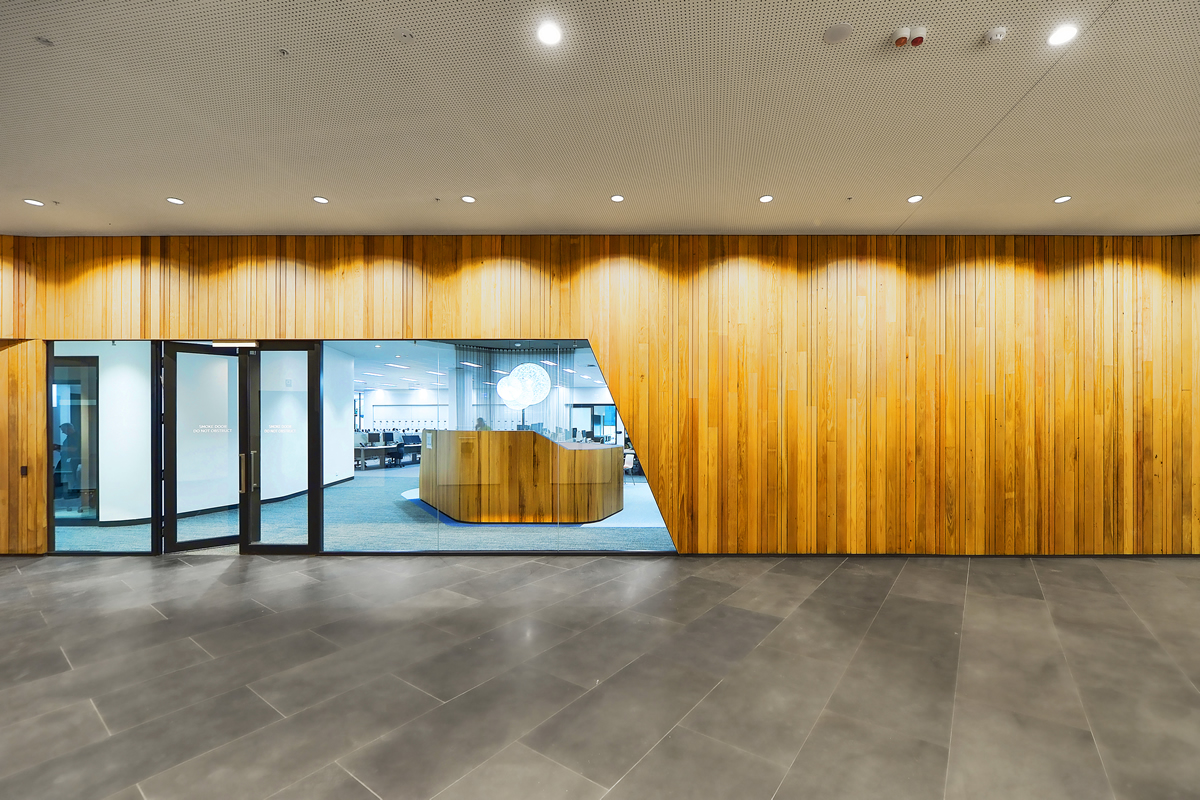

Visi is an everyday downlight made for professional applications. Once recessed into the ceiling the Visi blends in effortlessly with its narrow trim and provides an anti-glare comfort light. However, trim size is no reflection on performance and Visi provides a full range of illumination levels in both fixed and adjustable design.
Energy efficiency is key and Visi series is at the top of the performance scale, ensuring significant energy savings over alternative solutions. CCT colours and dimming options are available on request.
Available as a recessed spot or downlight.
Energy efficiency is key and Visi series is at the top of the performance scale, ensuring significant energy savings over alternative solutions. CCT colours and dimming options are available on request.
Available as a recessed spot or downlight.
Visi is an everyday downlight made for professional applications. Once recessed into the ceiling the Visi blends in effortlessly with its narrow trim and provides an anti-glare comfort light. However, trim size is no reflection on performance and Visi provides a full range of illumination levels in both fixed and adjustable design.
Energy efficiency is key and Visi series is at the top of the performance scale, ensuring significant energy savings over alternative solutions. CCT colours and dimming options are available on request.
Available as a recessed spot or downlight.
Energy efficiency is key and Visi series is at the top of the performance scale, ensuring significant energy savings over alternative solutions. CCT colours and dimming options are available on request.
Available as a recessed spot or downlight.
Models

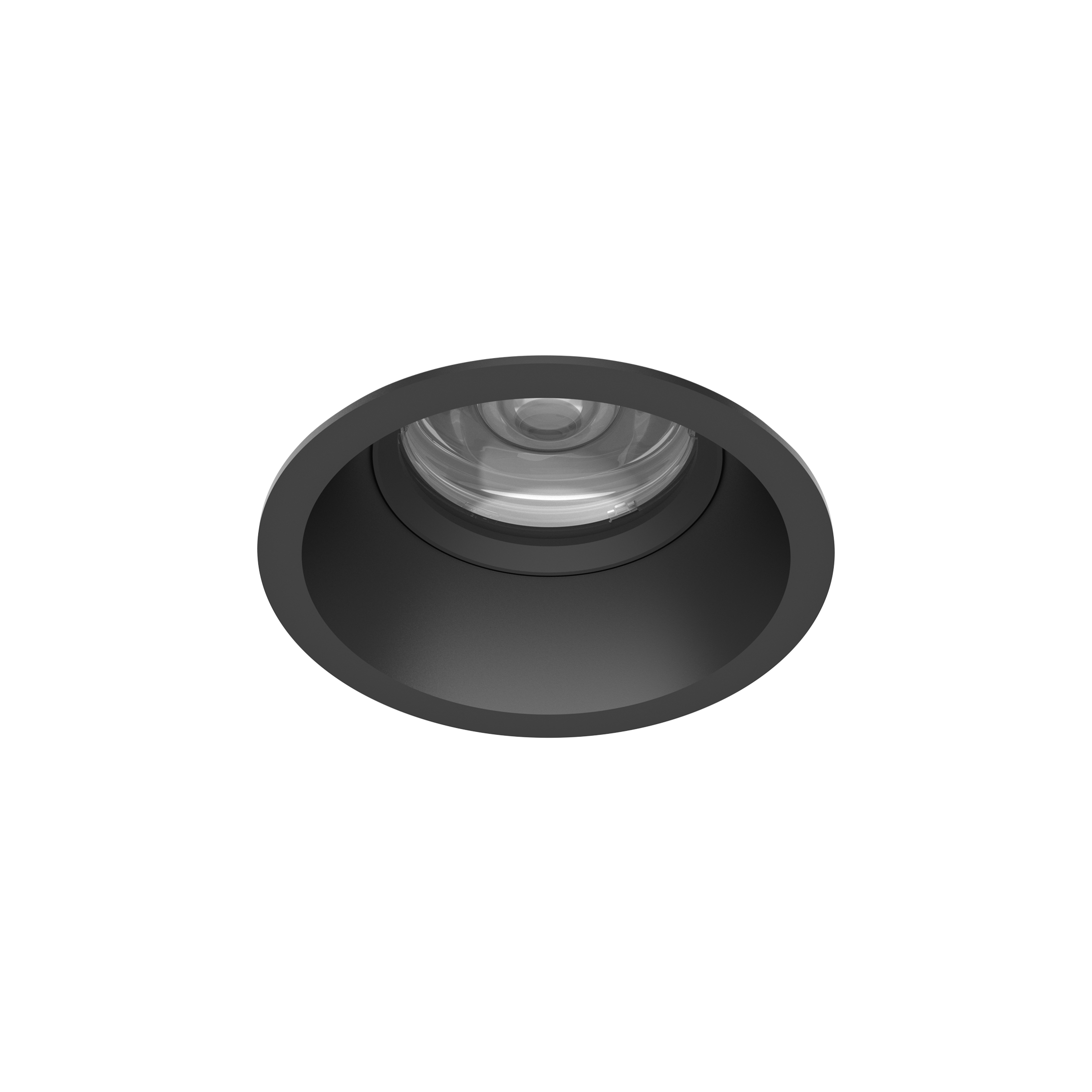

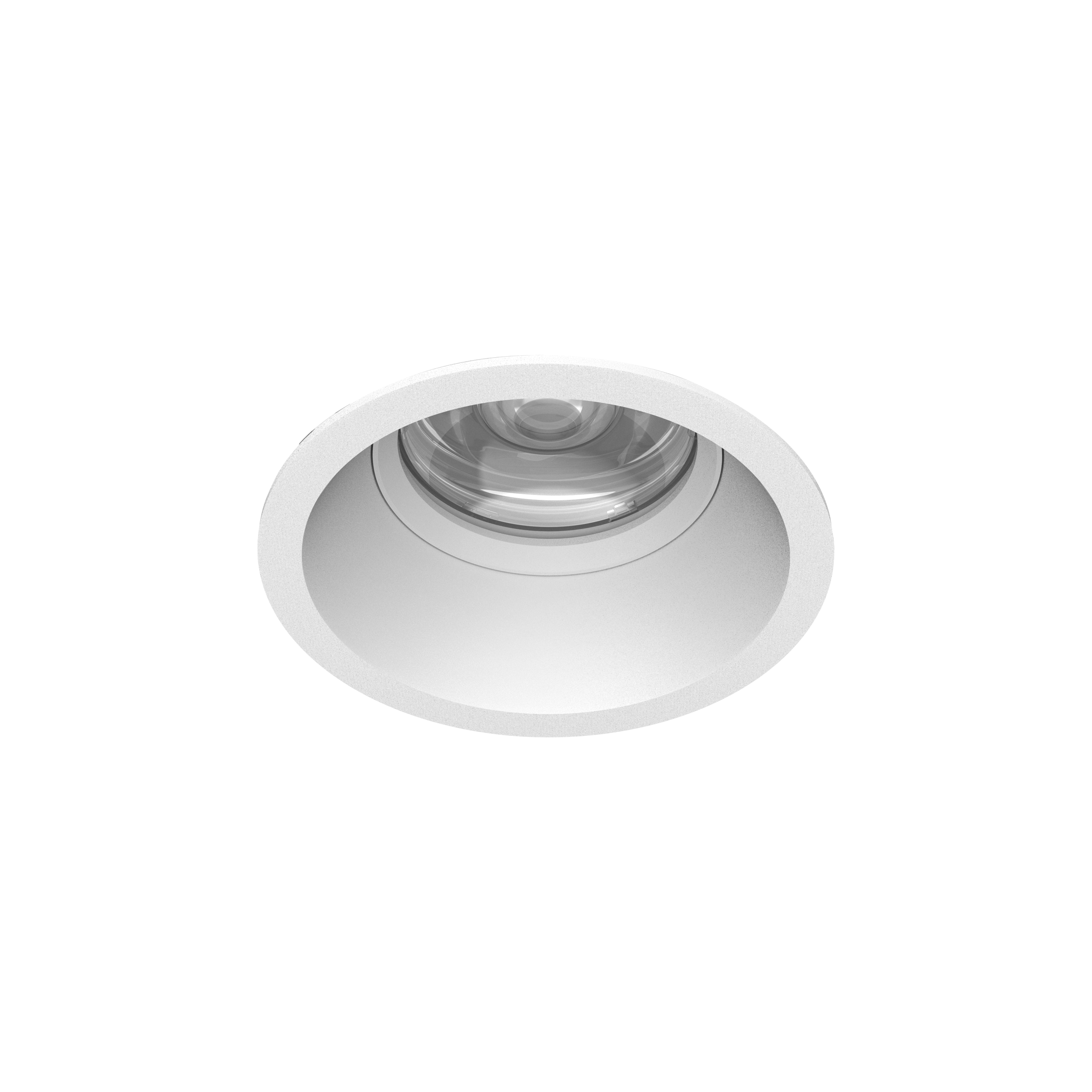

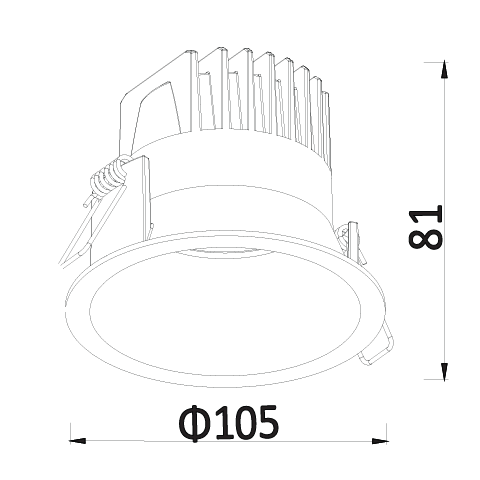

DR-VISM
Visi Downlight Medium
- Source Power:
- 9W | 15W | 18W
- System Power:
- 10W | 16W | 20W
- Source Lumens:
- Up to 3443lm
- System Lumens:
- Up to 3060lm
- Beam Angle:
- 16° | 26° 33° | 39° | 38° 49° | 52° 59° | 62°
- Efficacy:
- Up to 155lm/W
- Cut out:
- 95mm

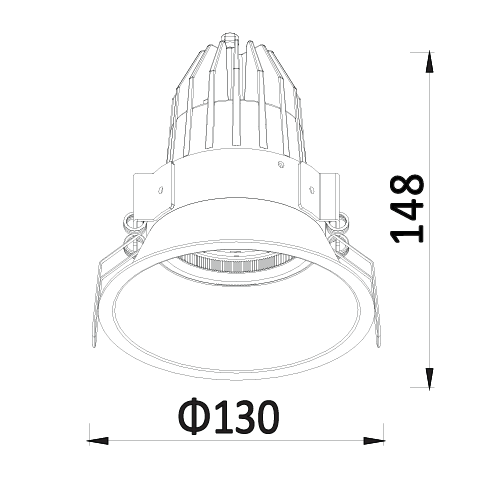

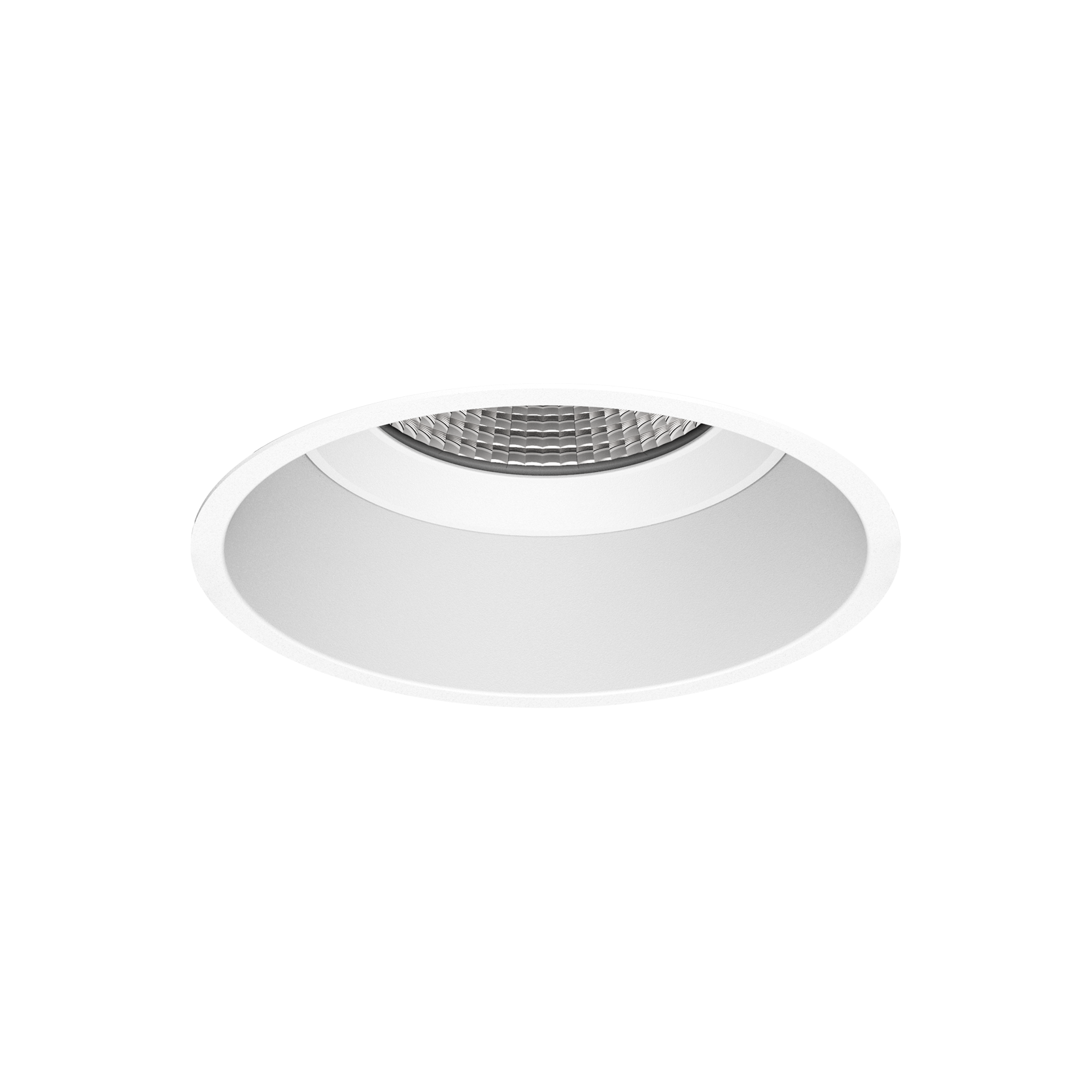

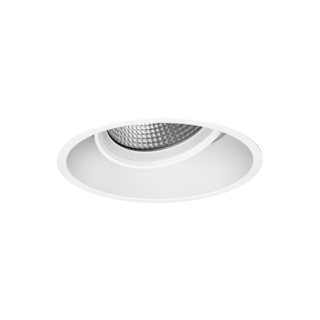

DR-VISL
Visi Downlight Large
- Source Power:
- 13W | 19W | 23W
- System Power:
- 14W | 20W | 25W
- Source Lumens:
- Up to 3995lm
- System Lumens:
- Up to 3550lm
- Beam Angle:
- 19° | 24° | 41° | 59°
- Efficacy:
- Up to 157lm/W
- Cut out:
- 120mm

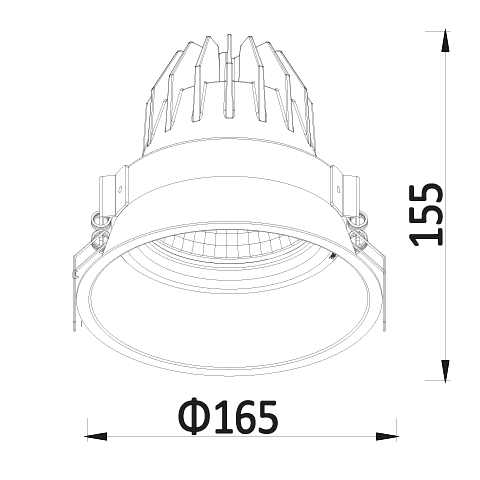

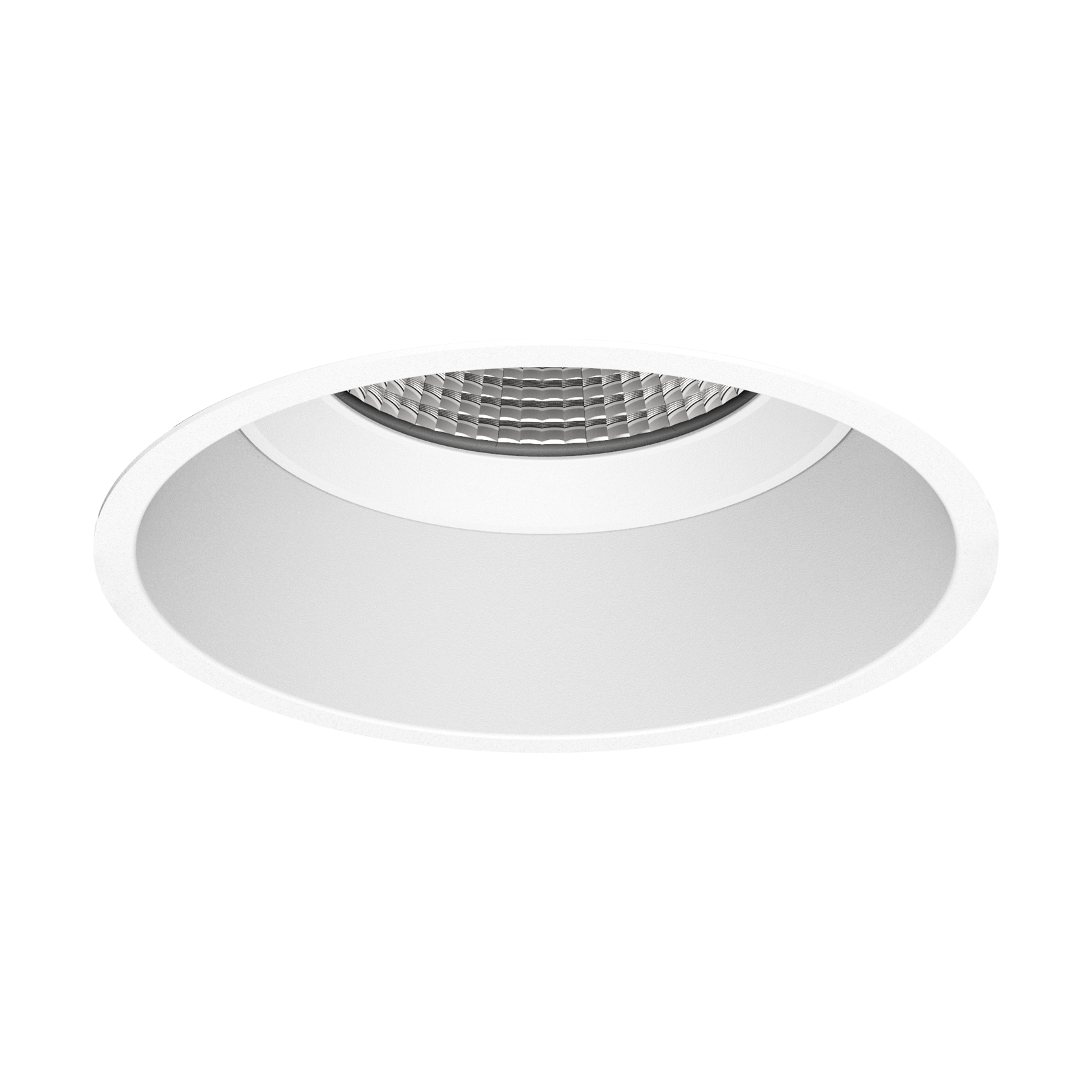

DR-VISXL
Visi Downlight Extra Large
- Source Power:
- 18W | 27W
- System Power:
- 20W | 29W
- Source Lumens:
- Up to 4326lm
- System Lumens:
- Up to 4092lm
- Beam Angle:
- 15° | 23° | 47° | 60°
- Efficacy:
- Up to 153lm/W
- Cut out:
- 155mm
General Specifications
Finish
IP Rating
IP20
CRI
>90
Lifetime
L80 > 108,000 hrs
Material
Aluminium
CCT
2700K
3000K
3500K
4000K
Voltage
220-240V, 50/60Hz
Dimming
Switchable
DALI-2
0-10V
Triac
Casambi
Accessories
Honeycomb Louvre
Elliptical Optical Lens
