Ø25 and Ø50 flexible LED system
Continuous light,
in any shape you draw.
Evoline joins pre-formed straights, curves and rings into one seamless 255° line of light. Or bend it to your own radius, cut to length.
Free to use. No sign-up. Send your design to LPA for a quote in one click.
255°
Beam angle, no dark spots at joints
CRI >90
High colour rendering
MacAdam <3
Colour consistency
72,000 hrs
LED lifetime, L80
5 years
Warranty
Two ways to shape it
Pre-formed modules for speed. Custom bends for everything else.
Modular system
Straights from 1200 to 2500 mm, curves at 45°, 60° and 90° across three radii, and complete ring luminaires. Universal connectors join modules in any orientation, so a layout can be configured from stock components and installed quickly.
Custom system
Profile, silicone diffuser and LED strip cut to your length, with the bending radius built into the profile: 200 mm on Ø25, 500 mm on Ø50. For bespoke forms the modular range cannot follow. Custom options available, contact our office to discuss further.

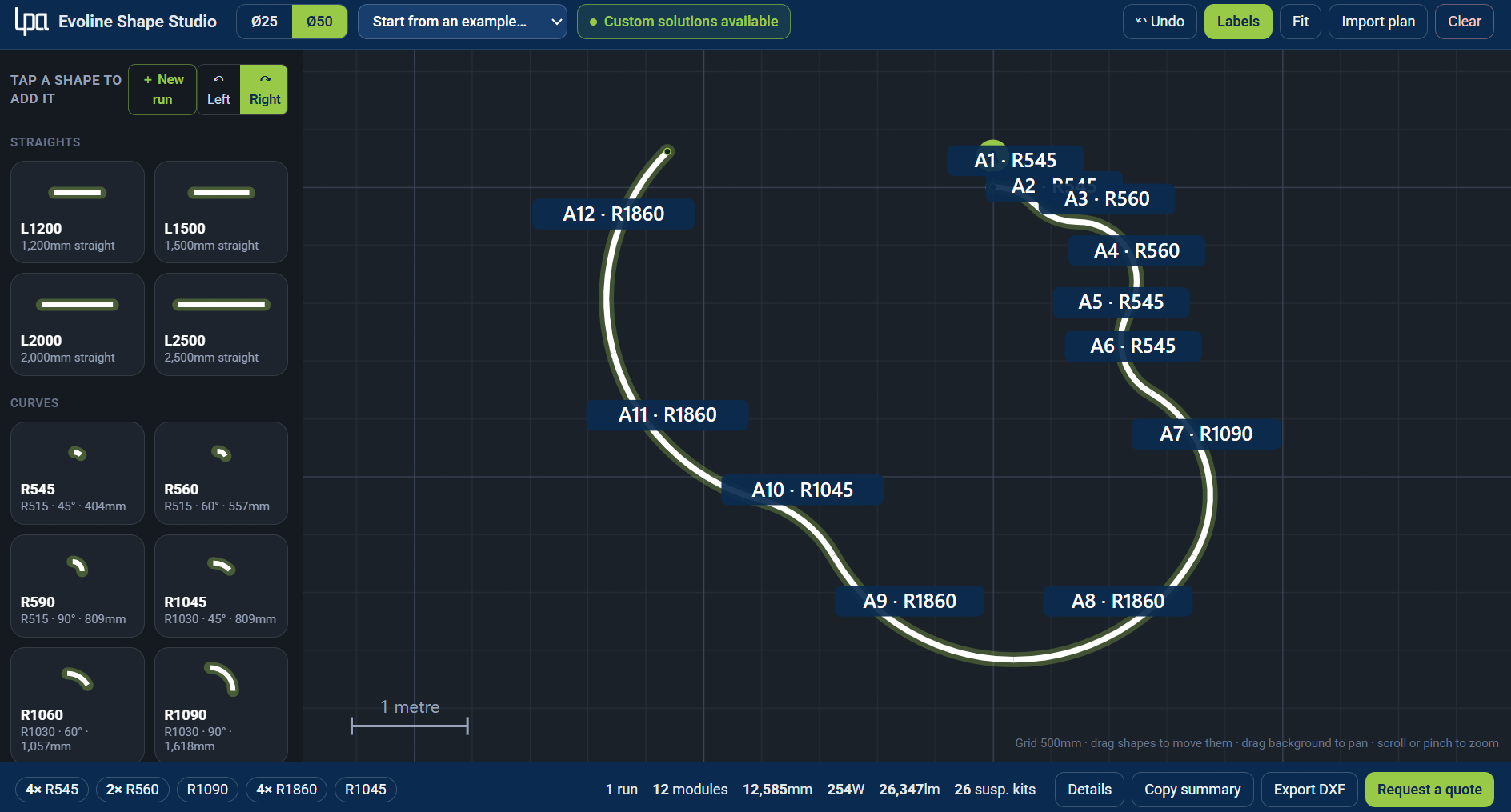

Evoline Shape Studio
Sketch it in minutes. Quote it in one click.
A free design tool that lets you build what Evoline can actually make. Every shape is drawn to scale from real module codes, so what you see is what we quote.
1
Tap shapes to snap them together
Straights, curves and rings for Ø25 or Ø50. Flip curves, drag rings anywhere, or start from a booklet example.
2
See the schedule build itself
Module codes, total length, wattage and lumen output update as you draw.
3
Send it straight to sales support
Download a quote request PDF with your plan drawing and quantities, ready for LPA to price.
Two diameters
Ø25 for detail. Ø50 for presence.
| Specification | Evoline 25 | Evoline 50 |
|---|---|---|
| Power | 14 W/m · 24V DC | 20 W/m · 24V DC |
| Straight modules | 1200 · 1500 · 2000 · 2500 mm | 1200 · 1500 · 2000 · 2500 mm |
| Bending radius | 200 · 515 · 765 mm at 45°, 60°, 90° | 515 · 1030 · 1800 mm at 45°, 60°, 90° |
| Ring luminaires | Ø400 · Ø1000 · Ø1500 mm | Ø1030 · Ø1800 mm |
| Custom bend radius | R ≥ 200 mm | R ≥ 500 mm |
| Colour temperature | 2700K · 3000K · 4000K · 6000K | 2700K · 3000K · 4000K · 6000K |
| Common to both | 255° beam · CRI >90 · IP20 · silicone and aluminium · UVA-340 · Class 3 · 5 year warranty | |
Made for feature lighting, retail and large-scale architecture.
Uniform illumination along ultra-long runs, with extended connection lengths that reduce wiring on site.

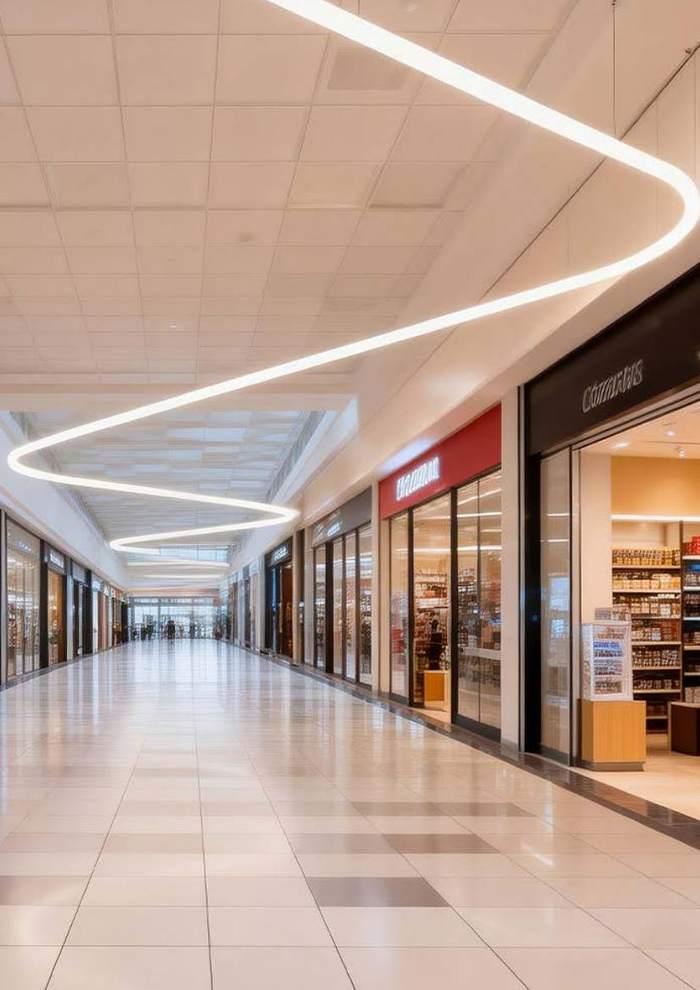

Retail concourse, Ø50 pendant run

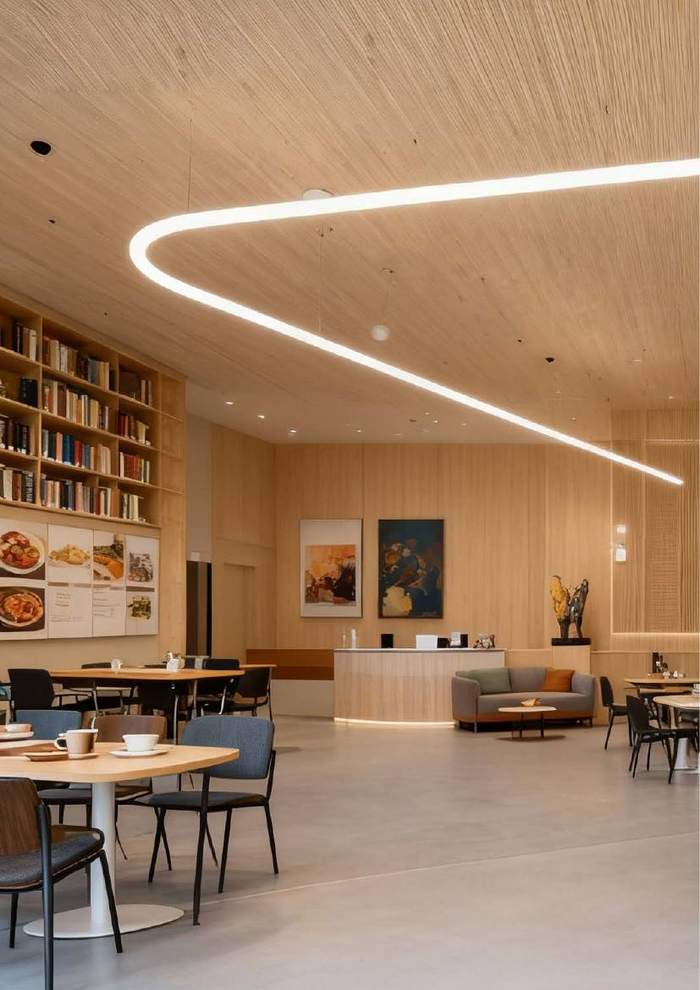

Hospitality, ceiling-mounted curve

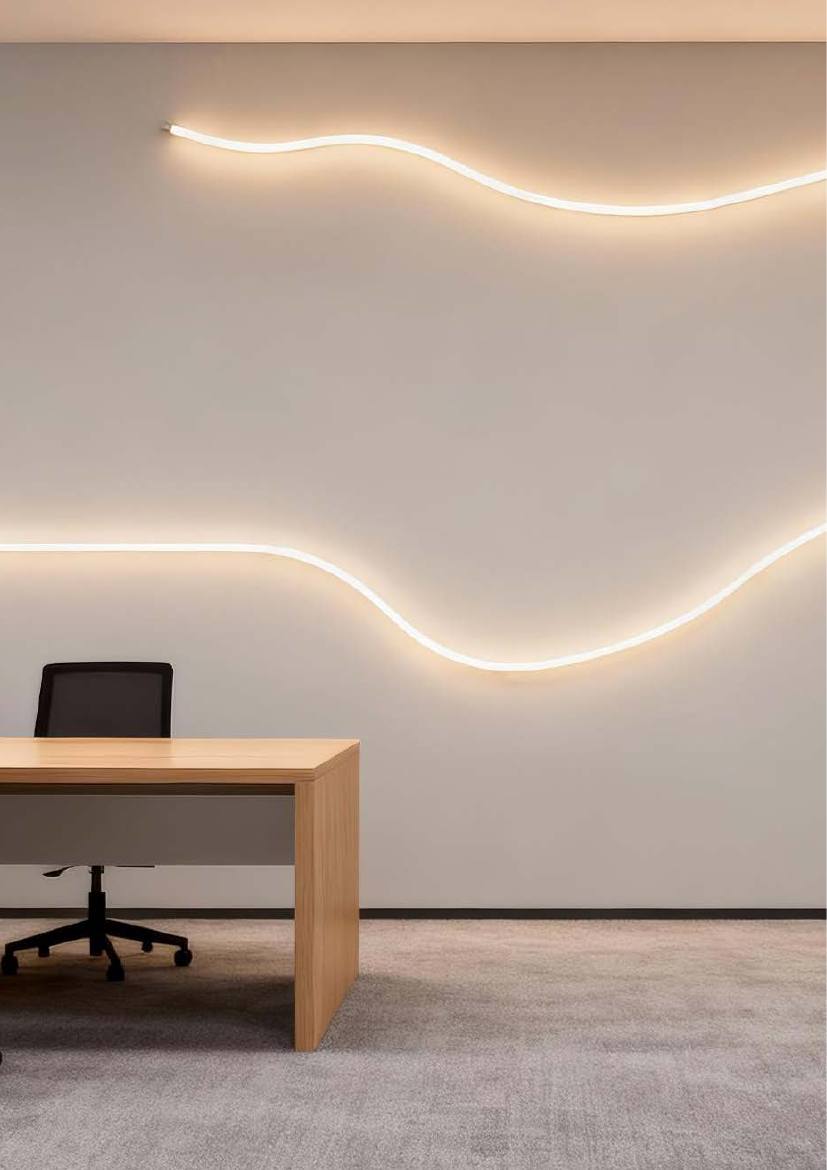

Workplace, Ø25 wall-mounted wave
For specifiers
Everything you need to specify Evoline.
Data sheets, the full product booklet and including mounting accessories, in one place.
Evoline 25 data sheet
PDF · Coming soon
Evoline 50 data sheet
PDF · Coming soon
Product booklet
Flipbook
Start with a shape. We'll take it from there.
Design in the Shape Studio and send us the quote request, or talk to our office about a custom solution. Custom options available, contact our office to discuss further.
What is the minimum bend radius for Evoline flexible LED?
The Ø25 profile bends to a 200mm radius and the Ø50 profile to 500mm in the custom system. In the modular range, pre-formed curves are available at 200mm, 515mm and 765mm radius for Ø25, and 515mm, 1030mm and 1800mm for Ø50.
What voltage does Evoline run on?
Evoline runs on 24 V DC. The one exception is the FLS-EVO25-10 LED strip for the Ø25 custom system, which runs on 48 V DC.
How much light does Evoline produce per metre?
At 3000K, the Ø50 profile with the FLS-EVO50-20 strip produces 1,928 lm/m at 20 W/m, and the Ø25 profile with the FLS-EVO25-14 strip produces 1,184 lm/m at 14.4 W/m. Output varies with the colour temperature selected.
What colour temperatures are available?
Evoline is available in 2700K, 3000K, 4000K and 6000K. The colour temperature code (27, 30, 40 or 60) replaces the XX in the model code. RGBW is available on request when the diameter is larger than 2 metres.
Is Evoline suitable for outdoor use?
No. Evoline is rated IP20 and is designed for interior installations, with an operating temperature range of −20°C to +45°C.
