LUX PRO DOWNLIGHT

For high power accent lighting in commercial, hospitality and retail application, our Lux Pro series ticks all the boxes. With a minimal design, the Lux Pro is supported by superior performance and flexibility of design. A compact size maintained right across the power range with low glare, easy installation and convenient changeover of lenses and reflectors makes Lux Pro a great choice.
RCM
CE
CB
WEEE
Class 2
IP54
CRI>80
CRI>90
UGR<15
UGR<19
High Efficacy
5 Year Warranty
For high power accent lighting in commercial, hospitality and retail application, our Lux Pro series ticks all the boxes. With a minimal design, the Lux Pro is supported by superior performance and flexibility of design. A compact size maintained right across the power range with low glare, easy installation and convenient changeover of lenses and reflectors makes Lux Pro a great choice.

Models

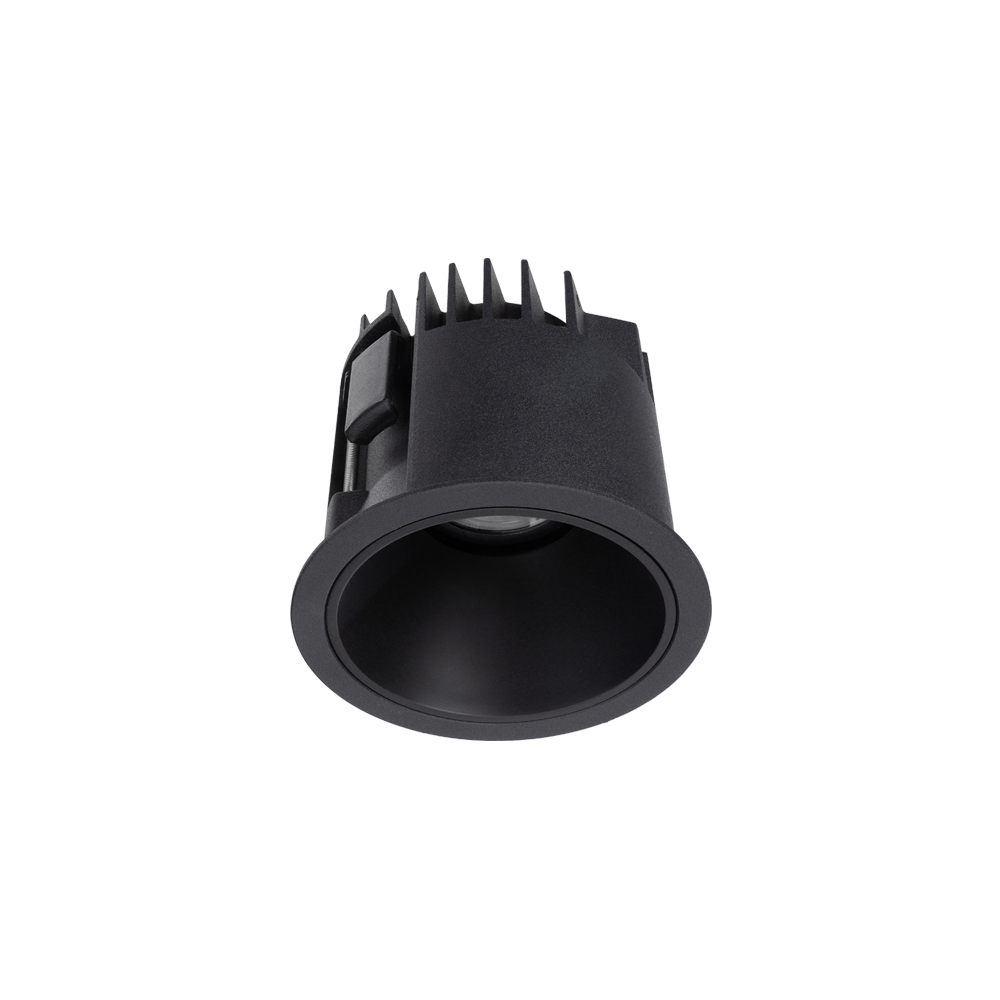

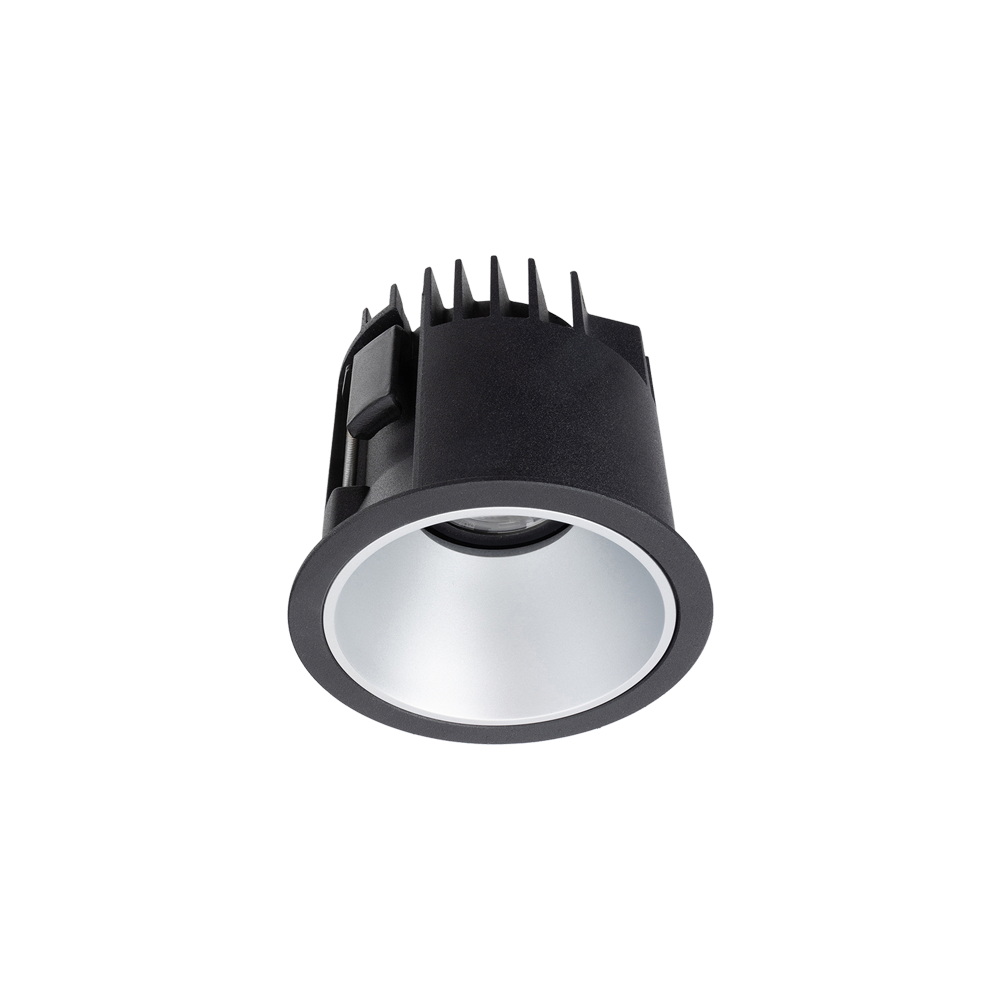

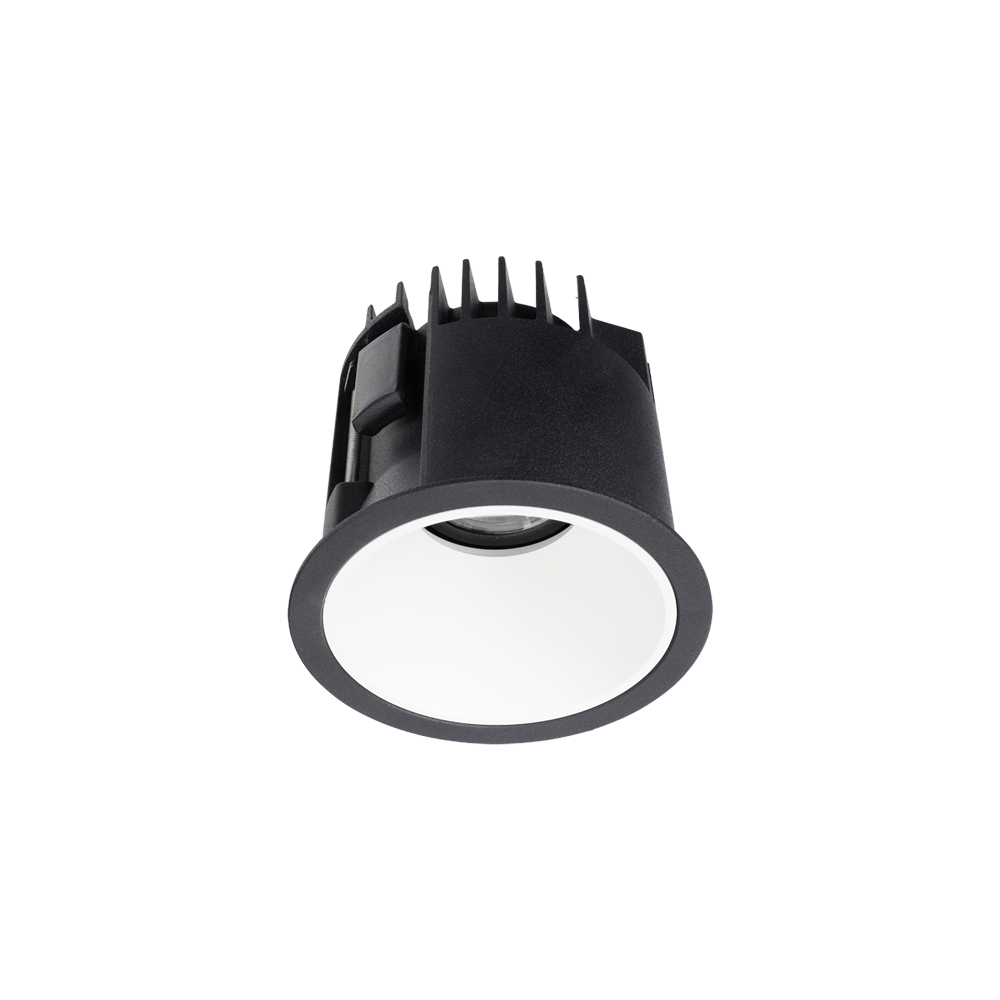

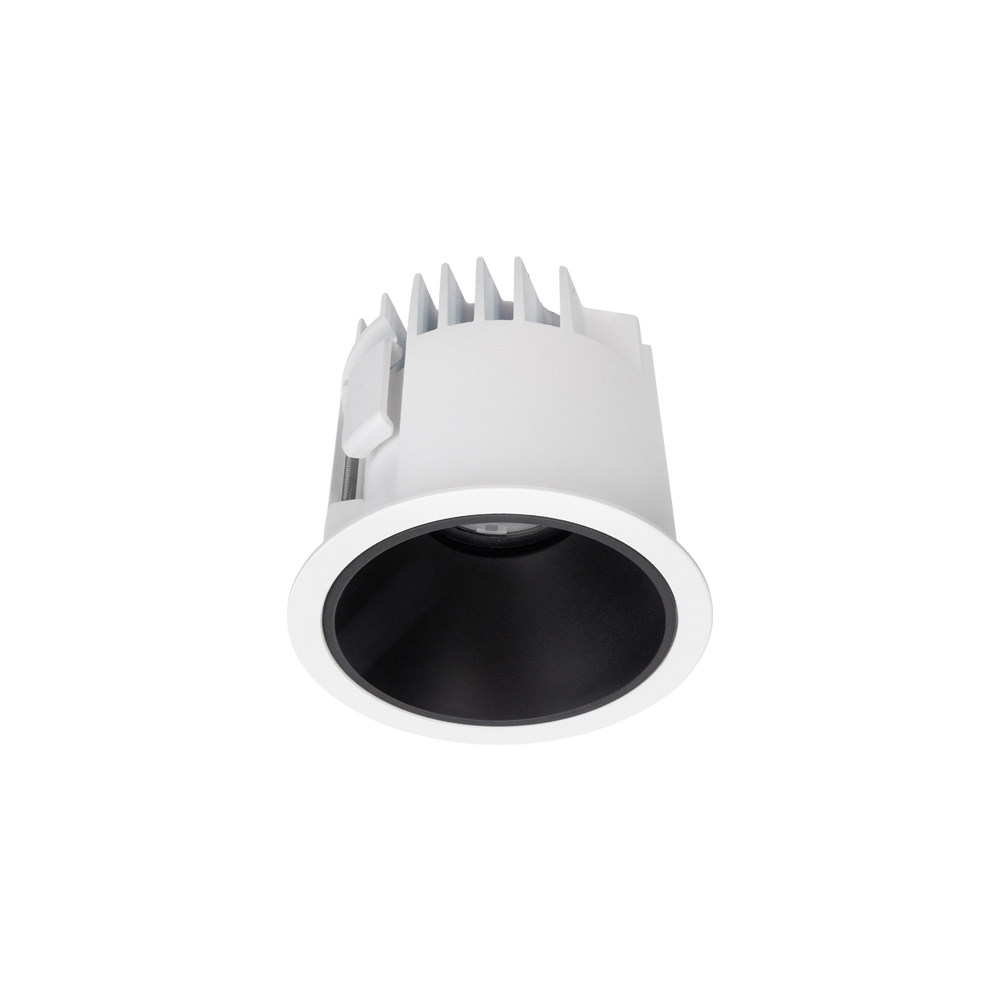

DR-LUXRXS

System Power:
9W / 13W
Delivered Lumens:
Up to 1,223Lm
Beam Angle:
30°/50°
Efficacy:
Up to 98Lm/W
Cut out:
Ø75

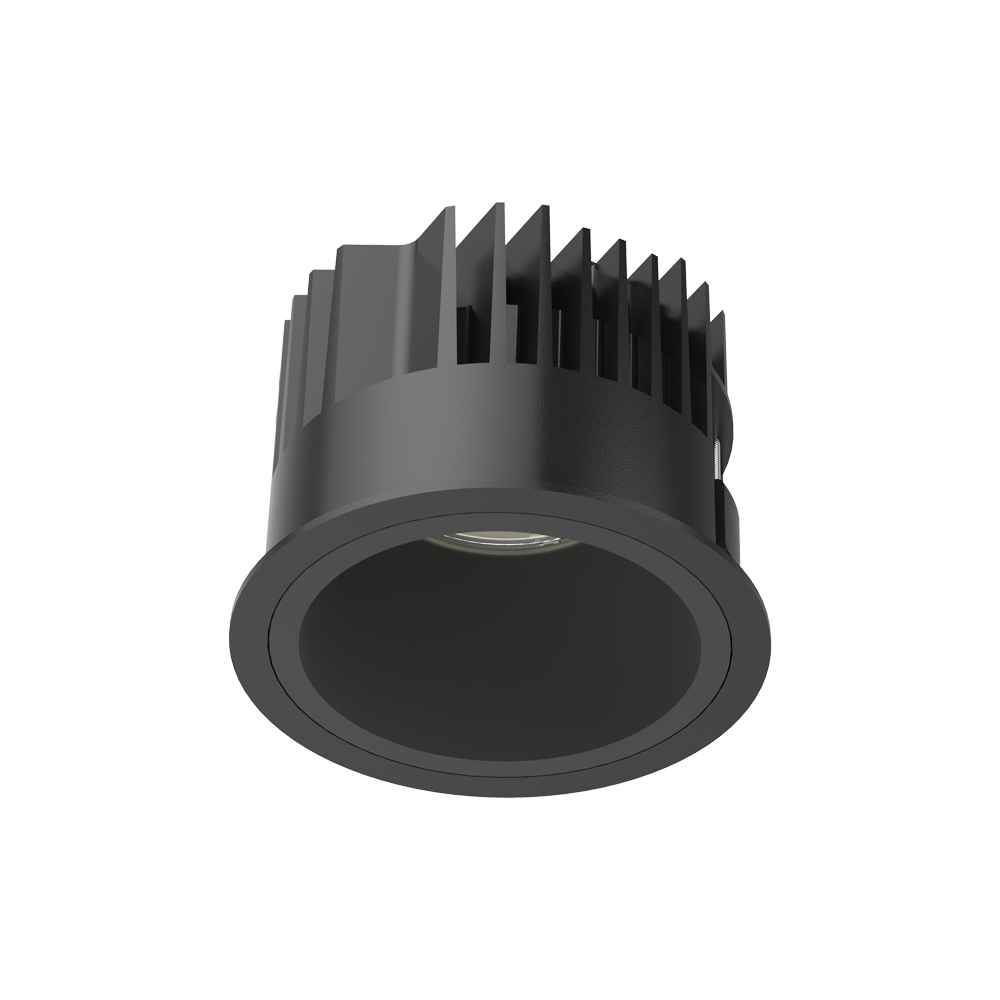

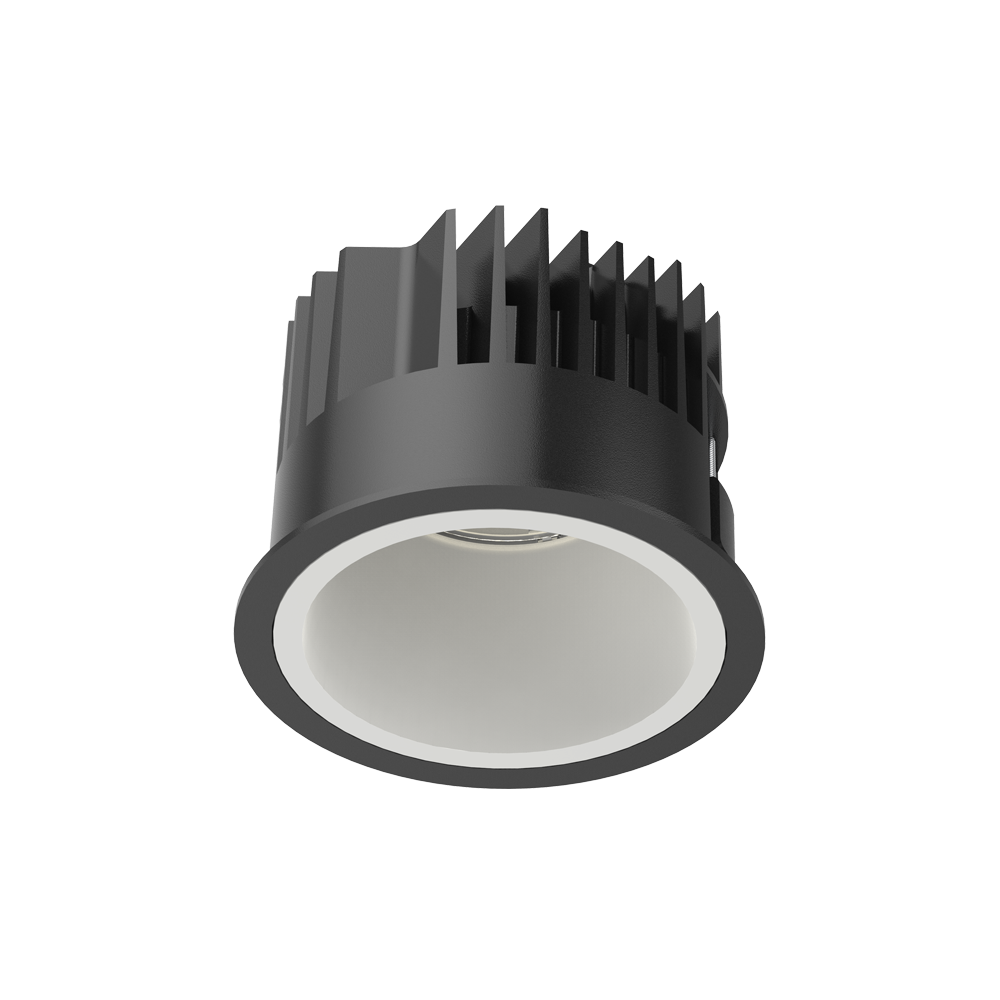

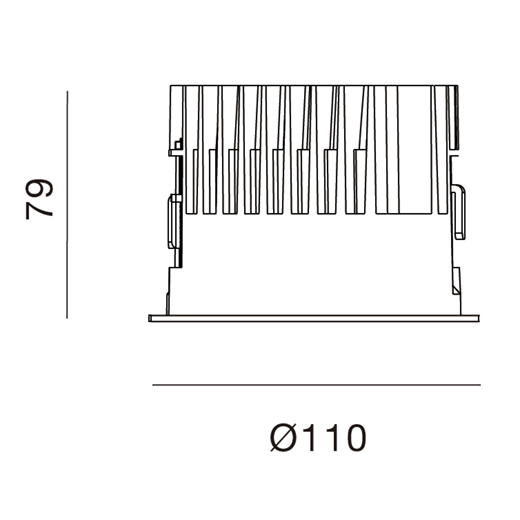

DR-LUXRS

System Power:
10W / 14W / 21W
Delivered Lumens:
Up to 2,107Lm
Beam Angle:
30°/50°
Efficacy:
Up to 106Lm/W
Cut out:
Ø100mm

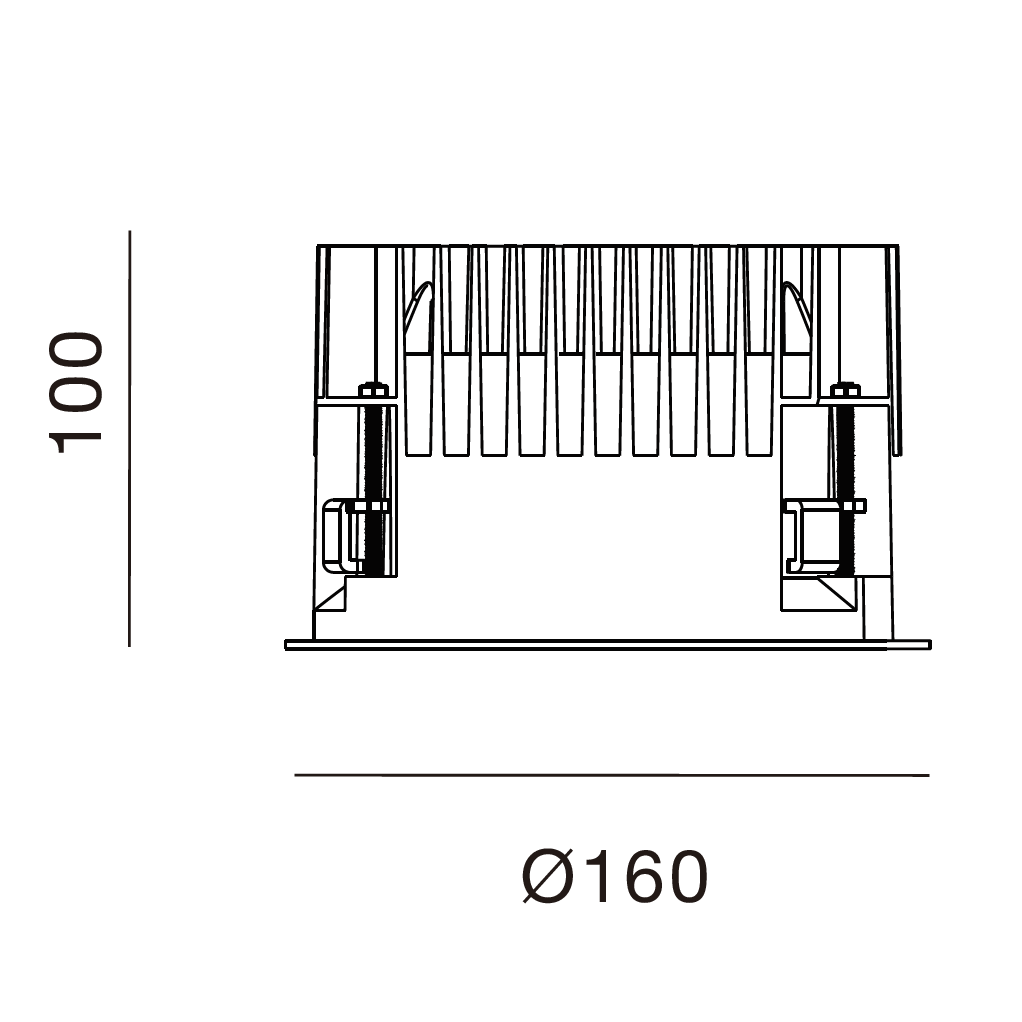

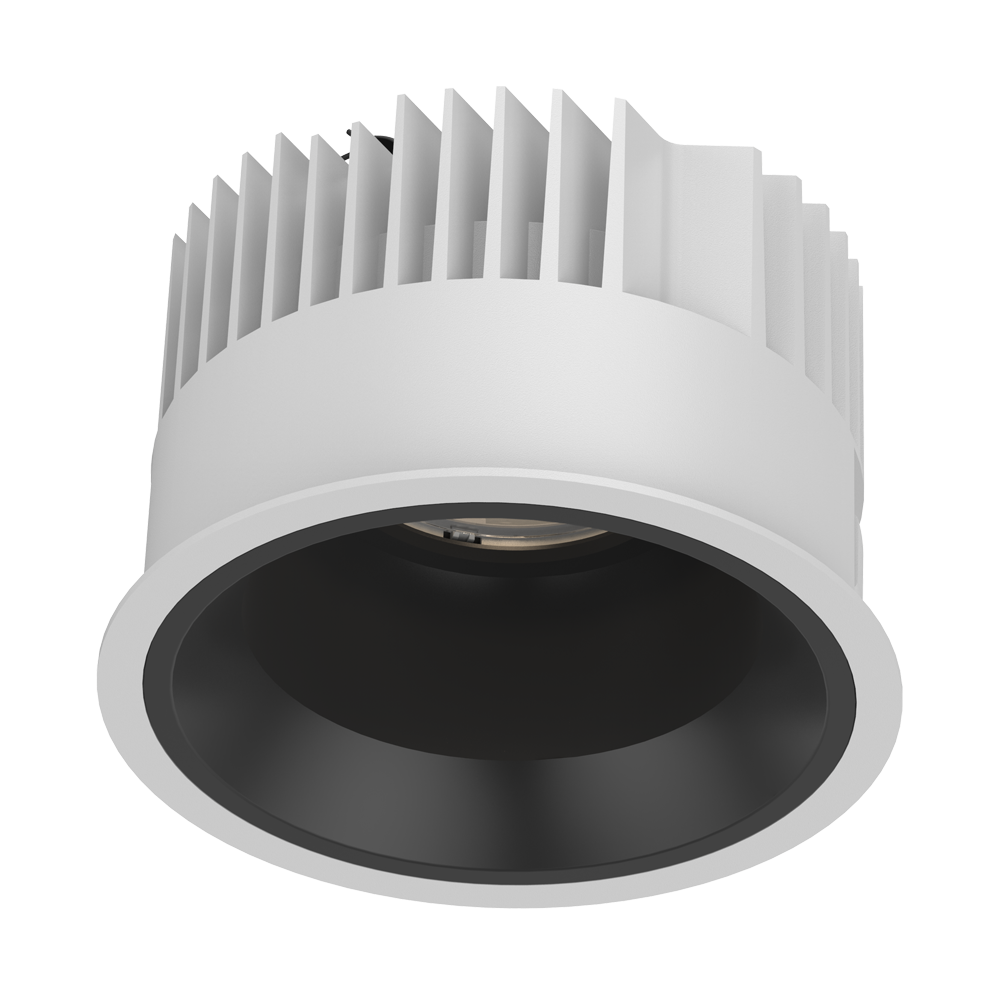

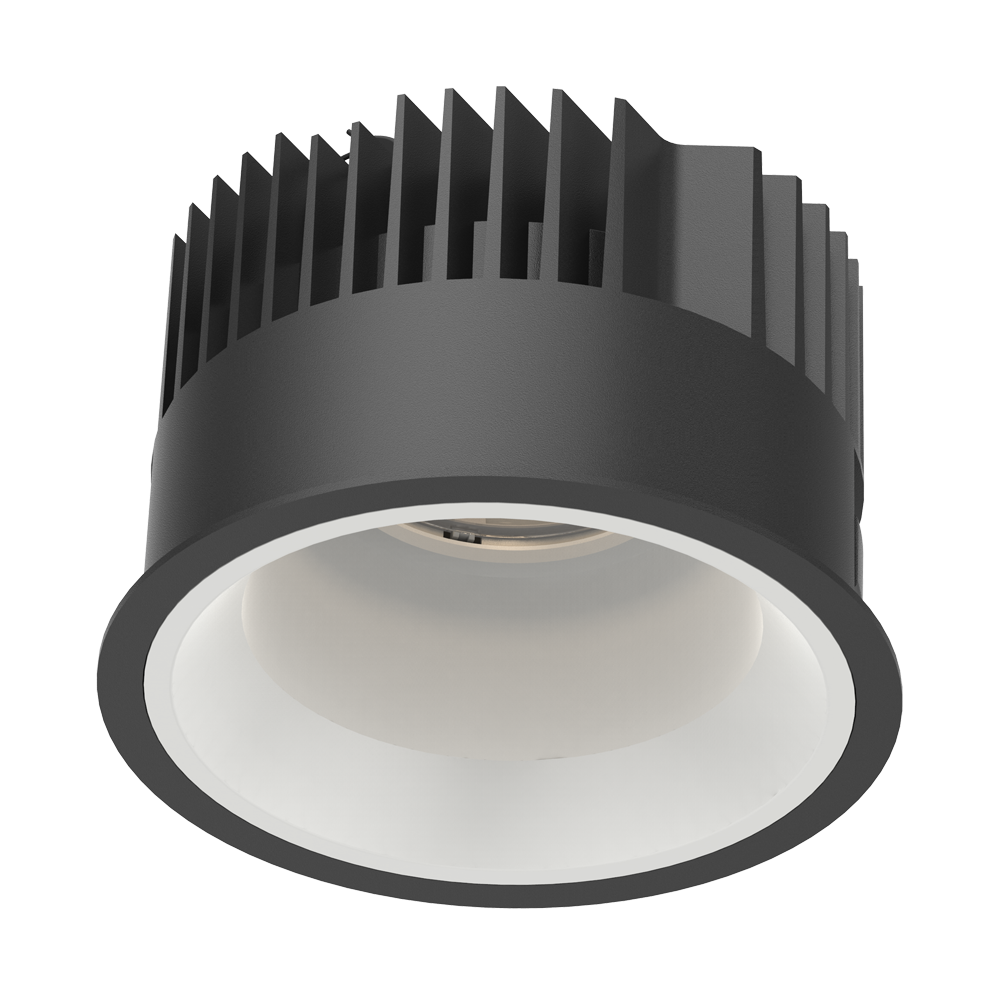

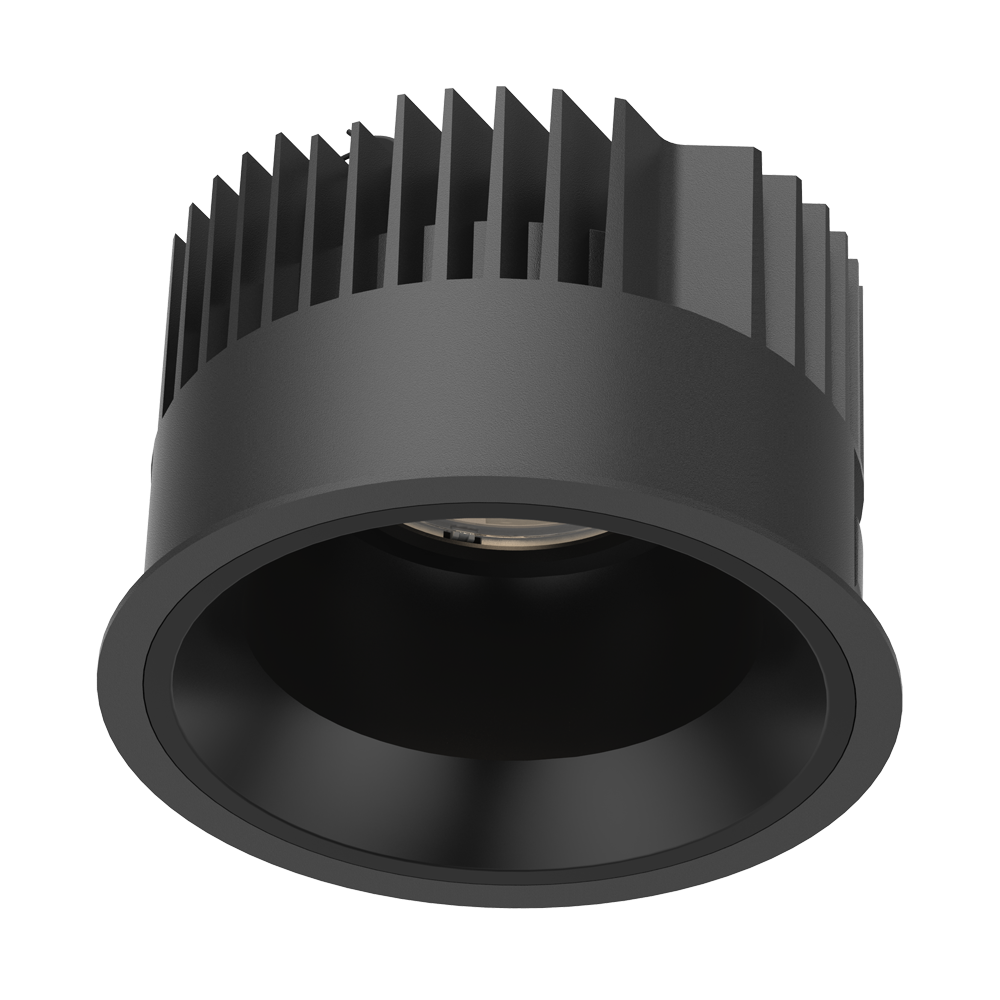

DR-LUXRM

System Power:
20W / 27W
Delivered Lumens:
Up to 3,008Lm
Beam Angle:
30°/65°
Efficacy:
Up to 119Lm/W
Cut out:
Ø150mm

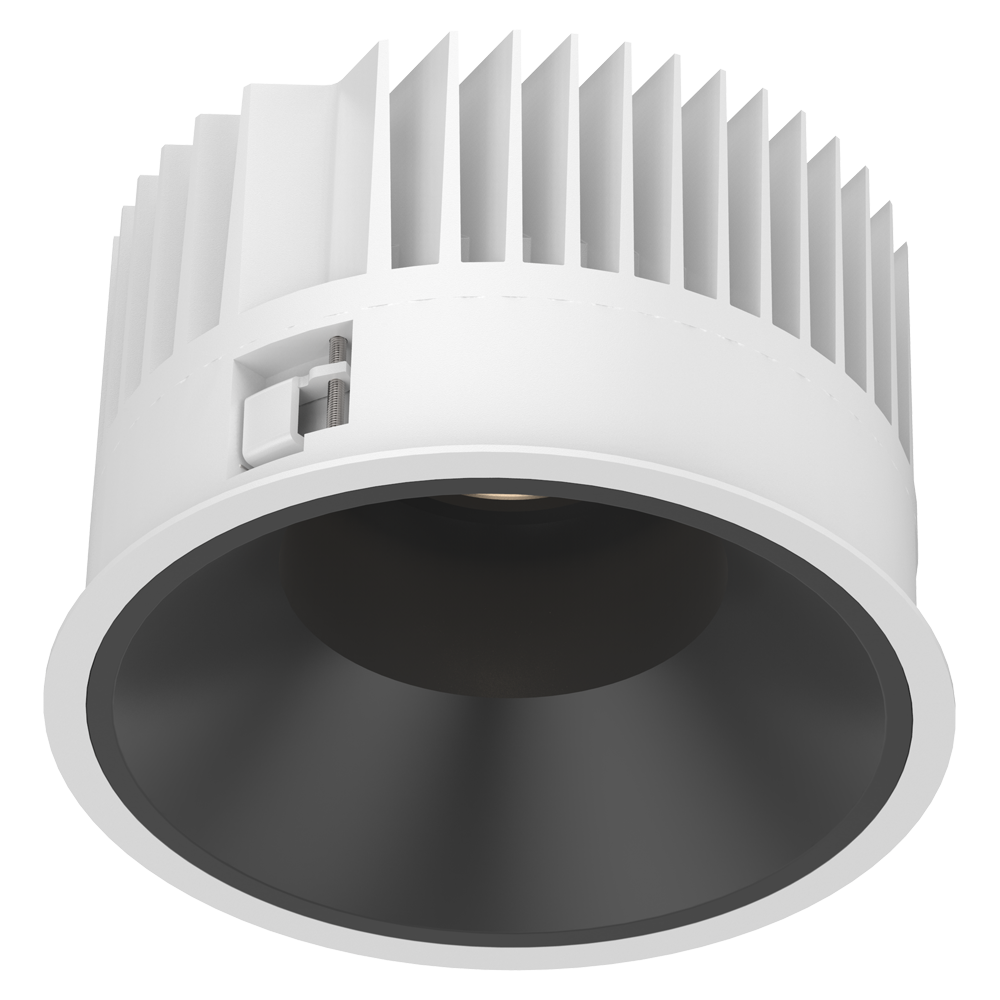

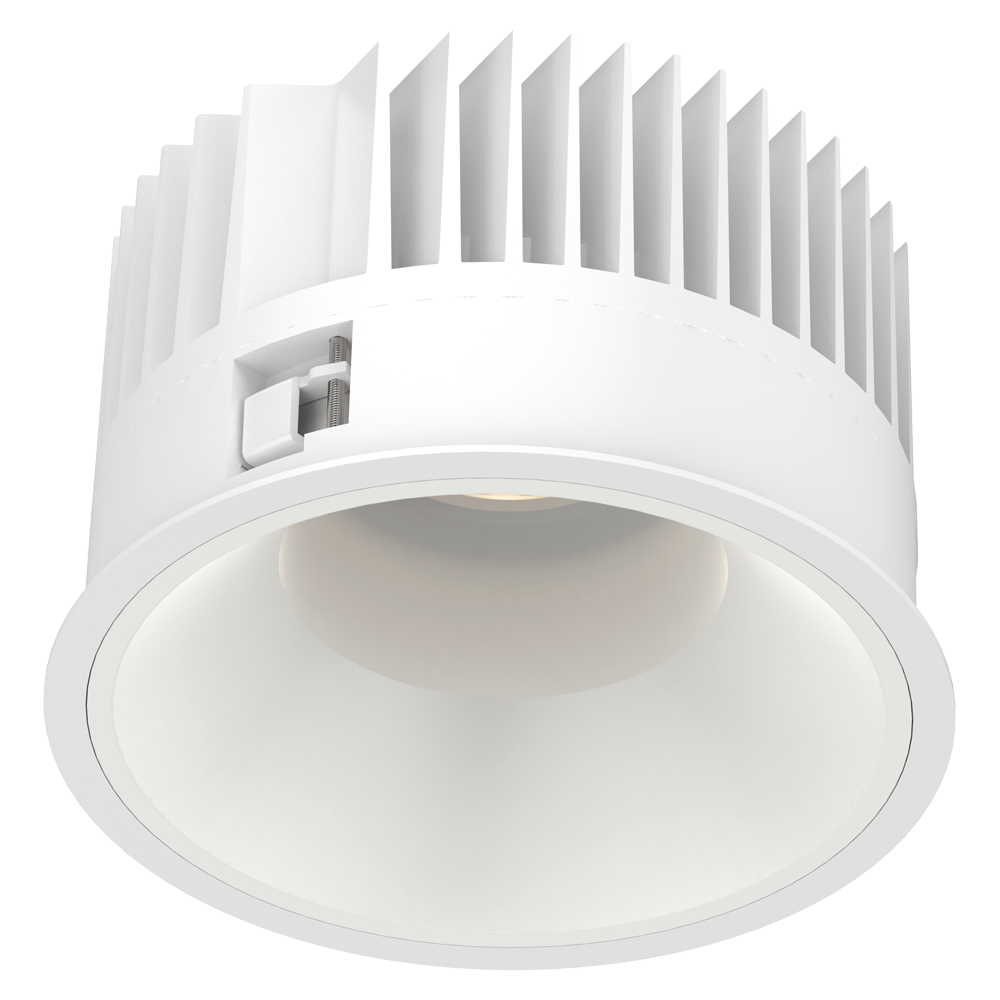

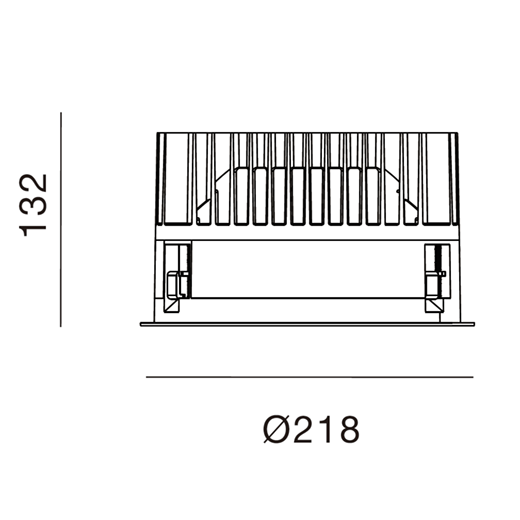

DR-LUXRL

System Power:
27W / 41W
Delivered Lumens:
Up to 4,889Lm
Beam Angle:
18°/30°/65° 24°/30°/65°
Efficacy:
Up to 123Lm/W
Cut out:
Ø200mm

General Specifications

Finish

Black/White

IP Rating

IP54

CRI

>90

LED Life Projection

L80/B10 65,000 hours

Material

Aluminium

CCT

3000K/4000K

Voltage

220-240V, 50/60Hz

Dimming

Non-Dim/Phase Dim/DALI

Accessories

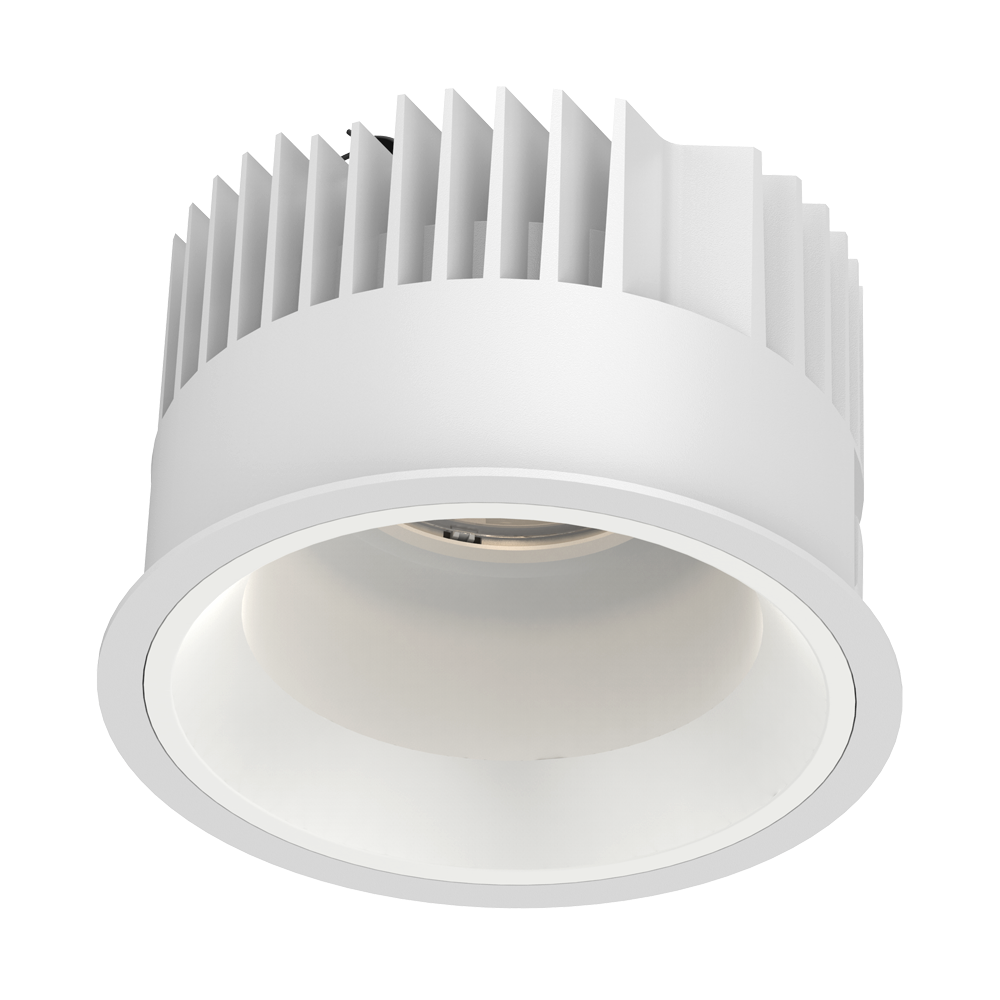

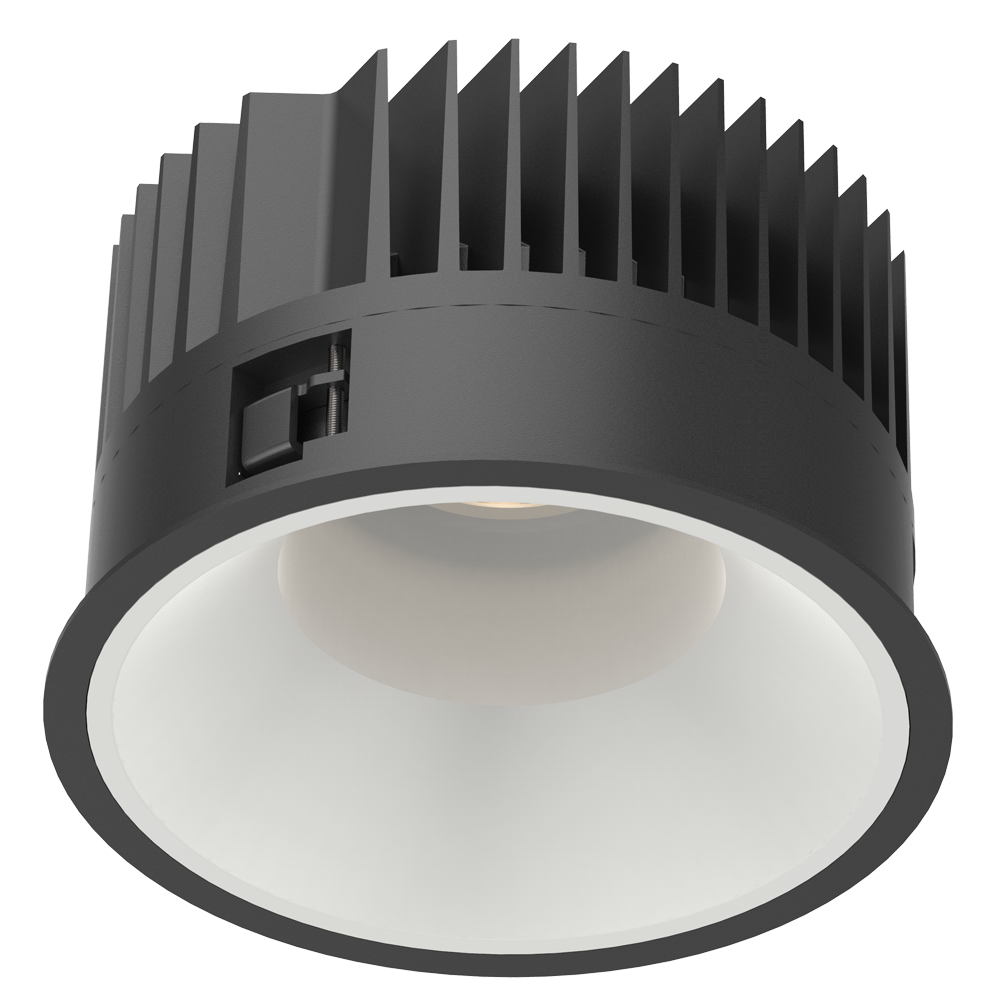

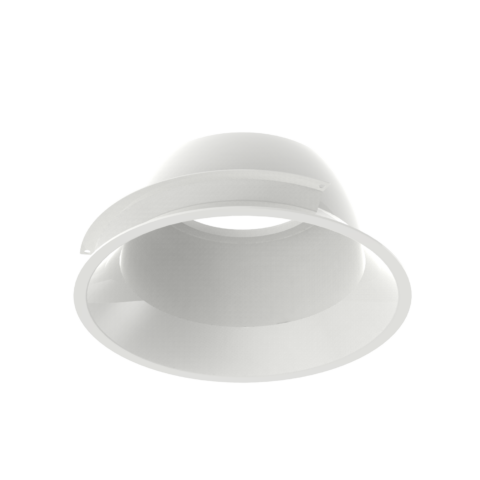

Lux Pro White Reflector

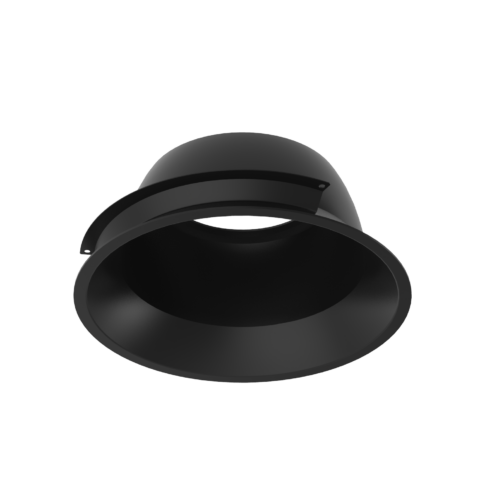

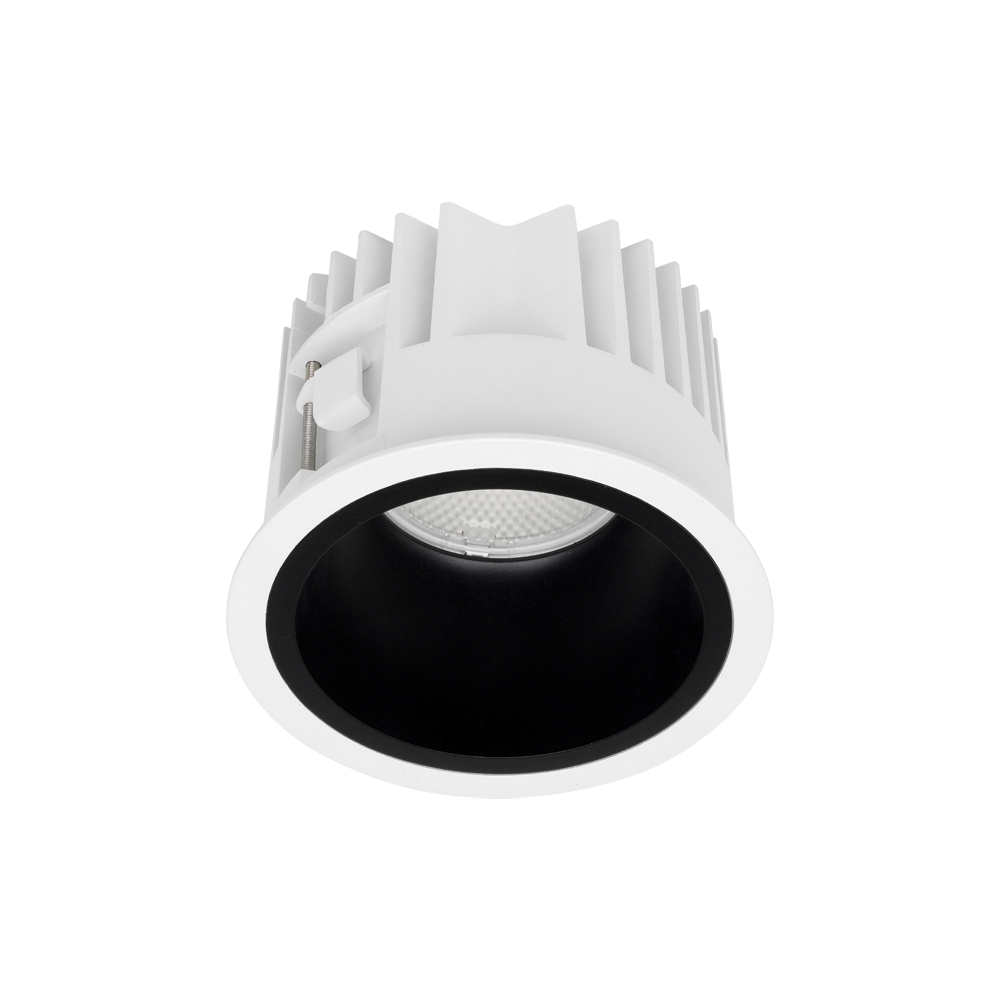

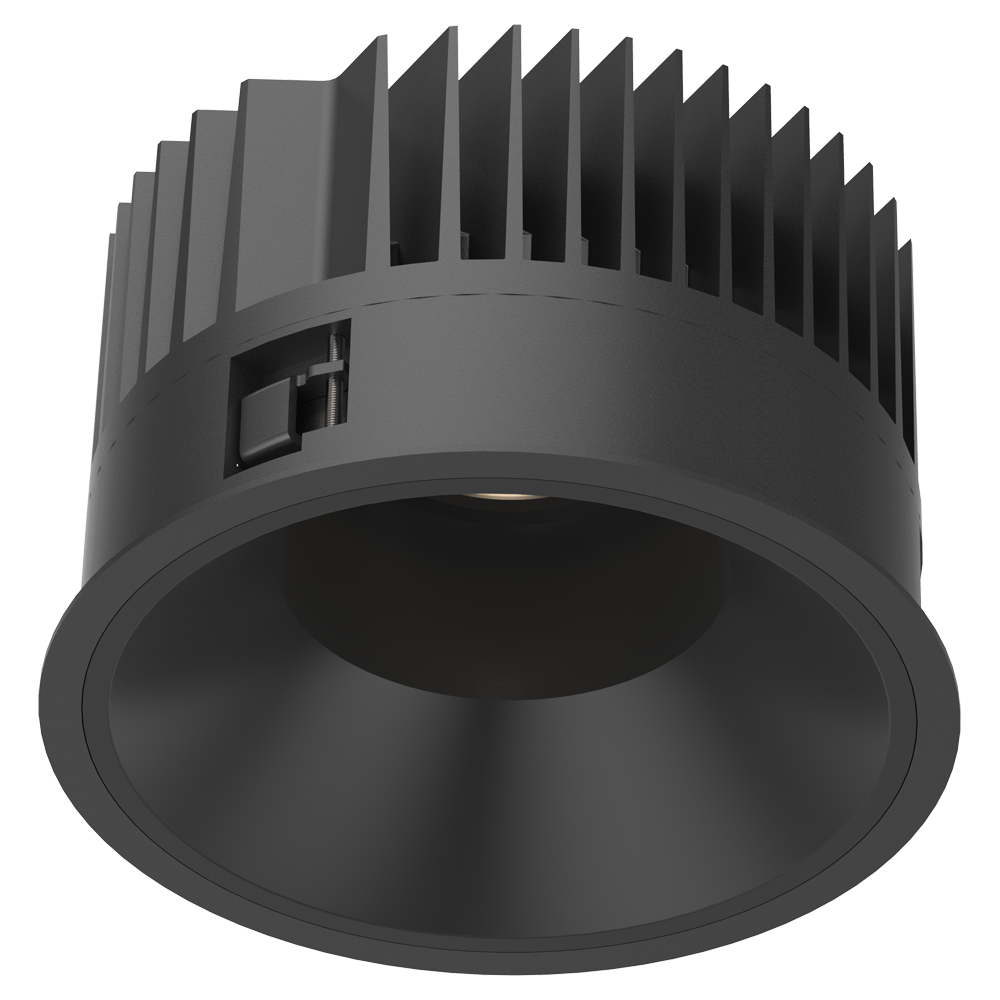

Lux Pro Black Reflector

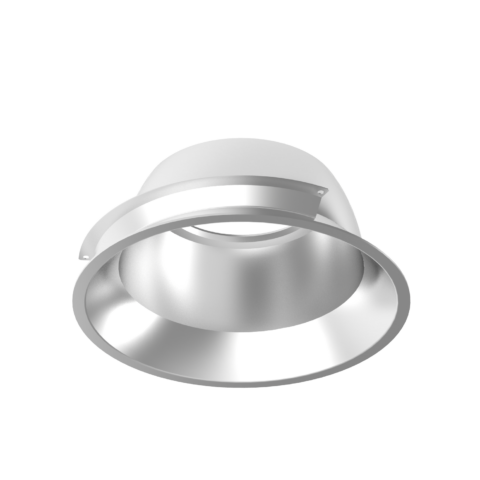

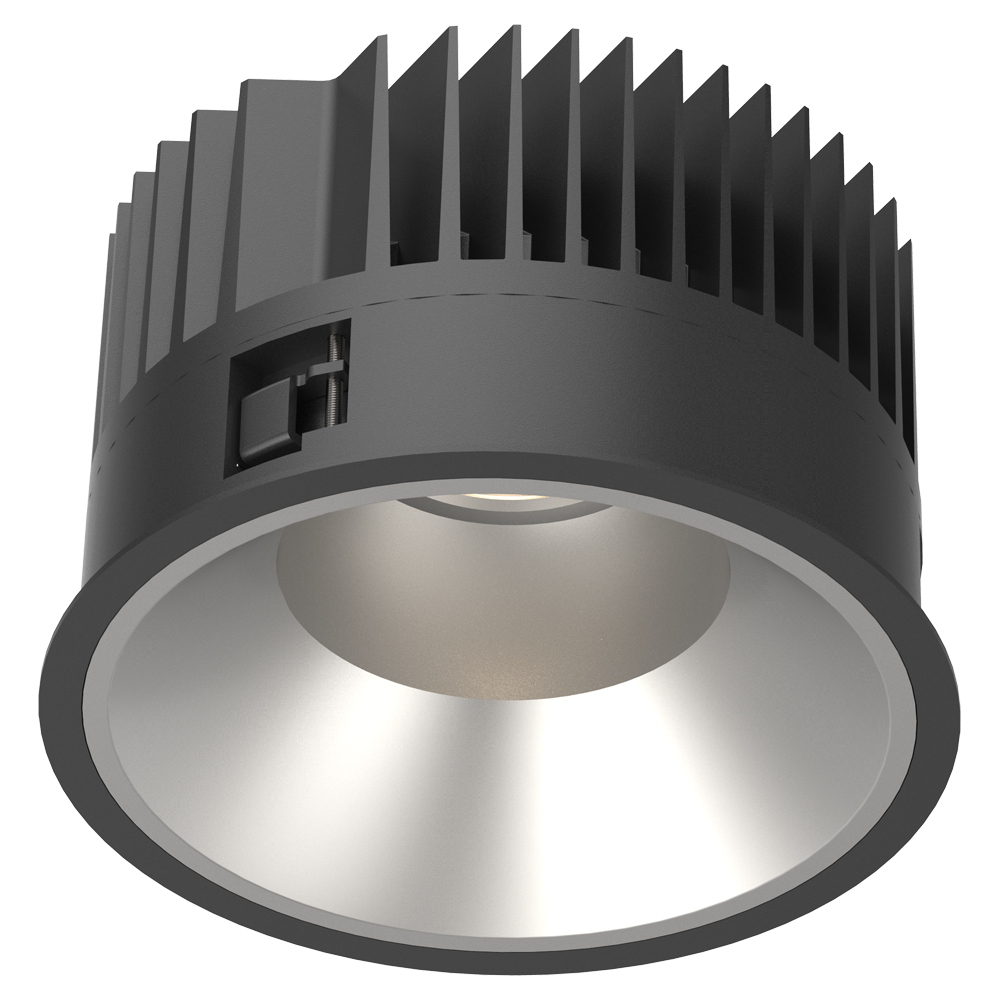

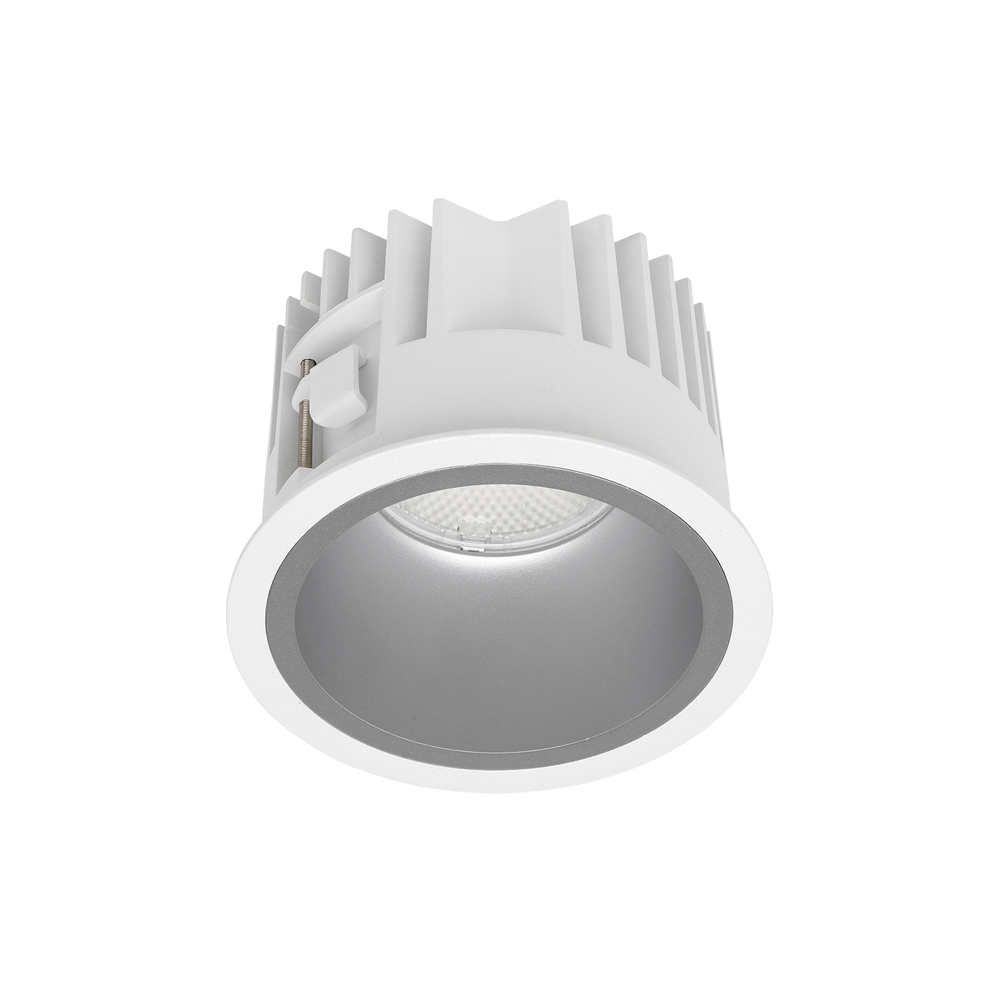

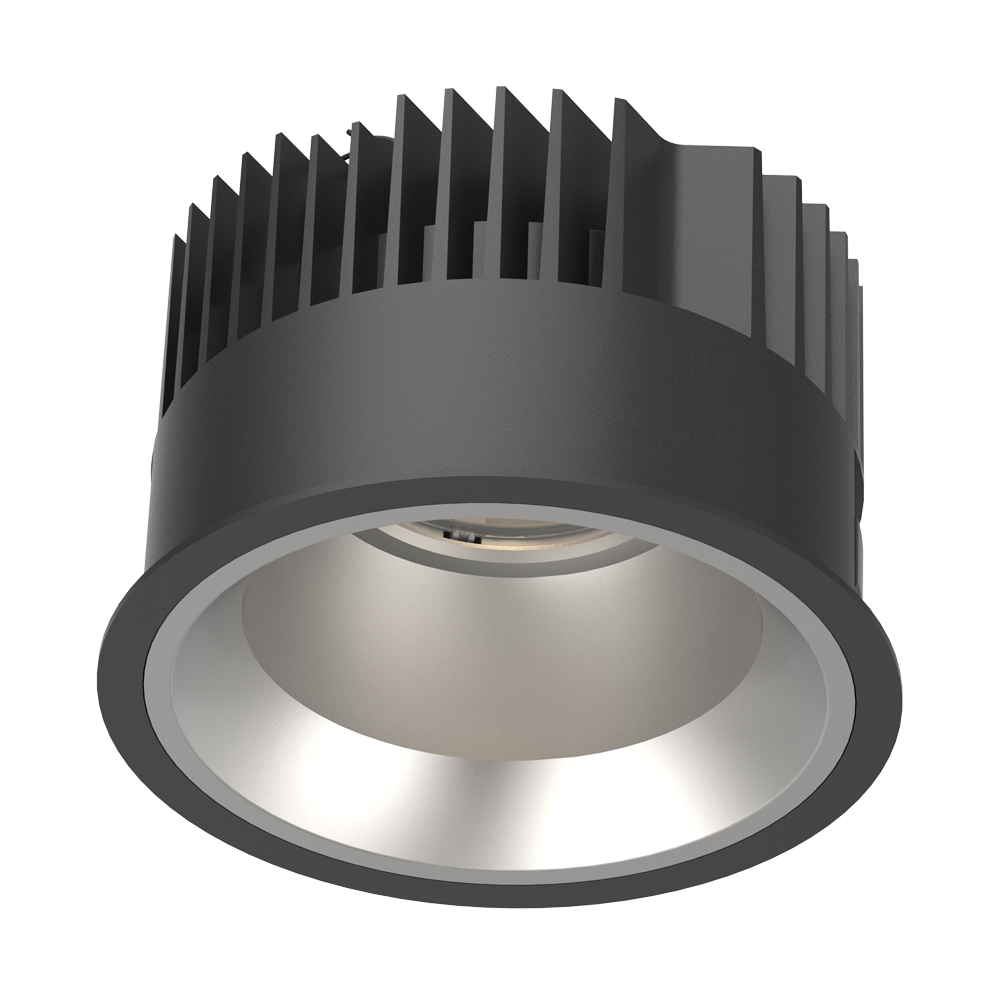

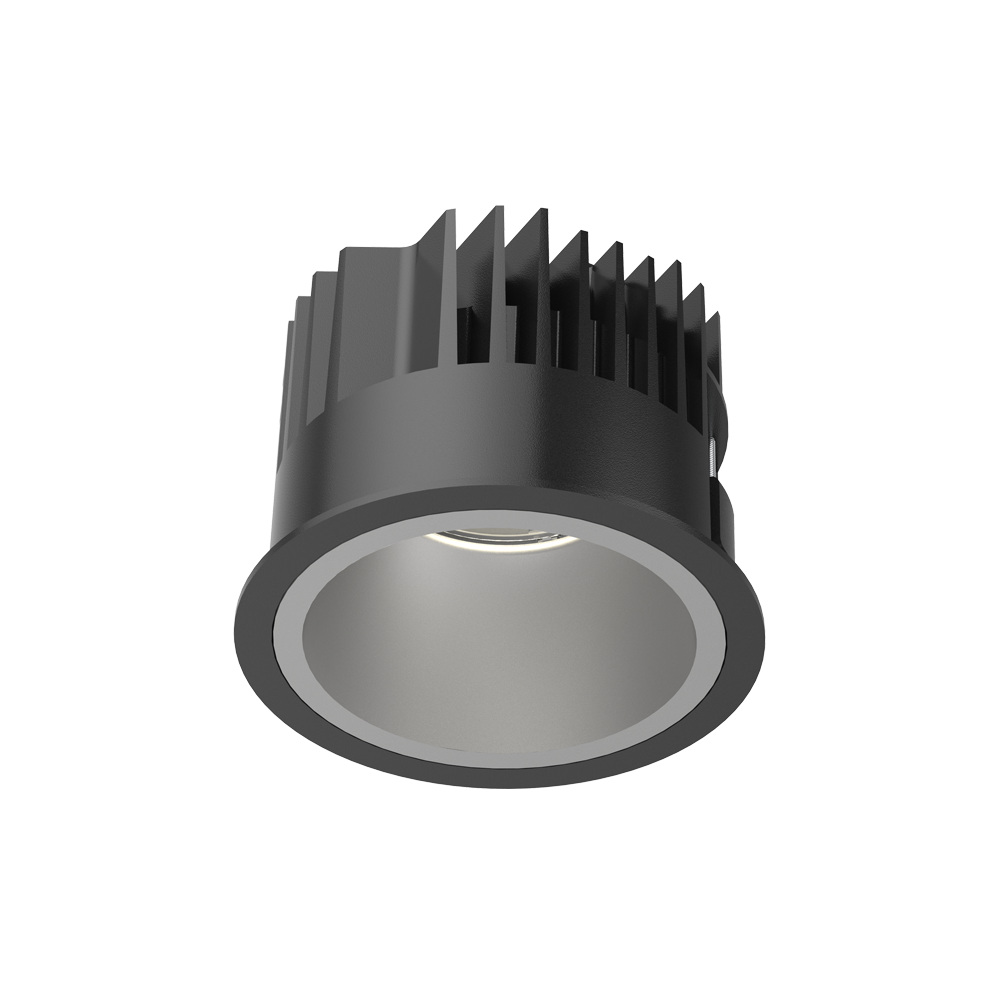

Lux Pro Aluminium Reflector
