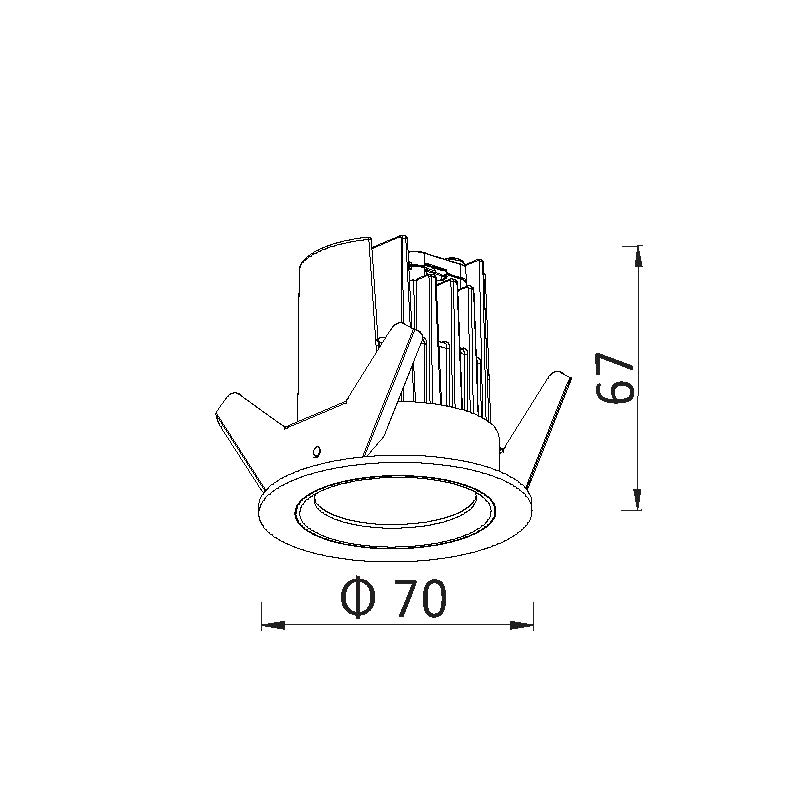

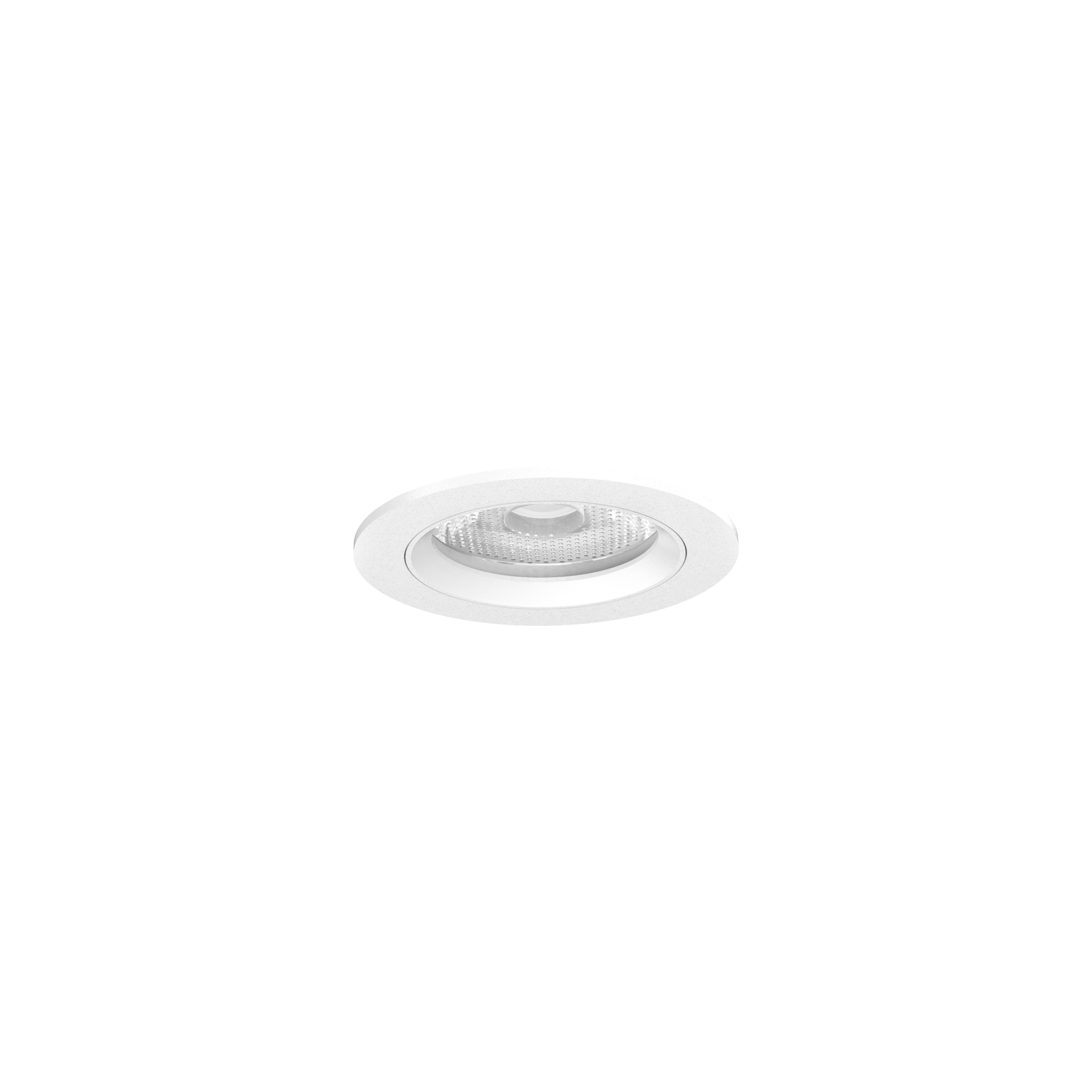

DR-LEGXS
Legend Downlight Extra Small
- Source Power:
- 5W | 9W
- System Power:
- 6W | 10W
- Source Lumens:
- Up to 1560lm
- System Lumens:
- Up to 1337lm
- Beam Angle:
- 20° | 25° | 37° | 62°
- Efficacy:
- Up to 138Lm/W
- Cut out:
- 60mm
Legend
Recessed Downlight

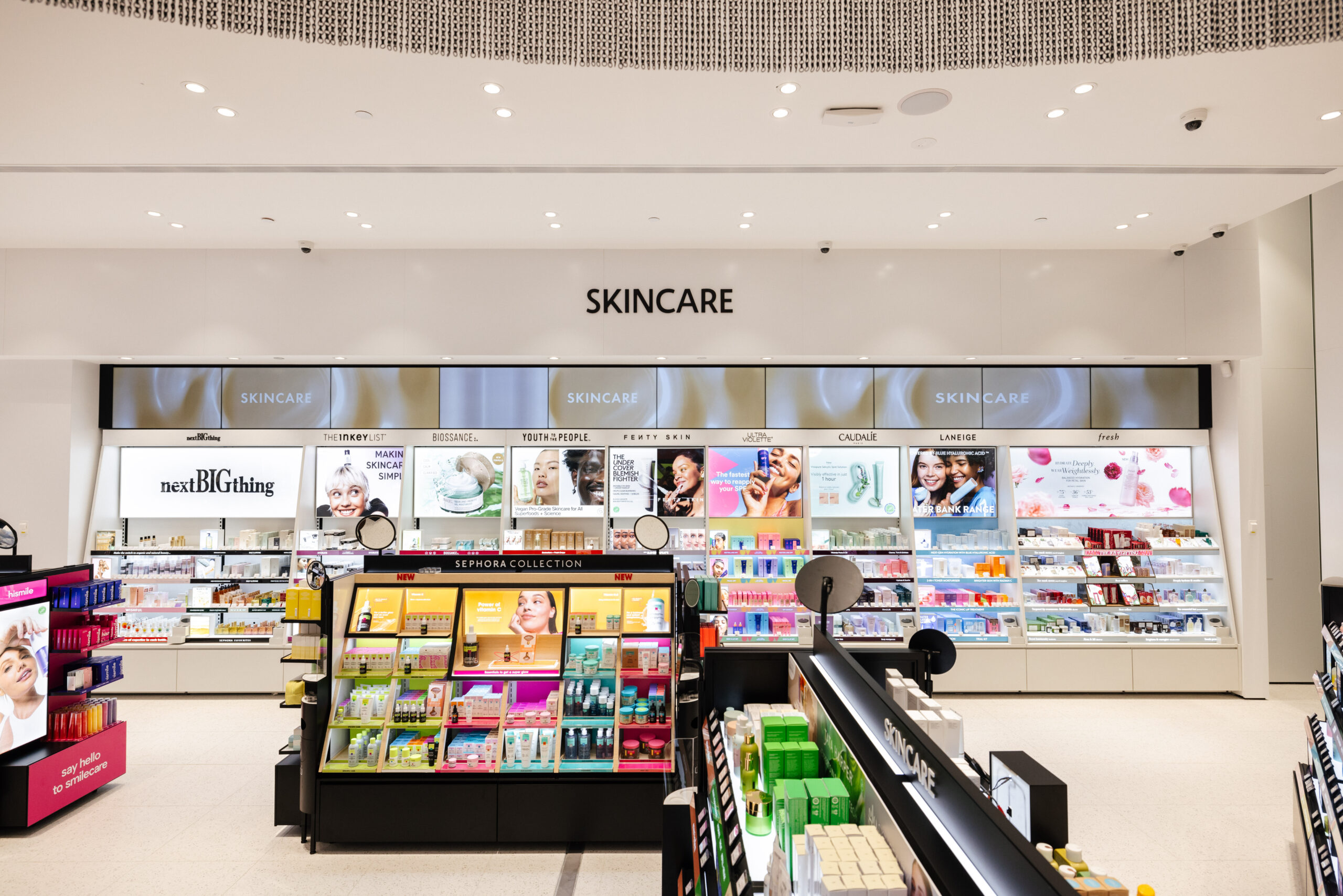

The Legend series is a high-performance fixed downlight suited to a wide range of commercial applications. Available in small and medium formats, the Legend delivers precise, consistent illumination with up to 165lm/W efficacy and outputs reaching 4400lm. Energy efficiency is a key component of our product focus, and the Legend series sits at the top of the performance scale, ensuring significant energy savings over many alternative solutions. Flicker-free as standard, with phase dimming, 0-10V and DALI2 and Casambi available upon request.
The Legend series is a high-performance fixed downlight suited to a wide range of commercial applications. Available in small and medium formats, the Legend delivers precise, consistent illumination with up to 165lm/W efficacy and outputs reaching 4400lm. Energy efficiency is a key component of our product focus, and the Legend series sits at the top of the performance scale, ensuring significant energy savings over many alternative solutions. Flicker-free as standard, with phase dimming, 0-10V and DALI2 and Casambi available upon request.
Models

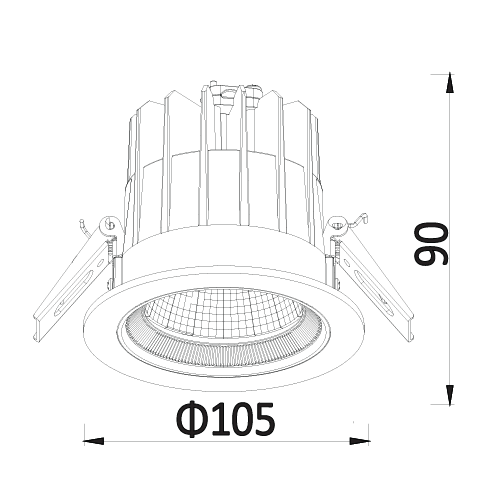

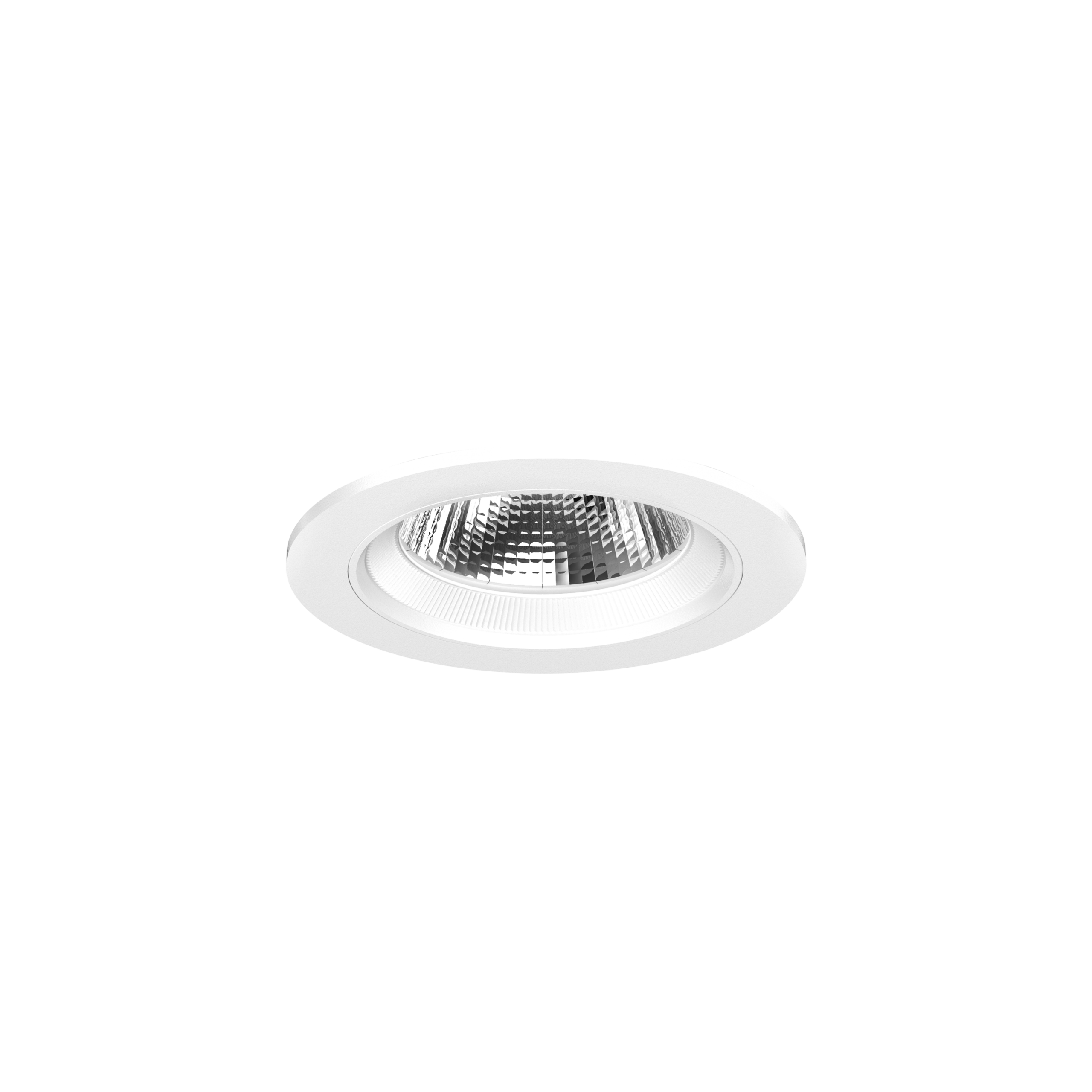

DR-LEGS
Legend Downlight Small
- Source Power:
- 11W | 18W | 23W
- System Power:
- 12W | 20W | 25W
- Source Lumens:
- Up to 3995lm
- System Lumens:
- Up to 3736lm
- Beam Angle:
- 19° | 23° | 41° | 61°
- Efficacy:
- Up to 165Lm/W
- Cut out:
- 95mm

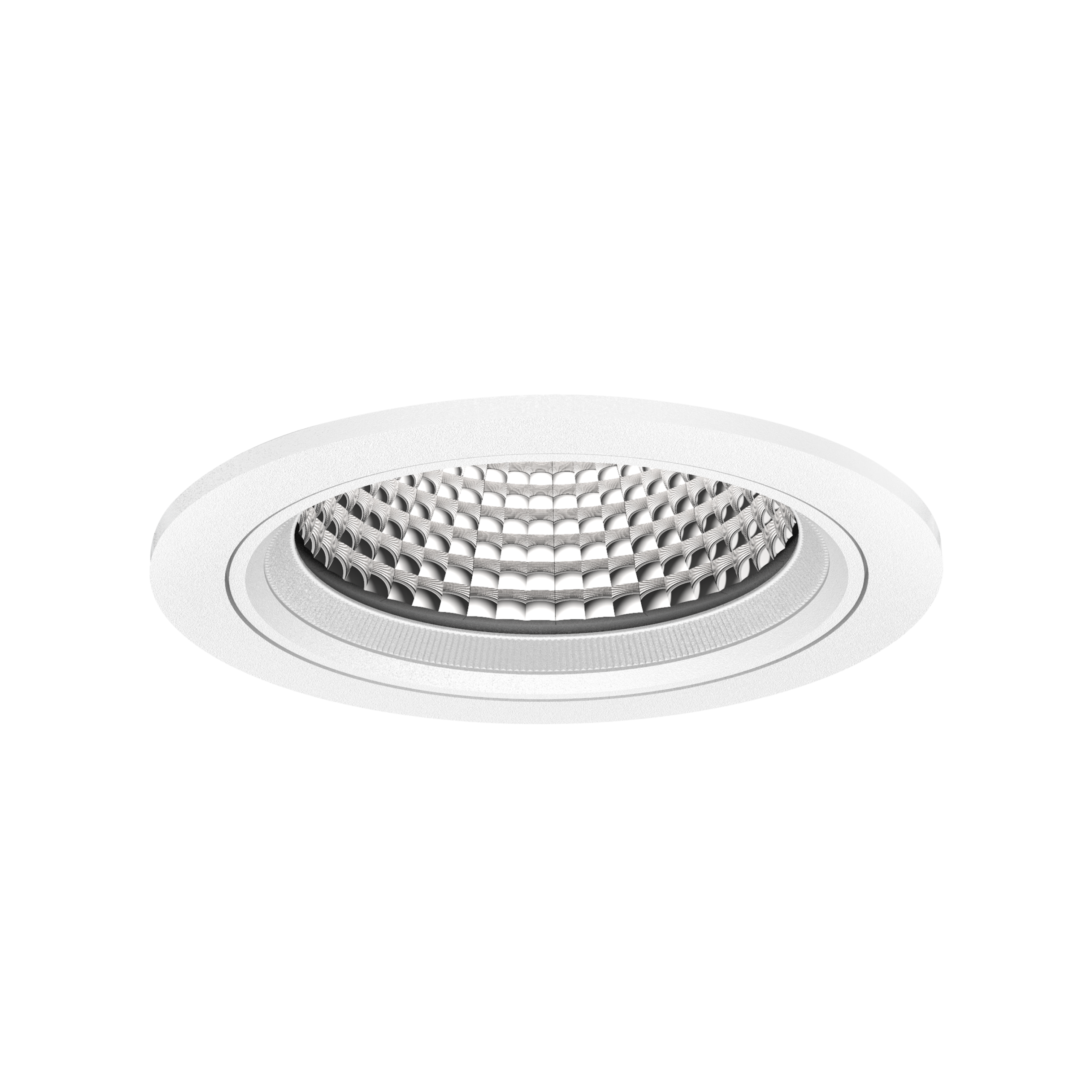

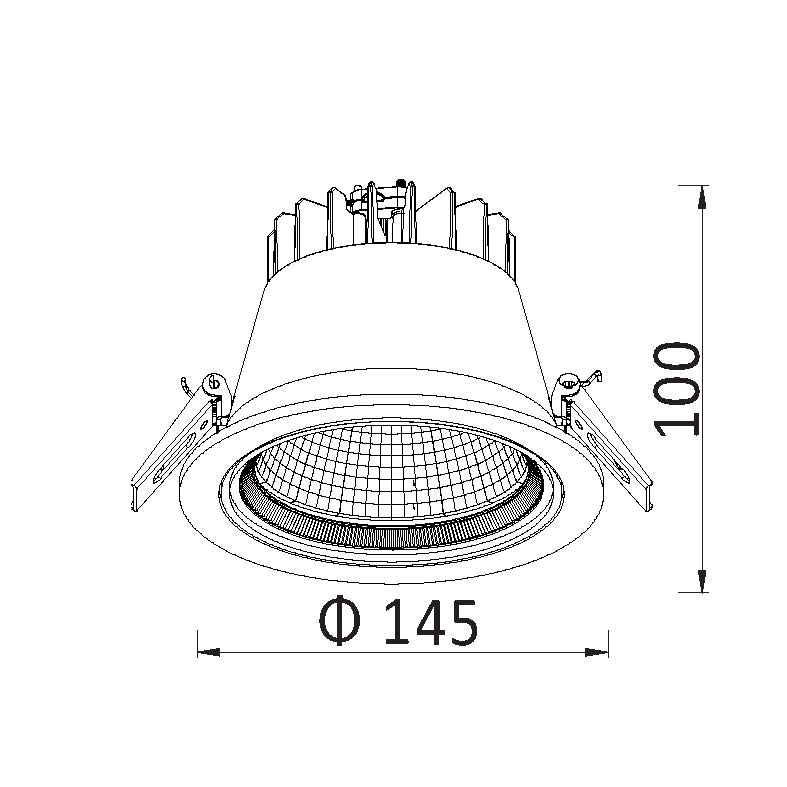

DR-LEGM
Legend Downlight Medium
- Source Power:
- 18W | 22W | 26W
- System Power:
- 20W | 24W | 28W
- Source Lumens:
- Up to 4540lm
- System Lumens:
- Up to 4330lm
- Beam Angle:
- 14° | 22° | 49° | 62°
- Efficacy:
- Up to 159Lm/W
- Cut out:
- 132mm
General Specifications
Finish
IP Rating
IP20
CRI
>90
Lifetime
L80 > 108,000 hrs
Material
Aluminium
CCT
2700K
3000K
3500K
4000K
Voltage
220-240V, 50/60Hz
Dimming
Switchable
DALI-2
0-10V
Triac
Casambi
Accessories
Honeycomb Louvre
Elliptical Optical Lens
Cross
