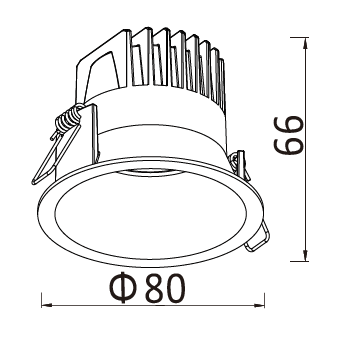

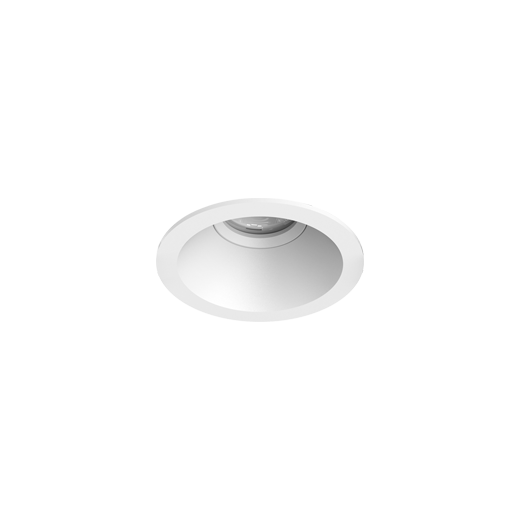

DR-A396
- Source Power:
- 7W / 12W
- System Power:
- 8W / 14W
- Source Lumens:
- Up to 1583Lm
- Delivered Lumens:
- Up to 1203Lm
- Beam Angle:
- 17°/23°/34°/44° 18°/25°/39°/52°
- Efficacy:
- Up to 81Lm/W
- Cut out:
- Ø68mm
VISI RECESSED DOWNLIGHT
Visi is an everyday downlight made for professional applications. Once recessed into the ceiling the Visi blends in effortlessly with its narrow trim and provides an anti-glare comfort light. However, trim size is no reflection on performance and Visi provides a full range of illumination levels in both fixed and adjustable design.
Energy efficiency is key and Visi series is at the top of the performance scale, ensuring significant energy savings over alternative solutions. CCT colours and dimming options are available on request.
Available as a recessed spot or downlight.
Visi is an everyday downlight made for professional applications. Once recessed into the ceiling the Visi blends in effortlessly with its narrow trim and provides an anti-glare comfort light. However, trim size is no reflection on performance and Visi provides a full range of illumination levels in both fixed and adjustable design.
Energy efficiency is key and Visi series is at the top of the performance scale, ensuring significant energy savings over alternative solutions. CCT colours and dimming options are available on request.
Available as a recessed spot or downlight.
Models

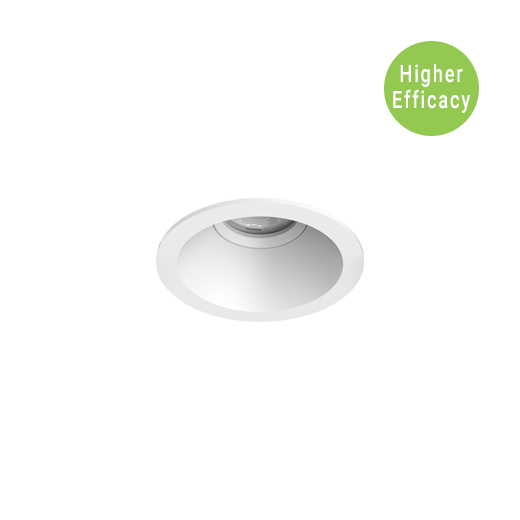

DR-A396 HE
- Source Power:
- 7W / 10W
- System Power:
- 9W / 12W
- Source Lumens:
- Up to 1423Lm
- Delivered Lumens:
- Up to 1144Lm
- Beam Angle:
- 20°/26°/40°/54°
- Efficacy:
- Up to 97Lm/W
- Cut out:
- Ø68mm

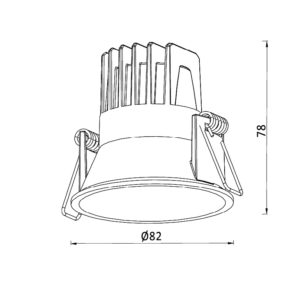

DR-A443
- Source Power:
- 6W / 12W
- System Power:
- 9W / 14W
- Source Lumens:
- Up to 1564Lm
- Delivered Lumens:
- Up to 1323Lm
- Beam Angle:
- 14°19°26°43° 21°32°42°51°
- Efficacy:
- Up to 105Lm/W
- Cut out:
- Ø75mm

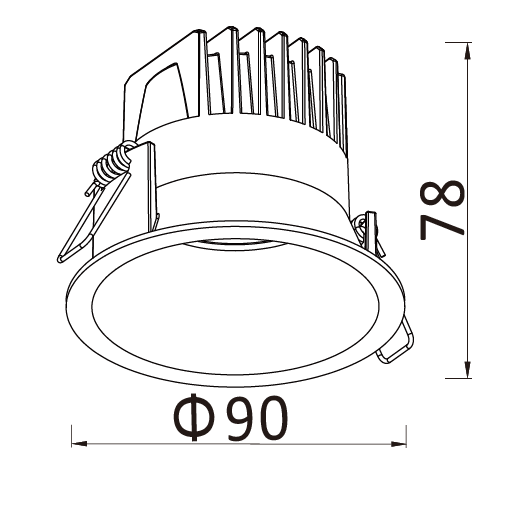

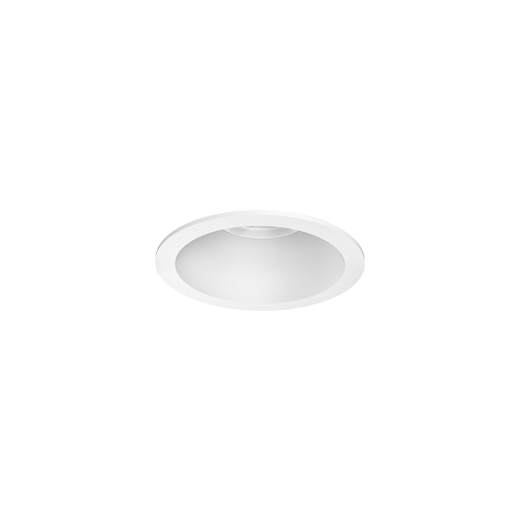

DR-A397
- Source Power:
- 7W / 12W
- System Power:
- 8W / 14W
- Source Lumens:
- Up to 1586Lm
- Delivered Lumens:
- Up to 1323Lm
- Beam Angle:
- 14°19°26°43° 21°32°42°51°
- Efficacy:
- Up to 100Lm/W
- Cut out:
- Ø75mm

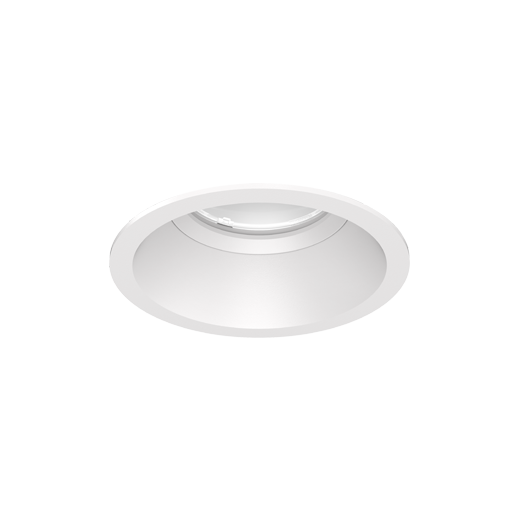

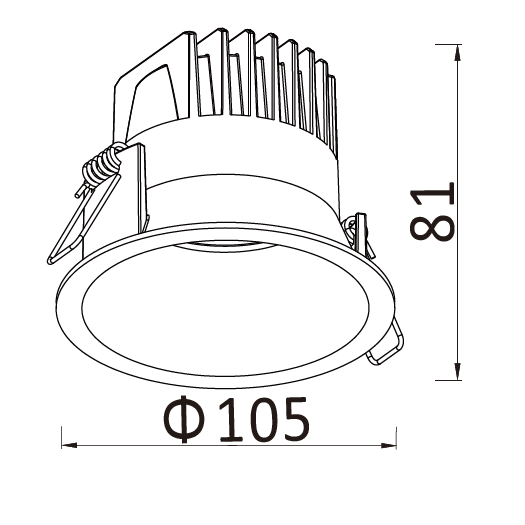

DR-A413
- Source Power:
- 12W / 17W / 25W
- System Power:
- 14W / 19W / 27W
- Source Lumens:
- Up to 3107Lm
- Delivered Lumens:
- Up to 2662Lm
- Beam Angle:
- 15°29°48°51° 20°34°53°60° 20°33°53°59°
- Efficacy:
- Up to 102Lm/W
- Cut out:
- Ø95mm

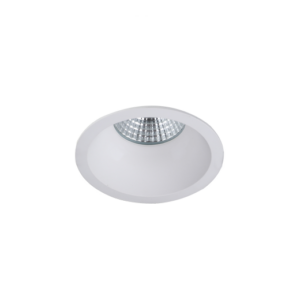

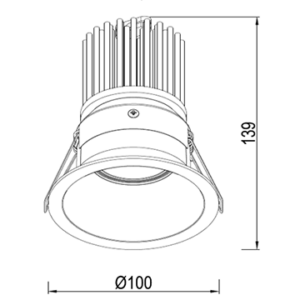

DR-A230
- Source Power:
- 6W / 12W / 18W
- System Power:
- 8W / 14W / 20W
- Source Lumens:
- Up to 2269Lm
- Delivered Lumens:
- Up to 1461Lm
- Beam Angle:
- 23°/28°/33° 37°/42°/46°
- Efficacy:
- Up to 85Lm/W
- Cut out:
- Ø90mm

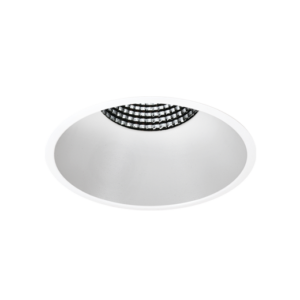

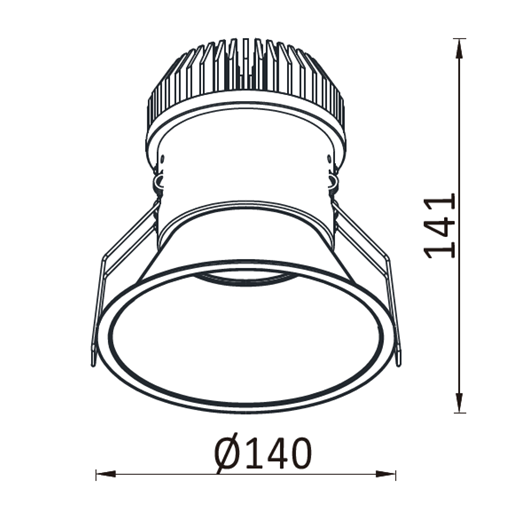

DR-A074
- System Power:
- 20W / 26W / 36W
- Source Lumens:
- Up to 3985Lm
- Delivered Lumens:
- Up to 3240Lm
- Beam Angle:
- 15°20°41°57° 16°19°41°56° 16°19°42°56°
- Efficacy:
- Up to 100Lm/W
- Cut out:
- Ø130mm

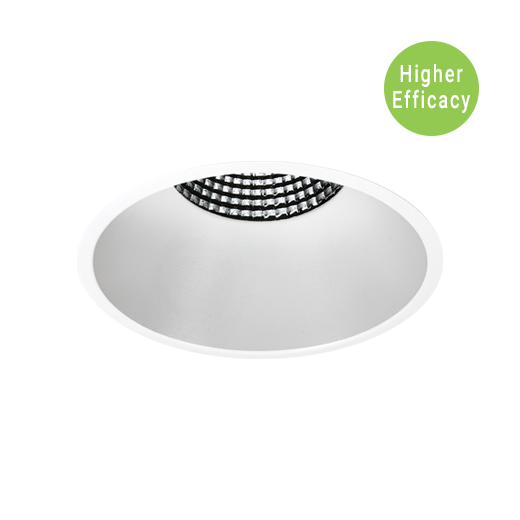

DR-A074 HE
- System Power:
- 14W / 24W / 27W
- Source Lumens:
- Up to 3849Lm
- Delivered Lumens:
- Up to 3139Lm
- Beam Angle:
- 14°19°42°60° 14°19°42°56° 16°22°43°59°
- Efficacy:
- Up to 118Lm/W
- Cut out:
- Ø130mm

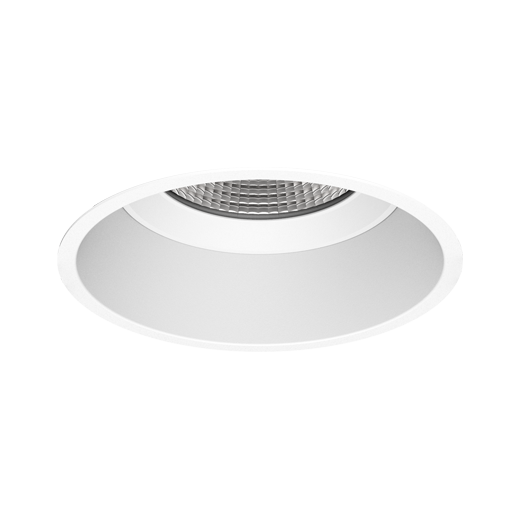

DR-A578
- Source Power:
- 17W / 25W / 32W / 36W
- System Power:
- 19W / 27W / 35W / 39W
- Source Lumens:
- Up to 4454Lm
- Delivered Lumens:
- Up to 4334Lm
- Beam Angle:
- 12°20°43°43° 12°20°43°59° 12°20°43°59° 13°20°43°59°
- Efficacy:
- Up to 92Lm/W
- Cut out:
- Ø155mm

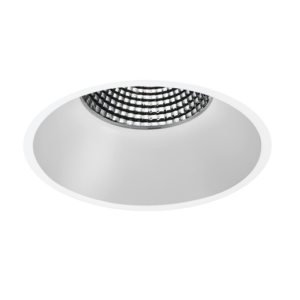

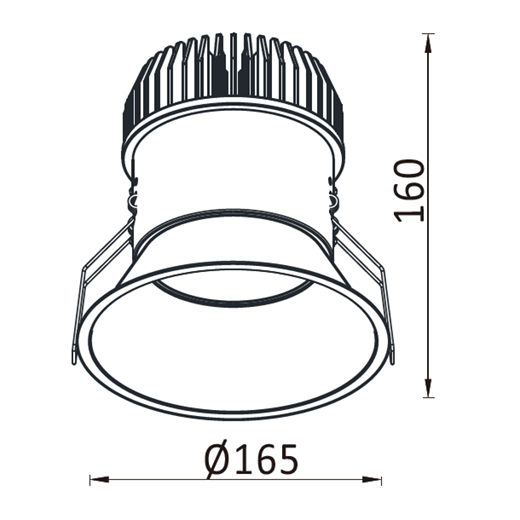

DR-A075
- System Power:
- 17W / 25W / 32W / 36W
- Source Lumens:
- Up to 4454Lm
- Delivered Lumens:
- Up to 4095Lm
- Beam Angle:
- 10°20°45°60° 11°20°44°61° 11°21°44°61° 12°21°44°60°
- Efficacy:
- Up to 102Lm/W
- Cut out:
- Ø155mm
DR-A075 HE
- System Power:
- 14W / 23W / 27W / 36W
- Source Lumens:
- Up to 4672Lm
- Delivered Lumens:
- Up to 4231Lm
- Beam Angle:
- 12°20°44°59° 11°20°44°60° 13°21°45°59° 12°21°44°59°
- Efficacy:
- Up to 125Lm/W
- Cut out:
- Ø155mm

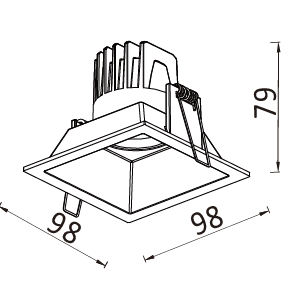

DR-A513
- Source Power:
- 7W / 12W
- System Power:
- 8W / 14W
- Source Lumens:
- Up to 1586Lm
- Delivered Lumens:
- Up to 1323Lm
- Beam Angle:
- 14°19°26°43° 21°32°42°51°
- Efficacy:
- Up to 100Lm/W
- Cut out:
- Ø78mm
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L80 (12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
L90 (12K) > 41,000 hrs (for HE)
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
Accessories
Honeycomb Louvre
Elliptical Optical Lens
Glass
