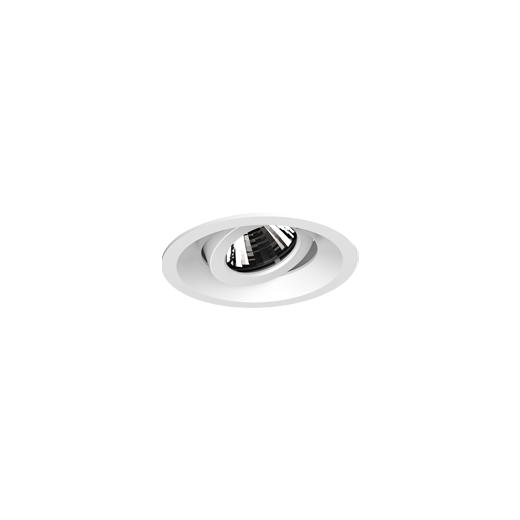

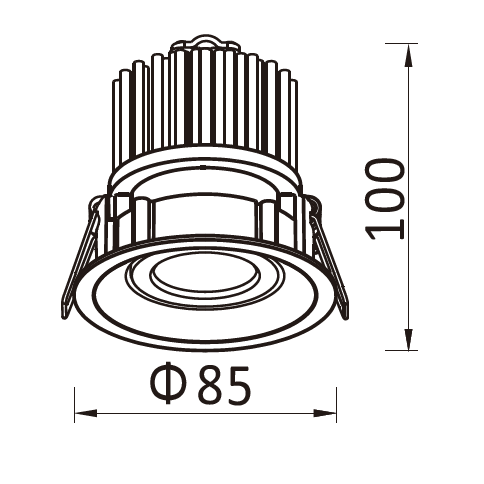

SR-EC13
- Source Power:
- 7W / 12W
- System Power:
- 8W / 14W
- Source Lumens:
- Up to 1586Lm
- Delivered Lumens:
- 1255Lm
- Beam Angle:
- 28°/46° 34°/52°
- Efficacy:
- Up to 90Lm/W
- Cut out:
- Ø75mm
- Tilt:
- 25°
ISABEL ADJUSTABLE DOWNLIGHT
Isabel is a compact luminaire for lower-level and more precise accenting. Available as a fixed or adjustable version, it is perfect for highlighting key elements of your design. CCT colours, a honeycomb louvre and a glass diffuser are optional. Phase dimmable with 0-10V and DALI available upon request.
Isabel is a compact luminaire for lower-level and more precise accenting. Available as a fixed or adjustable version, it is perfect for highlighting key elements of your design. CCT colours, a honeycomb louvre and a glass diffuser are optional. Phase dimmable with 0-10V and DALI available upon request.
Models

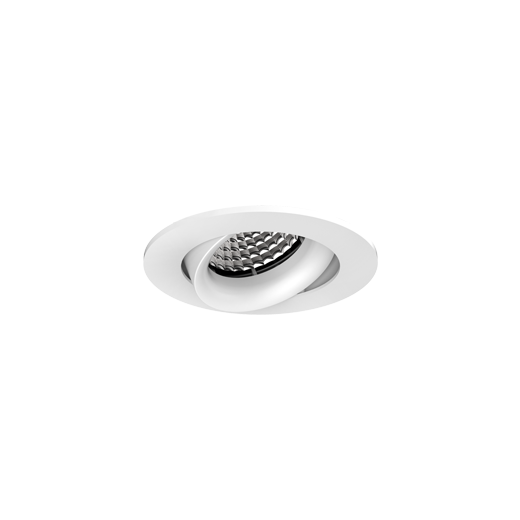

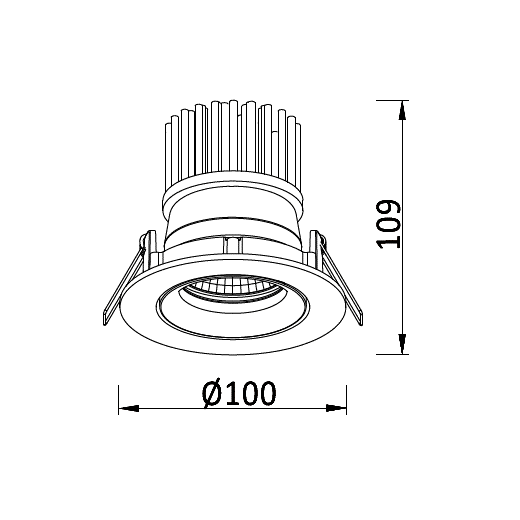

SR-EC15
- Source Power:
- 7W / 12W
- System Power:
- 8W / 14W
- Source Lumens:
- Up to 1586Lm
- Delivered Lumens:
- Up to 1165Lm
- Beam Angle:
- 22°/30°/36° 23°/30°/36°
- Efficacy:
- Up to 86Lm/W
- Cut out:
- Ø85mm
- Tilt:
- 25°

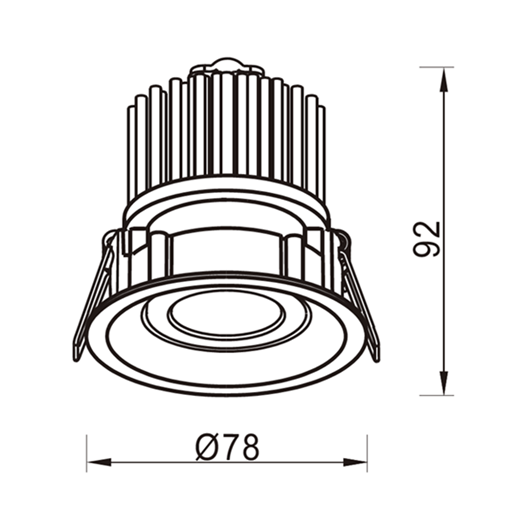

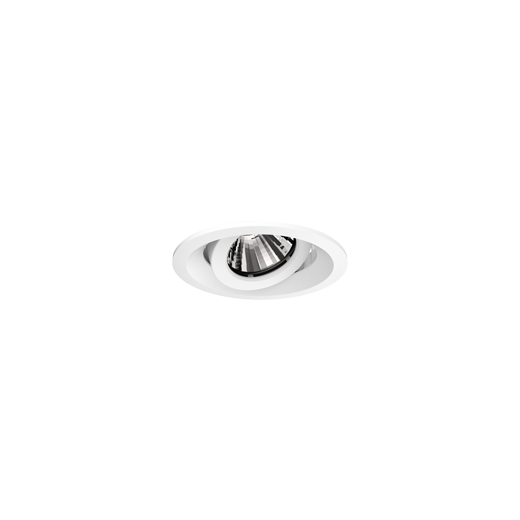

SR-A034
- Source Power:
- 7W / 12W
- System Power:
- 8W / 14W
- Source Lumens:
- Up to 1586Lm
- Delivered Lumens:
- Up to 1255Lm
- Beam Angle:
- 28°/46° 34°/52°
- Efficacy:
- Up to 90Lm/W
- Cut out:
- Ø68mm
- Tilt:
- 25°
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L80(12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
Material
Aluminium
CCT
3000K/4000K
Voltage
220-240V, 50Hz
Dimming
Available on request
Accessories
Honeycomb Louvre
Glass
