Description

DAVIS ANTI-LIGATURE DOWNLIGHT

The Davis is an anti-ligature downlight ideal for commercial and medical applications. Its deep reflector provides a perfect combination of high efficiency, comfortable lighting and a low glare design, without compromising on lighting performance. Available with special anti-theft screws, the Davis offers a high level of protection for a variety of spaces. A standard version is available.

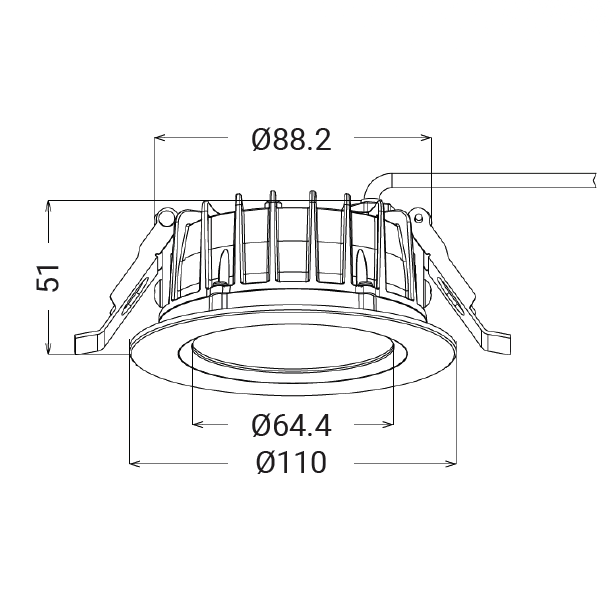

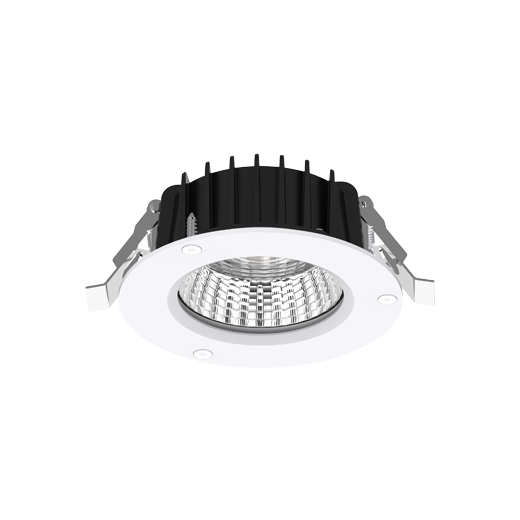

DR-DAV3
(Anti-Ligature)

System Power: 10W / 13W
Delivered Lumens: Up to 1355Lm
Beam Angle:  24°/36°/60°
Efficacy:  Up to 106Lm/W
Cut out:  Ø95mm
Download:  Datasheet
IES Files

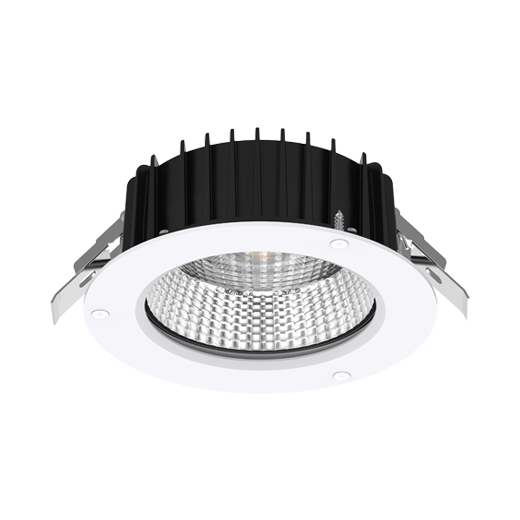

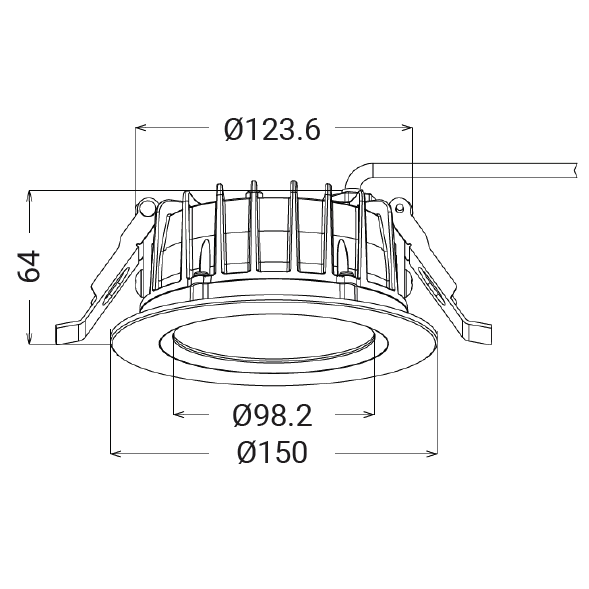

DR-DAV4
(Anti-Ligature)

System Power: 18W / 25W
Delivered Lumens: Up to 2695Lm
Beam Angle:  24°/38°/60°
Efficacy:  Up to 110Lm/W
Cut out:  Ø140mm
Download:  Datasheet
IES Files

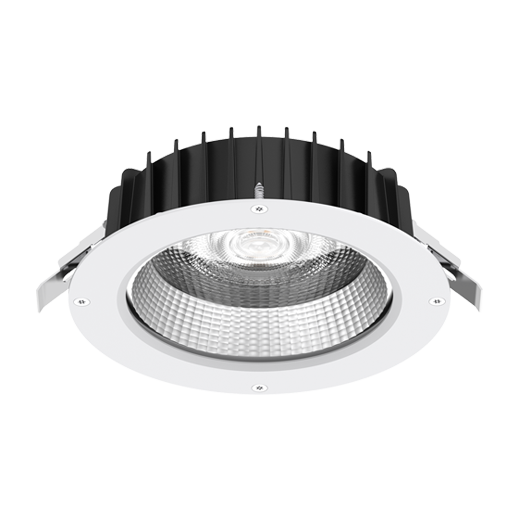

DR-DAV6
(Anti-Ligature)

System Power: 18W / 25W / 30W
Delivered Lumens: Up to 3238Lm
Beam Angle:  24°/38°/60°
Efficacy:  Up to 111Lm/W
Cut out:  Ø165mm
Download:  Datasheet
IES Files

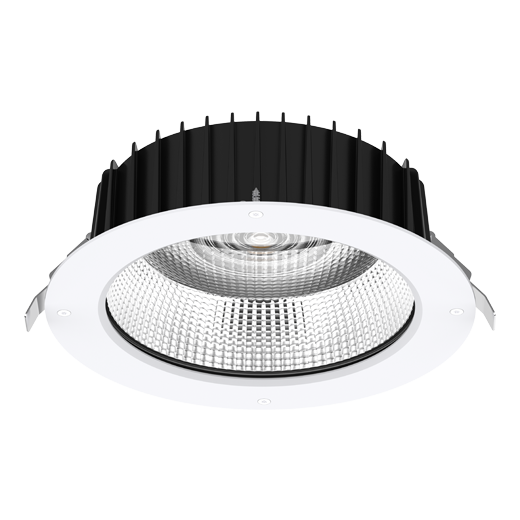

DR-DAV8
(Anti-Ligature)

System Power: 18W / 25W / 35W
Delivered Lumens: Up to 3720Lm
Beam Angle:  24°/38°/60°
Efficacy:  Up to 112Lm/W
Cut out:  Ø220mm
Download:  Datasheet
IES Files

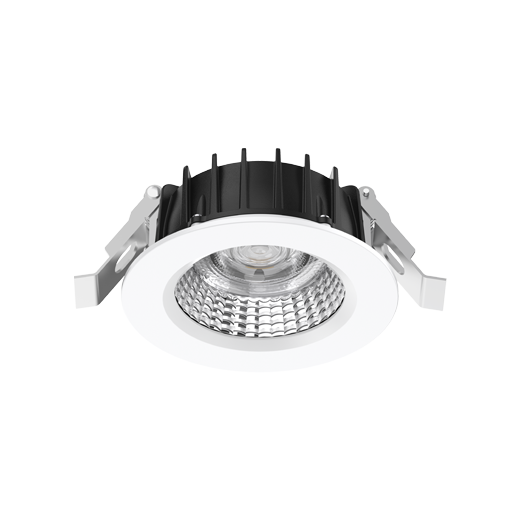

DR-DAV3
(Standard)

System Power: 10W / 13W
Delivered Lumens: Up to 1355Lm
Beam Angle:  24°/36°/60°
Efficacy:  Up to 106Lm/W
Cut out:  Ø95mm
Download:  Datasheet
IES Files

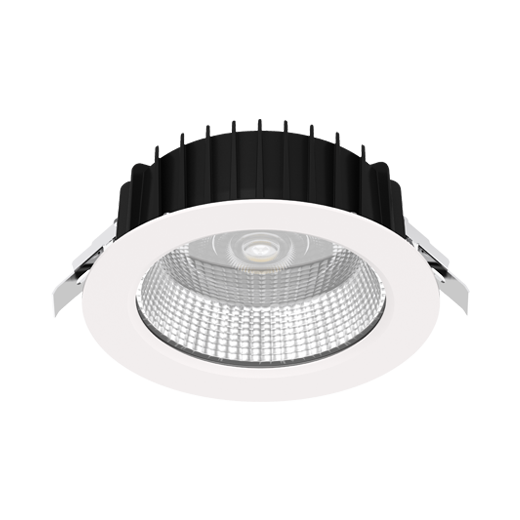

DR-DAV4
(Standard)

System Power: 18W / 25W
Delivered Lumens: Up to 2695Lm
Beam Angle:  24°/38°/60°
Efficacy:  Up to 110Lm/W
Cut out:  Ø140mm
Download:  Datasheet
IES Files

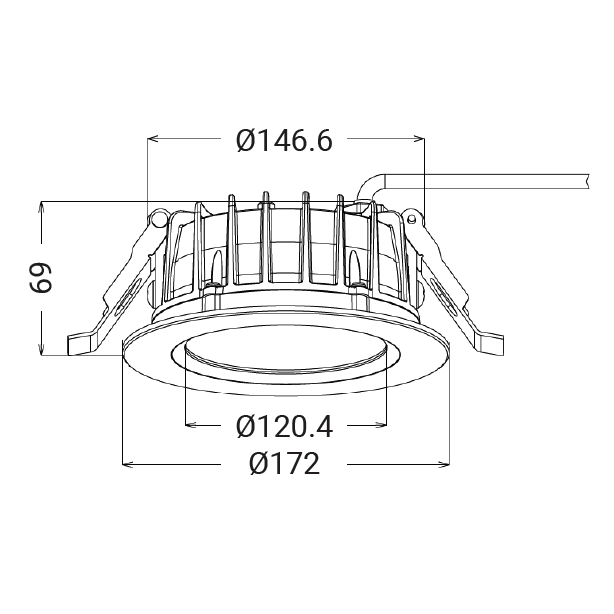

DR-DAV6
(Standard)

System Power: 18W / 25W / 30W
Delivered Lumens: Up to 3238Lm
Beam Angle:  24°/38°/60°
Efficacy:  Up to 111Lm/W
Cut out:  Ø165mm
Download:  Datasheet
IES Files

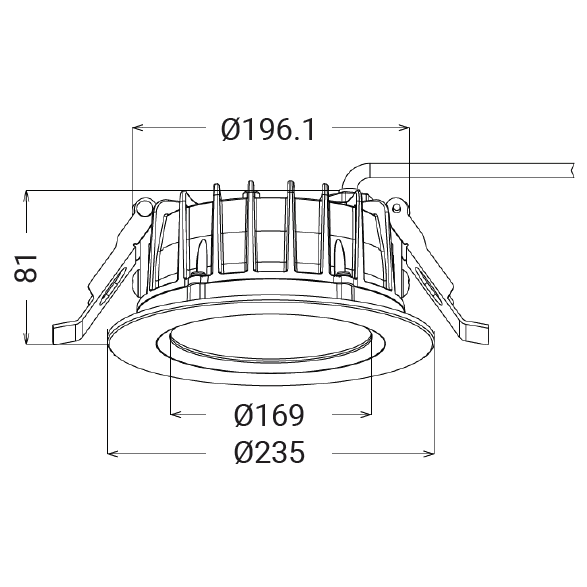

DR-DAV8
(Standard)

System Power: 18W / 25W / 35W
Delivered Lumens: Up to 3720Lm
Beam Angle:  24°/38°/60°
Efficacy:  Up to 112Lm/W
Cut out:  Ø220mm
Download:  Datasheet
IES Files

Finish Black/White Material Aluminium
IP Rating IP65 CCT  3000K/4000K
CRI >80/>90 Voltage 220-240V
Lifetime >55,000 hours (L80B50) Dimming Available on request
