Description

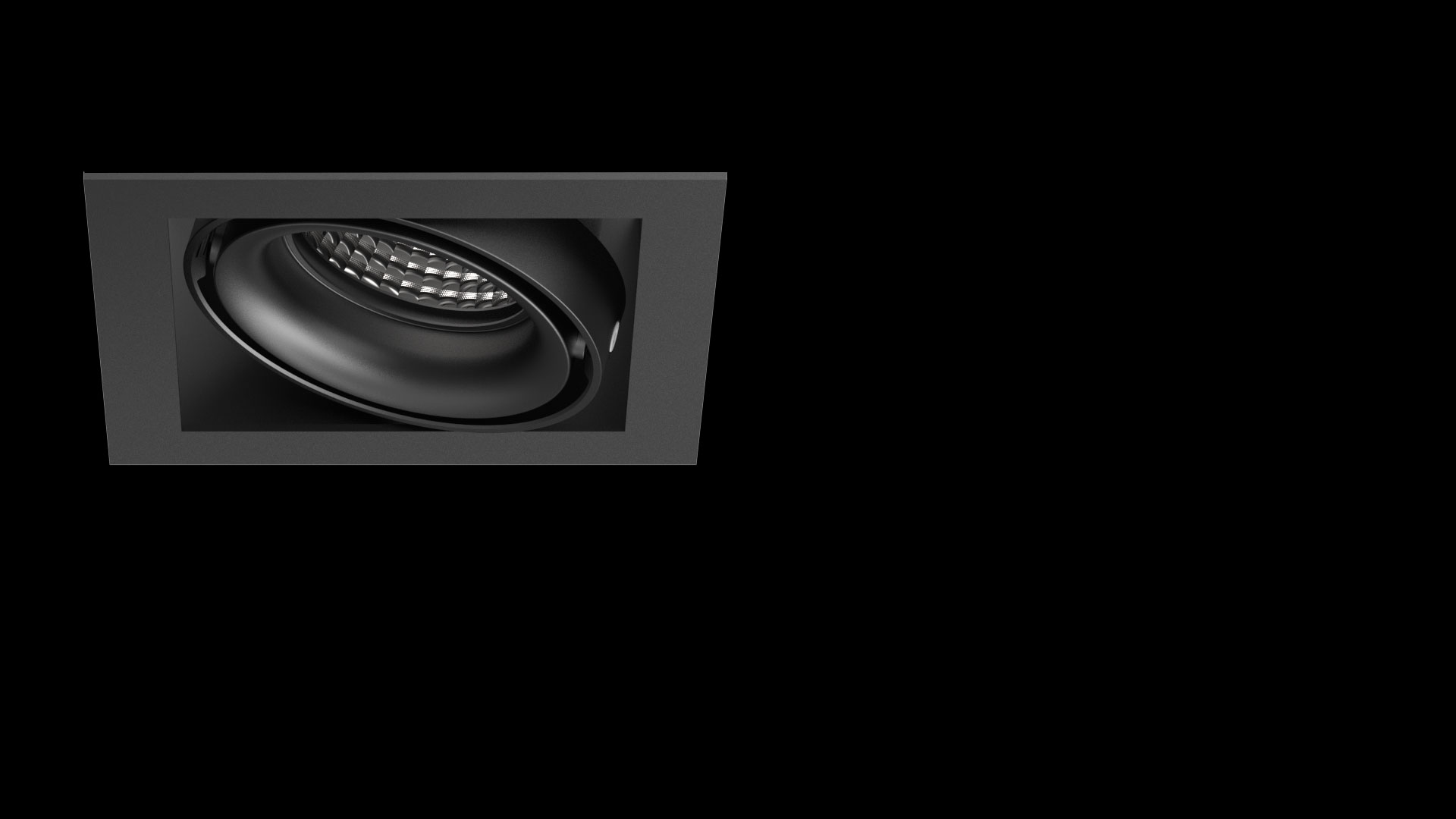

MAGIC BOX ADJUSTABLE DOWNLIGHT

The Magic Box series is available as a single, double, triple and 4 lamp configuration for all commercial applications. It provides availability for high lumen output, a varied reflector range for different beam angles and safety glass.

Energy efficiency is a key component of our product focus and the Magic Box series will ensure significant energy savings over traditional solutions.

SR-EY54

Source Power: 17W / 12W
System Power: 8W / 14W
Source Lumens: Up to 1586Lm
Delivered Lumens: Up to 1026Lm
Beam Angle:  22°32°39°
21°32°38°
Efficacy:  Up to 75Lm/W
Cut out:  97x97mm
Tilt:  30°
Downloads Datasheet
IES Files

SR-EY54-2

Source Power: 2X17W / 2X12W
System Power: 2X8W / 2X14W
Source Lumens: Up to 2X1586Lm
Delivered Lumens: Up to 2X1026Lm
Beam Angle:  22°32°39°
21°32°38°
Efficacy:  Up to 2X75Lm/W
Cut out:  202x97mm
Tilt:  30°
Downloads Datasheet

SR-EY54-3

Source Power: 3X17W / 3X12W
System Power: 3X8W / 3X14W
Source Lumens: Up to 3X1586Lm
Delivered Lumens: Up to 3X1026Lm
Beam Angle:  22°32°39°
21°32°38°
Efficacy:  Up to 3X75Lm/W
Cut out:  297x97mm
Tilt:  30°
Downloads Datasheet

SR-EY54-4

Source Power: 4X17W / 4X12W
System Power: 4X8W / 4X14W
Source Lumens: Up to 4X1586Lm
Delivered Lumens: Up to 4X1026Lm
Beam Angle:  22°32°39°
21°32°38°
Efficacy:  Up to 4X75Lm/W
Cut out:  392x97mm
Tilt:  30°
Downloads Datasheet

SR-EY61

Source Power: 17W / 12W
System Power: 8W / 14W
Source Lumens: Up to 1586Lm
Delivered Lumens: Up to 1026Lm
Beam Angle:  22°32°39°
21°32°38°
Efficacy:  Up to 75Lm/W
Cut out:  121x121mm
Tilt:  30°
Downloads: Datasheet
IES Files

SR-EY61-2

Source Power: 2X17W / 2X12W
System Power: 2X8W / 2X14W
Source Lumens: Up to 2X1586Lm
Delivered Lumens: Up to 2X1026Lm
Beam Angle:  22°32°39°
21°32°38°
Efficacy:  Up to 2X75Lm/W
Cut out:  225x121mm
Tilt:  30°
Downloads: Datasheet

SR-EY61-3

Source Power: 3X17W / 3X12W
System Power: 3X8W / 3X14W
Source Lumens: Up to 3X1586Lm
Delivered Lumens: Up to 3X1026Lm
Beam Angle:  22°32°39°
21°32°38°
Efficacy:  Up to 3X75Lm/W
Cut out:  320x121mm
Tilt:  30°
Downloads: Datasheet

SR-EY61-4

Source Power: 4X17W / 4X12W
System Power: 4X8W / 4X14W
Source Lumens: Up to 4X1586Lm
Delivered Lumens: Up to 4X1026Lm
Beam Angle:  22°32°39°
21°32°38°
Efficacy:  Up to 4X75Lm/W
Cut out:  418x121mm
Tilt:  30°
Downloads: Datasheet

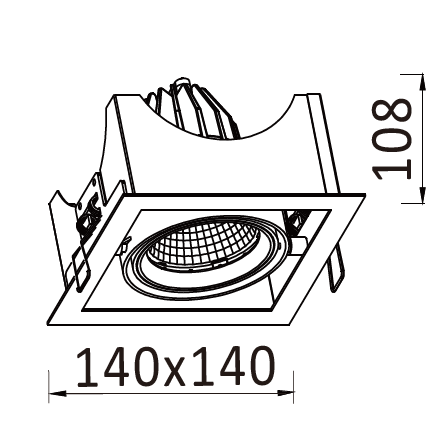

SR-C058

Source Power: 17W / 25W
System Power: 19W / 27W
Source Lumens: Up to 3107Lm
Delivered Lumens: Up to 2953Lm
Beam Angle:  15°22°36°60°
14°22°36°61°
Efficacy:  Up to 109Lm/W
Cut out:  130x130mm
Tilt:  30°
Downloads Datasheet
IES Files

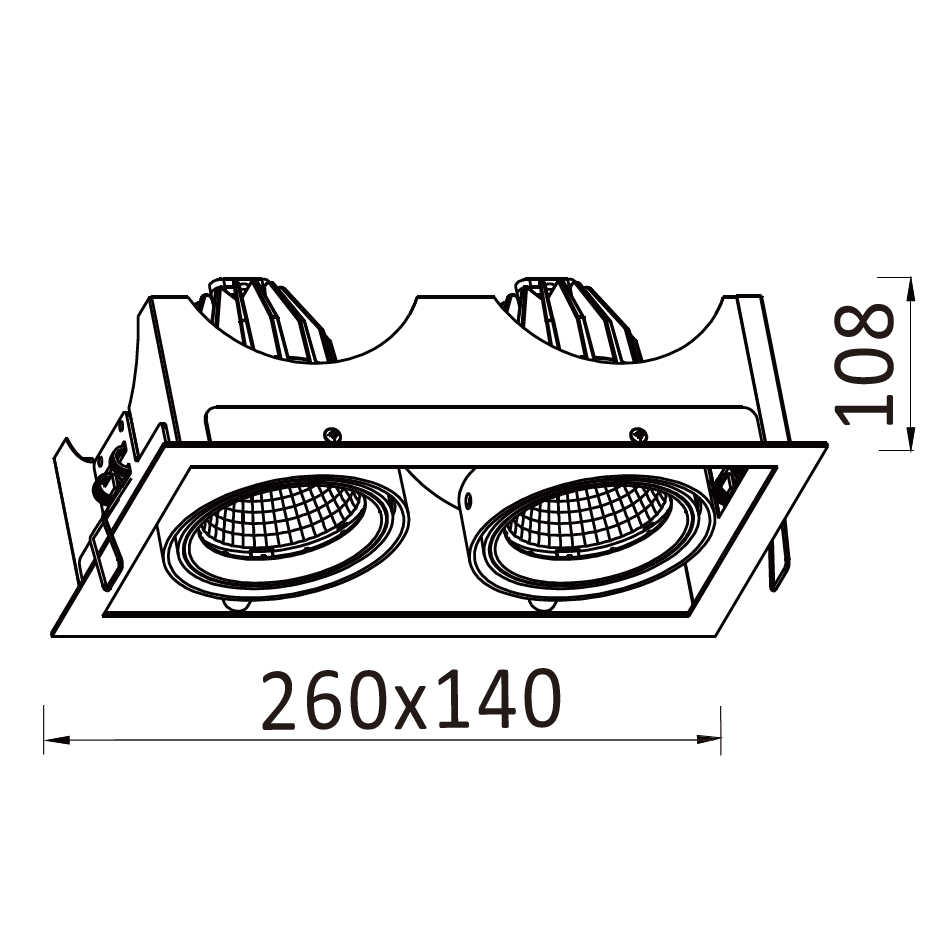

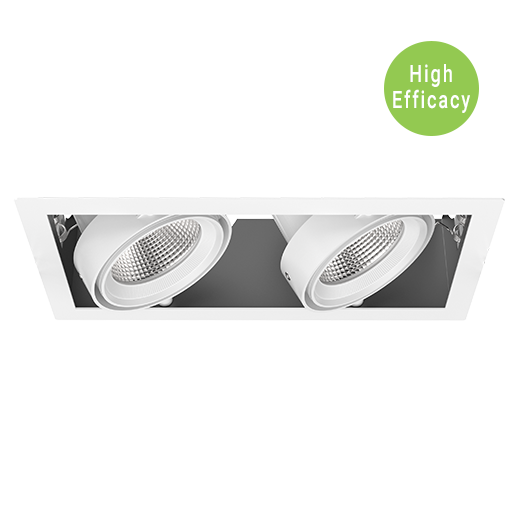

SR-C058-2

Source Power: 2X17W / 2X25W
System Power: 2X19W / 2X27W
Source Lumens: Up to 2X3107Lm
Delivered Lumens: Up to 2X2953Lm
Beam Angle:  15°22°36°60°
14°22°36°61°
Efficacy:  Up to 2X109Lm/W
Cut out:  250x130mm
Tilt:  30°
Downloads Datasheet

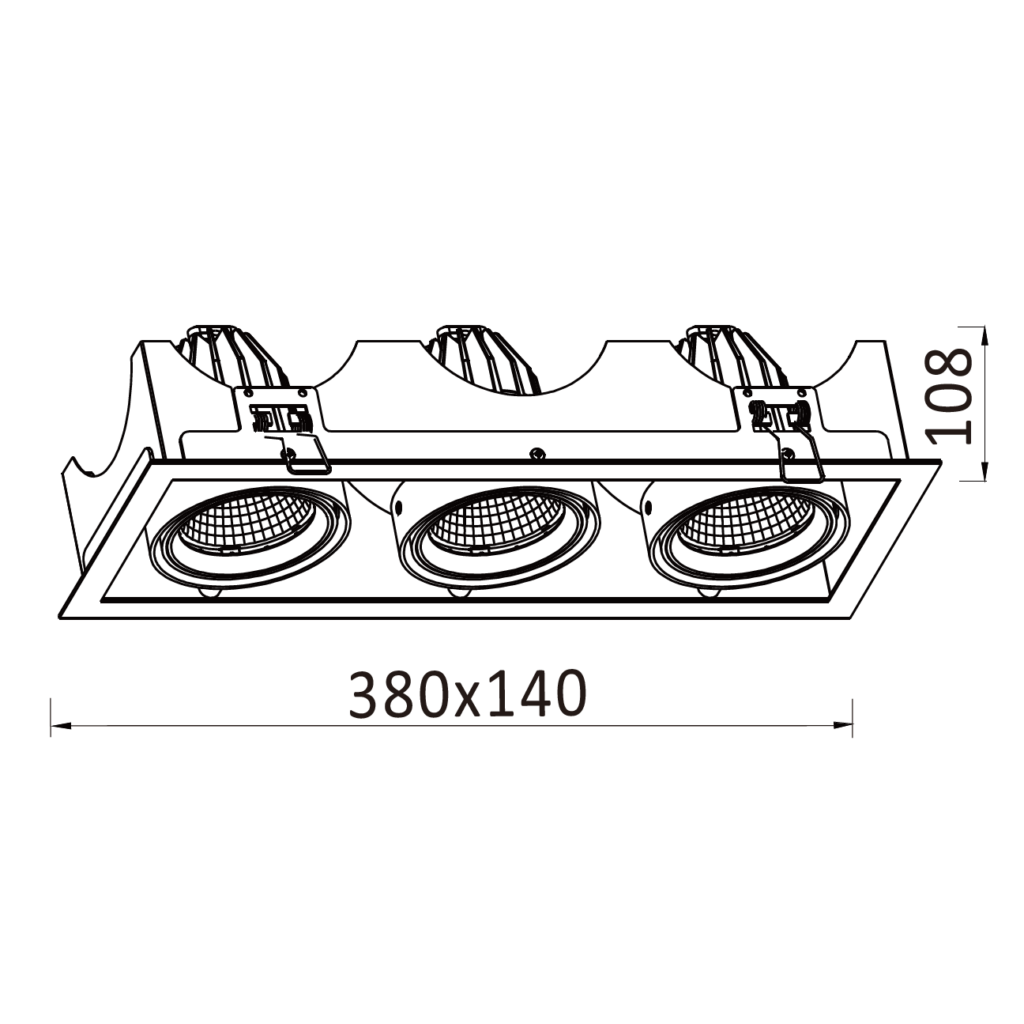

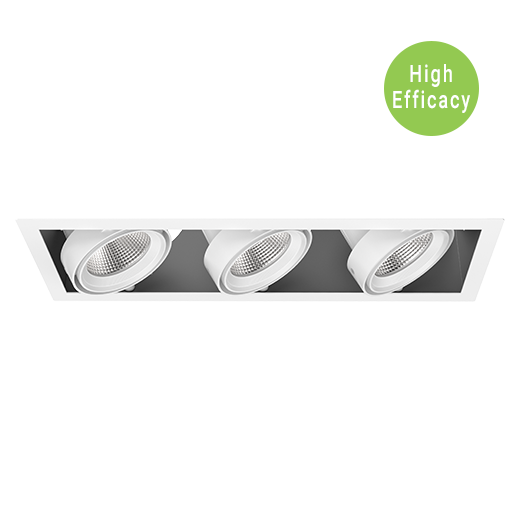

SR-C058-3

Source Power: 3X17W / 3X25W
System Power: 3X19W / 3X27W
Source Lumens: Up to 3X3107Lm
Delivered Lumens: Up to 3X2953Lm
Beam Angle:  15°22°36°60°
14°22°36°61°
Efficacy:  Up to 3X109Lm/W
Cut out:  370x130mm
Tilt:  30°
Downloads Datasheet

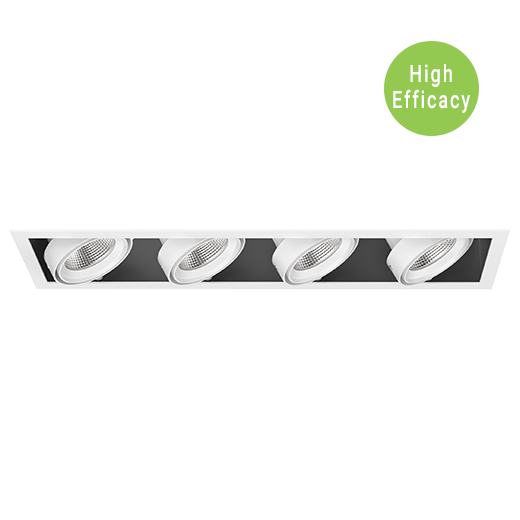

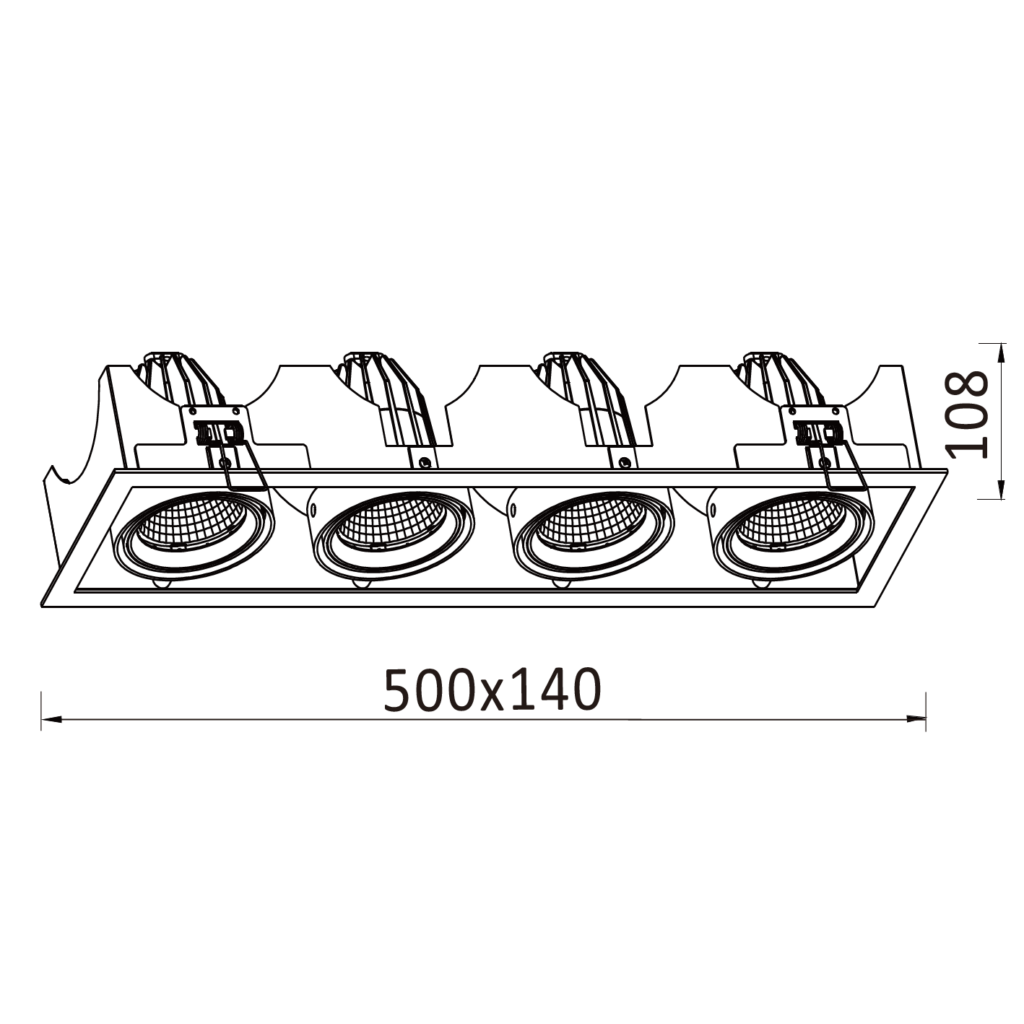

SR-C058-4

Source Power: 4X17W / 4X25W
System Power: 4X19W / 4X27W
Source Lumens: Up to 4X3107Lm
Delivered Lumens: Up to 4X2953Lm
Beam Angle:  15°22°36°60°
14°22°36°61°
Efficacy:  Up to 4X109Lm/W
Cut out:  490x130mm
Tilt:  30°
Downloads Datasheet

SR-C064

Source Power: 17W / 25W
System Power: 19W / 27W
Source Lumens: Up to 3107Lm
Delivered Lumens: Up to 2953Lm
Beam Angle:  15°22°36°60°
14°22°36°61°
Efficacy:  Up to 109Lm/W
Cut out:  141x141mm
Tilt:  30°
Downloads Datasheet
IES Files

SR-C064-2

Source Power: 2X17W / 2X25W
System Power: 2X19W / 2X27W
Source Lumens: Up to 2X3107Lm
Delivered Lumens: Up to 2X2953Lm
Beam Angle:  15°22°36°60°
14°22°36°61°
Efficacy:  Up to 2X109Lm/W
Cut out:  295x141mm
Tilt:  30°
Downloads Datasheet

SR-C064-3

Source Power: 3X17W / 3X25W
System Power: 3X19W / 3X27W
Source Lumens: Up to 3X3107Lm
Delivered Lumens: Up to 3X2953Lm
Beam Angle:  15°22°36°60°
14°22°36°61°
Efficacy:  Up to 3X109Lm/W
Cut out:  425x141mm
Tilt:  30°
Downloads Datasheet

SR-C064-4

Source Power: 4X17W / 4X25W
System Power: 4X19W / 4X27W
Source Lumens: Up to 4X3107Lm
Delivered Lumens: Up to 4X2953Lm
Beam Angle:  15°22°36°60°
14°22°36°61°
Efficacy:  Up to 4X109Lm/W
Cut out:  555x141mm
Tilt:  30°
Downloads Datasheet

SR-C062

Source Power: 17W / 25W / 32W/ 36W
System Power: 19W / 27W / 35W / 39W
Source Lumens: Up to 4454Lm
Delivered Lumens: Up to 4146Lm
Beam Angle:  11°20°44°60°
12°20°45°61°
12°20°45°61°
13°21°45°61°
Efficacy:  Up to 105Lm/W
Cut out:  165x165mm
Tilt:  30°
Download Datasheet
IES Files

SR-C062-2

Source Power: 2X17W / 2X25W / 2X32W/ 2X36W
System Power: 2X19W / 2X27W / 2X35W / 2X39W
Source Lumens: Up to 2X4454Lm
Delivered Lumens: Up to 2X4146Lm
Beam Angle:  11°20°44°60°
12°20°45°61°
12°20°45°61°
13°21°45°61°
Efficacy:  Up to 2X105Lm/W
Cut out:  325x165mm
Tilt:  30°
Download Datasheet

SR-C062-3

Source Power: 3X17W / 3X25W / 3X32W/ 3X36W
System Power: 3X19W / 3X27W / 3X35W / 3X39W
Source Lumens: Up to 3X4454Lm
Delivered Lumens: Up to 3X4146Lm
Beam Angle:  11°20°44°60°
12°20°45°61°
12°20°45°61°
13°21°45°61°
Efficacy:  Up to 3X105Lm/W
Cut out:  470x165mm
Tilt:  30°
Download Datasheet

SR-C062-4

Source Power: 4X17W / 4X25W / 4X32W/ 4X36W
System Power: 4X19W / 4X27W / 4X35W / 4X39W
Source Lumens: Up to 4X4454Lm
Delivered Lumens: Up to 4X4146Lm
Beam Angle:  11°20°44°60°
12°20°45°61°
12°20°45°61°
13°21°45°61°
Efficacy:  Up to 4X105Lm/W
Cut out:  620x165mm
Tilt:  30°
Download Datasheet

SR-C110

Source Power: 17W / 25W / 32W/ 36W
System Power: 19W / 27W / 35W / 39W
Source Lumens: Up to 4454Lm
Delivered Lumens: Up to 4146Lm
Beam Angle:  11°20°44°60°
12°20°45°61°
12°20°45°61°
13°21°45°61°
Efficacy:  Up to 105Lm/W
Cut out:  189x189mm
Tilt:  30°
Downloads: Datasheet
IES Files

SR-C110-2

Source Power: 2X17W / 2X25W / 2X32W/ 2X36W
System Power: 2X19W / 2X27W / 2X35W / 2X39W
Source Lumens: Up to 2X4454Lm
Delivered Lumens: Up to 2X4146Lm
Beam Angle:  11°20°44°60°
12°20°45°61°
12°20°45°61°
13°21°45°61°
Efficacy:  Up to 2X105Lm/W
Cut out:  343x189mm
Tilt:  30°
Downloads: Datasheet

SR-C110-3

Source Power: 3X17W / 3X25W / 3X32W/ 3X36W
System Power: 3X19W / 3X27W / 3X35W / 3X39W
Source Lumens: Up to 3X4454Lm
Delivered Lumens: Up to 3X4146Lm
Beam Angle:  11°20°44°60°
12°20°45°61°
12°20°45°61°
13°21°45°61°
Efficacy:  Up to 3X105Lm/W
Cut out:  495x189mm
Tilt:  30°
Downloads: Datasheet

SR-C110-4

Source Power: 4X17W / 4X25W / 4X32W/ 4X36W
System Power: 4X19W / 4X27W / 4X35W / 4X39W
Source Lumens: Up to 4X4454Lm
Delivered Lumens: Up to 4X4146Lm
Beam Angle:  11°20°44°60°
12°20°45°61°
12°20°45°61°
13°21°45°61°
Efficacy:  Up to 4X105Lm/W
Cut out:  649x189mm
Tilt:  30°
Downloads: Datasheet

Finish Black/White Material Aluminium
IP Rating IP20 CCT  3000K/4000K
CRI >90 Voltage 220-240V
Lifetime L80(12K) > 66,000 hrs
L90 (12K) > 41,500 hrs		 Dimming Available on request
