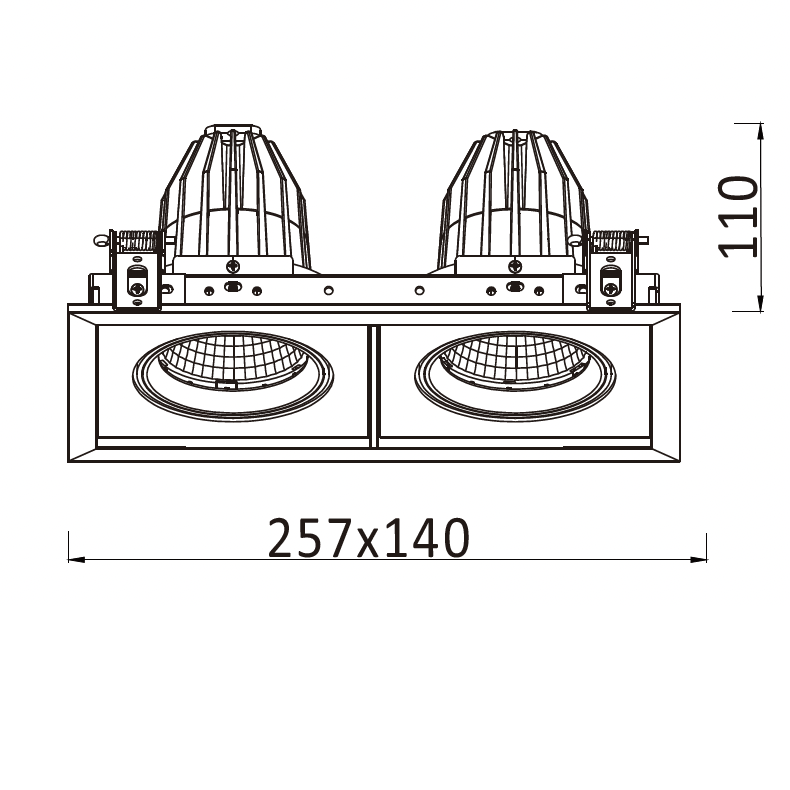

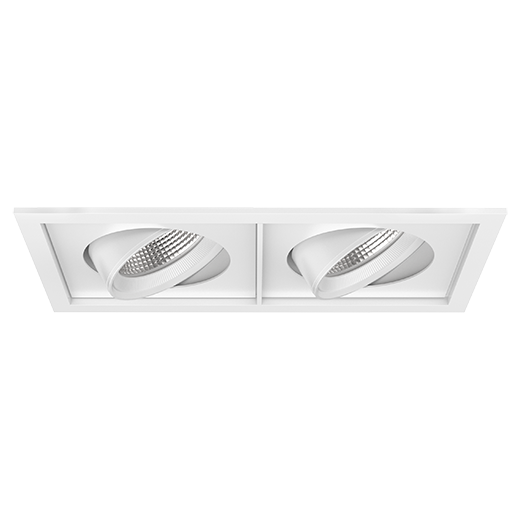

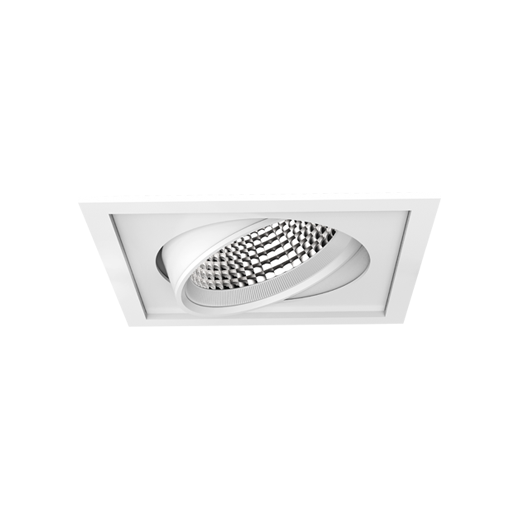

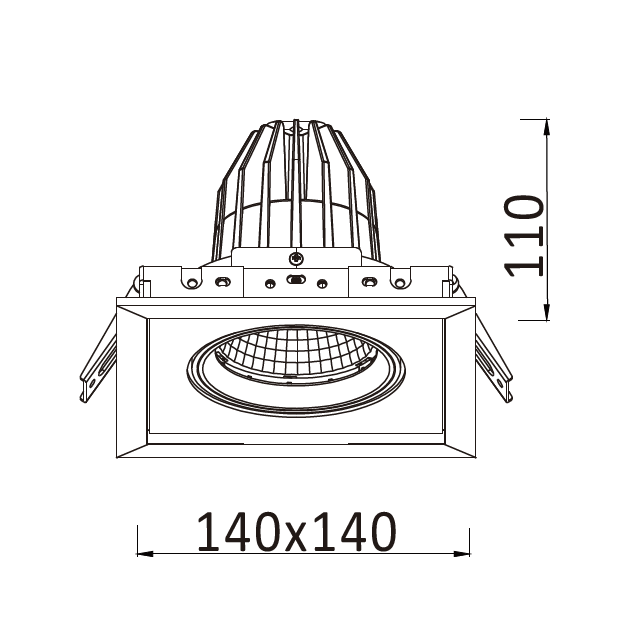

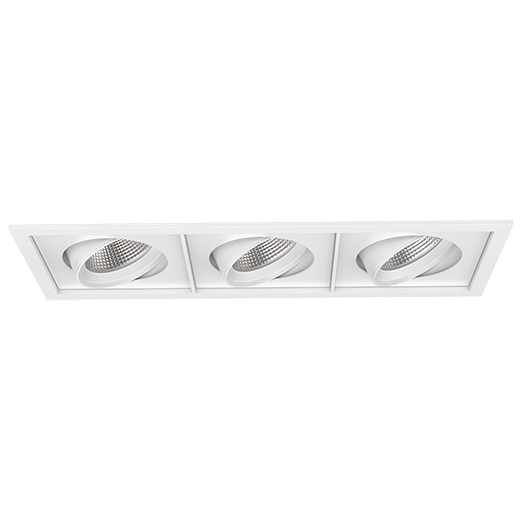

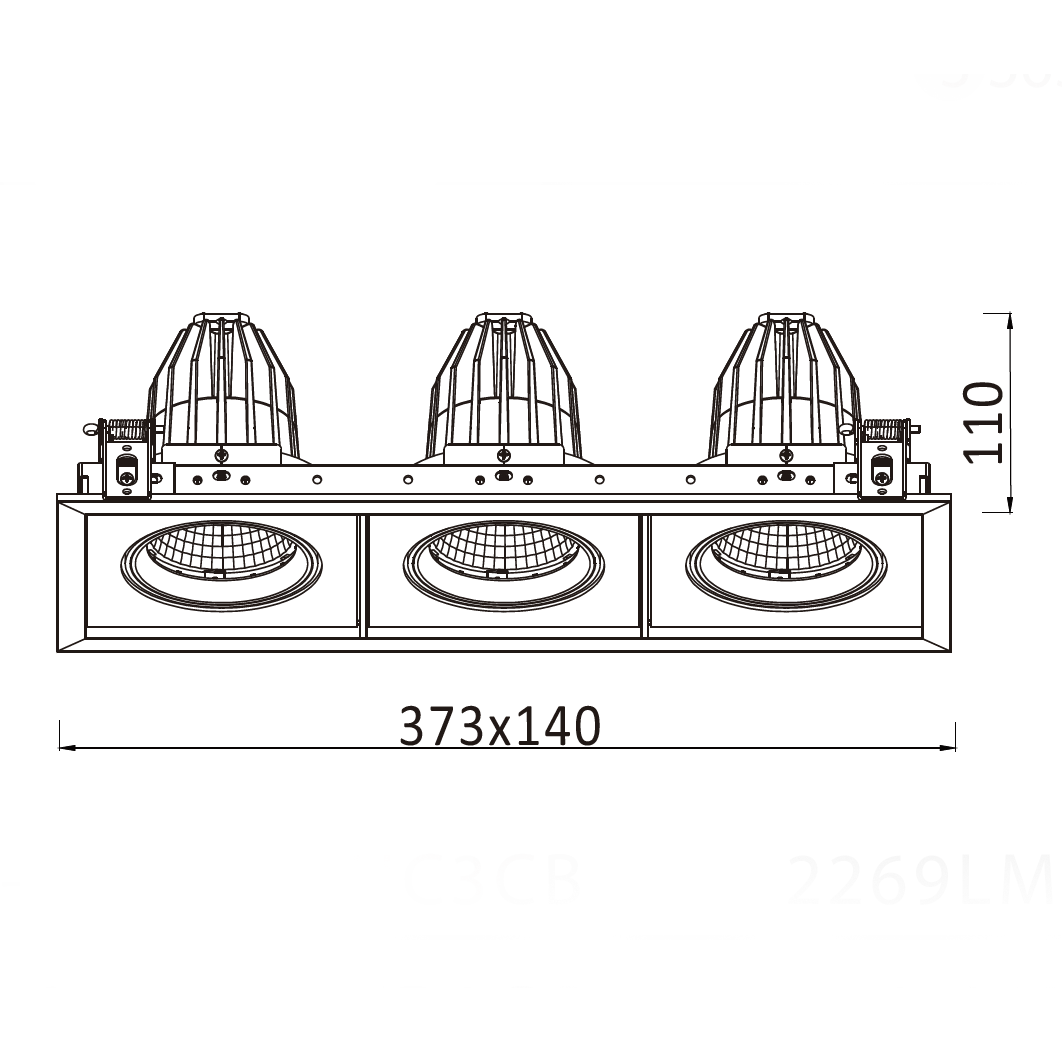

SR-C063
- Source Power:
- 17W / 25W
- System Power:
- 19W / 27W
- Source Lumens:
- Up to 3107Lm
- Delivered Lumens:
- Up to 2953Lm
- Beam Angle:
- 15°22°36°60° 14°22°36°61°
- Efficacy:
- Up to 109Lm/W
- Cut out:
- 126x126mm
- Tilt:
- 30°

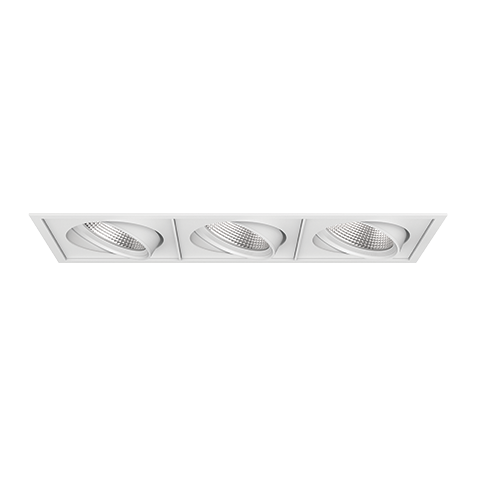

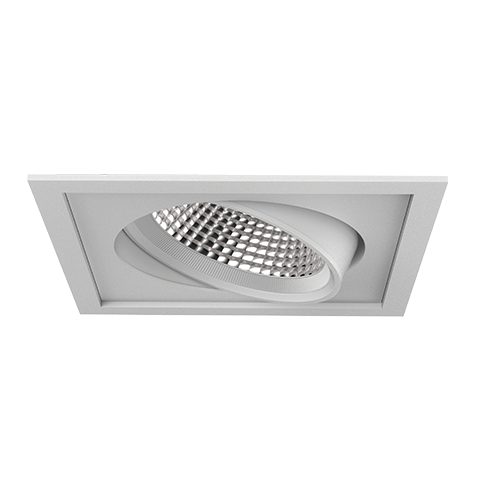

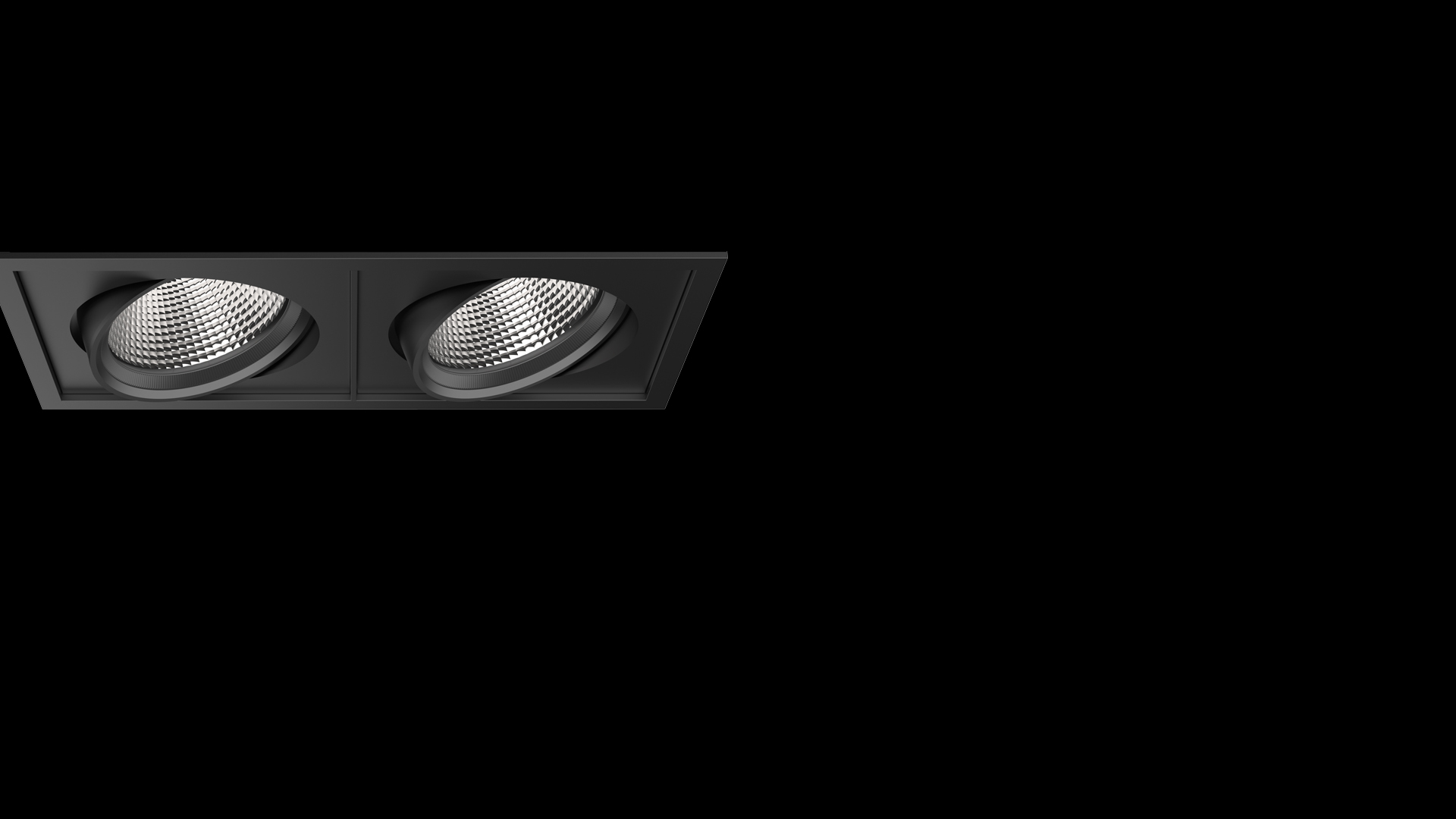

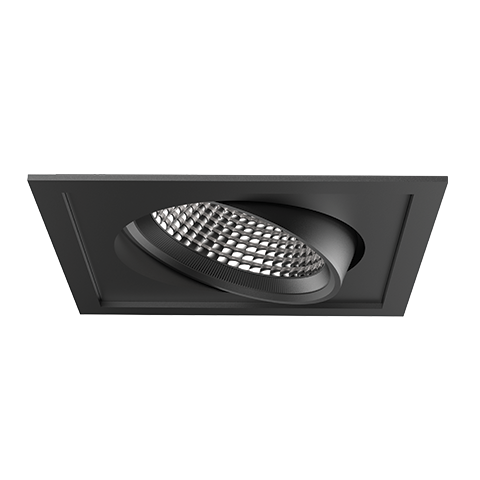

PARKER ADJUSTABLE DOWNLIGHT
The Parker family of products provide a range of square and rectangular options to suit many different installations. With a flexible design solution across various output levels and the versatility of 1 to 3 adjustable light heads per fixture. The Parker provides your design with the optimum required lumen output paired with a superior level of versatility and adjustment, showcasing architectural features, products and objects in their best light. The Parker is easily adjustable with a 30° tilt and 355° horizontal plane. Available in a trimless version.
The Parker family of products provide a range of square and rectangular options to suit many different installations. With a flexible design solution across various output levels and the versatility of 1 to 3 adjustable light heads per fixture. The Parker provides your design with the optimum required lumen output paired with a superior level of versatility and adjustment, showcasing architectural features, products and objects in their best light. The Parker is easily adjustable with a 30° tilt and 355° horizontal plane. Available in a trimless version.
Models

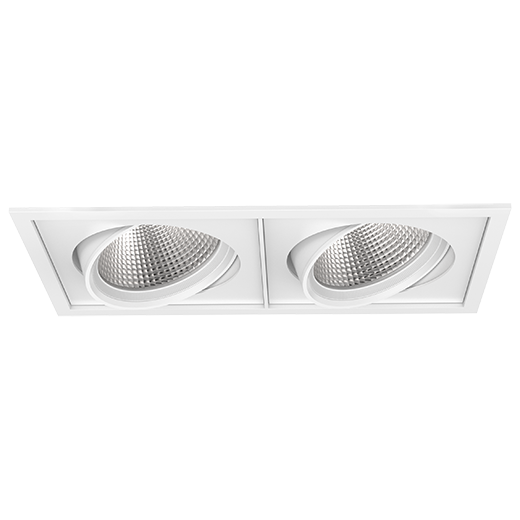

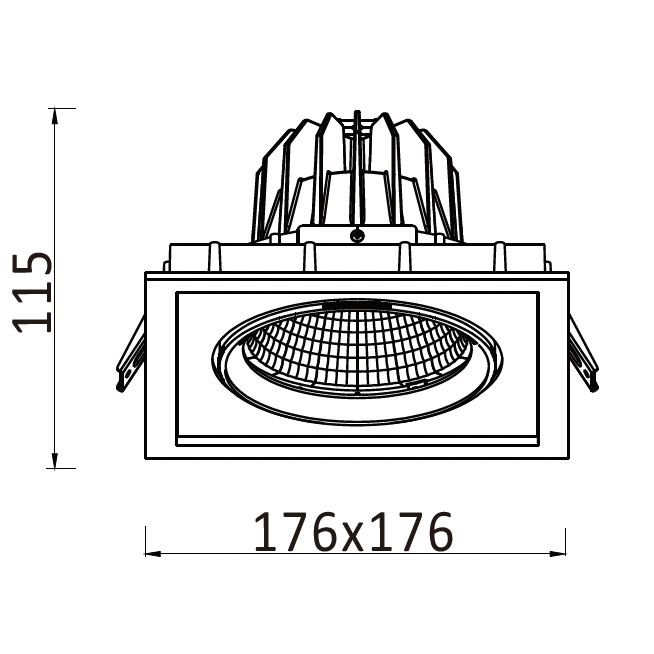

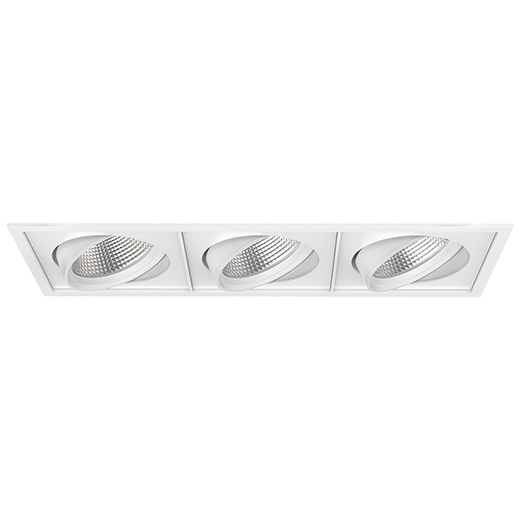

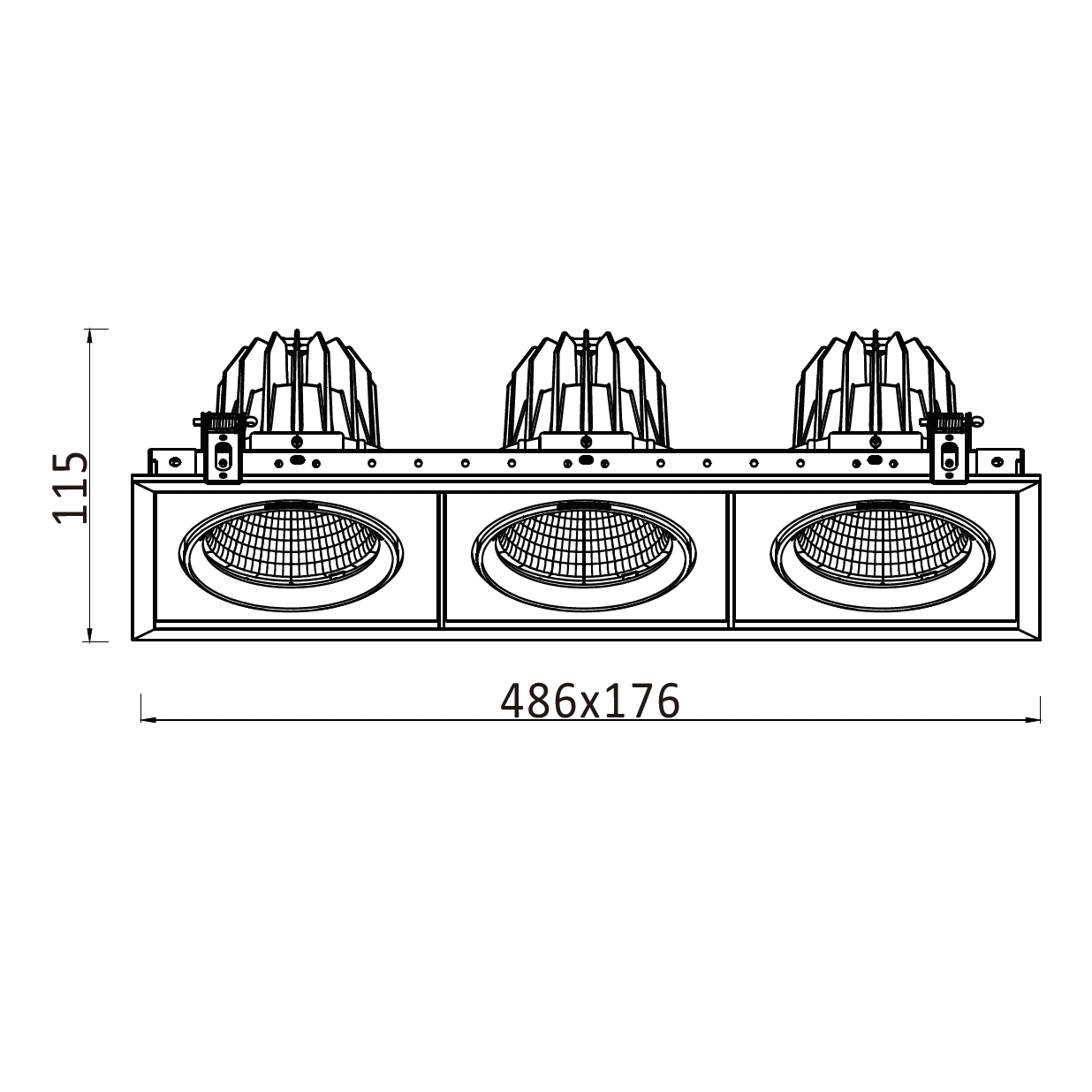

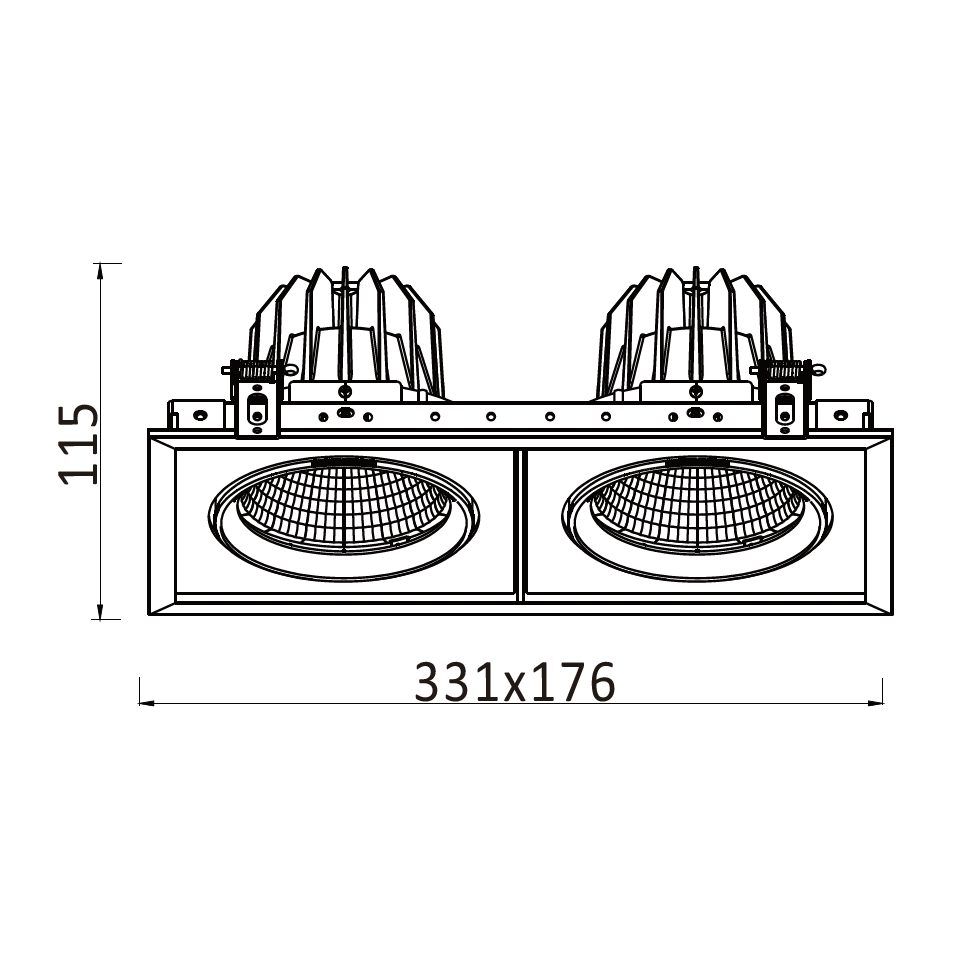

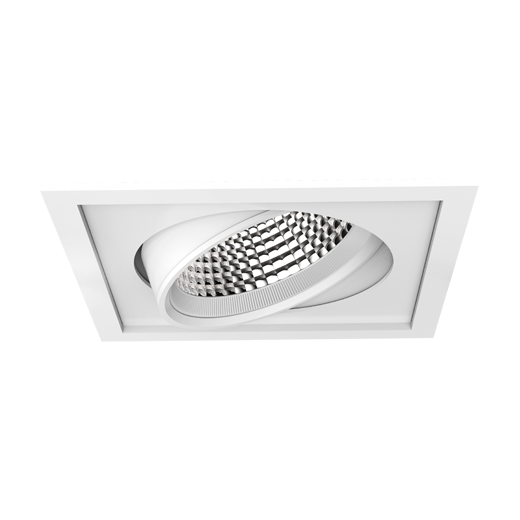

SR-C001
- Source Power:
- 17W / 25W / 32W / 36W
- System Power:
- 19W / 27W / 35W / 19W
- Source Lumens:
- Up to 4454Lm
- Delivered Lumens:
- Up to 4400Lm
- Beam Angle:
- 12°20°43°59° 12°20°43°59° 11°20°43°59° 13°21°44°58°
- Efficacy:
- Up to 115Lm/W
- Cut out:
- 166x166mm
- Tilt:
- 30°

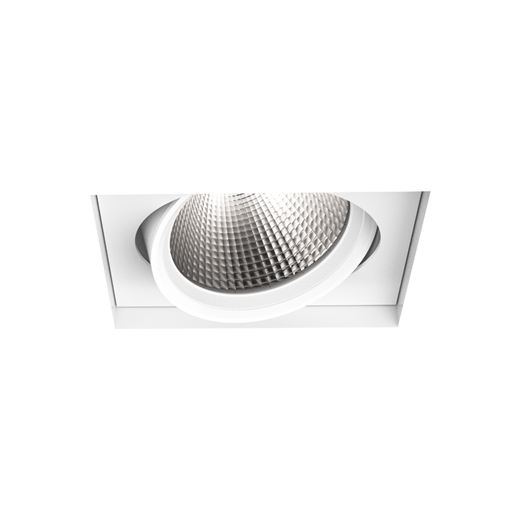

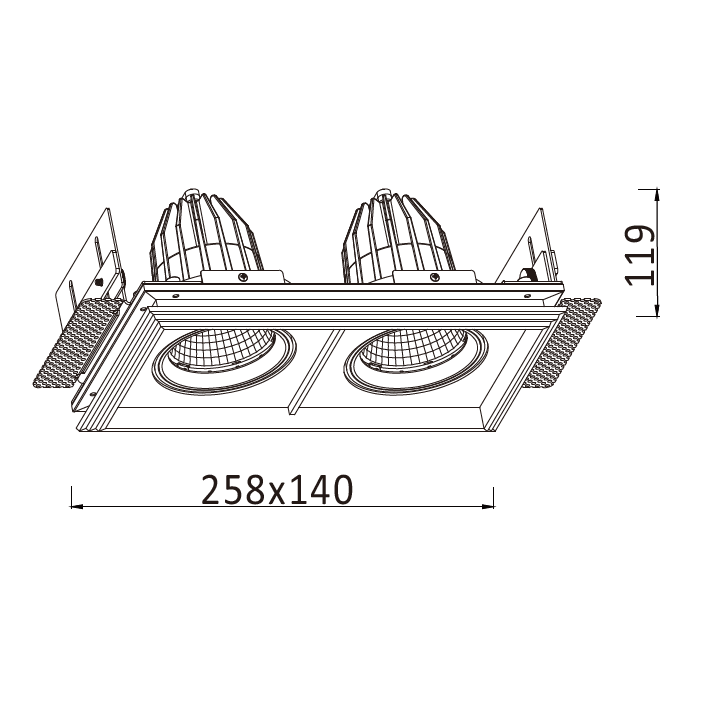

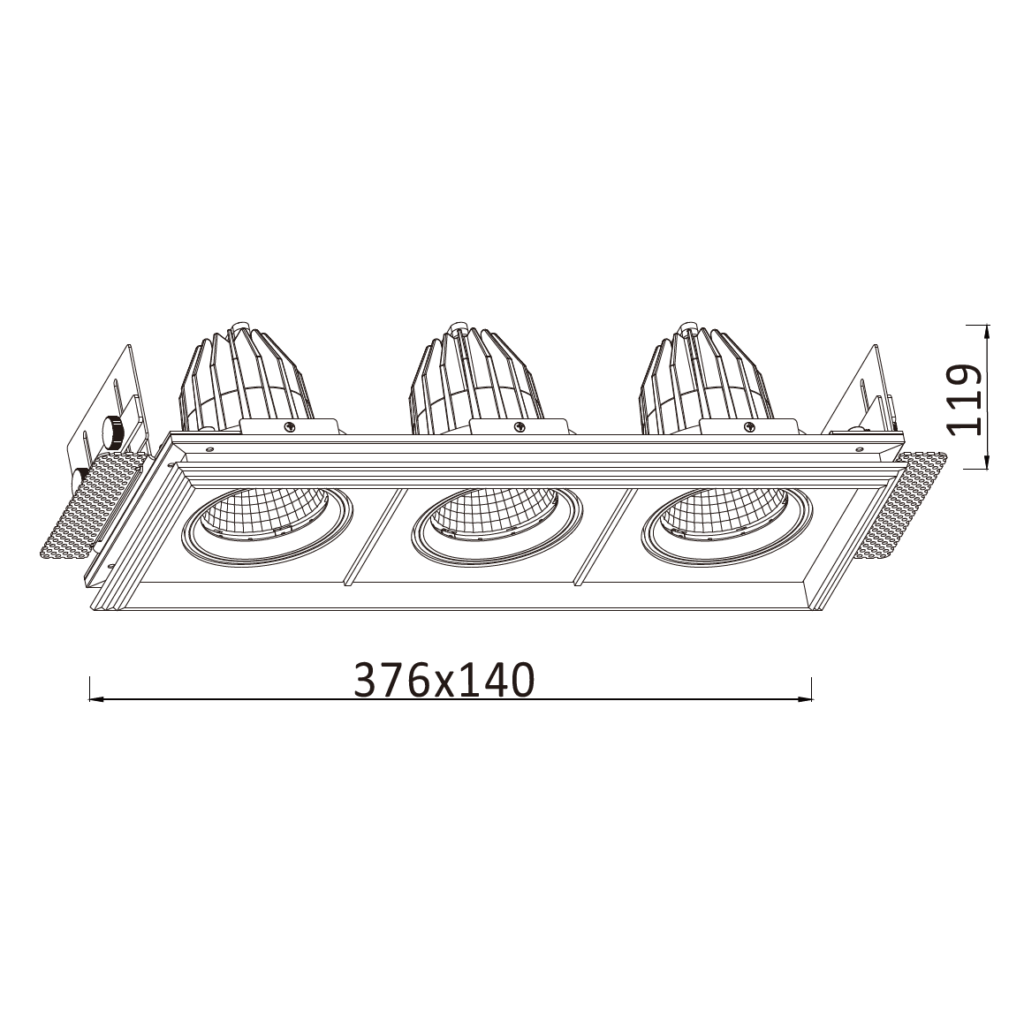

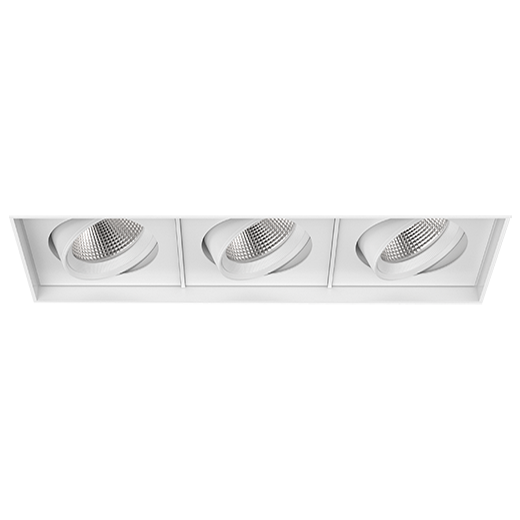

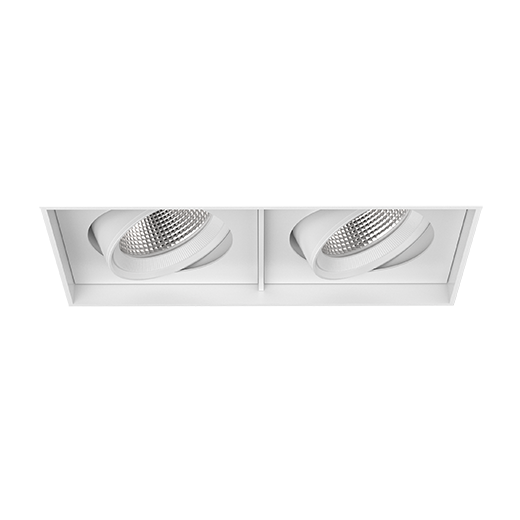

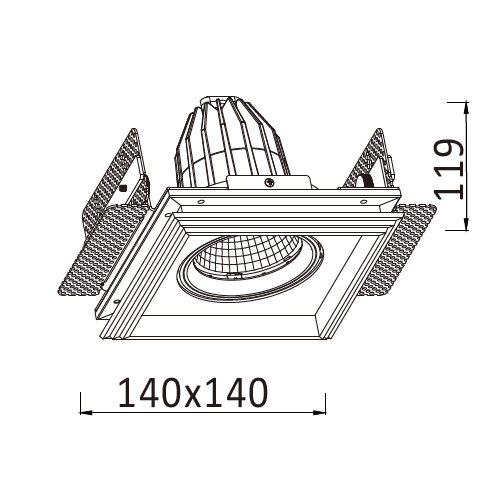

SR-C109
- Source Power:
- 17W / 25W
- System Power:
- 19W / 27W
- Source Lumens:
- Up to 3107Lm
- Delivered Lumens:
- Up to 2953Lm
- Beam Angle:
- 15°22°36°60° 14°22°36°61°
- Efficacy:
- Up to 109Lm/W
- Cut out:
- 142x142mm
- Tilt:
- 30°

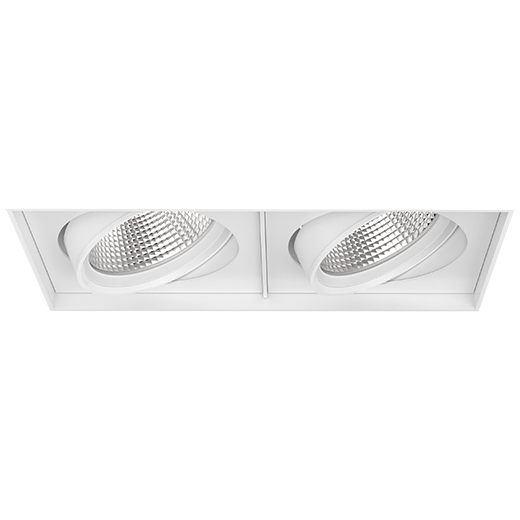

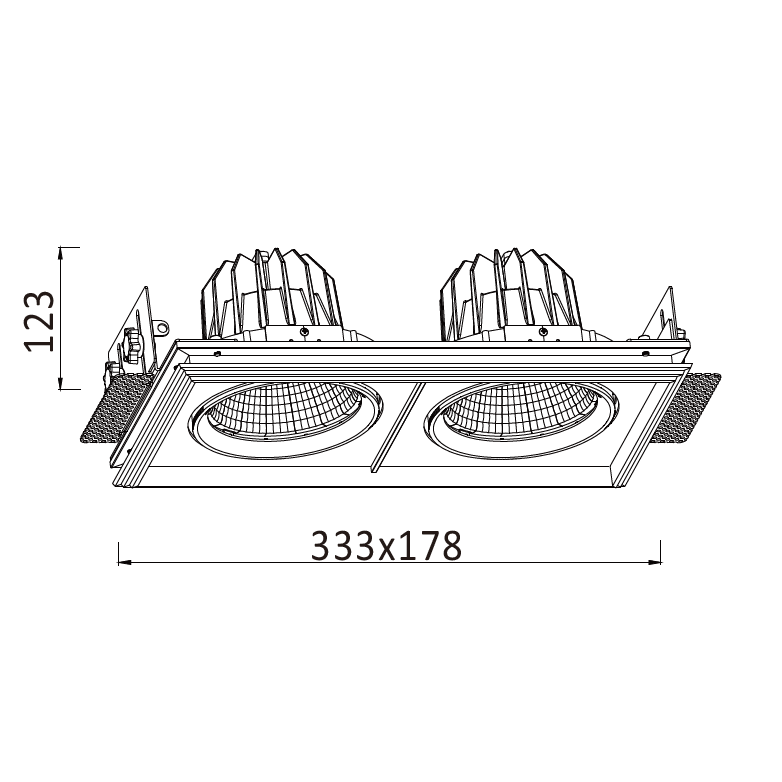

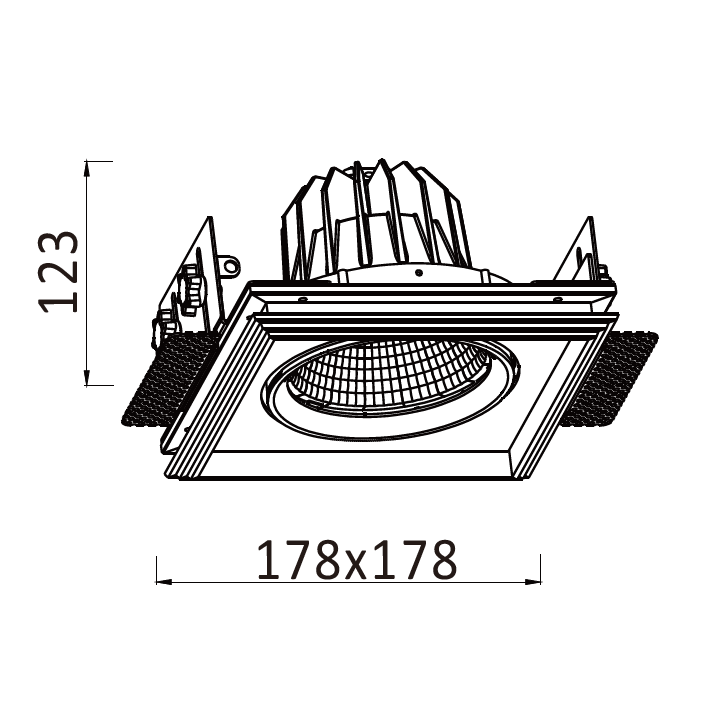

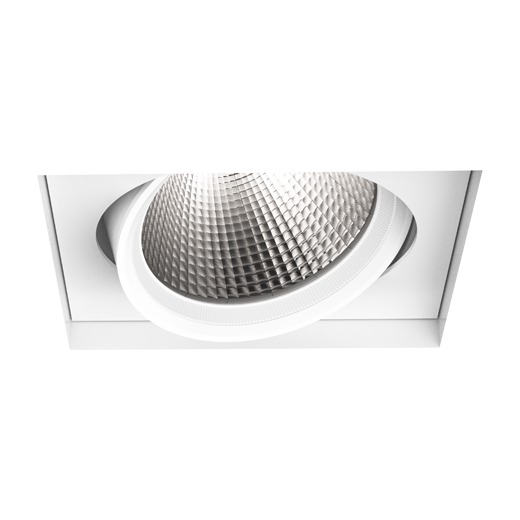

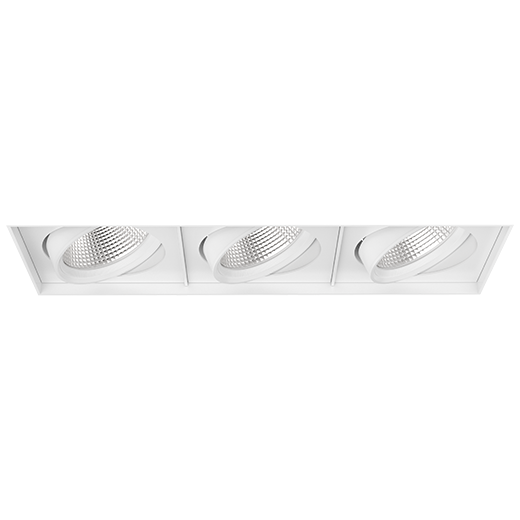

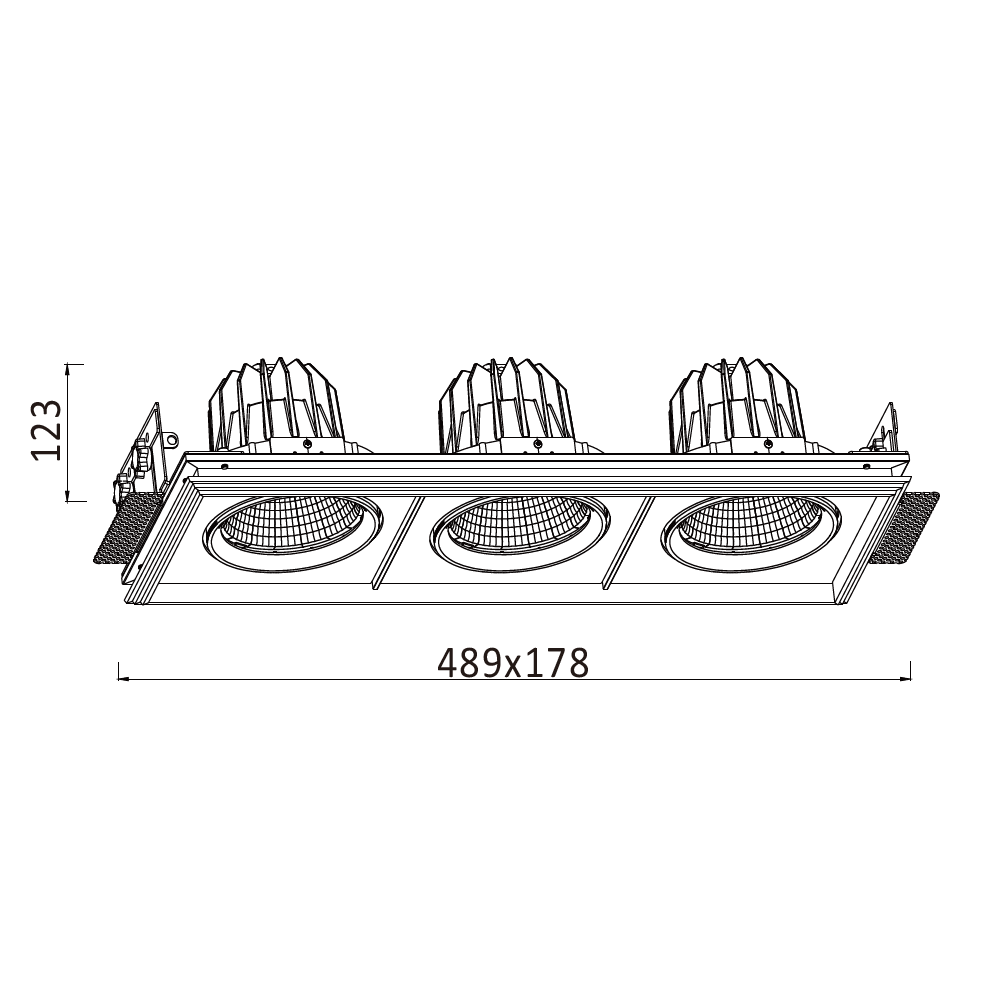

SR-C108
- Source Power:
- 17W / 25W / 32W / 36W
- System Power:
- 19W / 27W / 35W / 19W
- Source Lumens:
- Up to 4454Lm
- Delivered Lumens:
- Up to 4400Lm
- Beam Angle:
- 12°20°43°59° 12°20°43°59° 11°20°43°59° 13°21°44°58°
- Efficacy:
- Up to 115Lm/W
- Cut out:
- 180x180mm
- Tilt:
- 30°
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L80 (12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
Accessories
Honeycomb Louvre
Elliptical Optical Lens
Glass
