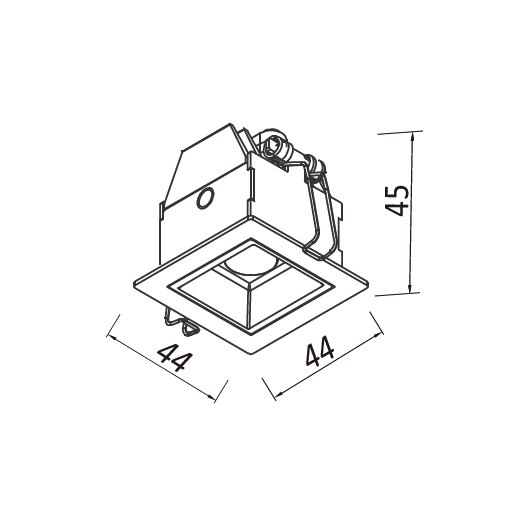

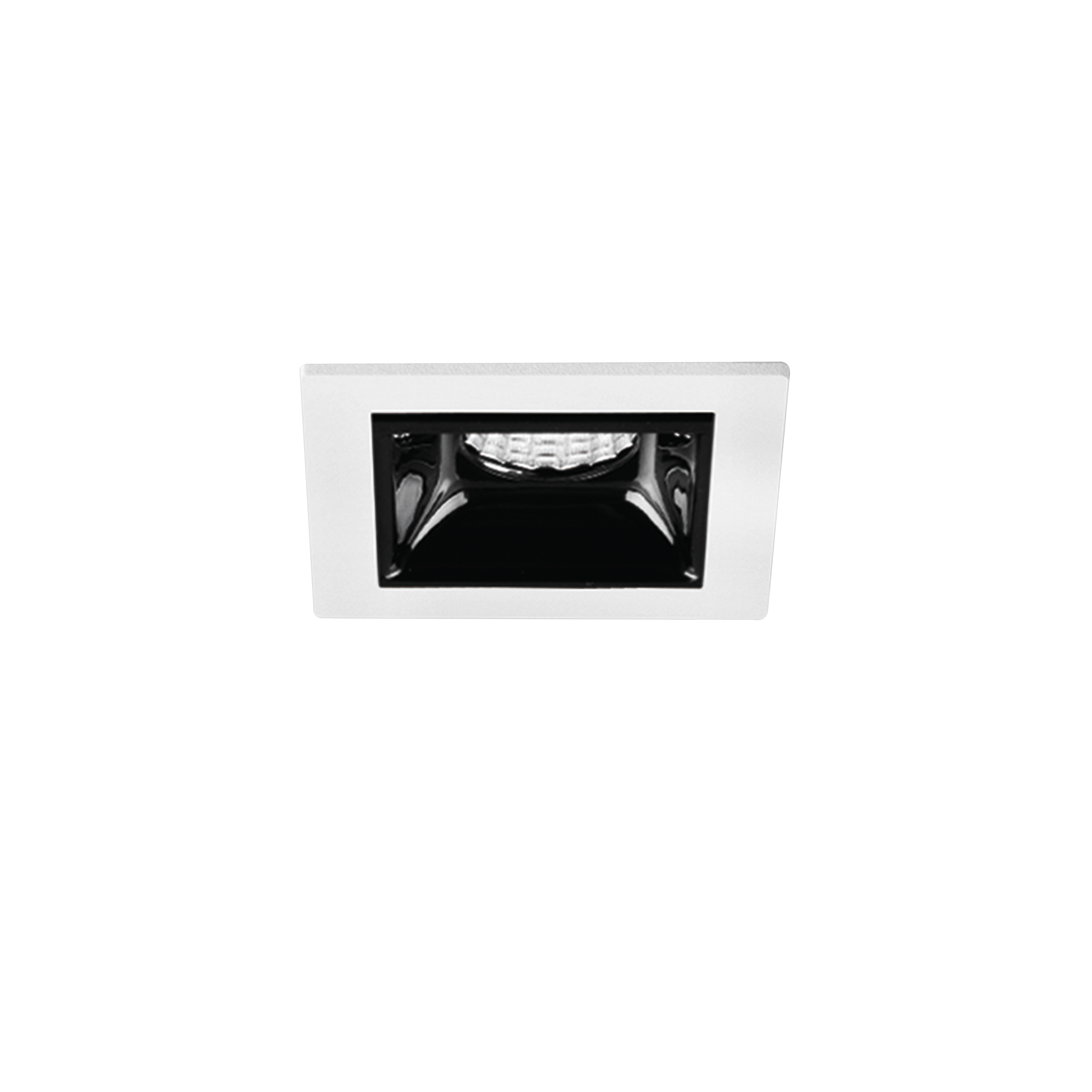

DR-A097
- Source Power:
- 2W
- System Power:
- 3W
- Source Lumens:
- Up to 207Lm
- Delivered Lumens:
- Up to 172Lm
- Beam Angle:
- 20°/39°/44°
- Efficacy:
- Up to 60Lm/W
- Cut out:
- 38x38mm
LEVI RECESSED DOWNLIGHT
With a UGR <12, this mini system is a recessed luminaire that can double as a spot or wall washer. Perfect for foyers, office spaces, shopping centres, art galleries and many other applications the Levi downlight range offers luminaries that blend into the architecture due to their streamline and compact housing.
Multi lumen packages due to the multiple connections of the single body (up to 8 modules can be connected) enables the lighting to meet requirements for various uses and conditions. With low UGR the Levi downlight is optimised for uniformity and visual comfort.
Available in recessed downlight, surface downlight or wall washer.
With a UGR <12, this mini system is a recessed luminaire that can double as a spot or wall washer. Perfect for foyers, office spaces, shopping centres, art galleries and many other applications the Levi downlight range offers luminaries that blend into the architecture due to their streamline and compact housing.
Multi lumen packages due to the multiple connections of the single body (up to 8 modules can be connected) enables the lighting to meet requirements for various uses and conditions. With low UGR the Levi downlight is optimised for uniformity and visual comfort.
Available in recessed downlight, surface downlight or wall washer.
Models

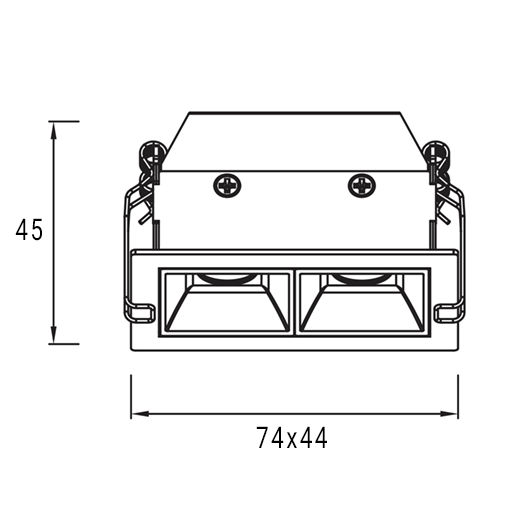

DR-A097-2
- Source Power:
- 5W
- System Power:
- 6W
- Source Lumens:
- Up to 426Lm
- Delivered Lumens:
- Up to 362Lm
- Beam Angle:
- 19°/27°/43°
- Efficacy:
- Up to 60Lm/W
- Cut out:
- 69x38mm

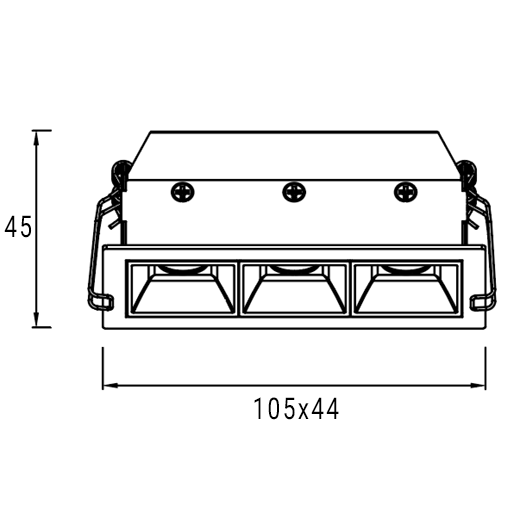

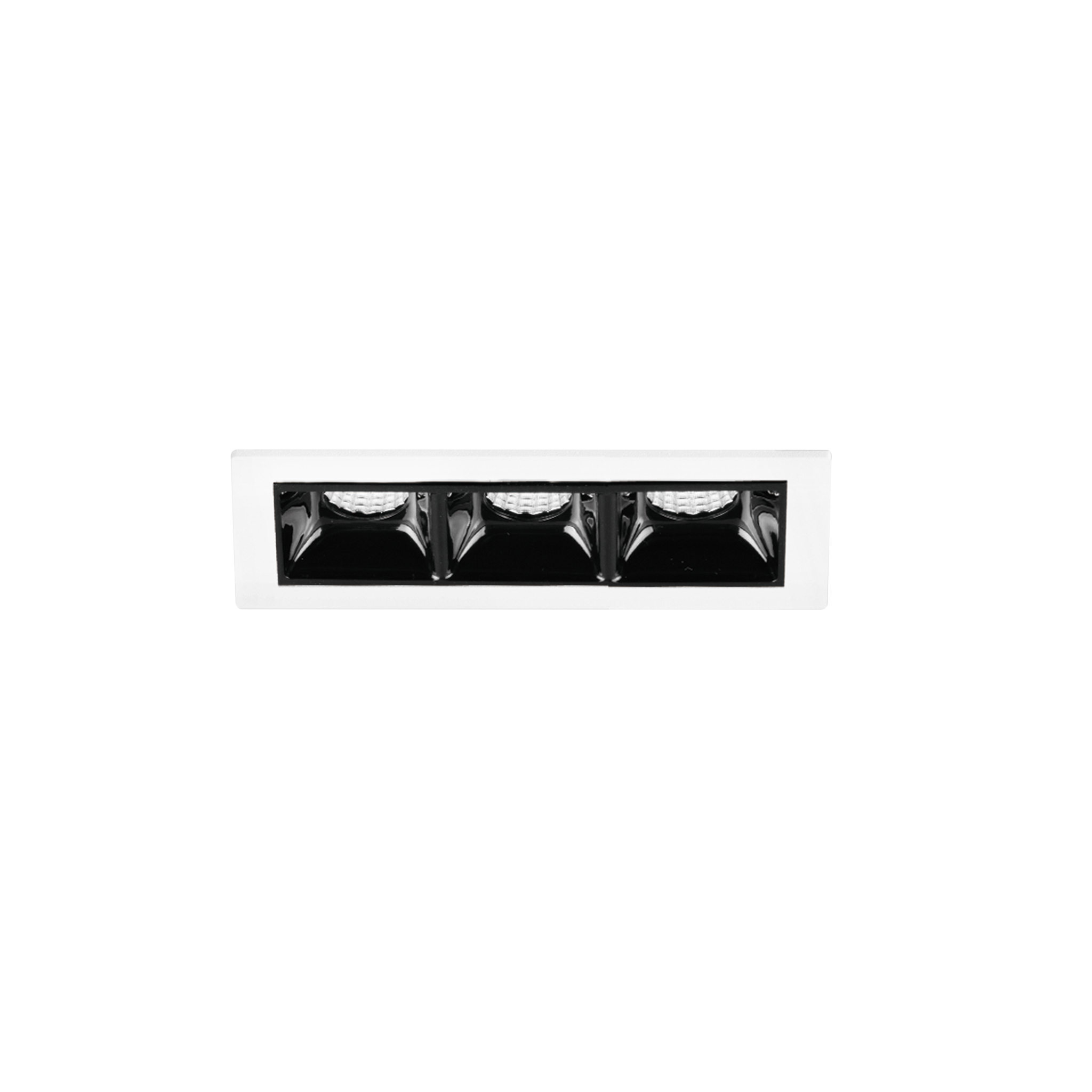

DR-A097-3
- Source Power:
- 8W
- System Power:
- 9W
- Source Lumens:
- Up to 639Lm
- Delivered Lumens:
- Up to 539Lm
- Beam Angle:
- 21°/36°/43°
- Efficacy:
- Up to 60Lm/W
- Cut out:
- 99x38mm

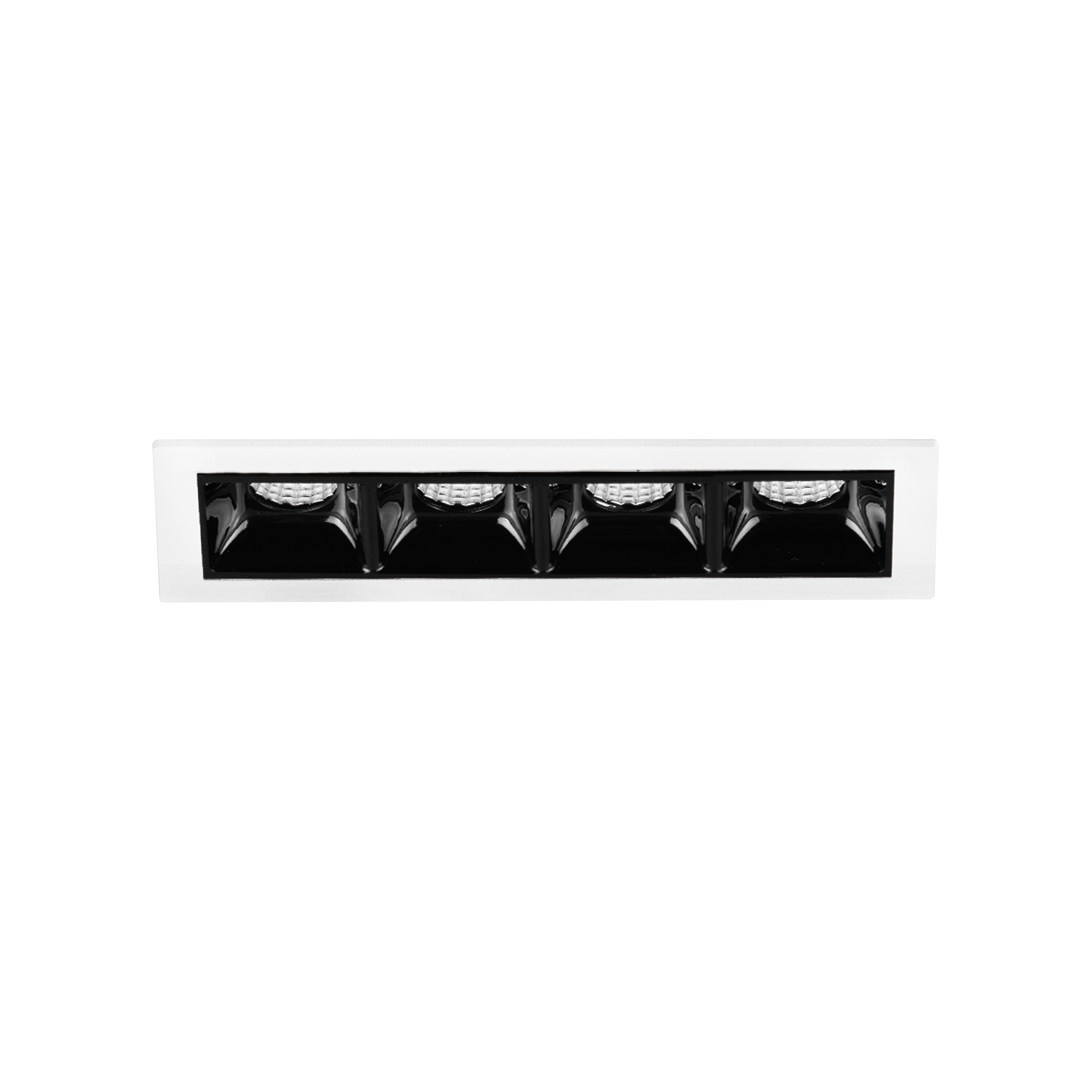

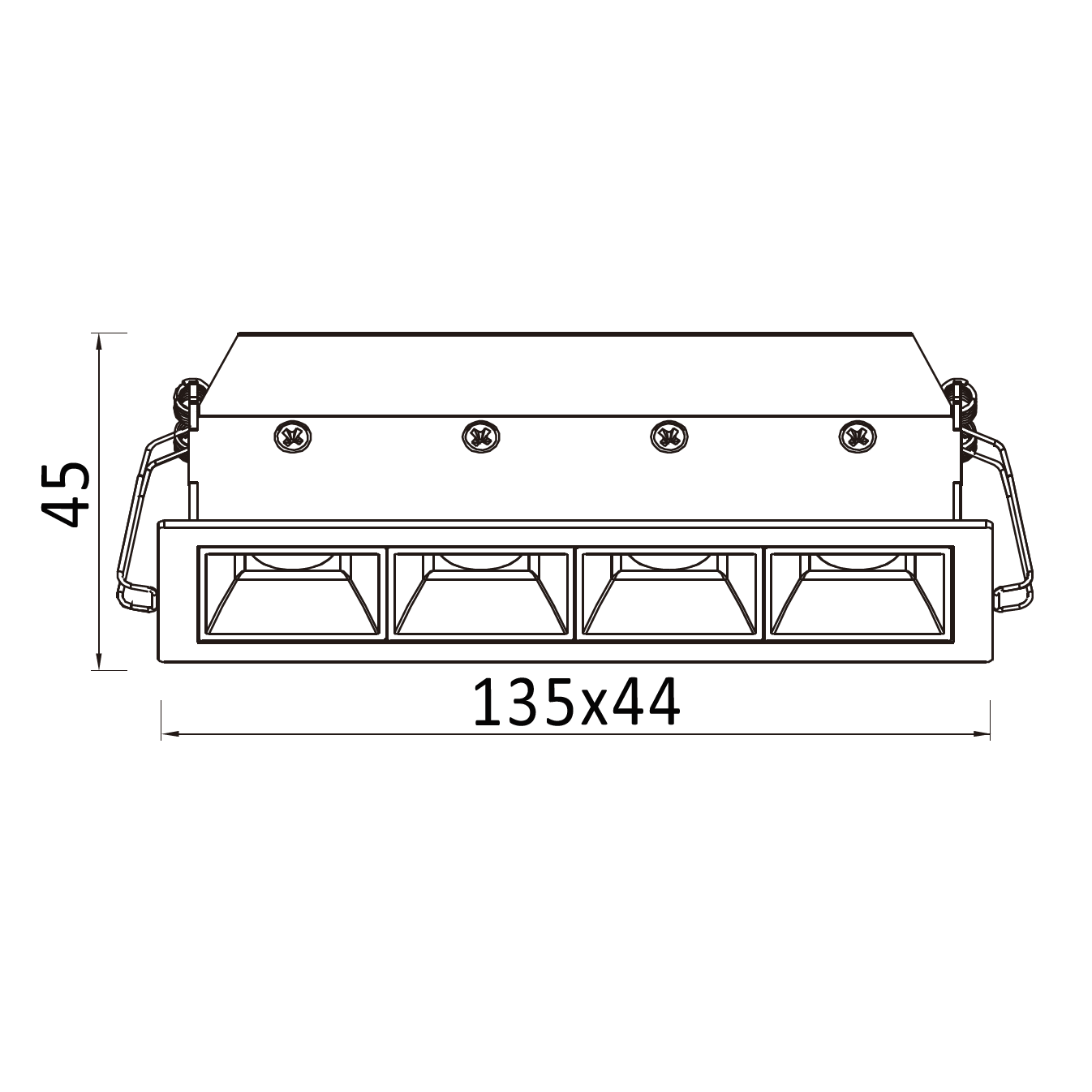

DR-A097-4
- Source Power:
- 9W
- System Power:
- 11W
- Source Lumens:
- Up to 823Lm
- Delivered Lumens:
- Up to 703Lm
- Beam Angle:
- 21°/35°/43°
- Efficacy:
- Up to 64Lm/W
- Cut out:
- 130x38mm

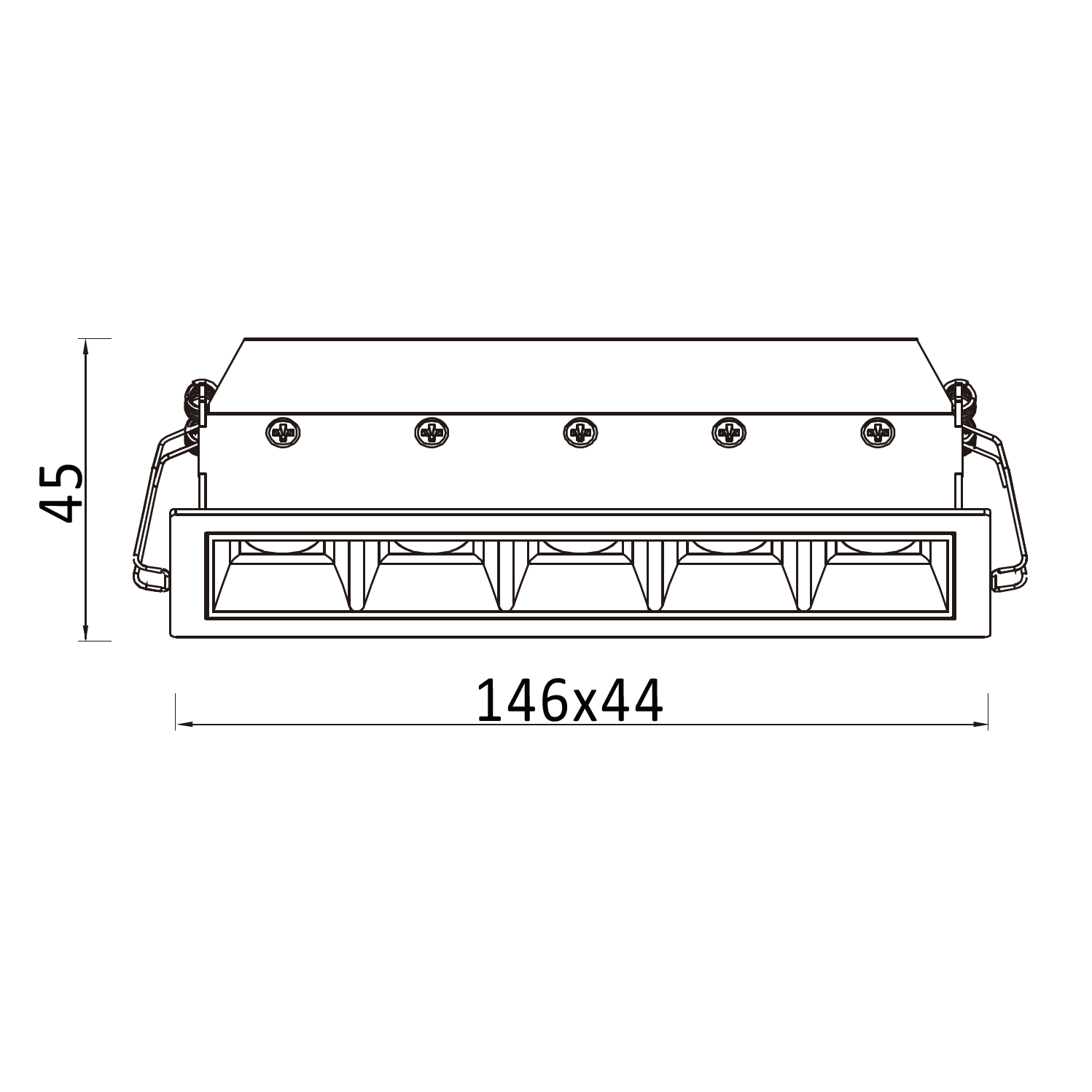

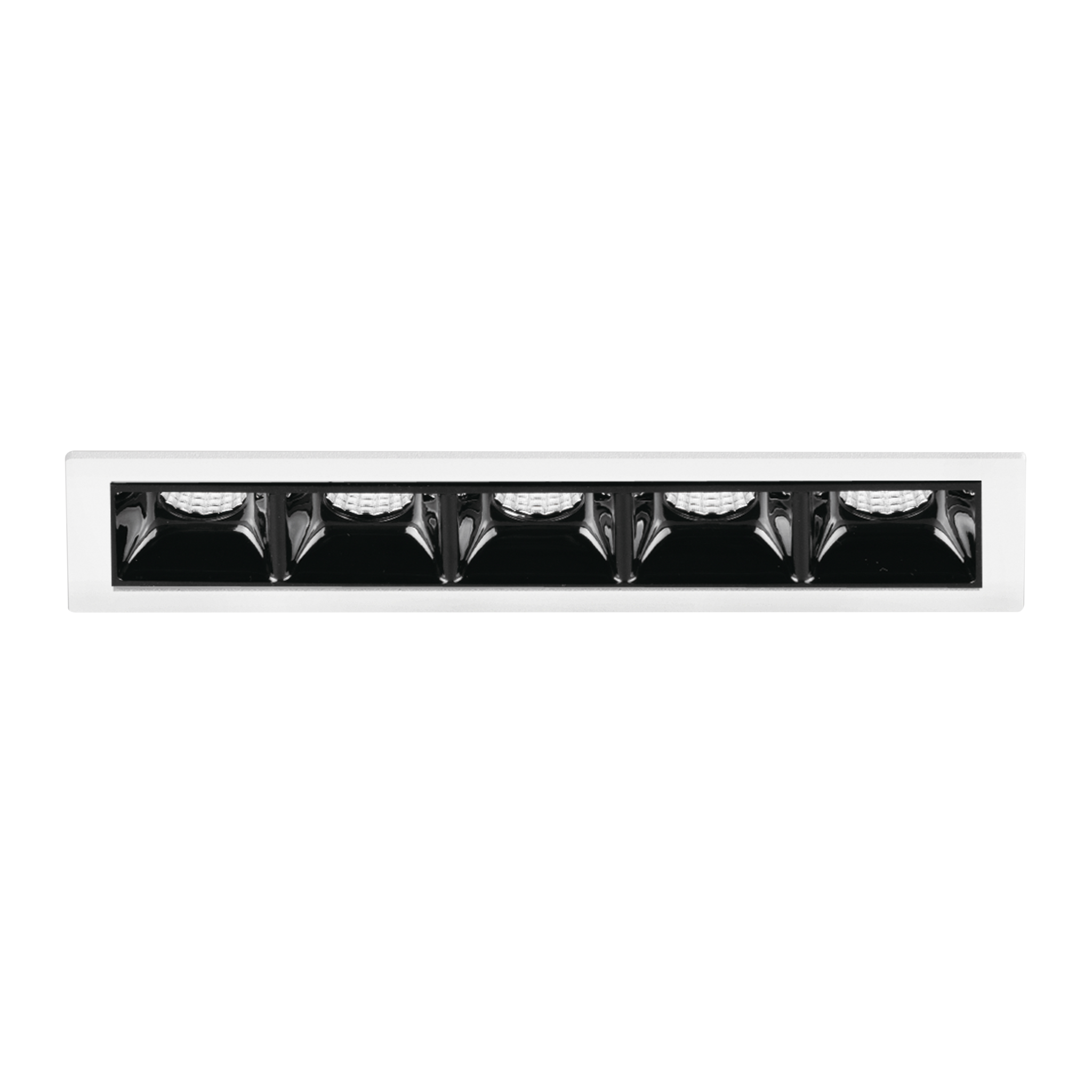

DR-A097-5
- Source Power:
- 11W
- System Power:
- 13W
- Source Lumens:
- Up to 1035Lm
- Delivered Lumens:
- Up to 758Lm
- Beam Angle:
- 20°/34°/48°
- Efficacy:
- Up to 66Lm/W
- Cut out:
- 141x38mm

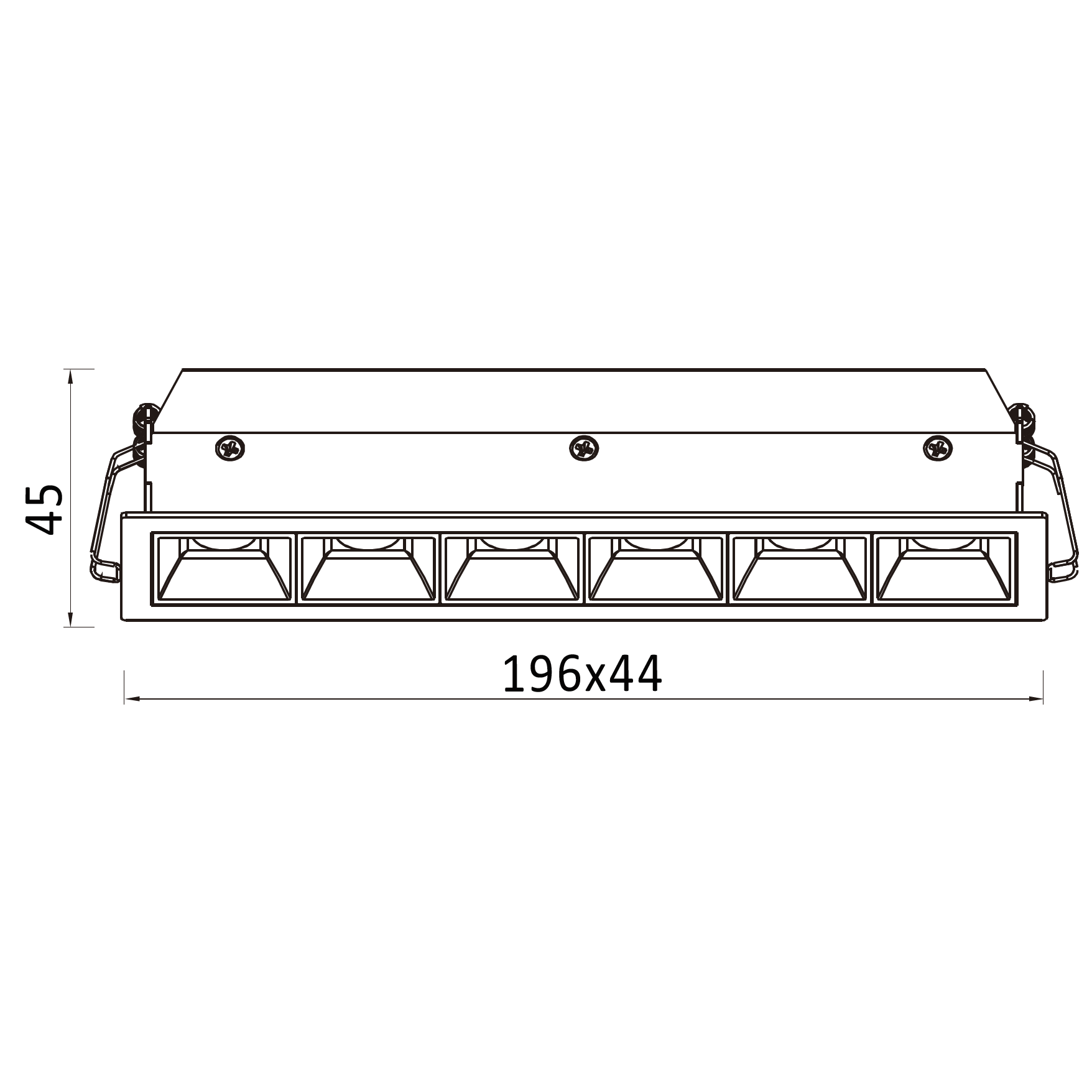

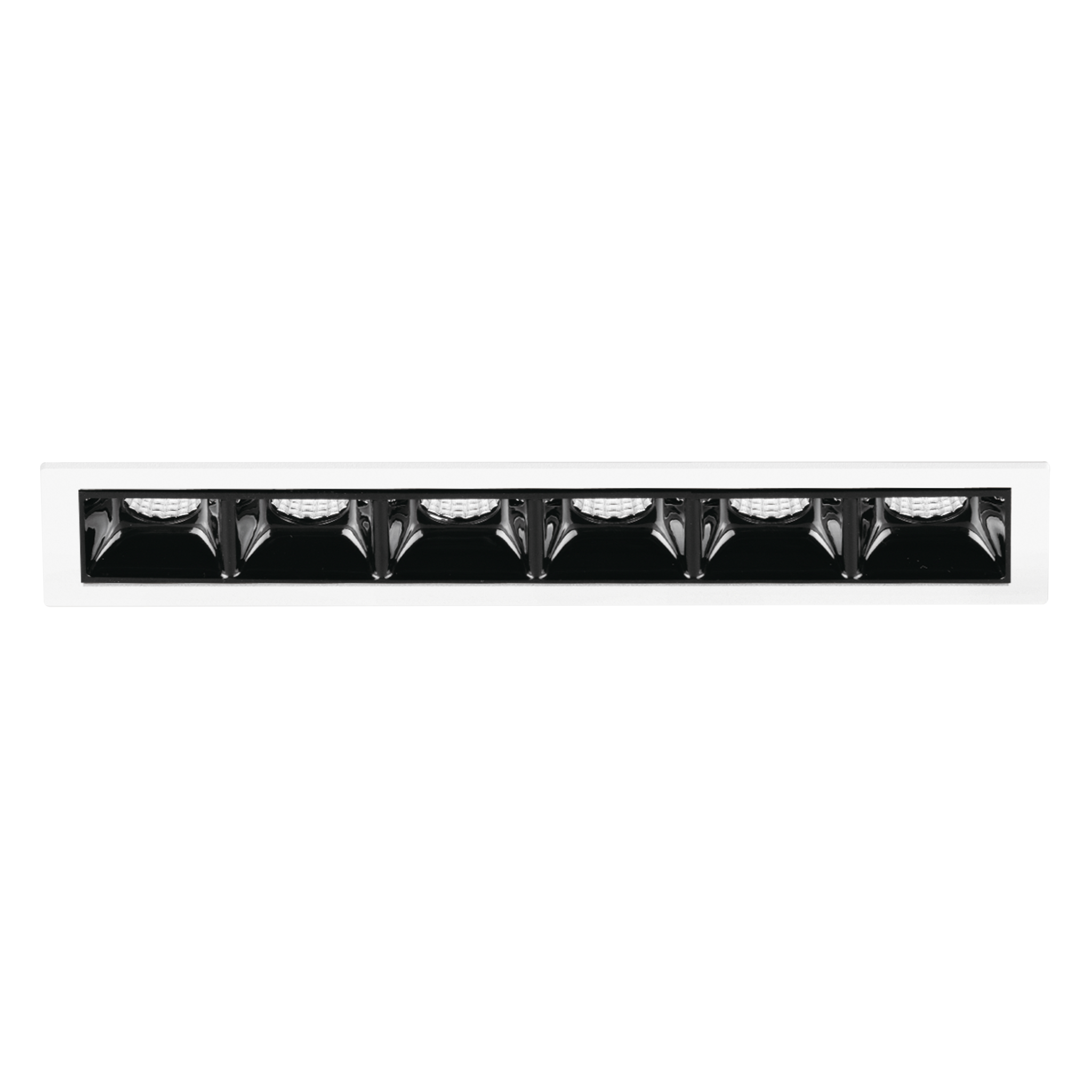

DR-A097-6
- Source Power:
- 14W
- System Power:
- 16W
- Source Lumens:
- Up to 1250Lm
- Delivered Lumens:
- Up to 1014Lm
- Beam Angle:
- 21°/35°/48°
- Efficacy:
- Up to 63Lm/W
- Cut out:
- 191x38mm

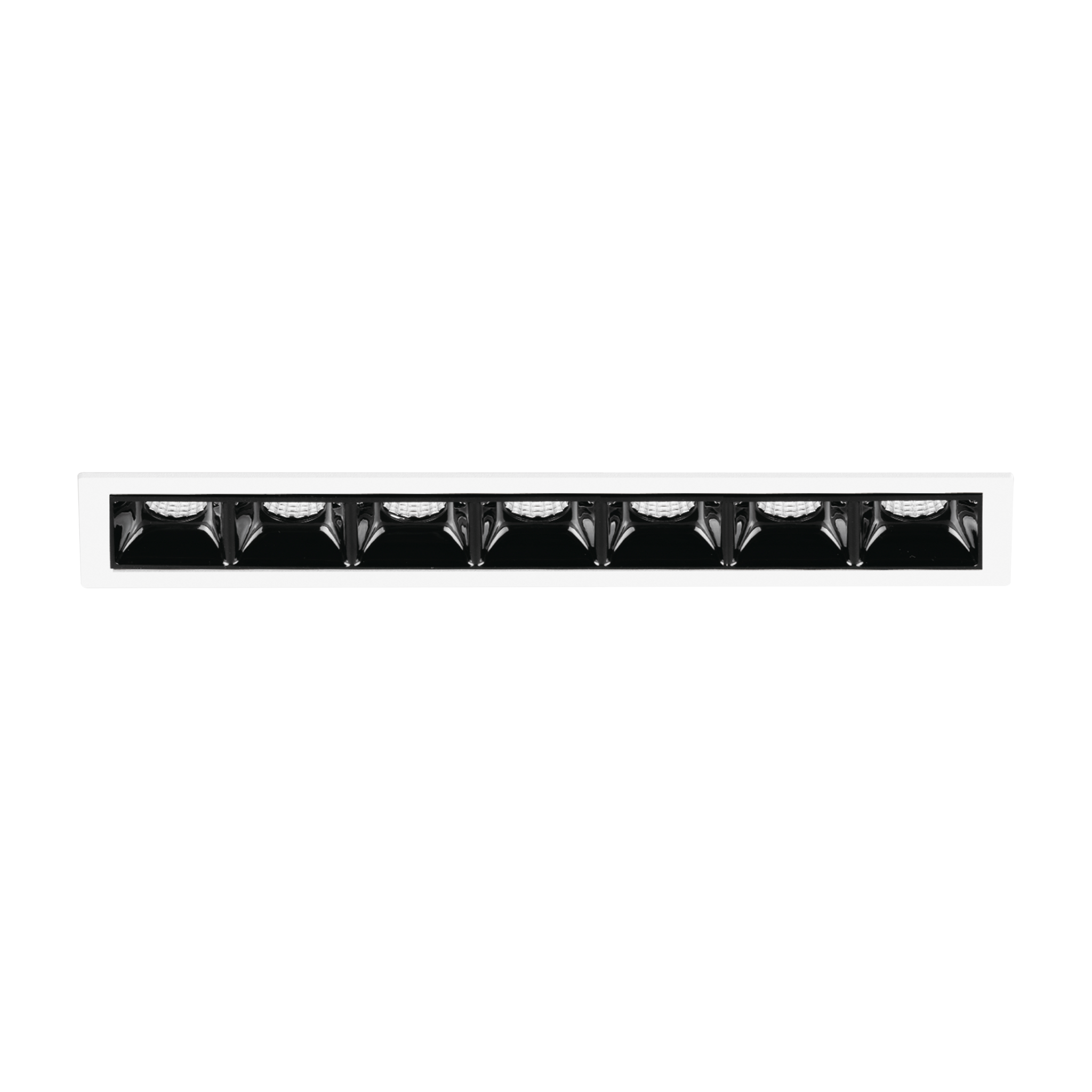

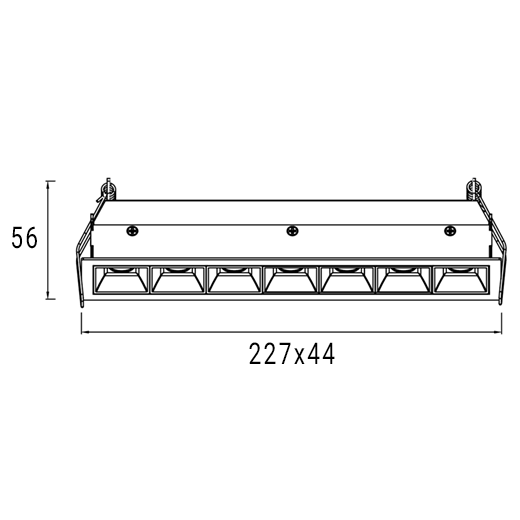

DR-A097-7
- Source Power:
- 15W
- System Power:
- 18W
- Source Lumens:
- Up to 1401Lm
- Delivered Lumens:
- Up to 1189Lm
- Beam Angle:
- 20°/35°/48°
- Efficacy:
- Up to 66Lm/W
- Cut out:
- 221x38mm

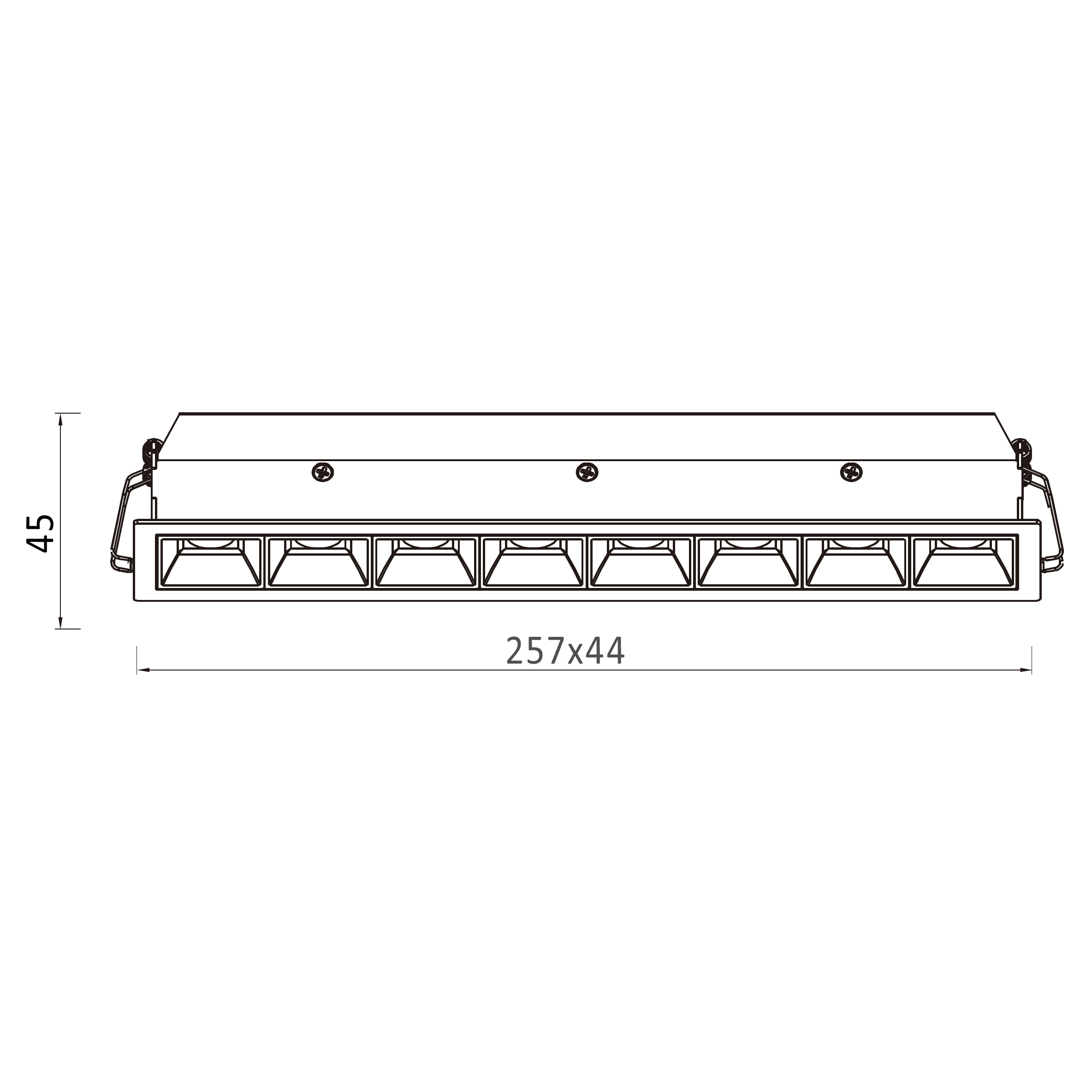

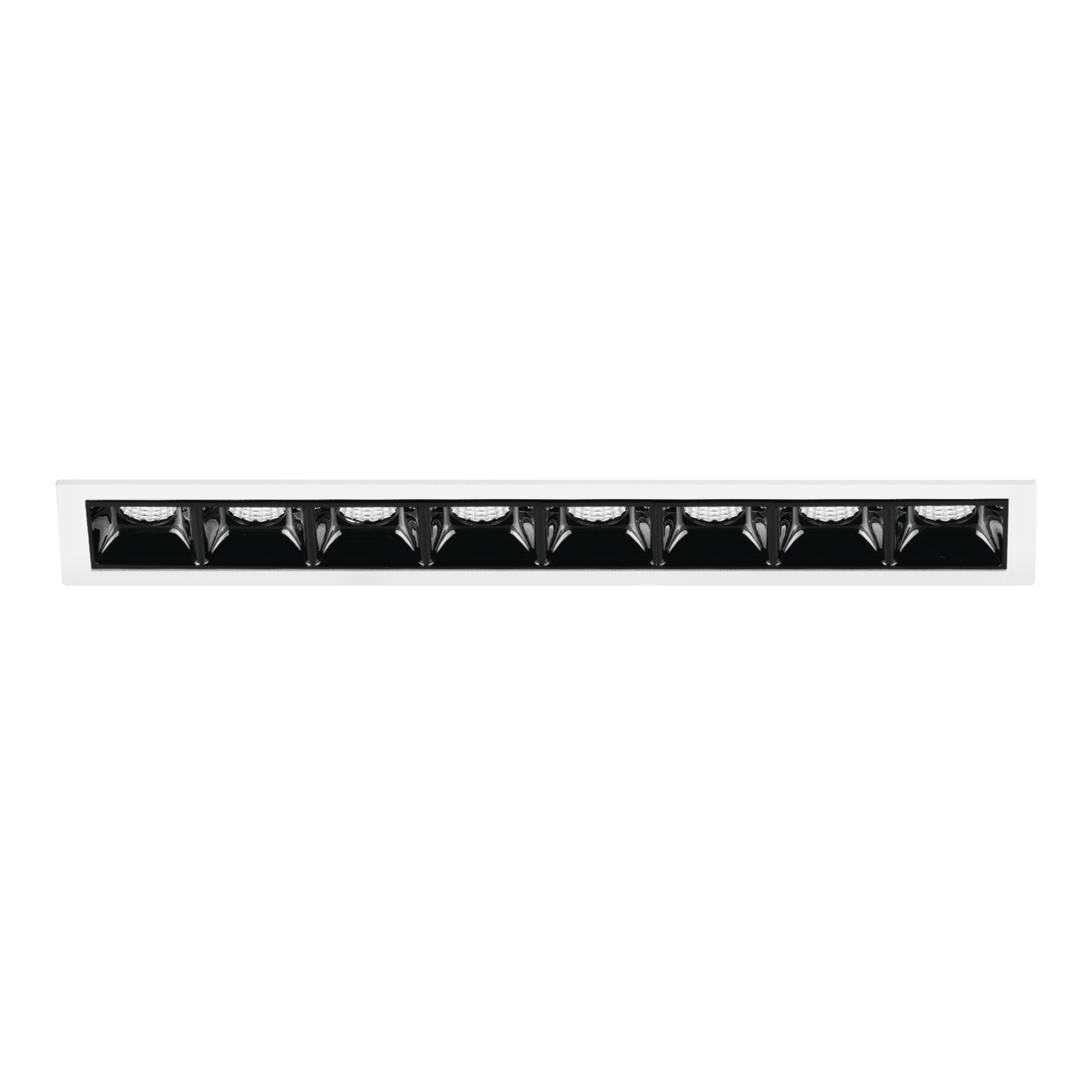

DR-A097-8
- Source Power:
- 17W
- System Power:
- 20W
- Source Lumens:
- Up to 1599Lm
- Delivered Lumens:
- Up to 1358Lm
- Beam Angle:
- 20°/34°/47°
- Efficacy:
- Up to 68Lm/W
- Cut out:
- 252x38mm
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L70 (10K) > 60,000 hrs
L90 (10K) > 49,000 hrs
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
