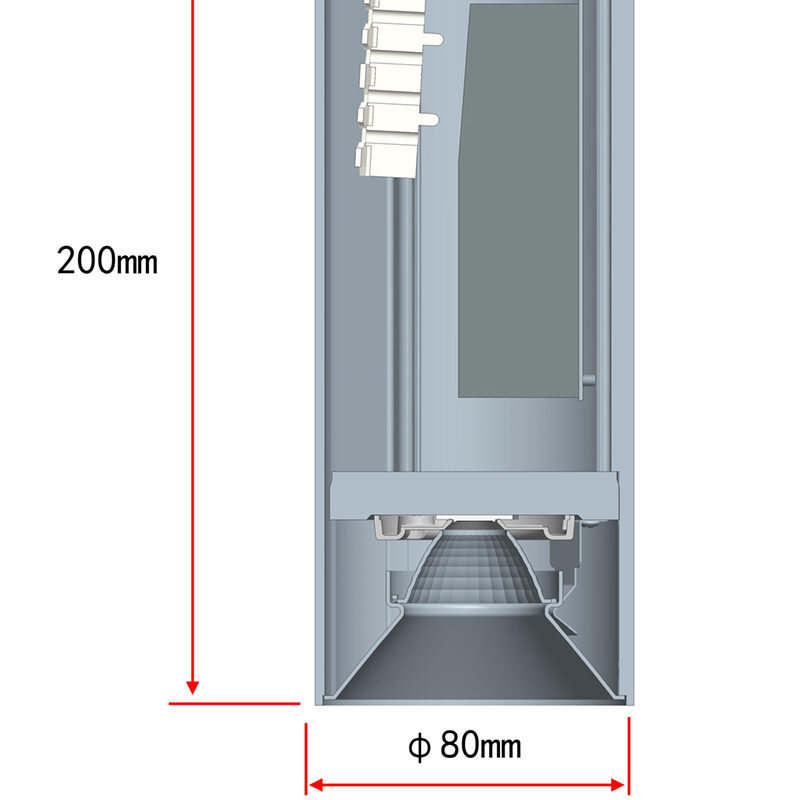

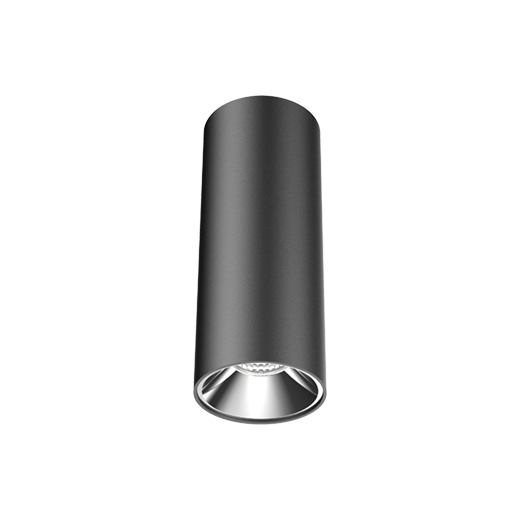

DS-A166
- Source Power:
- 6W / 12W
- System Power:
- 7W / 14W
- Source Lumens:
- 1521Lm
- Delivered Lumens:
- 1292Lm
- Beam Angle:
- Medium/Wide
- Efficacy:
- Up to 100Lm/W
HADIS SURFACE MOUNTED DOWNLIGHT
The Hadis is a contemporary surface-mounted downlight perfect for commercial and retail environments. Ideal for high ceilings and precise illumination to highlight key design spaces. Its cylindrical construction driver offers a range of beam angles to ensure this is an excellent choice for a full range of applications. Available with white, black, silver and gold reflectors. Also available in pendant format.
The Hadis is a contemporary surface-mounted downlight perfect for commercial and retail environments. Ideal for high ceilings and precise illumination to highlight key design spaces. Its cylindrical construction driver offers a range of beam angles to ensure this is an excellent choice for a full range of applications. Available with white, black, silver and gold reflectors. Also available in pendant format.
Models

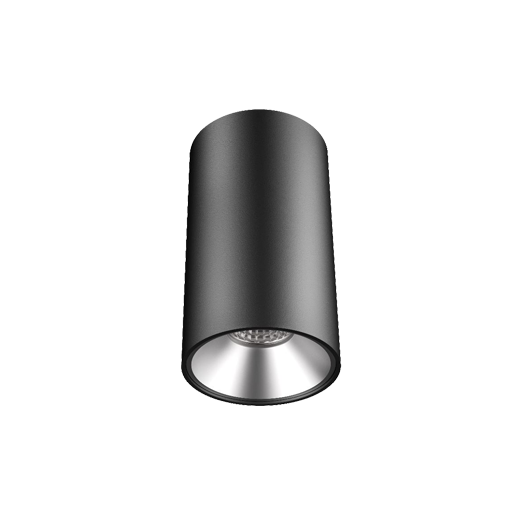

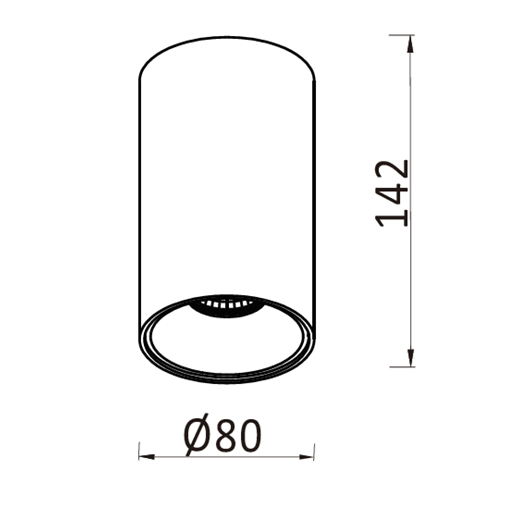

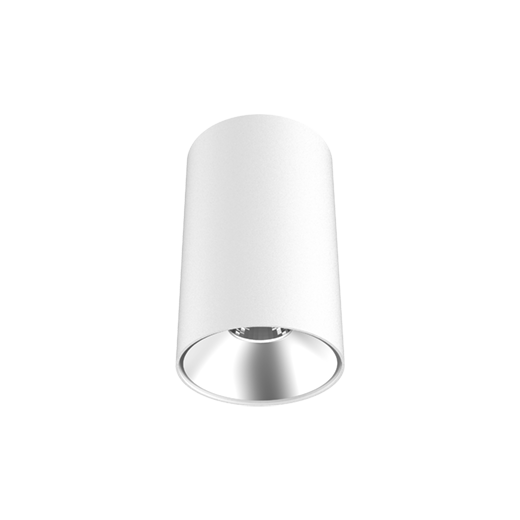

DS-A129
- Source Power:
- 7W
- System Power:
- 8W
- Source Lumens:
- 872Lm
- Delivered Lumens:
- 674Lm
- Beam Angle:
- 18°/30°/48°
- Efficacy:
- Up to 84Lm/W

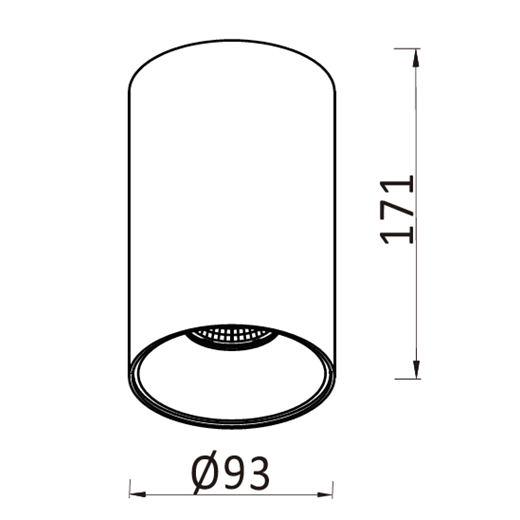

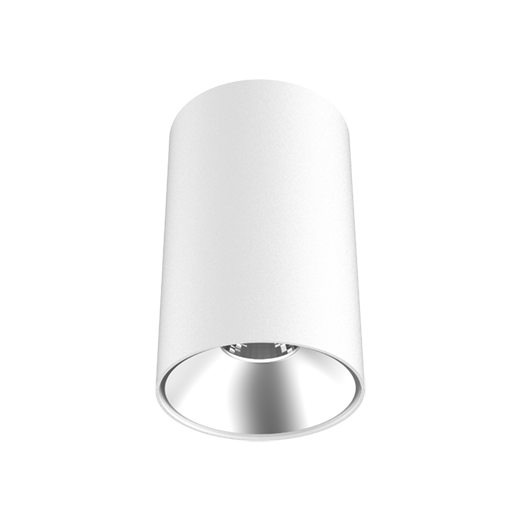

DS-A128
- Source Power:
- 7W / 12W
- System Power:
- 8W / 14W
- Source Lumens:
- Up to 1586Lm
- Delivered Lumens:
- Up to 1268Lm
- Beam Angle:
- 20°/32°/38° 25°/34°/40°
- Efficacy:
- Up to 92Lm/W

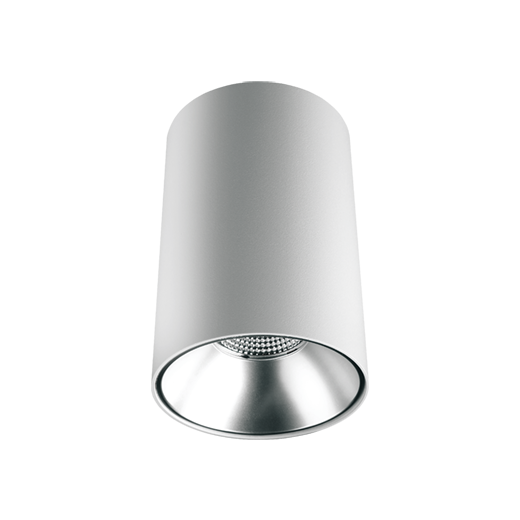

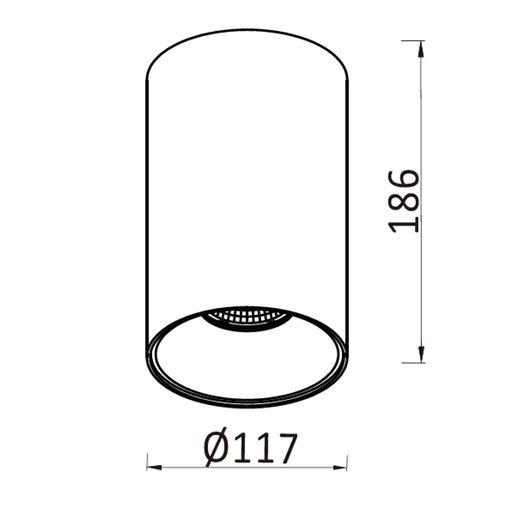

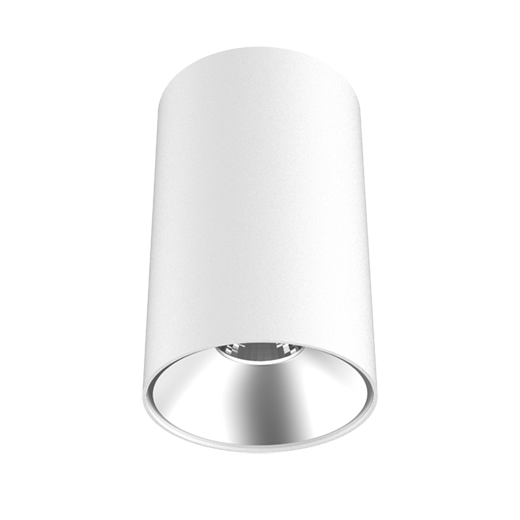

DS-A127
- Source Power:
- 17W / 25W
- System Power:
- 19W / 27W
- Source Lumens:
- Up to 3107Lm
- Delivered Lumens:
- Up to 2554Lm
- Beam Angle:
- 28°/36°/65°
- Efficacy:
- Up to 101Lm/W
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L80 (12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
Accessories

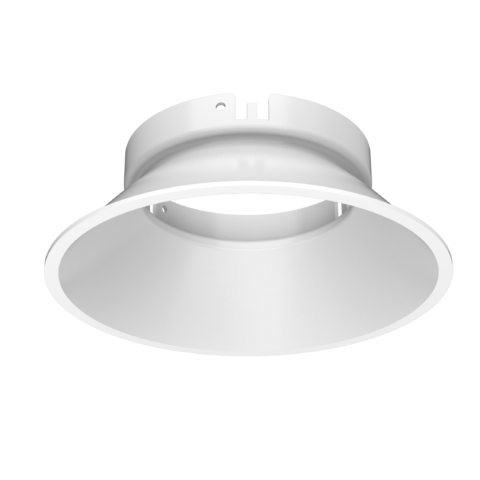

Hadis White Reflector
Hadis Black Reflector

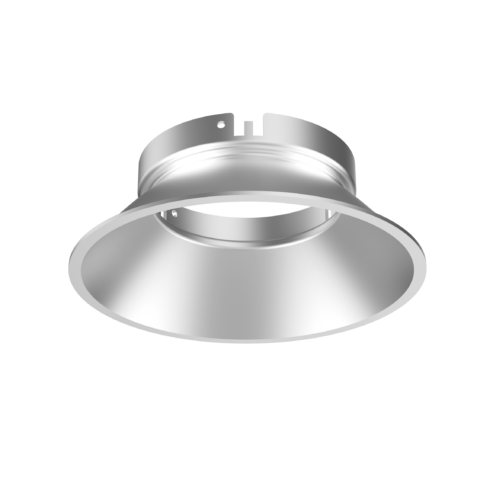

Hadis Silver Reflector

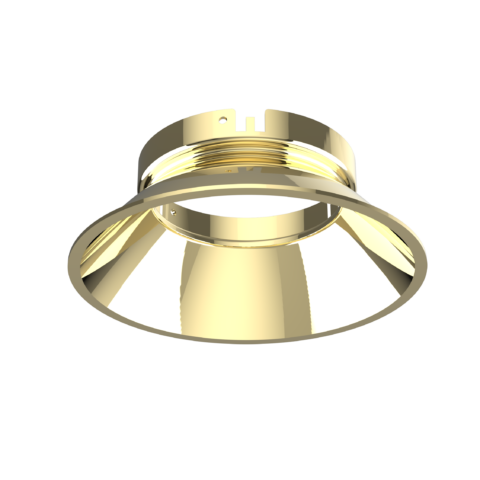

Hadis Golden Reflector
Honeycomb Louvre
