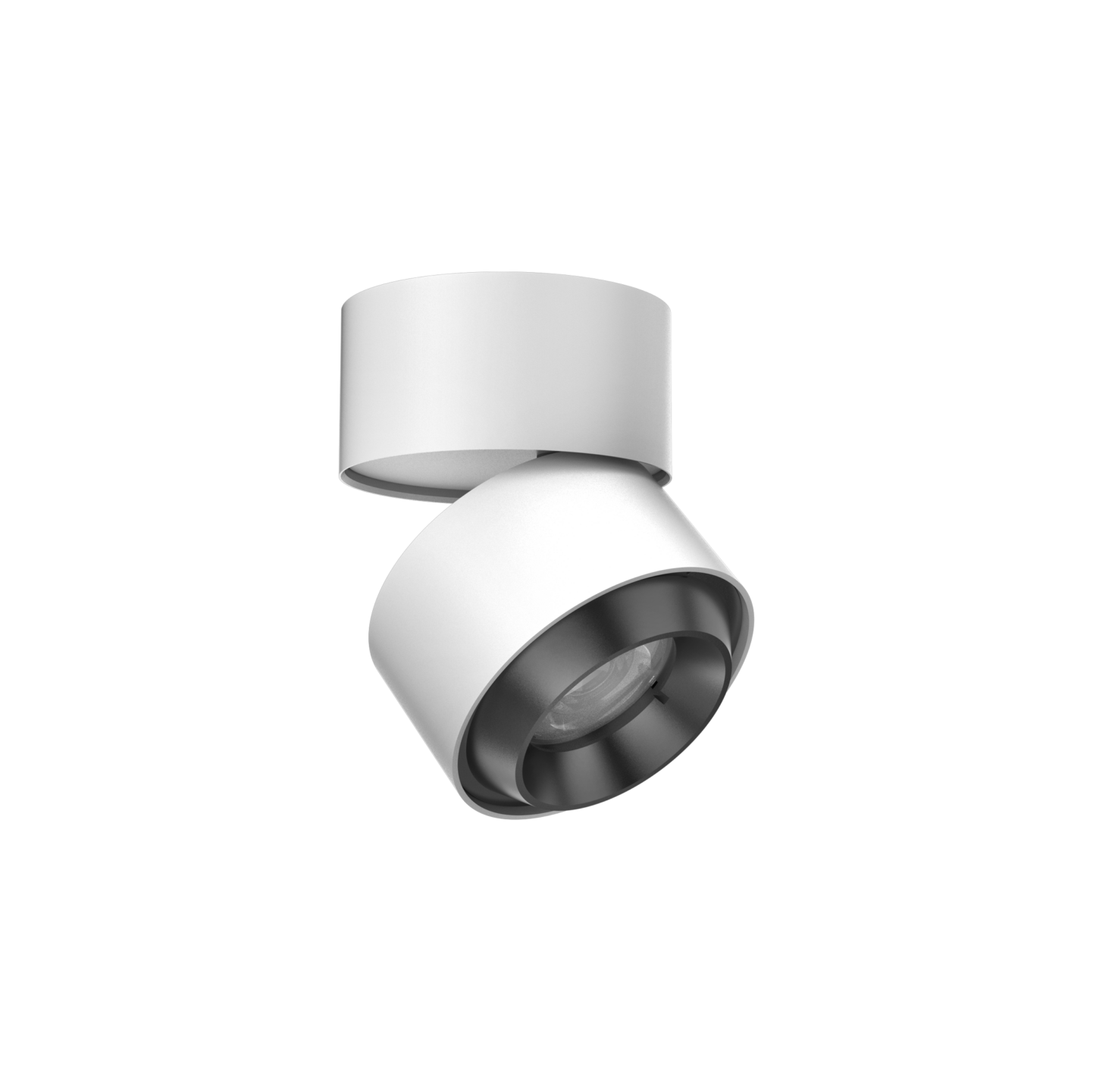

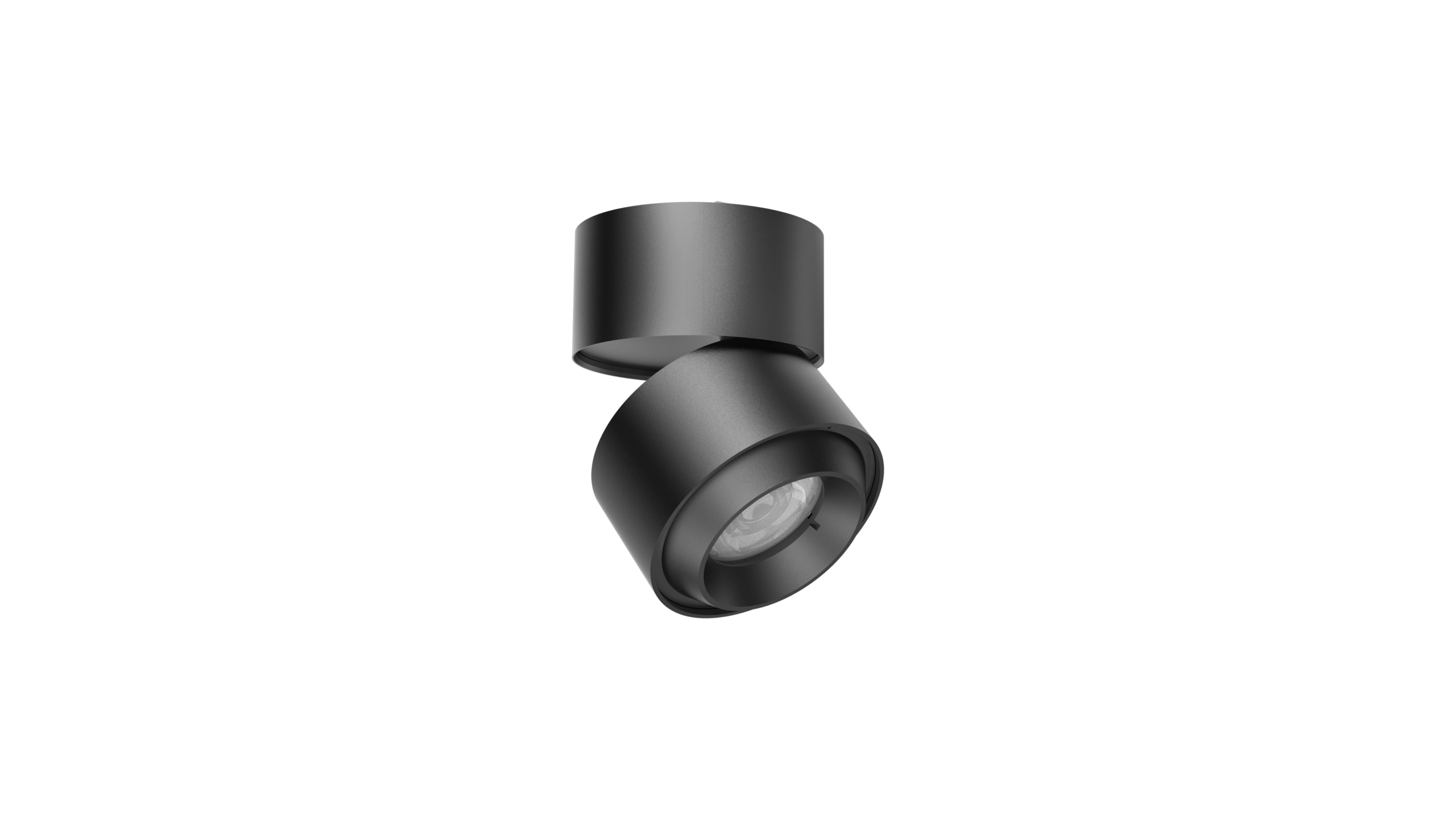

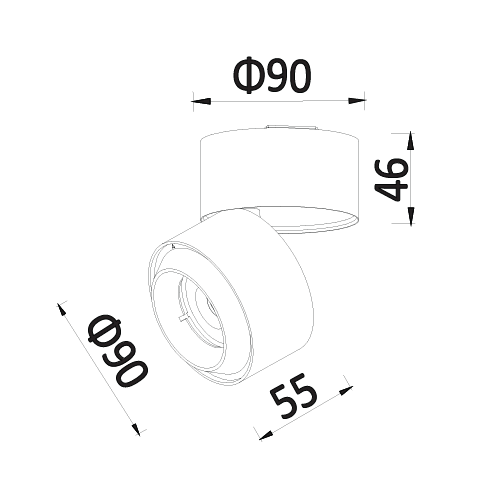

SS-MASS
Master Surface Small
- Source Power:
- 9W | 13W
- System Power:
- 10W | 14W
- Source Lumens:
- Up to 2313lm
- Delivered Lumens:
- Up to 1701m
- Beam Angle:
- 19° | 24° | 33° | 52°
- Efficacy:
- Up to 125lm/W
- Rotation:
- 355°
- Tilt:
- 75°

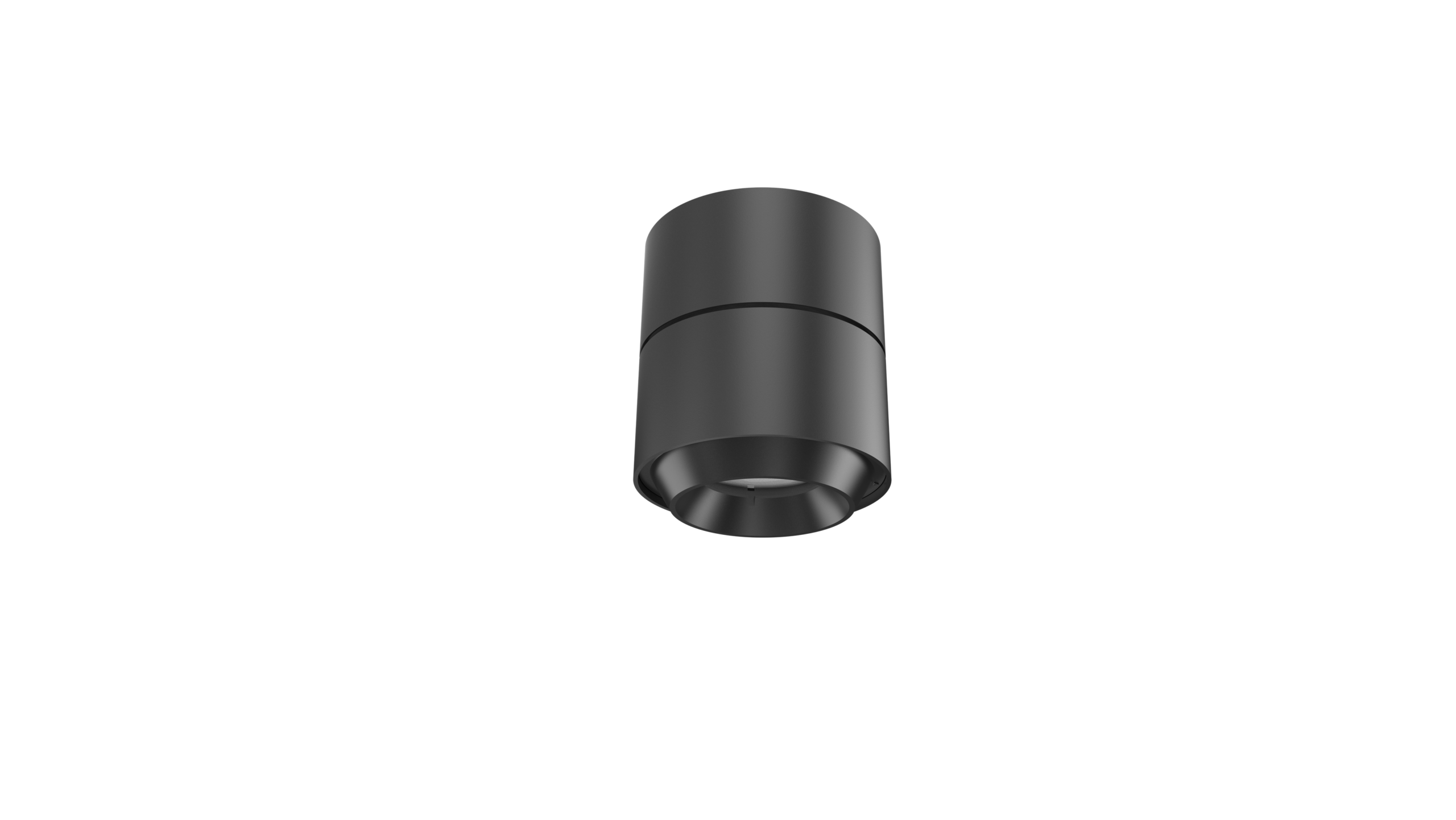

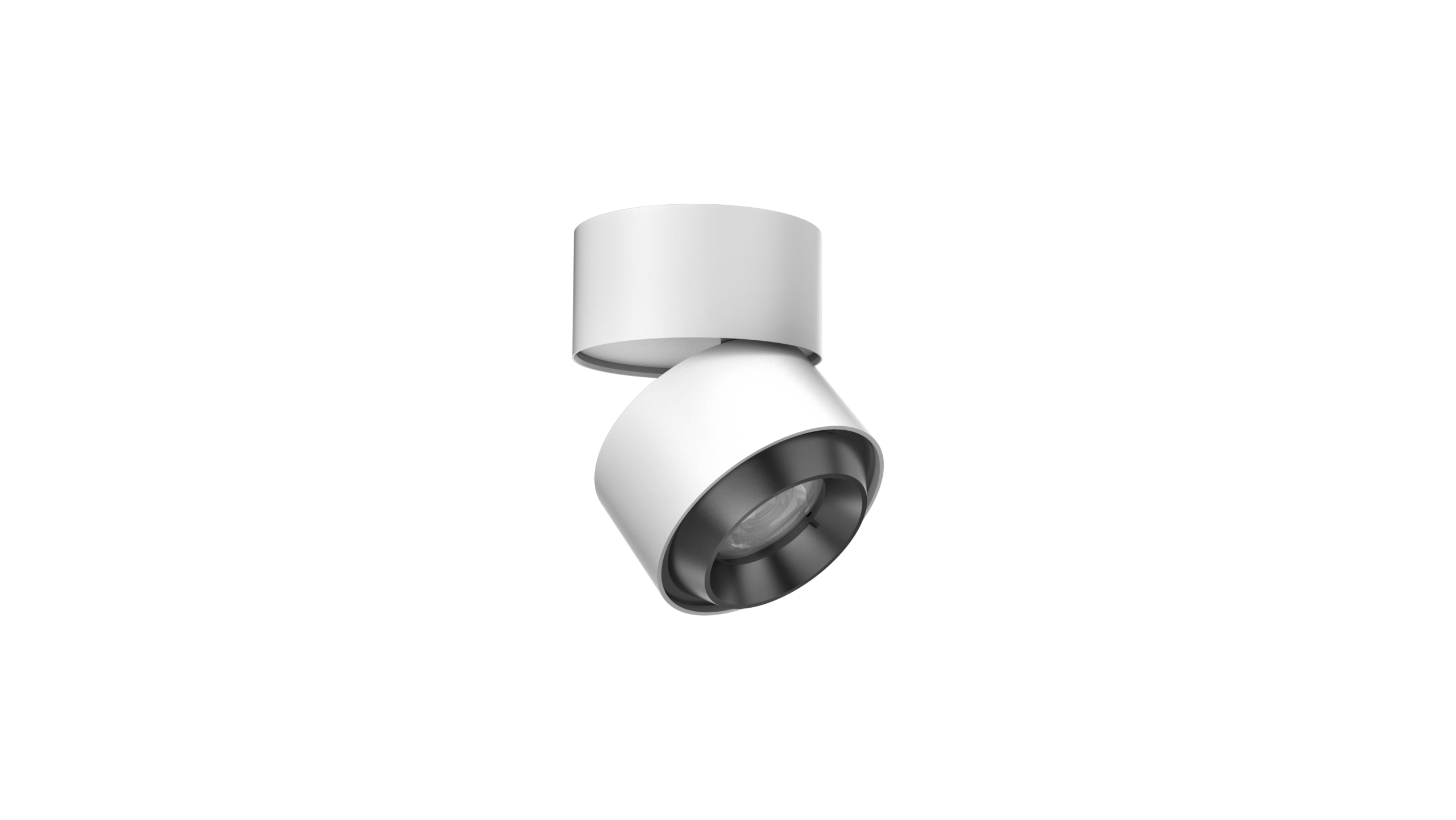

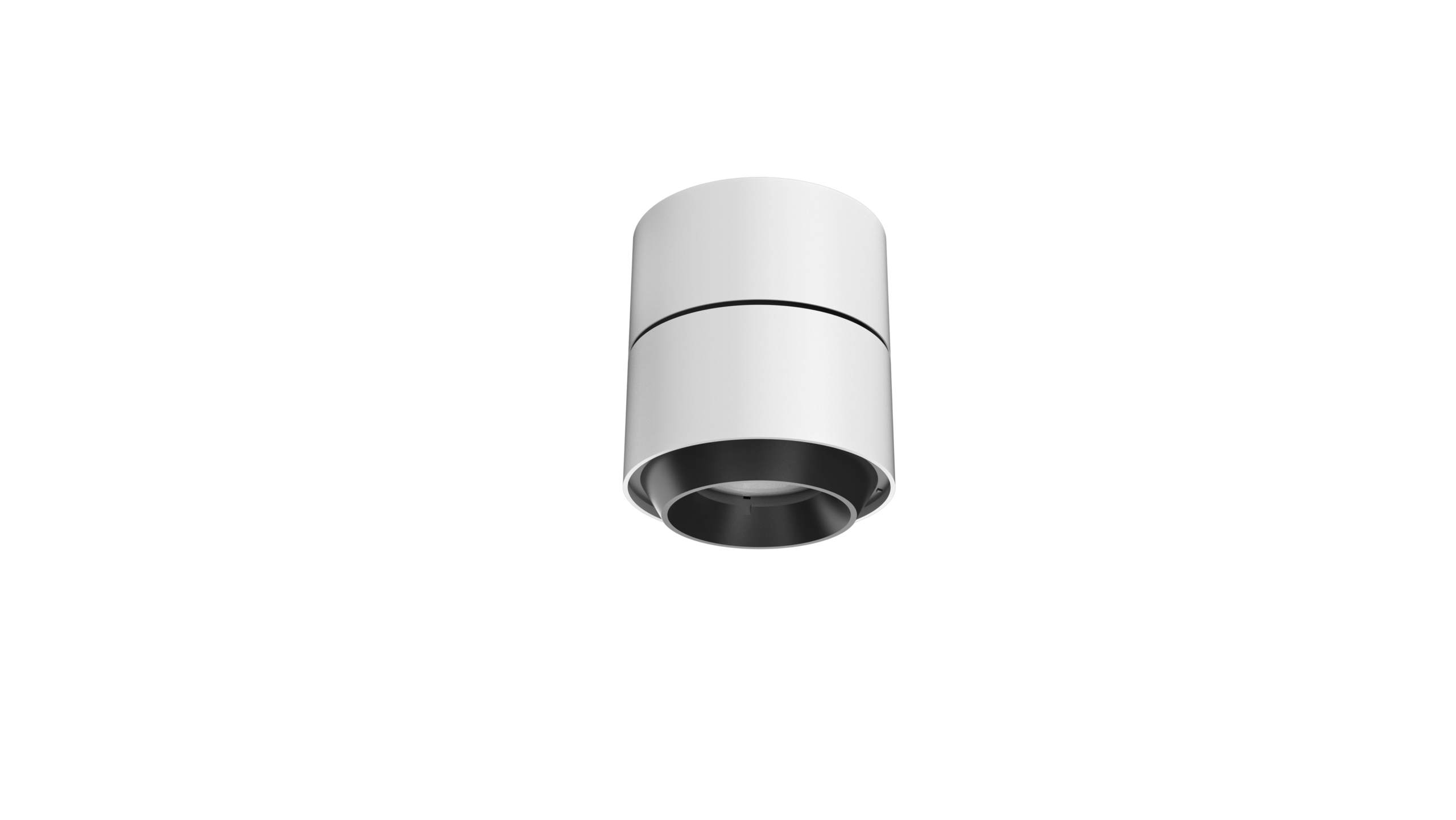

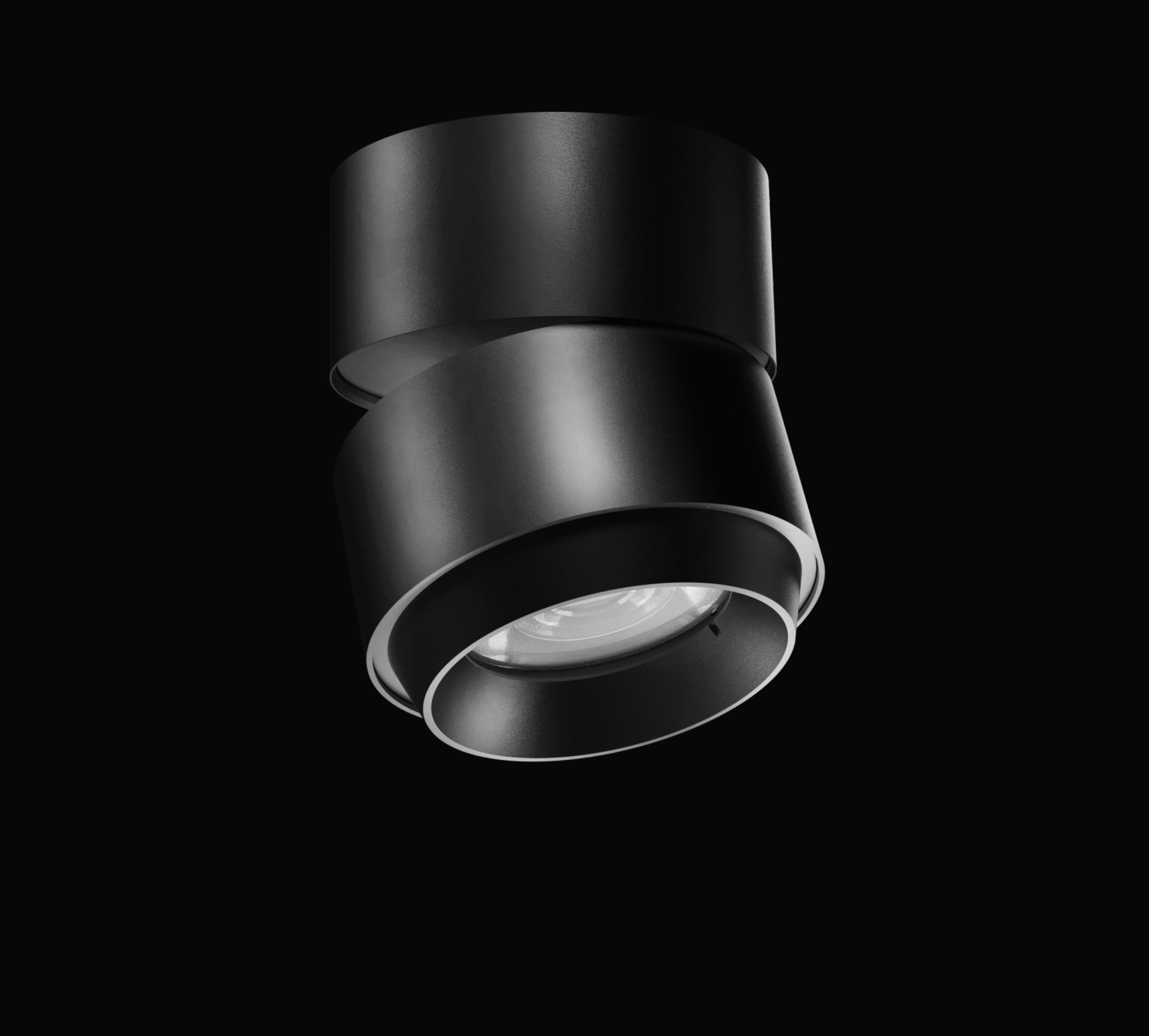

Master
Surface Mounted Downlight
The Master is a versatile adjustable spotlight available in track, surface, and recessed formats, covering small and medium sizes to suit any ceiling type or installation requirement. With up to 2900lm and efficacy to 145lm/W, the Master delivers precise, high-quality directional light across retail, hospitality, and commercial environments.
A lens optic, 75° tilt, and 355° rotation provide flexible aiming to highlight architectural features, merchandise, and focal points with accuracy. CRI >90, UGR as low as 20, and flicker-free drivers ensure visual comfort and compliance as standard. Compatible with DALI2, 0-10V, Triac, and Casambi. Available in white, black, grey, or custom RAL with metal plated finish options.
A lens optic, 75° tilt, and 355° rotation provide flexible aiming to highlight architectural features, merchandise, and focal points with accuracy. CRI >90, UGR as low as 20, and flicker-free drivers ensure visual comfort and compliance as standard. Compatible with DALI2, 0-10V, Triac, and Casambi. Available in white, black, grey, or custom RAL with metal plated finish options.
The Master is a versatile adjustable spotlight available in track, surface, and recessed formats, covering small and medium sizes to suit any ceiling type or installation requirement. With up to 2900lm and efficacy to 145lm/W, the Master delivers precise, high-quality directional light across retail, hospitality, and commercial environments.
A lens optic, 75° tilt, and 355° rotation provide flexible aiming to highlight architectural features, merchandise, and focal points with accuracy. CRI >90, UGR as low as 20, and flicker-free drivers ensure visual comfort and compliance as standard. Compatible with DALI2, 0-10V, Triac, and Casambi. Available in white, black, grey, or custom RAL with metal plated finish options.
A lens optic, 75° tilt, and 355° rotation provide flexible aiming to highlight architectural features, merchandise, and focal points with accuracy. CRI >90, UGR as low as 20, and flicker-free drivers ensure visual comfort and compliance as standard. Compatible with DALI2, 0-10V, Triac, and Casambi. Available in white, black, grey, or custom RAL with metal plated finish options.
Models

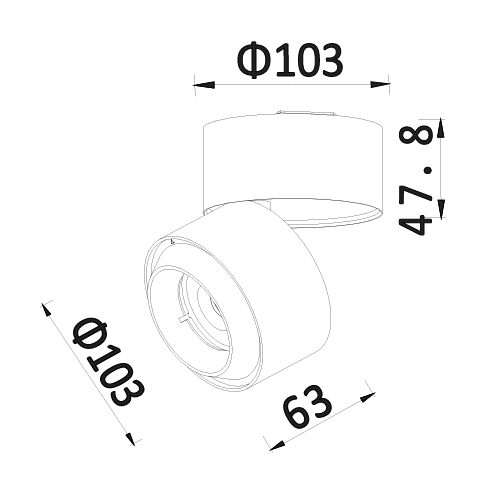

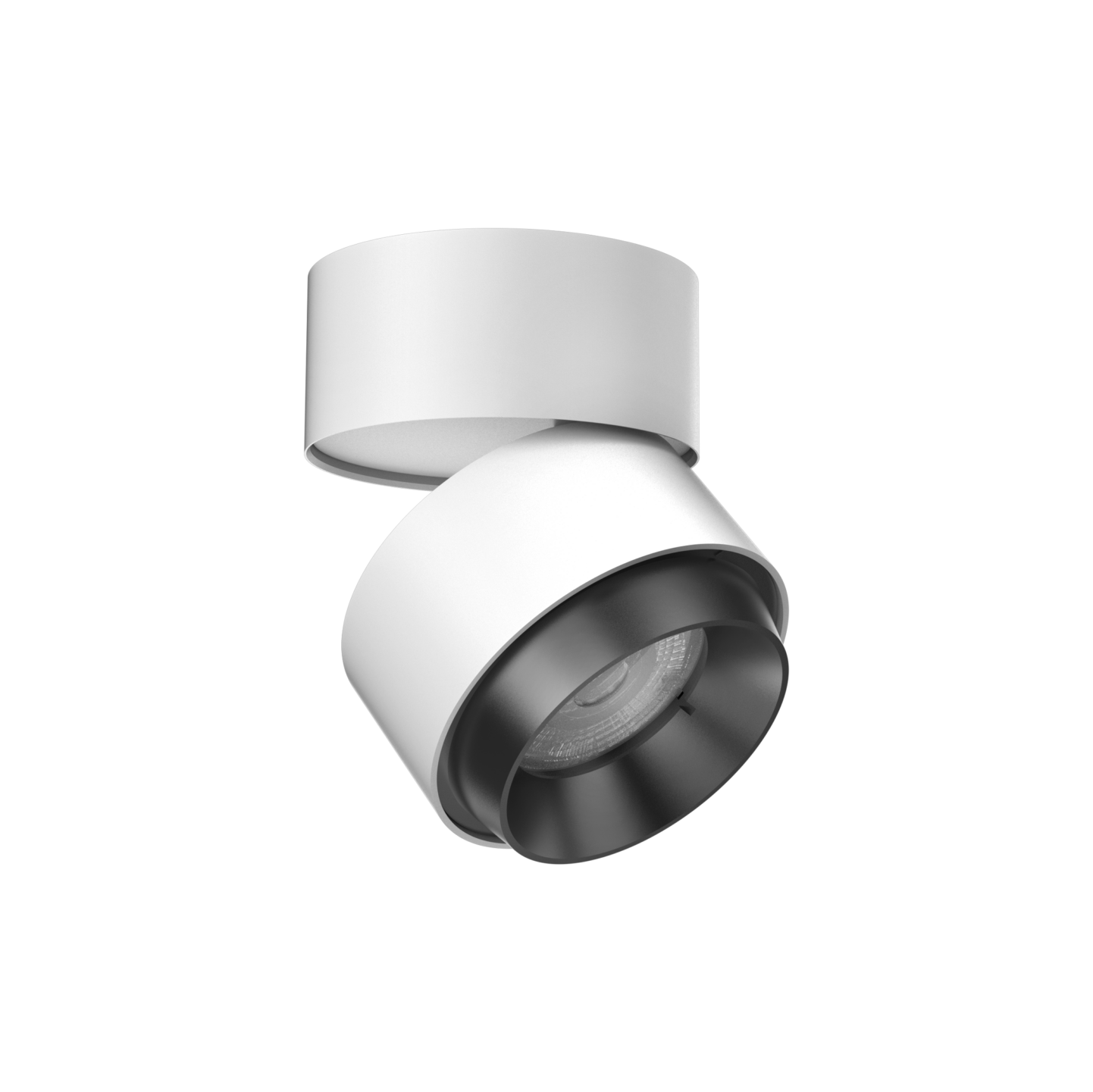

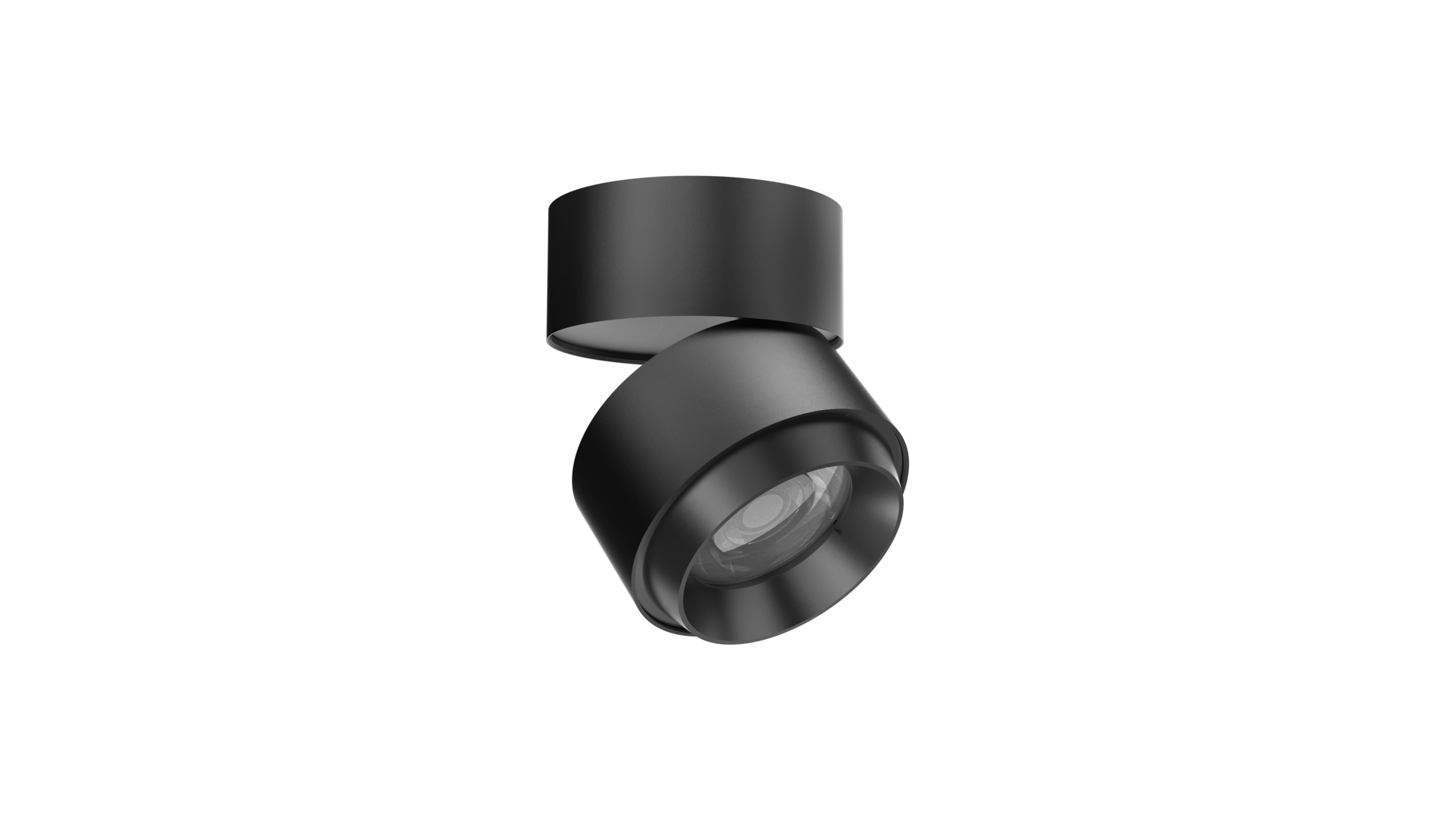

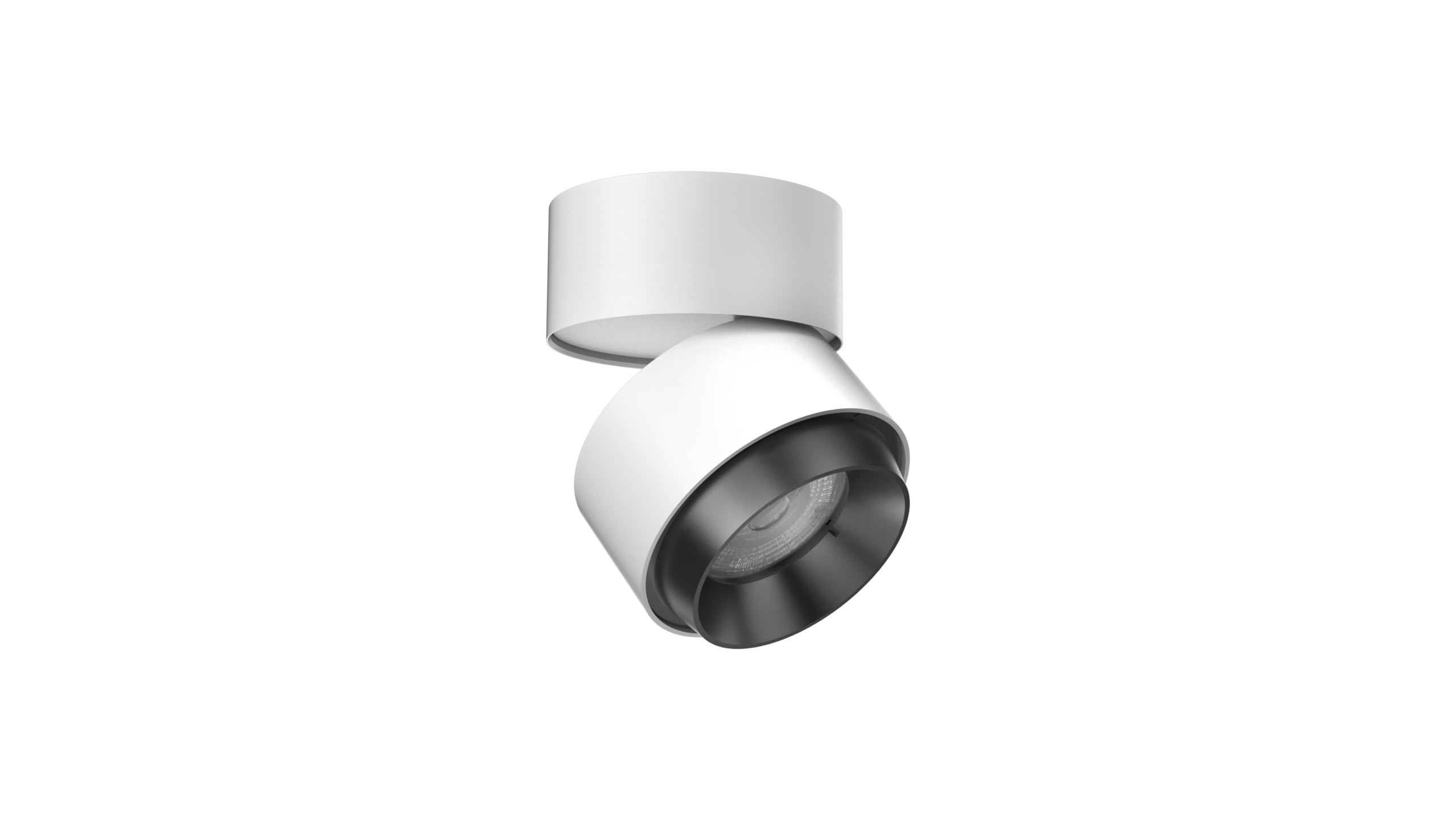

SS-MASM
Master Surface Medium
- Source Power:
- 12W | 19W
- System Power:
- 14W | 20W
- Source Lumens:
- Up to 3343lm
- Delivered Lumens:
- Up to 2823m
- Beam Angle:
- 23° | 31° | 38° | 56°
- Efficacy:
- Up to 145lm/W
- Rotation:
- 355°
- Tilt:
- 75°

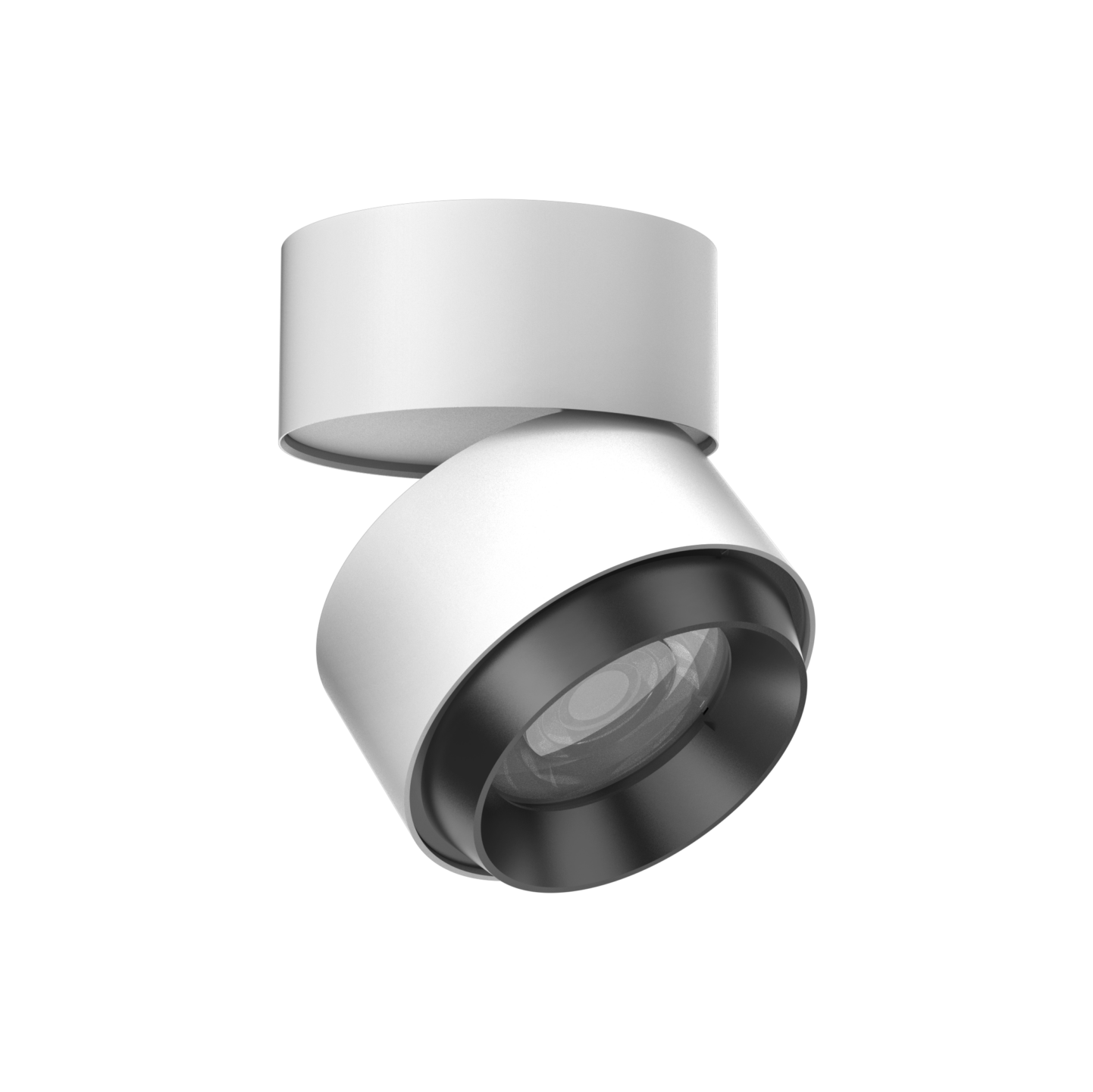

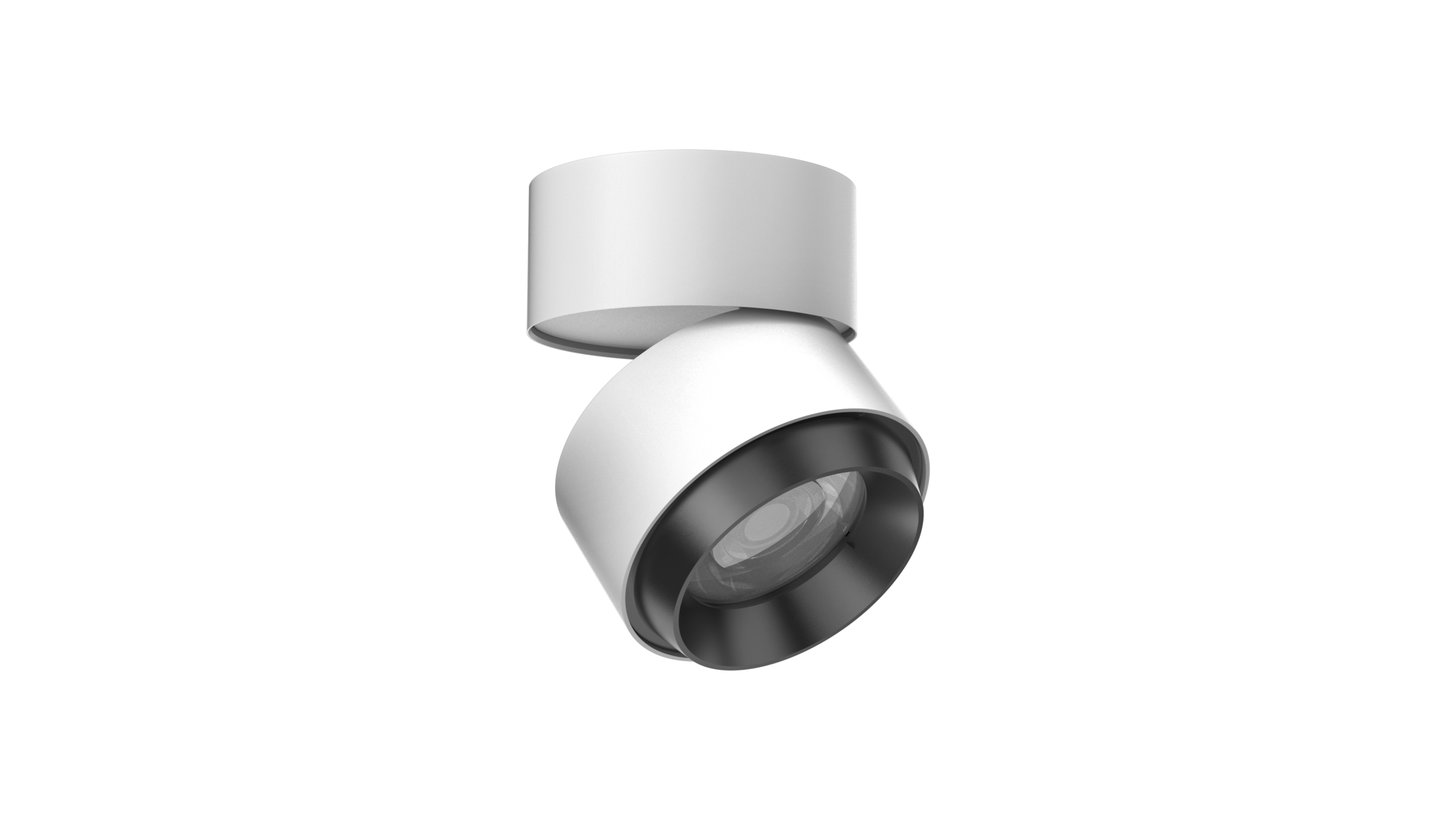

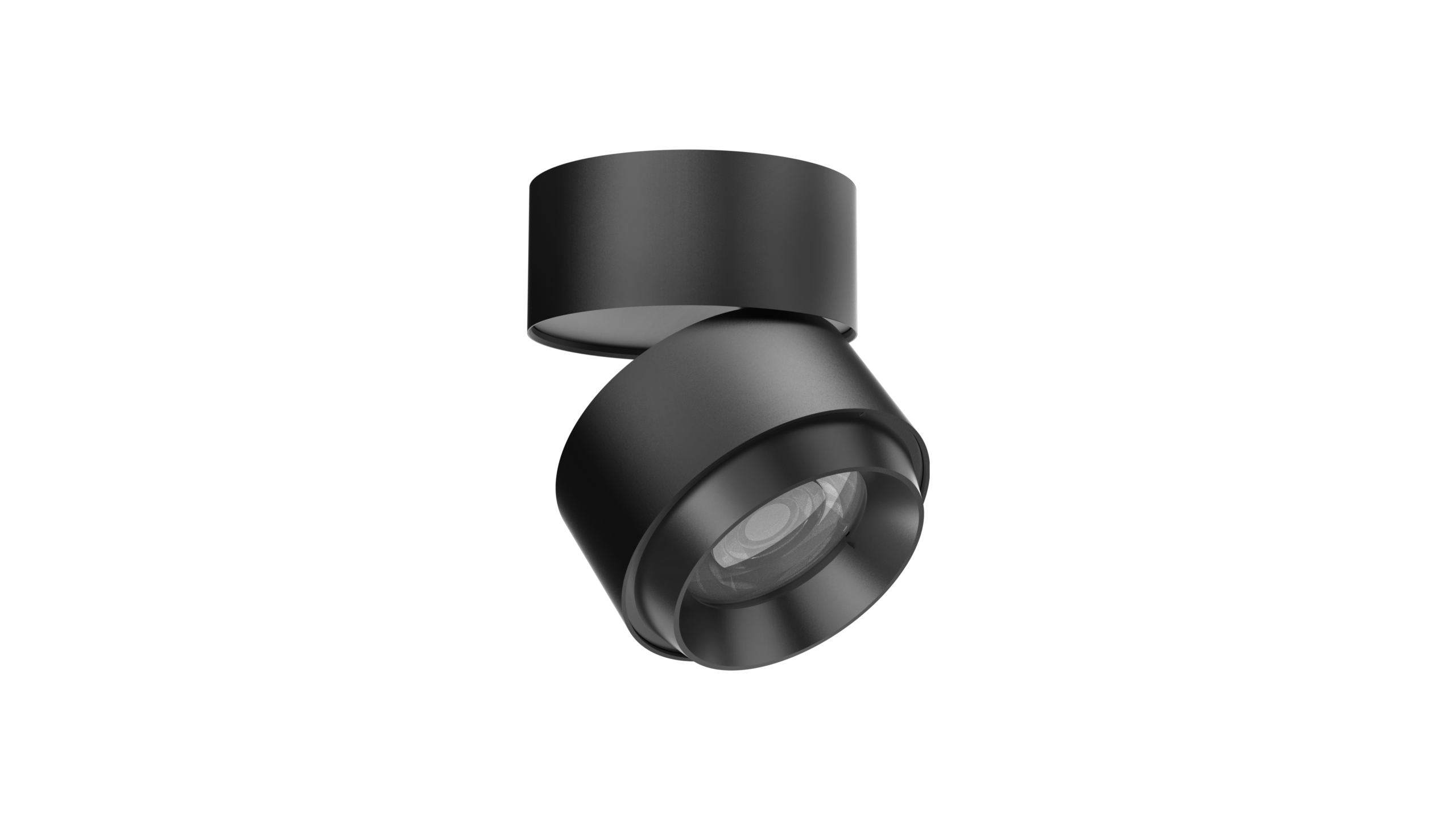

SS-MASL
Master Surface Large
- Source Power:
- 19W | 23W
- System Power:
- 20W | 25W
- Source Lumens:
- Up to 3995lm
- Delivered Lumens:
- Up to 3310m
- Beam Angle:
- 21° | 28° | 38° | 59°
- Efficacy:
- Up to 137lm/W
- Rotation:
- 355°
- Tilt:
- 75°
General Specifications
Finish
IP Rating
IP20
CRI
>90
Lifetime
L80 > 108,000 hrs
Material
Aluminium
CCT
2700K
3000K
3500K
4000K
Voltage
220-240V
Dimming
Switchable
DALI-2
0-10V
Triac
Casambi
Accessories
Honeycomb Louvre
Barn Door
Elliptical Optical Lens
Cross
