IVES WALL LIGHT

The Ives wall mounted series is configured as an uplight only wall light or an up/down version if required. The Ives series is complementary to modern contemporary design for residential or commercial applications. The Ives range of lighting is IP20 rated has an integral driver, 4mm thick tempered glass diffuser and dimming capabilities.

  • Ives WA-A011 (Uplight) / Ives WA-A005 (Up/Down)

  • Ives WA-A009 (Uplight) / Ives WA-A015 (Up/Down)

  • Ives WA-A013 (Uplight) / Ives WA-A007 (Up/Down)

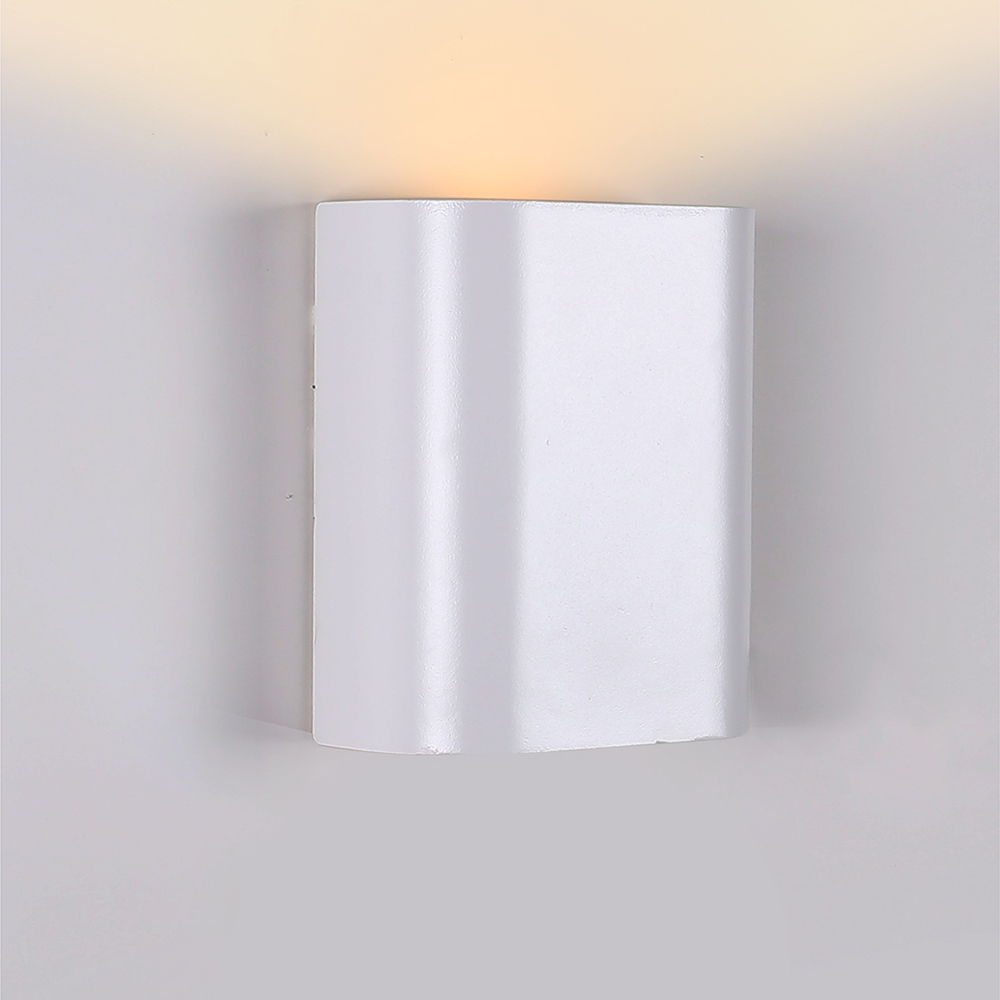

WA-A011

Source Power: 6W
System Power: 8W
Source Lumens: 612Lm
Delivered Lumens: 339Lm
Efficacy:  Up to 62Lm/W
Download:  Datasheet

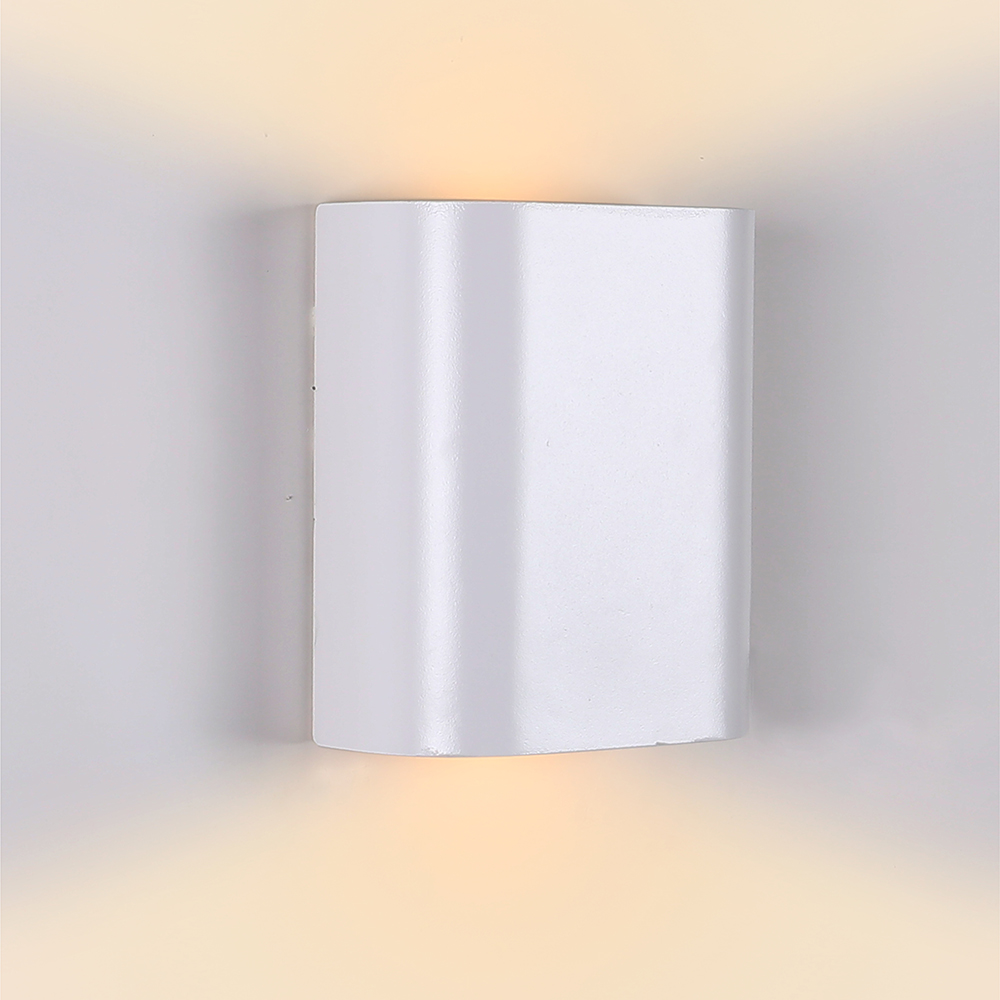

WA-A005

Source Power: 2x6W
System Power: 2x8W
Source Lumens: 2x612Lm
Delivered Lumens: 2x339Lm
Efficacy:  Up to 62Lm/W
Download:  Datasheet

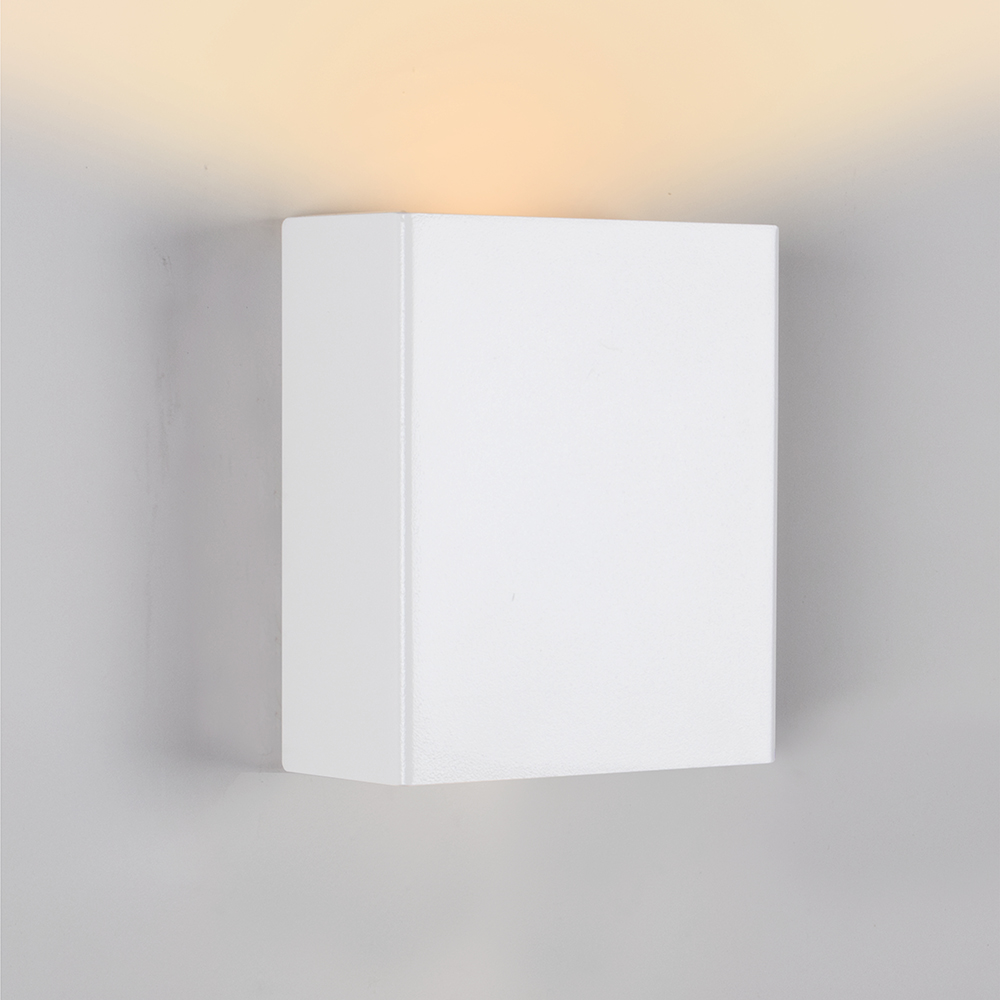

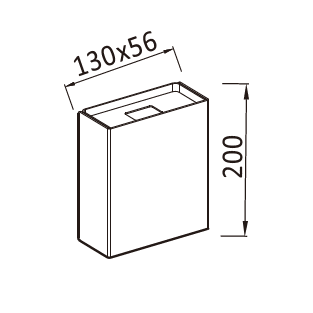

WA-A015

Source Power: 6W
System Power: 8W
Source Lumens: 612Lm
Delivered Lumens: 339Lm
Efficacy:  Up to 62Lm/W
Download:  Datasheet

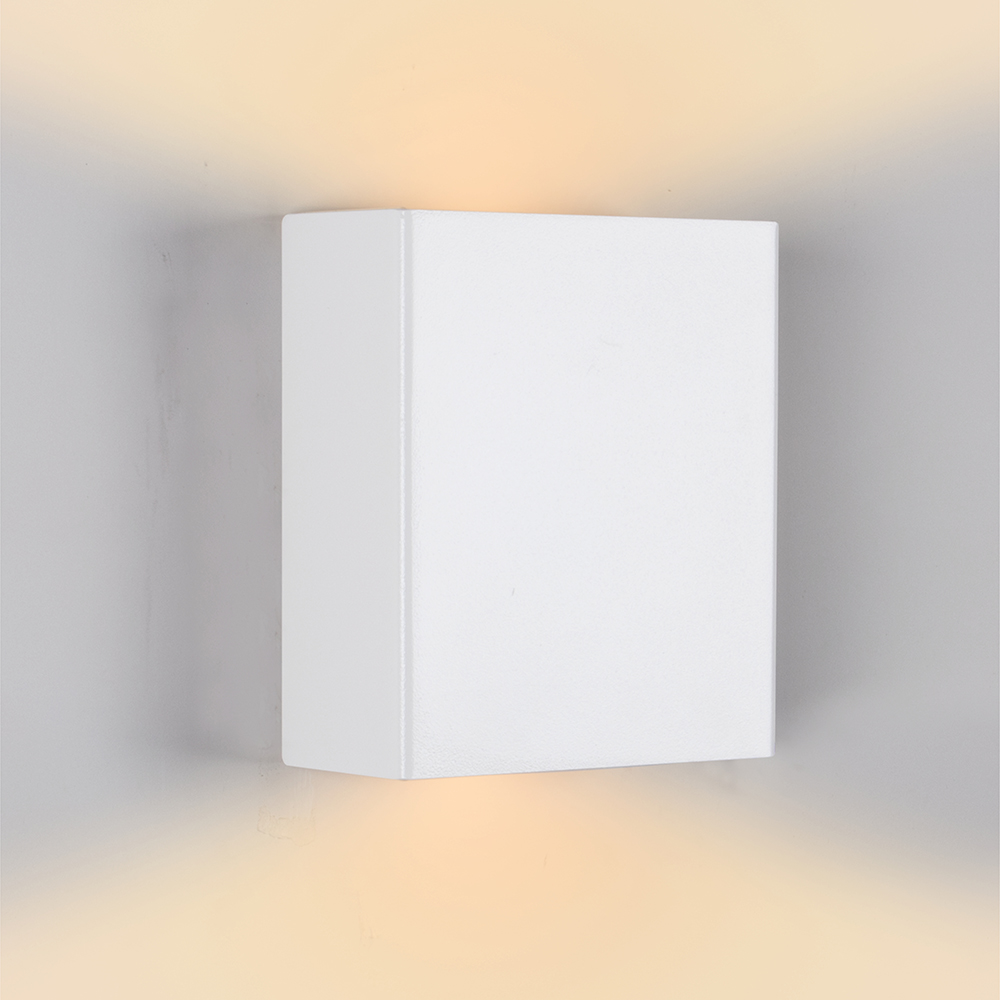

WA-A009

Source Power: 2x6W
System Power: 2x8W
Source Lumens: 2x612Lm
Delivered Lumens: 2x339Lm
Efficacy:  Up to 62Lm/W
Download:  Datasheet

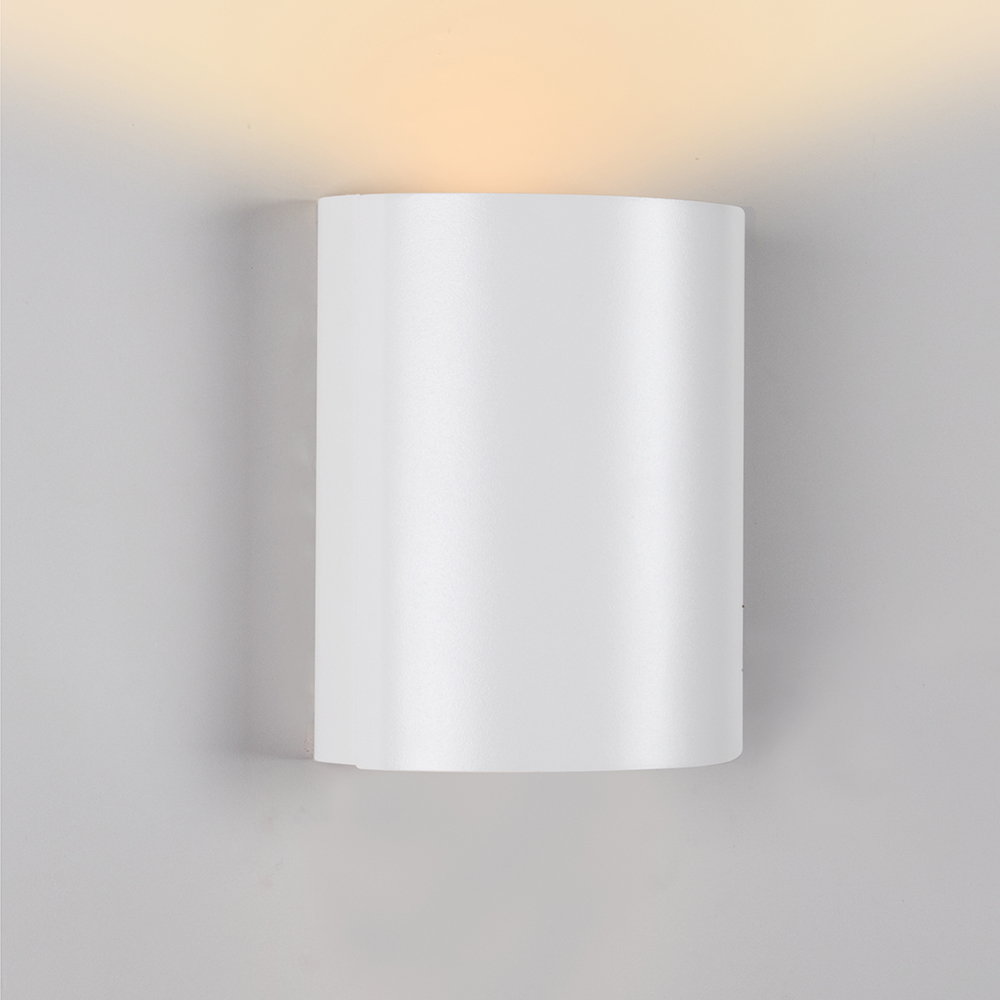

WA-A013

Source Power: 6W
System Power: 8W
Source Lumens: 612Lm
Delivered Lumens: 339Lm
Efficacy:  Up to 62Lm/W
Download:  Datasheet

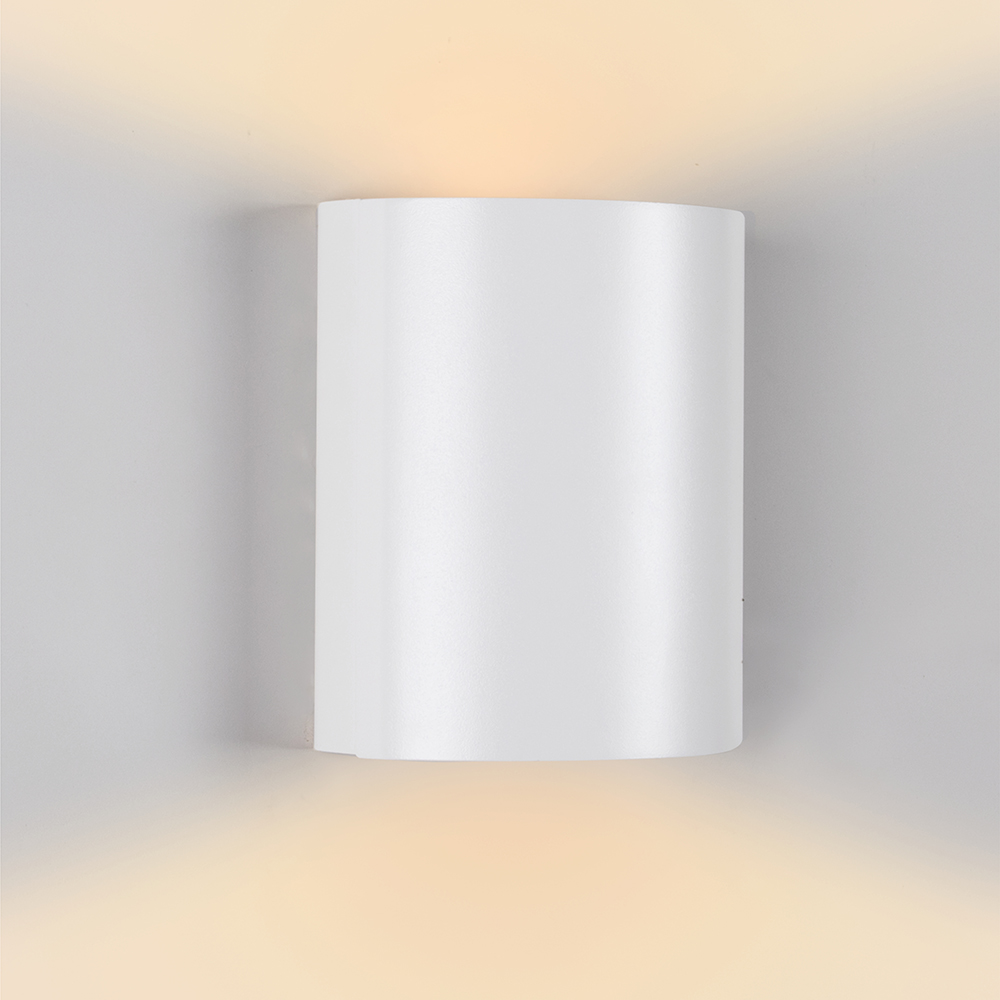

WA-A007

Source Power: 2x6W
System Power: 2x8W
Source Lumens: 2x612Lm
Delivered Lumens: 2x339Lm
Efficacy:  Up to 62Lm/W
Download:  Datasheet
Finish Black/White Material Aluminium
IP Rating IP20 CCT  3000K/4000K
CRI >80/>90 Voltage 230V, 50Hz
Lifetime >50,000 hours Dimming Available on request
