SS-CC10
- Source Power:
- 7W / 12W / 17W
- System Power:
- 8W / 14W / 19W
- Source Lumens:
- Up to 2269Lm
- Delivered Lumens:
- Up to 2090Lm
- Beam Angle:
- 9°/15°/28°/65° 12°/18°/34°/64° 15°/21°/37°/60°
- Efficacy:
- Up to 110Lm/W
- Tilt:
- 90°

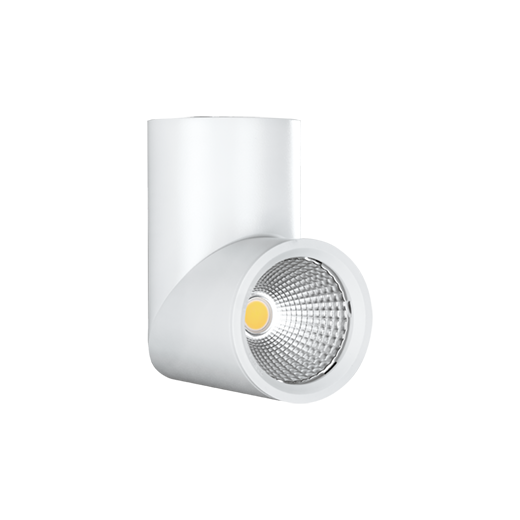

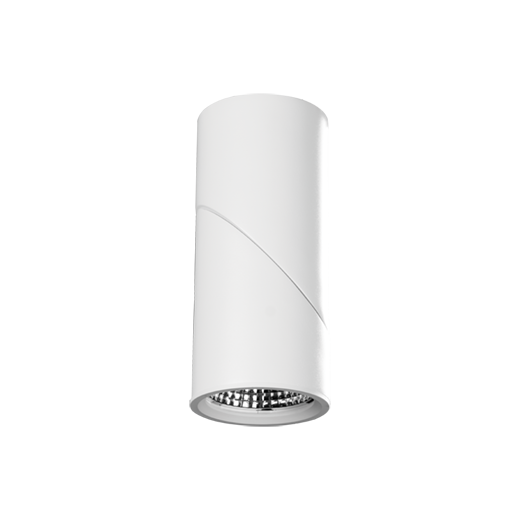

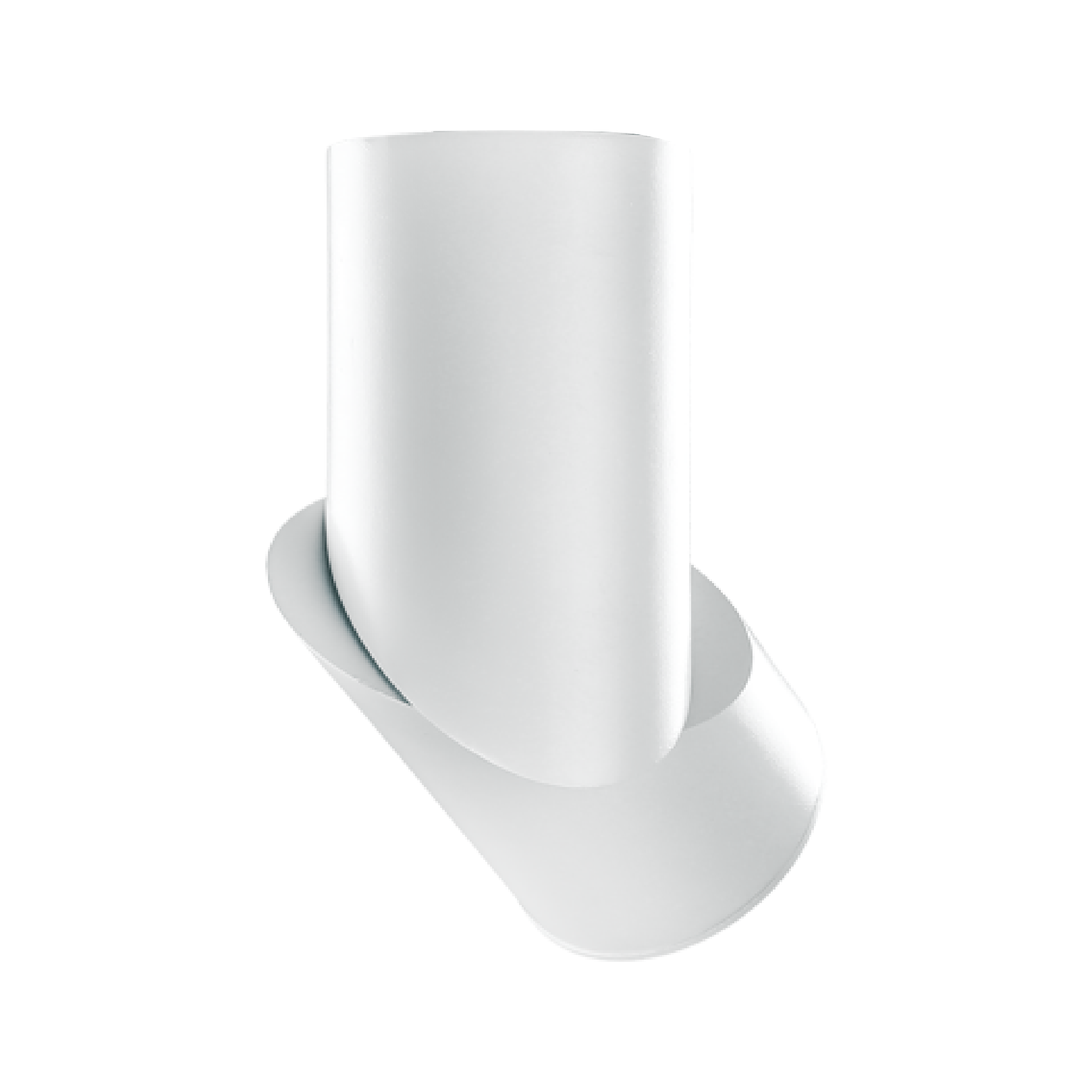

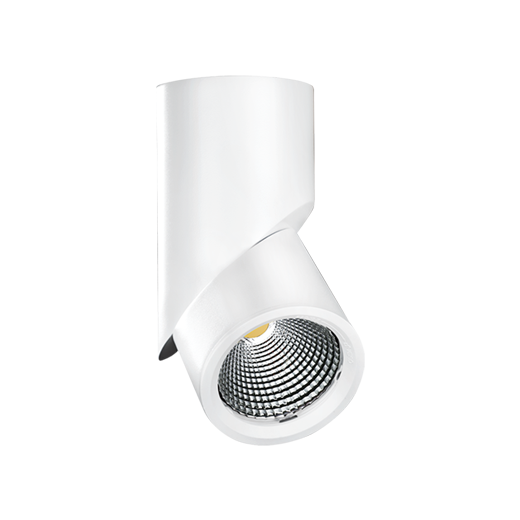

LOGAN SURFACE MOUNTED SPOTLIGHT
The Logan series offers a sleek surface-mounted spotlight with a rotating lens head, the Logan is easily adaptable for accent lighting on a wall or vertically as a downlight. With an integrated driver, the clever design of the Logan adjusts through 90° vertical plane and 355° horizontal plane. This luminaire is suitable for art galleries, museums, retail stores and residential applications.
Optional selections include a choice of CCT colour, an elliptical optical lens, a glass lens and honeycomb diffusers.
Available in track spot and surface spot.
The Logan series offers a sleek surface-mounted spotlight with a rotating lens head, the Logan is easily adaptable for accent lighting on a wall or vertically as a downlight. With an integrated driver, the clever design of the Logan adjusts through 90° vertical plane and 355° horizontal plane. This luminaire is suitable for art galleries, museums, retail stores and residential applications.
Optional selections include a choice of CCT colour, an elliptical optical lens, a glass lens and honeycomb diffusers.
Available in track spot and surface spot.
Models
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L80 (12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
Accessories
Honeycomb Louvre
Glass
Elliptical Optical Lens
