Description

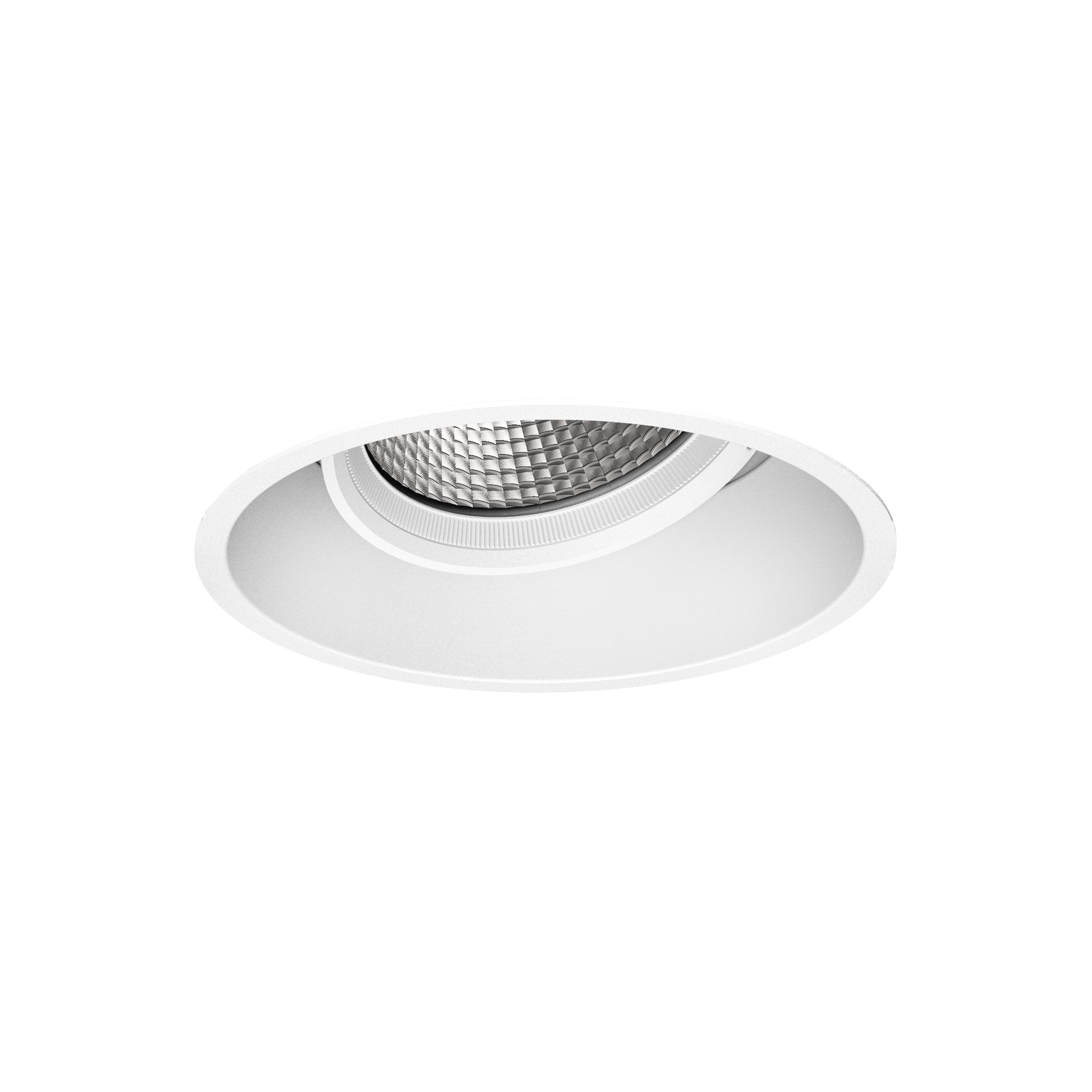

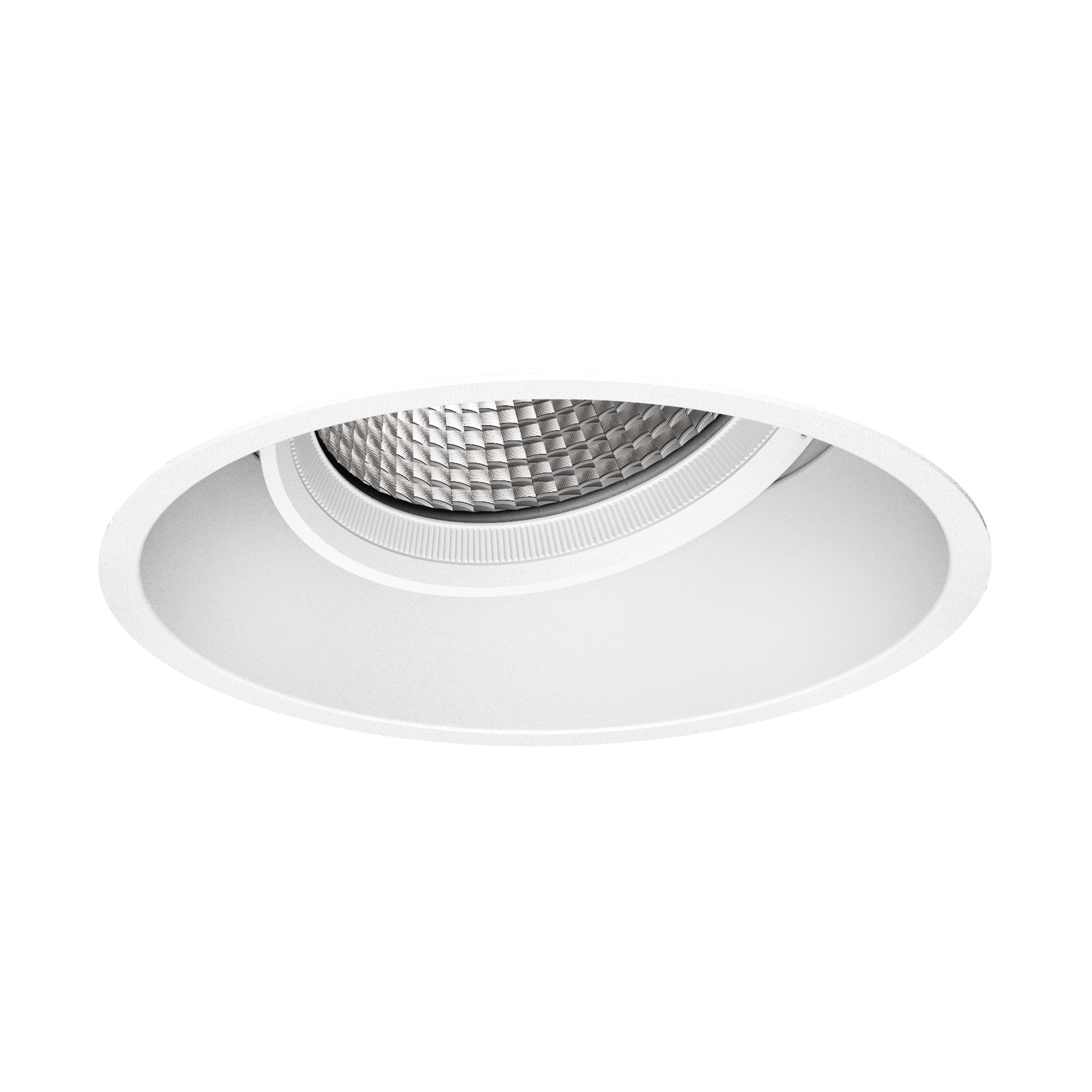

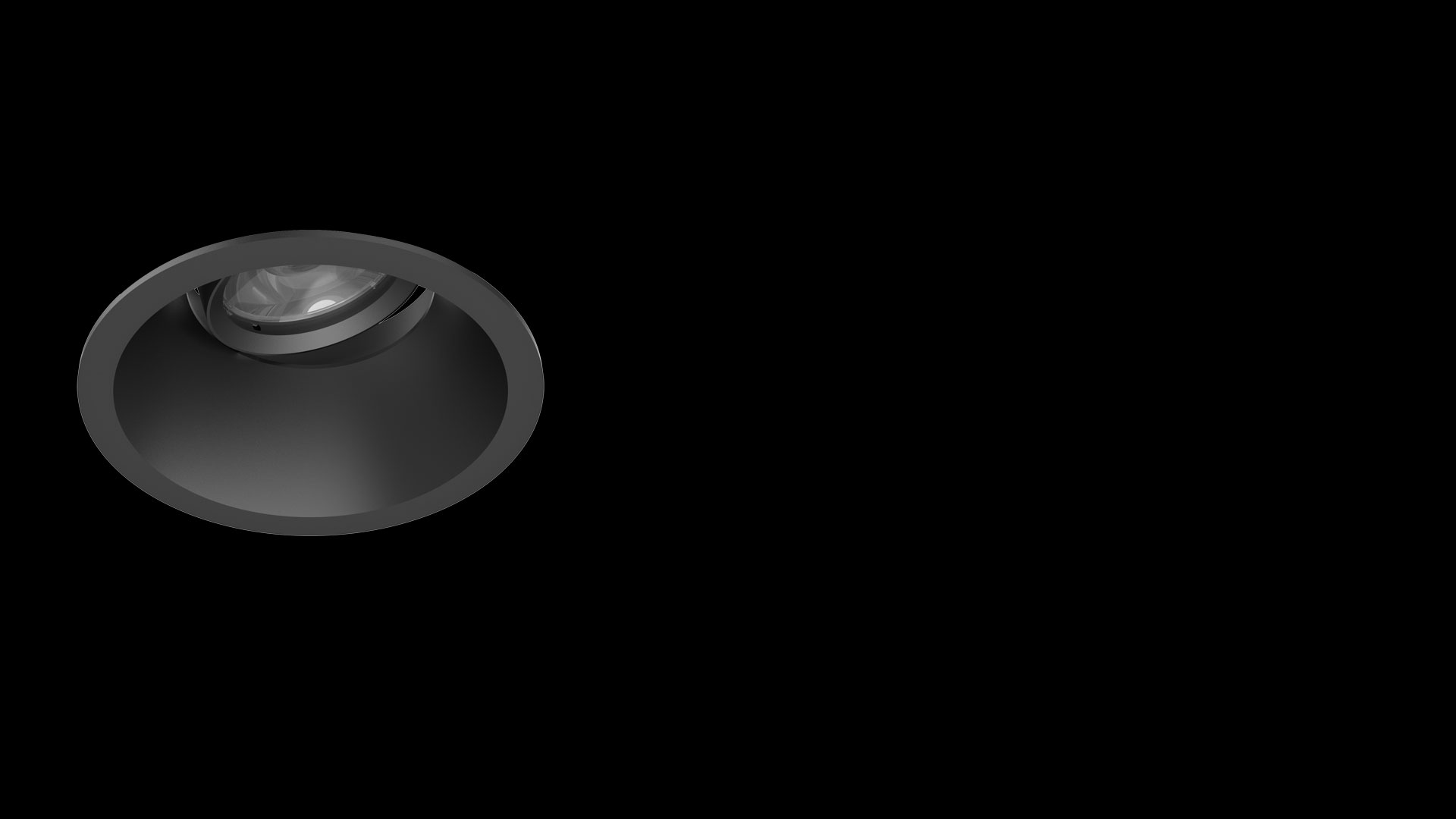

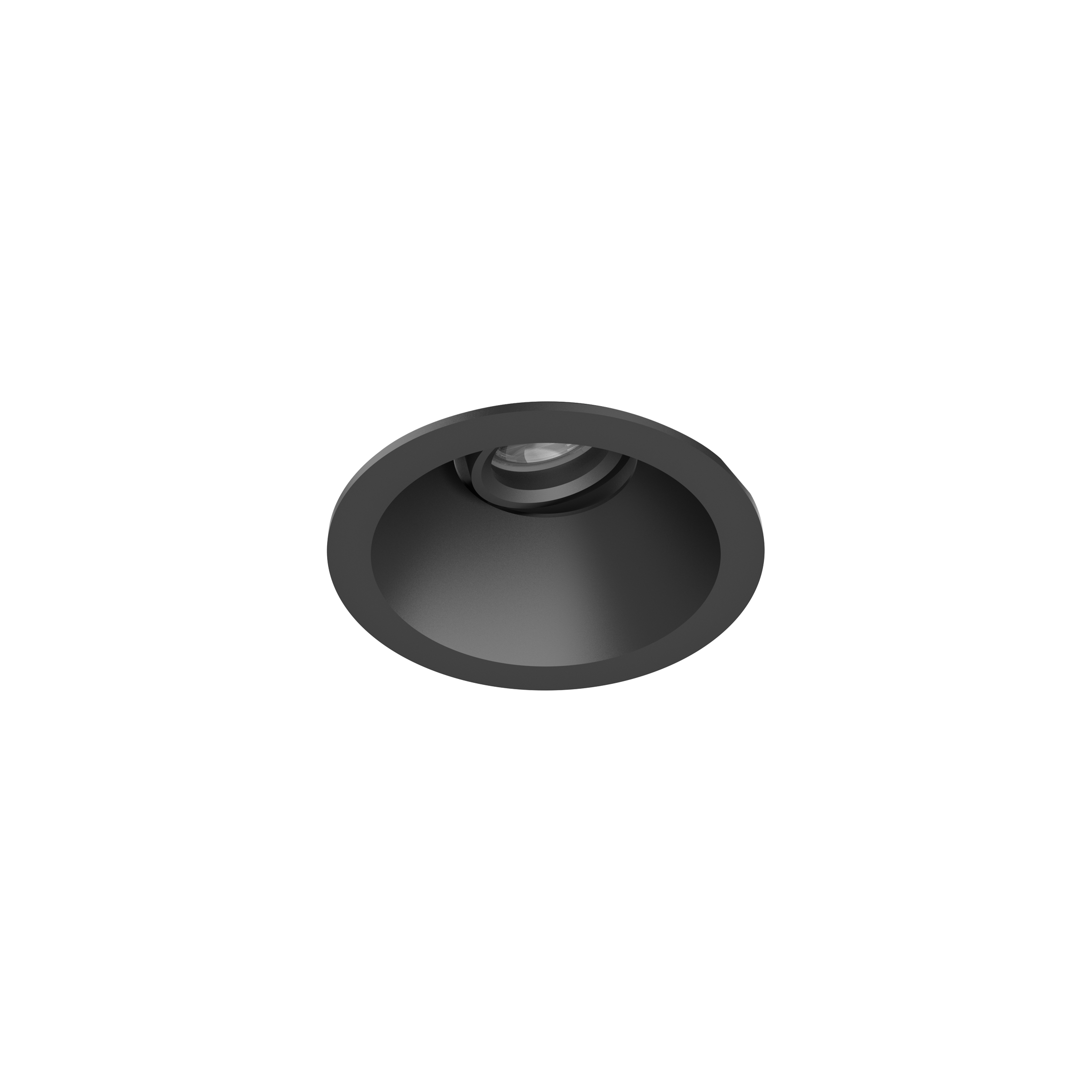

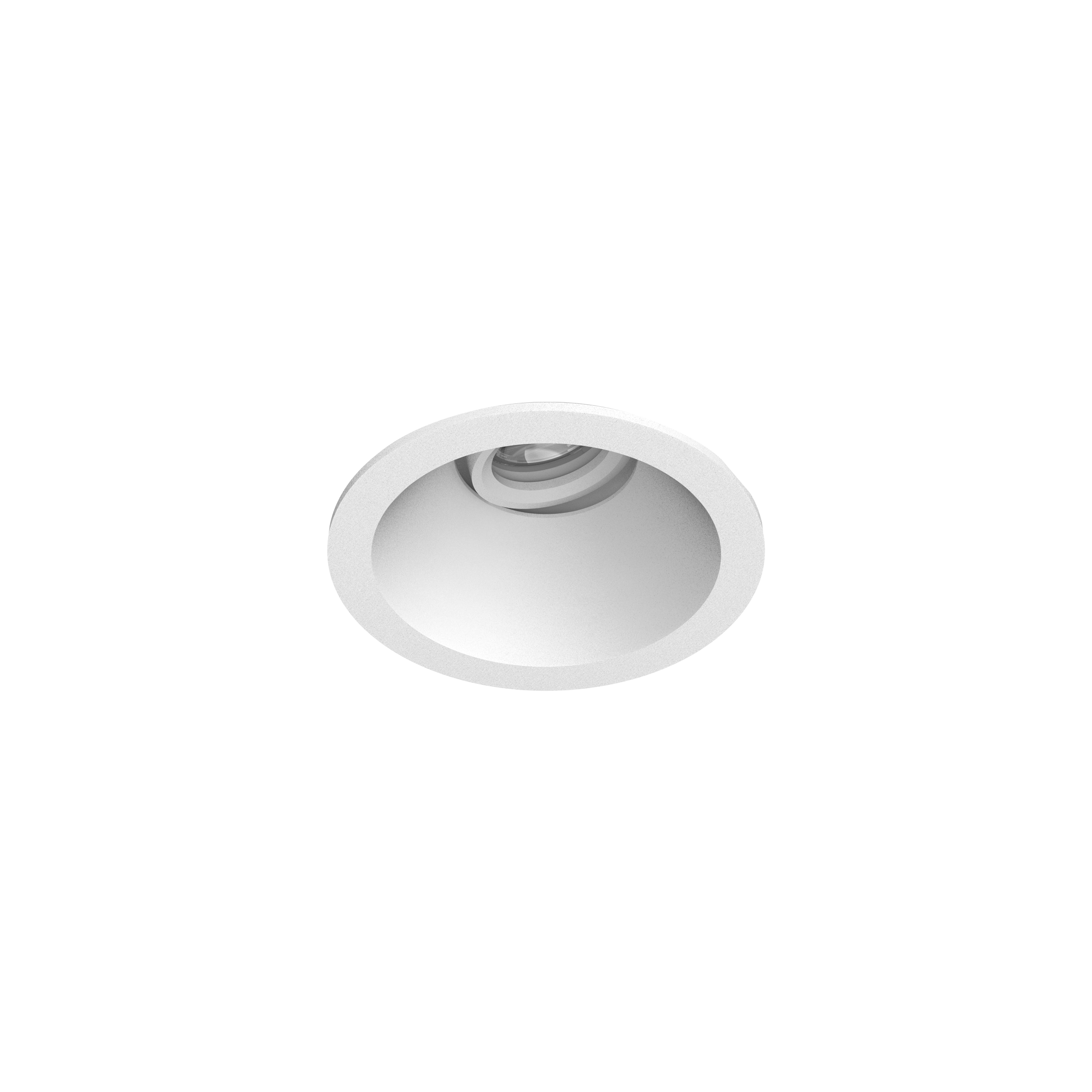

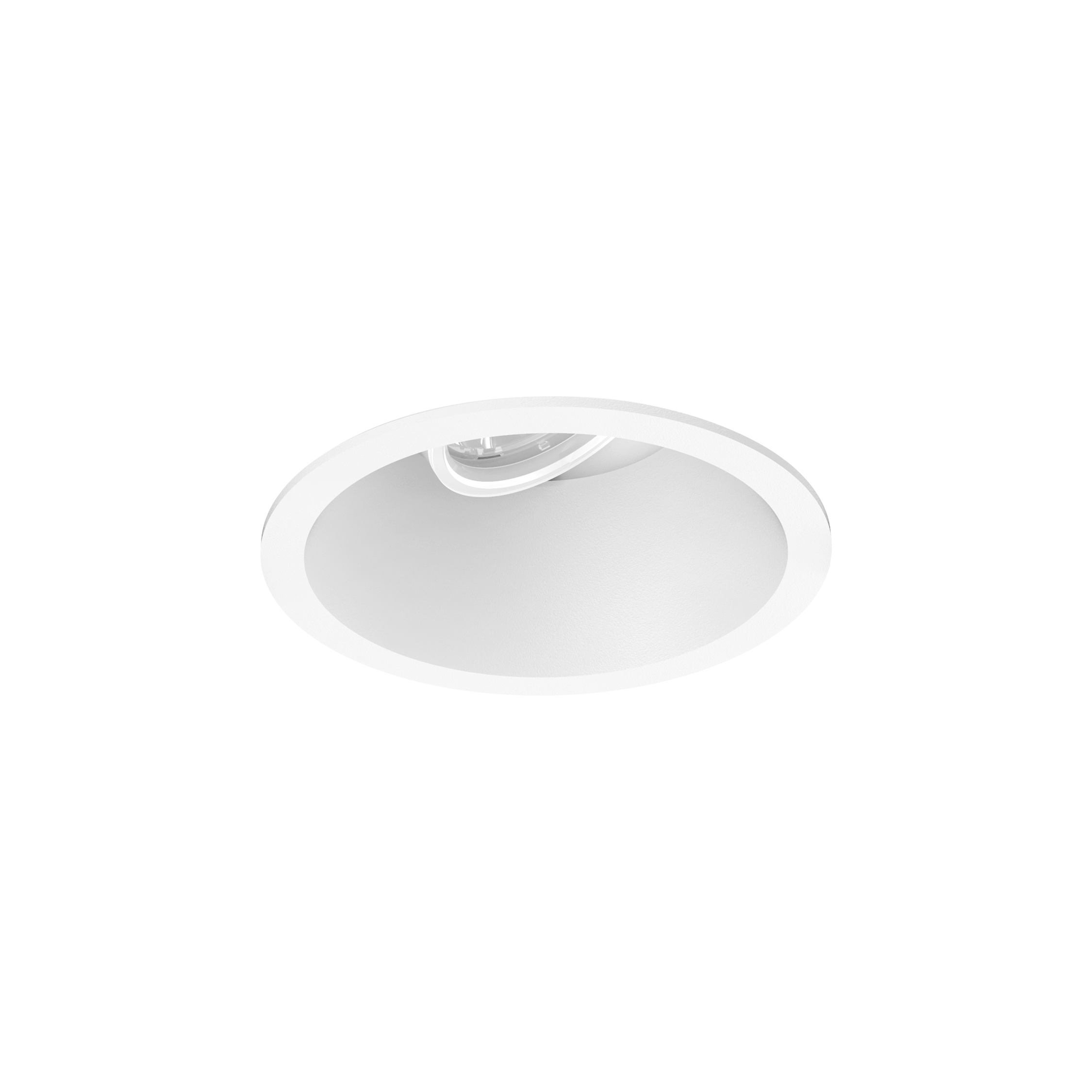

VISI ADJUSTABLE DOWNLIGHT

Visi is an everyday downlight made for professional applications. Once recessed into the ceiling the Visi blends in effortlessly with its narrow trim and provides an anti-glare comfort light. However, trim size is no reflection on performance and Visi provides a full range of illumination level in both fixed and adjustable design.

Energy efficiency is key and Visi series are at the top of the performance scale, ensuring significant energy savings over alternative solutions. CCT colours and dimming options available on request.

Available as a recessed spot or downlight.

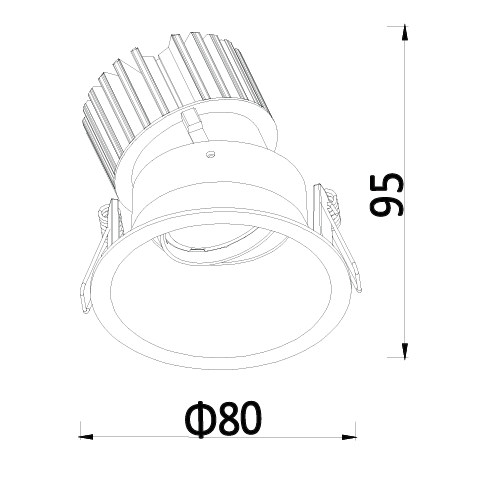

SR-A735

Source Power: 7W / 14W
System Power: 8W / 16W
Source Lumens: Up to 1439Lm
Delivered Lumens: Up to 1151Lm
Beam Angle:  24°29°40°52°
25°30°42°56°
Efficacy:  Up to 83Lm/W
Cut out:  Ø68mm
Tilt:  30°
Download: IES Files

SR-A736

Source Power: 7W / 12W
System Power: 8W / 14W
Source Lumens: Up to 1586Lm
Delivered Lumens: Up to 1168Lm
Beam Angle:  18°26°40°53°
19°26°40°49°
Efficacy:  Up to 88Lm/W
Cut out:  Ø75mm
Tilt:  30°
Download: IES Files

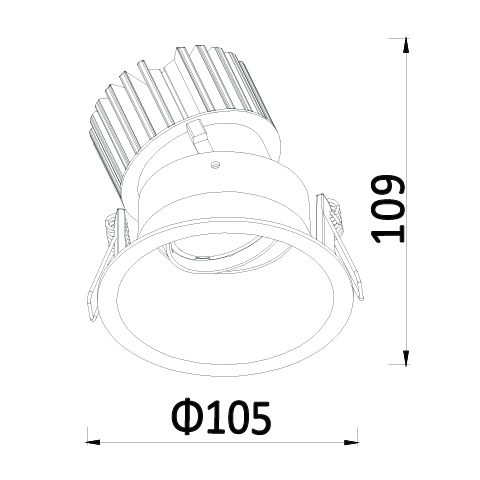

SR-A767

Source Power: 12W / 17W / 25W
System Power: 14W / 19W / 28W
Source Lumens: Up to 2888Lm
Delivered Lumens: Up to 2327Lm
Beam Angle:  19°25°38°56°
19°25°38°56°
19°25°38°56°
Efficacy:  Up to 102Lm/W
Cut out:  Ø95mm
Tilt:  30°
Download: IES Files

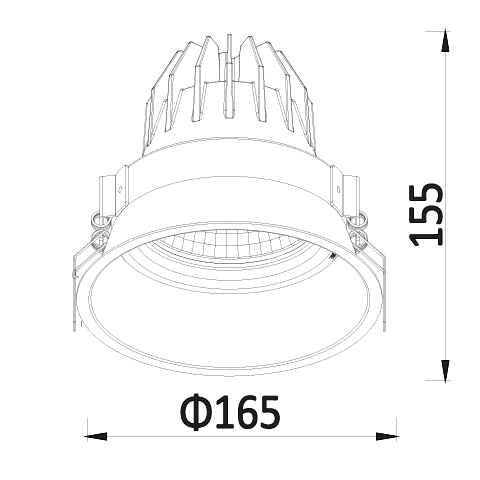

SR-C107

Source Power: 17W / 25W / 32W / 36W
System Power: 19W / 27W / 35W / 39W
Source Lumens: Up to 4454Lm
Delivered Lumens: Up to 4334Lm
Beam Angle:  12°20°43°59°
12°20°43°59°
12°20°43°59°
13°20°43°59°
Efficacy:  Up to 92Lm/W
Cut out:   Ø155mm
Tilt:  30°
Download: Datasheet
IES Files

SR-A931

Source Power: 7W / 12W
System Power: 8W / 14W
Source Lumens: Up to 1586Lm
Delivered Lumens: Up to 1168Lm
Beam Angle:  18°26°40°53°
19°26°40°49°
Efficacy:  Up to 88Lm/W
Cut out:  85x85mm
Tilt:  30°
Download: Datasheets
IES Files
Finish Black/White Material Aluminium
IP Rating IP20 CCT  3000K/4000K
CRI >80/>90 Voltage 230V, 50Hz
Lifetime >50,000 hours Dimming Available on request

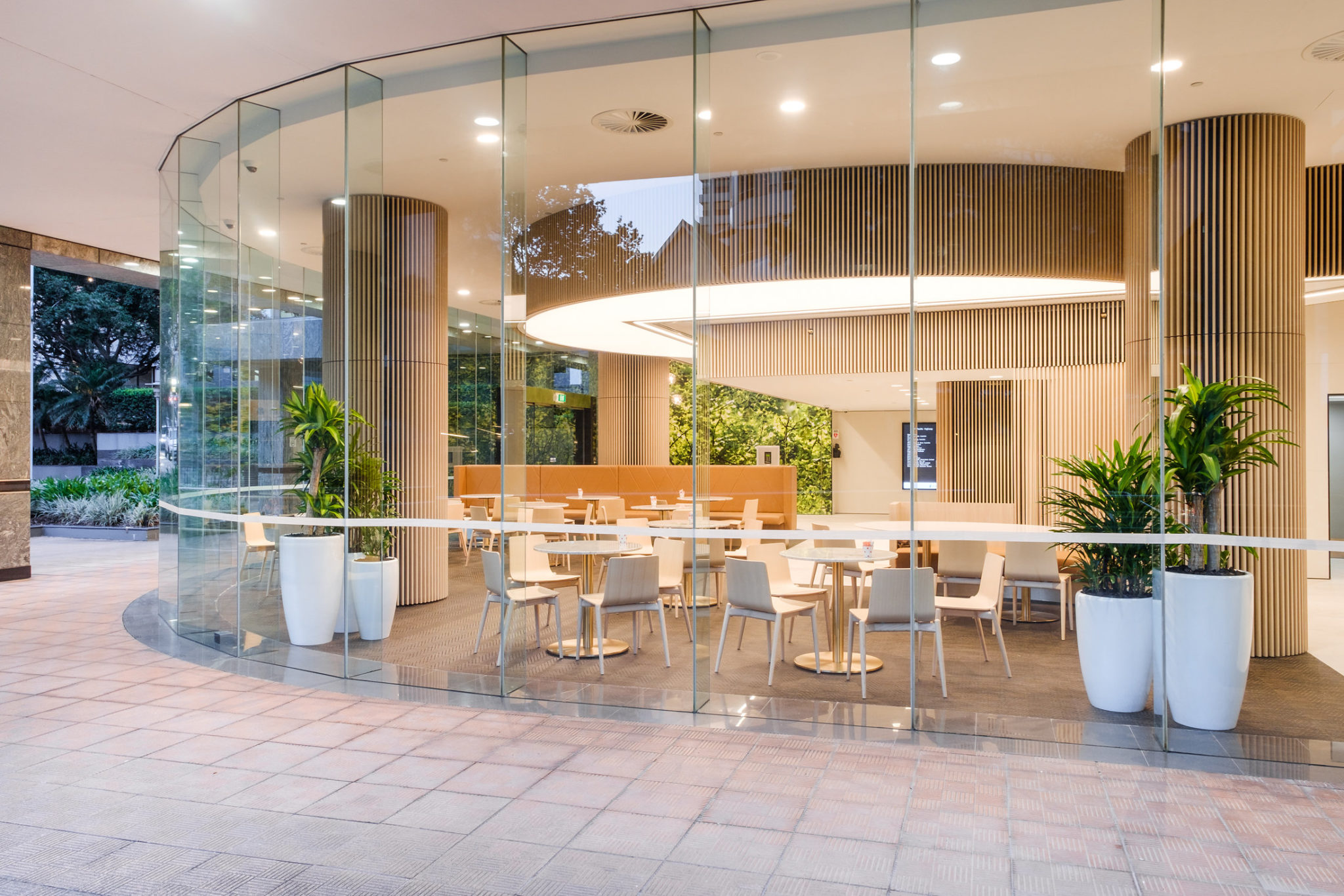

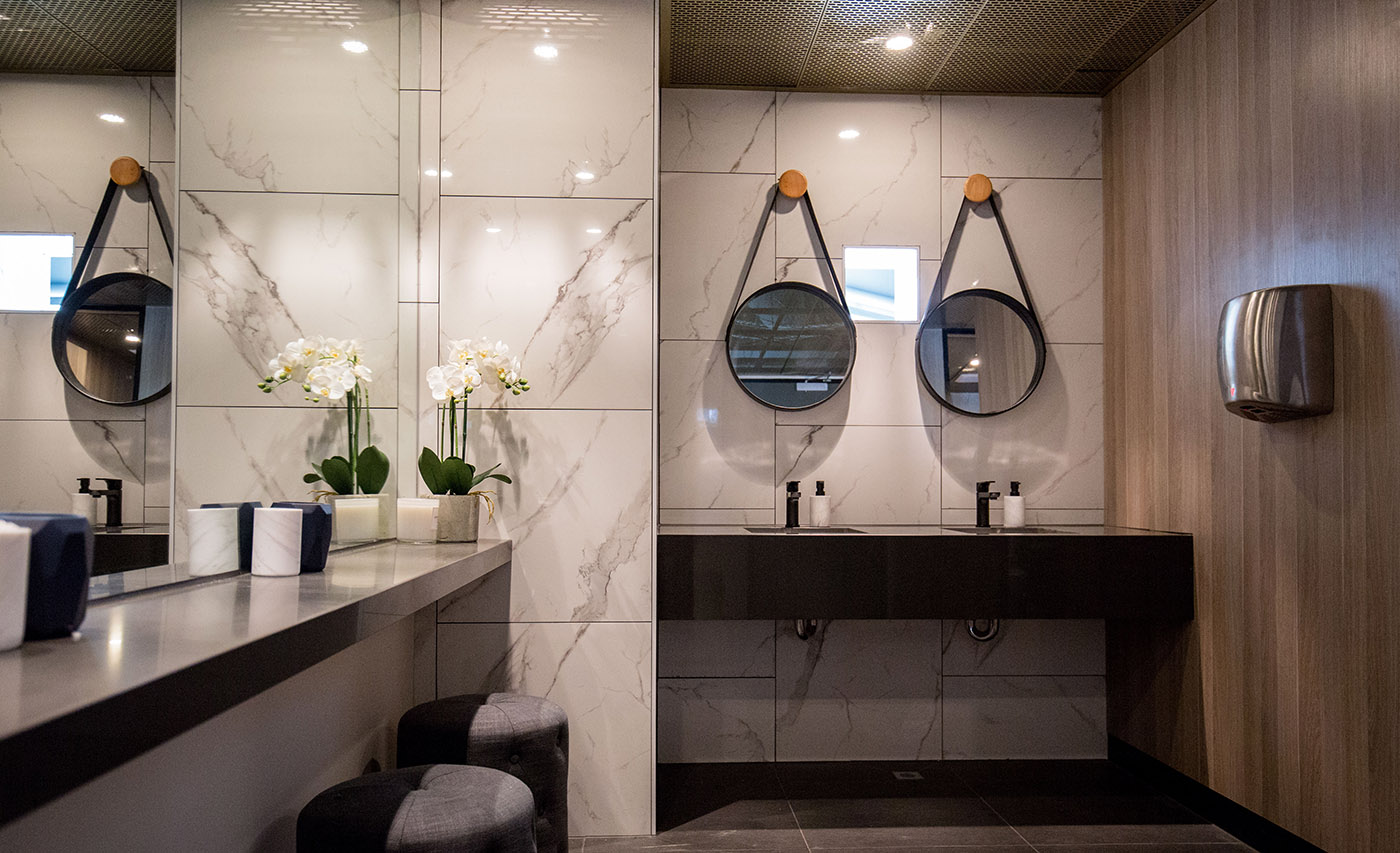

Product in Application
