TR-ALDS-22
- System Power:
- 22W
- Delivered Lumens:
- 2650Lm
- Beam Angle:
- 120°
- Efficacy:
- 120Lm/W

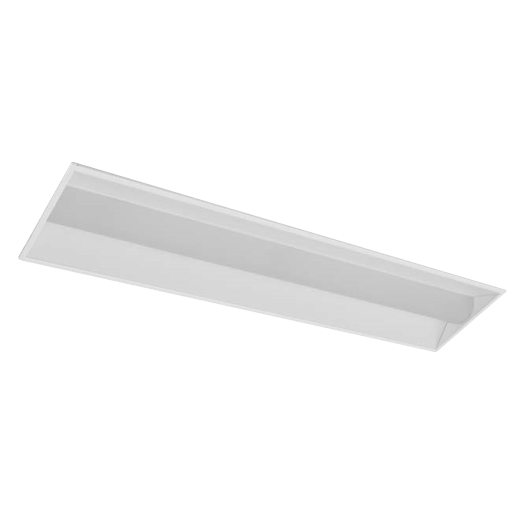

ALDEN TROFFER
The Alden series is a high quality premium troffer ideal for commercial, educational and health service environments. The diffuser is designed to optimise the lighting output and reduce glaring illumination. Available in a range of sizes and illumination levels, the Alden ensures the best lighting outcome for every client.
The Alden series is a high quality premium troffer ideal for commercial, educational and health service environments. The diffuser is designed to optimise the lighting output and reduce glaring illumination. Available in a range of sizes and illumination levels, the Alden ensures the best lighting outcome for every client.
Models
TR-ALDR-22
- System Power:
- 22W
- Delivered Lumens:
- 2585Lm
- Beam Angle:
- 120°
- Efficacy:
- 118Lm/W
TR-ALDS-32
- System Power:
- 32W
- Delivered Lumens:
- 3855Lm
- Beam Angle:
- 120°
- Efficacy:
- Up to 120Lm/W
TR-ALDR-32
- System Power:
- 32W
- Delivered Lumens:
- 3761Lm
- Beam Angle:
- 120°
- Efficacy:
- Up to 118Lm/W

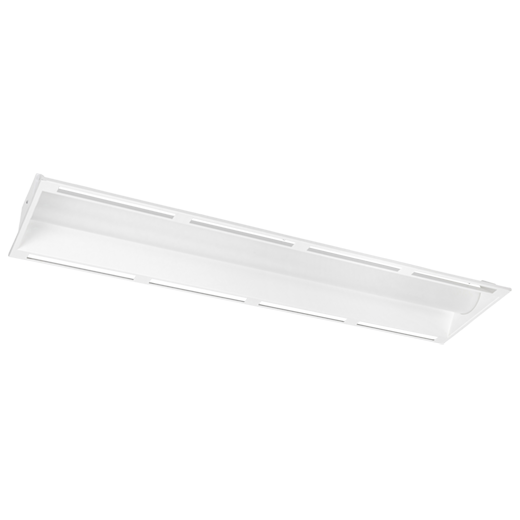

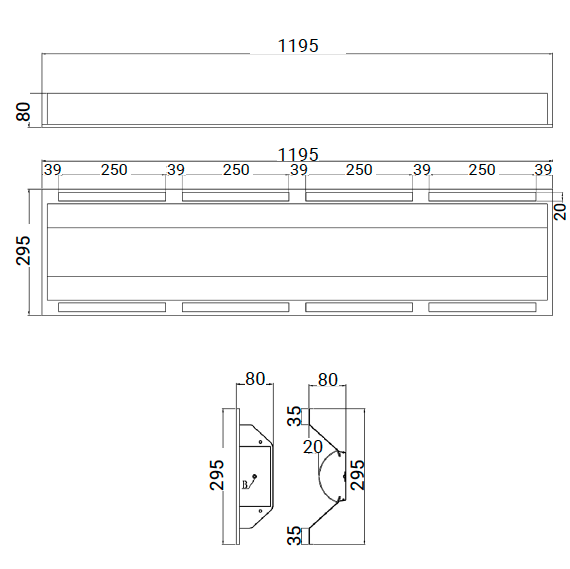

TR-ALDR-32 (Air Slots)
- System Power:
- 32W
- Delivered Lumens:
- 3761Lm
- Beam Angle:
- 120°
- Efficacy:
- Up to 118Lm/W
General Specifications
Finish
White
IP Rating
IP20
CRI
>80 (>90 optional)
Lifetime
L90 (9K) > 54,000 hrs
Material
PMMA + Steel
CCT
3000K/4000K
Voltage
220-240
Dimming
Available on request
