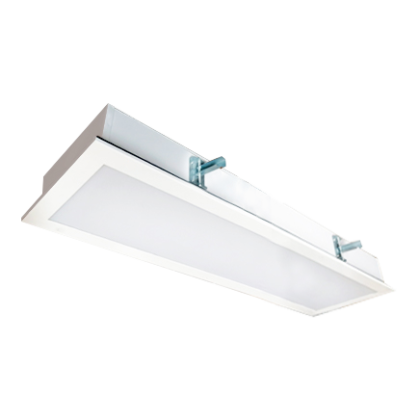

CLEANROOM CYANOSIS FITTING

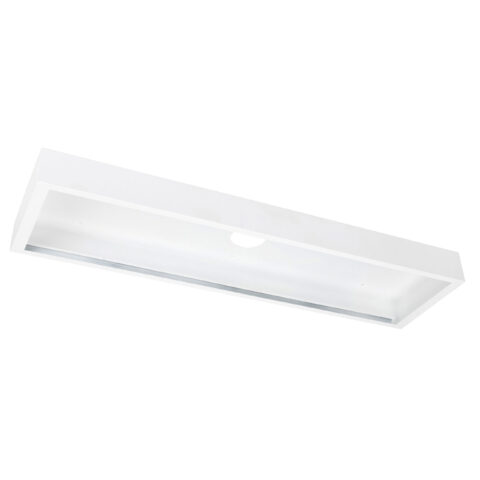

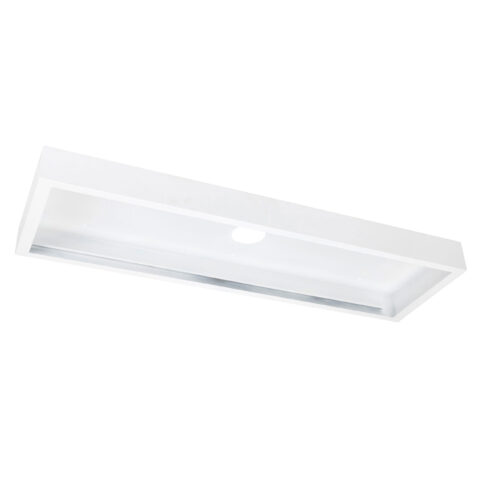

The Cleanroom fitting has been designed to meet the requirements of healthcare and cleanroom applications. It offers easy, quick cleaning, a long lifetime and high colour rendering perfect for medical and hygiene environments—a simple and modern fitting achieving optimal performance and energy efficiency. With various illumination levels and power outputs, our range of luminaires delivers flexibility ensuring the best lighting outcome for every client. Available in IP44 or IP65, the Cleanroom can be t-bar (IP44 version only), plaster recessed or surface mounted (1195mm size only). This luminaire is available in a cyanosis version compliant with COI standards (COI<2.0 rating).

Models

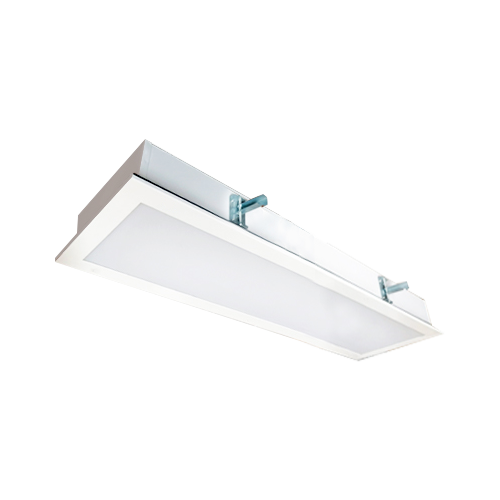

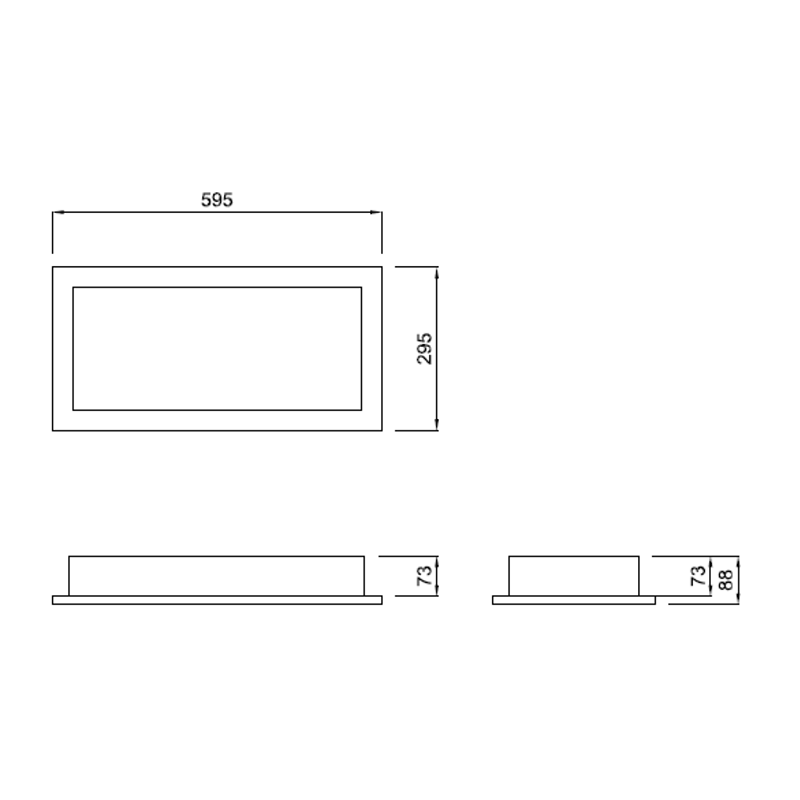

LPA-TR-CL6030C-23 (IP44)

System Power:: 23W

Delivered Lumens:: 1900Lm

Beam Angle:: 115°

Efficacy:: Up to 86Lm/W

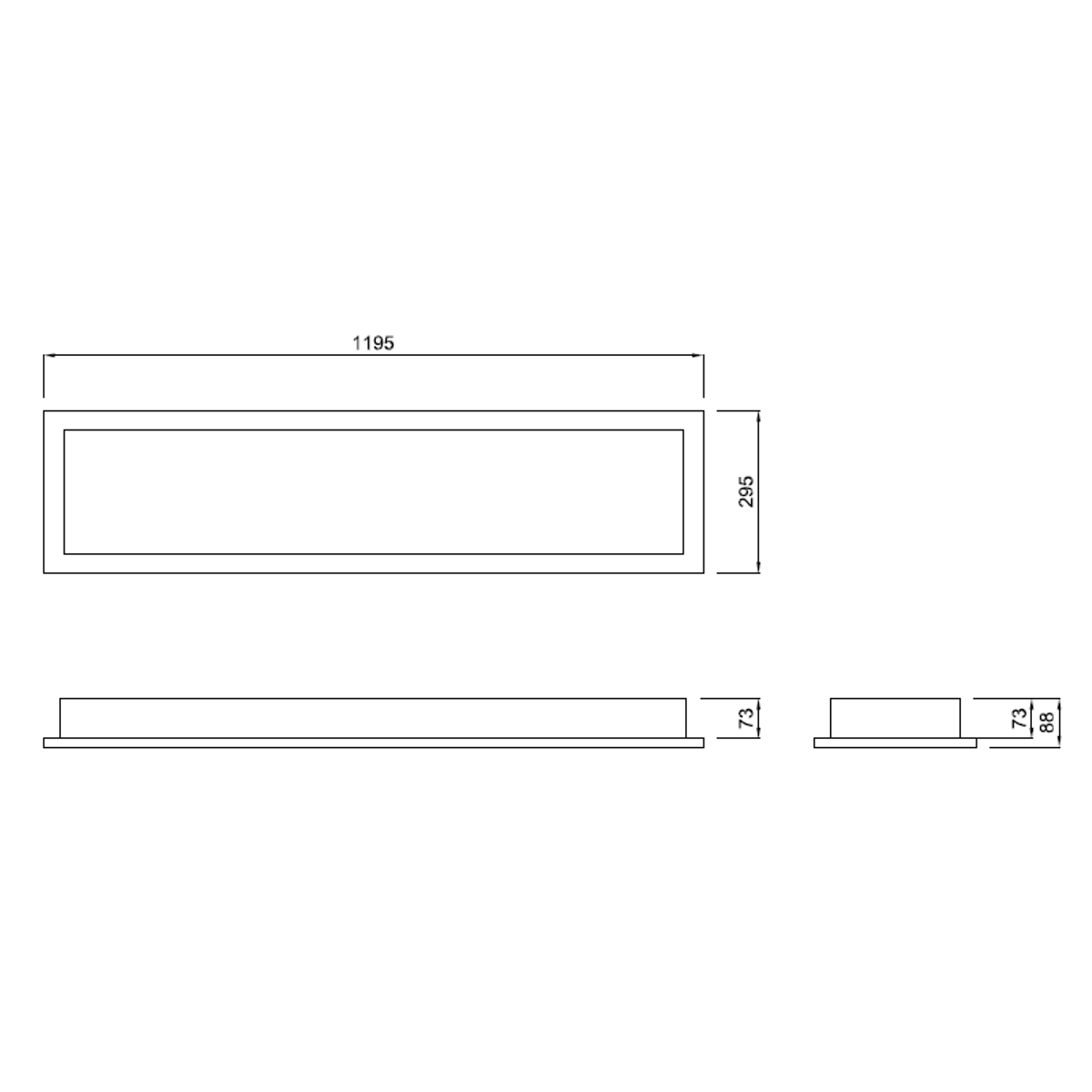

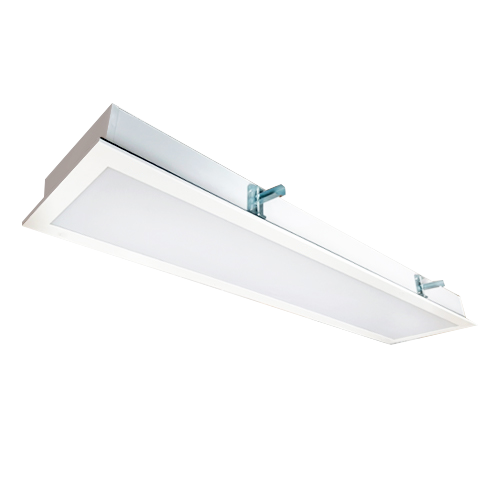

LPA-TR-CL12030C-35 (IP44)

System Power:: 35W

Delivered Lumens:: 3300Lm

Beam Angle:: 115°

Efficacy:: 96Lm/W

LPA-TR-CL12030C-50 (IP44)

System Power:: 50W

Delivered Lumens:: 4800Lm

Beam Angle:: 115°

Efficacy:: 95Lm/W

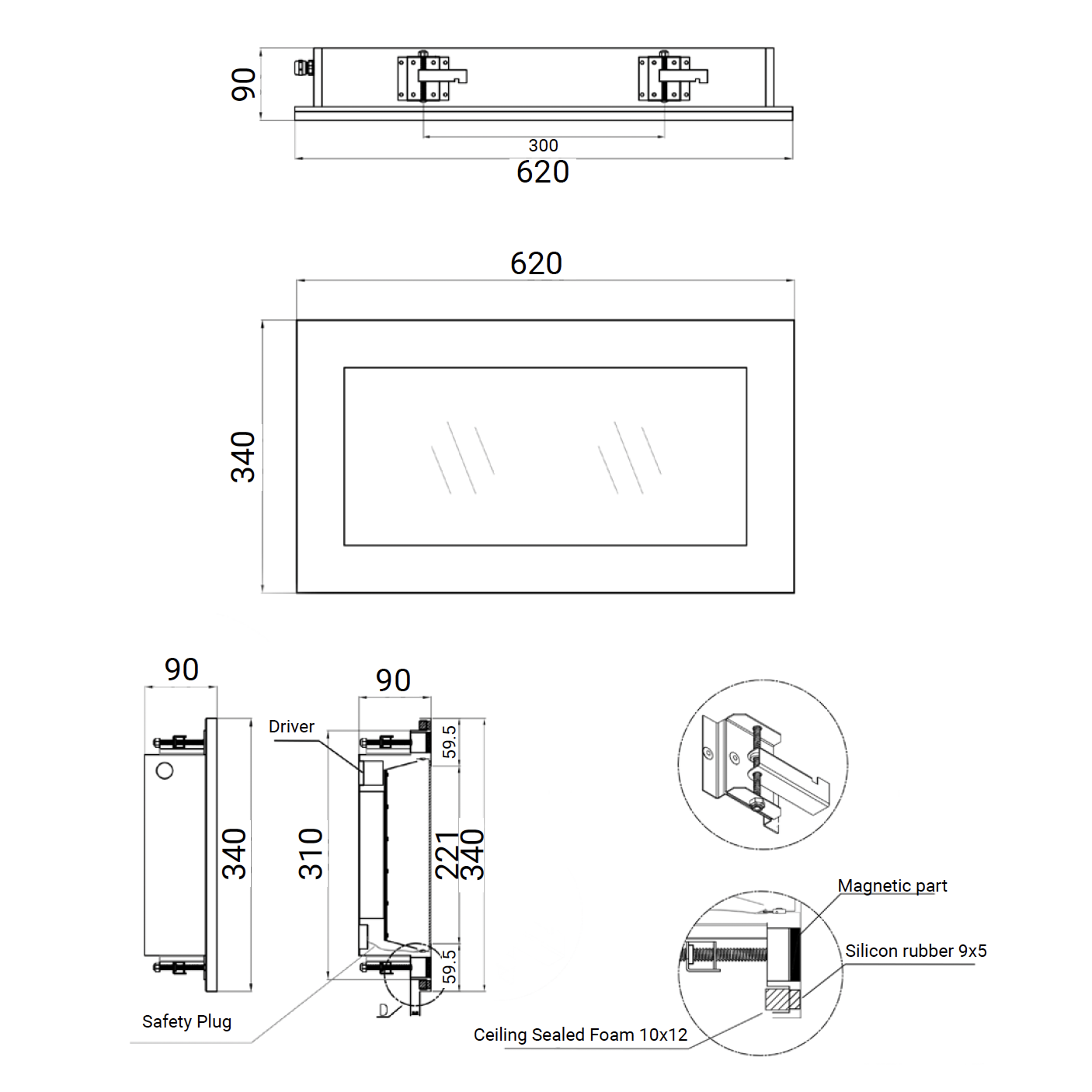

LPA-TR-CL6030-23 (IP65)

System Power:: 23W

Delivered Lumens:: 1900Lm

Beam Angle:: 115°

Efficacy:: 86Lm/W

Cut out:: 575x315mm

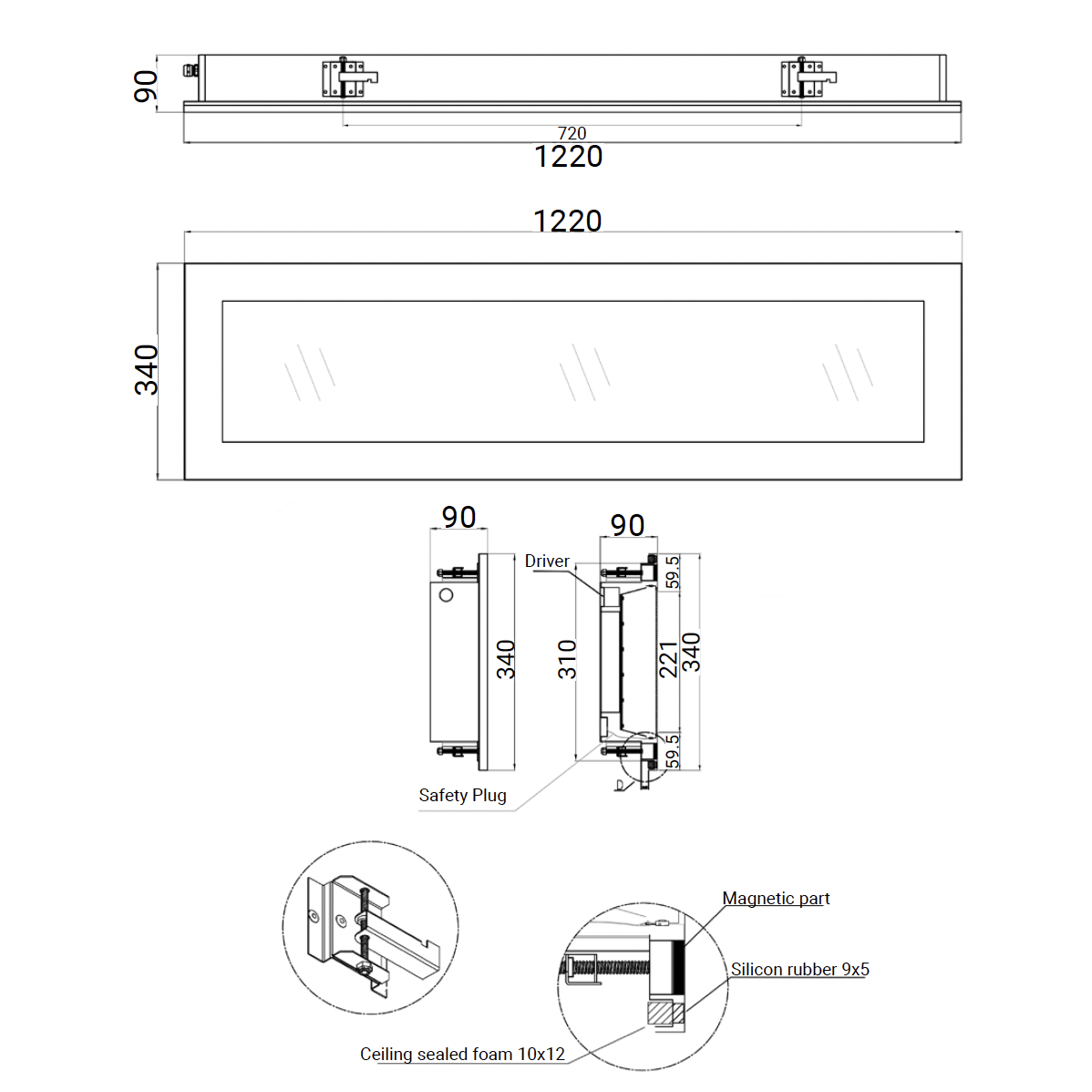

LPA-TR-CL12030-35 (IP65)

System Power:: 35W

Delivered Lumens:: 3300Lm

Beam Angle:: 115°

Efficacy:: 96Lm/W

Cut out:: 1175x315mm

LPA-TR-CL12030-50 (IP65)

System Power:: 50W

Delivered Lumens:: 4800Lm

Beam Angle:: 115°

Efficacy:: 95Lm/W

Cut out:: 1175x315mm

General Specifications

Finish

White

IP Rating

IP44/IP65

CRI

3000K@CRI>80
4000K@CRI>90

Lifetime

L80B10 (10K) > 60,000 hours (standard version)
L70 (10K) > 60,000 hours (COI version)

Material

Aluminium

CCT

3000K/4000K

Voltage

220-240V, 50/60Hz

Dimming

Dali available on request
