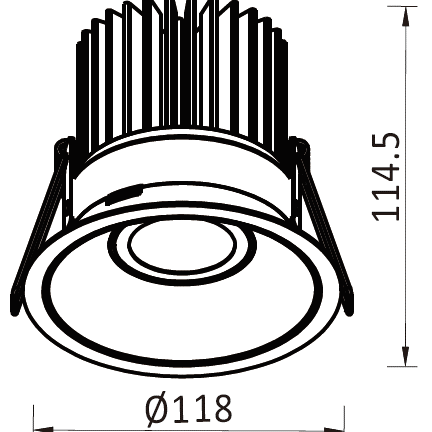

DR-A200
- Source Power:
- 6W / 12W / 17W / 25W
- System Power:
- 8W / 15W / 20W / 28W
- Source Lumens:
- Up to 3241Lm
- Delivered Lumens:
- Up to 2764Lm
- Beam Angle:
- 16°/21°/25°/34°
- Efficacy:
- Up to 106Lm/W
- Cut out:
- Ø107mm
ZOE DOWNLIGHT
The Zoe series is really three series in one. Without any obvious change of appearance Zoe can be a tight accent luminaire, a general accent luminaire, or a spectacular asymmetric wall washer. The Zoe downlight series also has an interchangeable masking insert to subtly blend in to add an additional colour highlight.
Colour rendering, glare control and energy efficiency are again at the top of the performance scale. We ensure our focal points will pop without distraction, and without an energy cost kicker. Dimming options include phase dimmable with 0-10V and DALI dimming available on request.
The Zoe series is really three series in one. Without any obvious change of appearance Zoe can be a tight accent luminaire, a general accent luminaire, or a spectacular asymmetric wall washer. The Zoe downlight series also has an interchangeable masking insert to subtly blend in to add an additional colour highlight.
Colour rendering, glare control and energy efficiency are again at the top of the performance scale. We ensure our focal points will pop without distraction, and without an energy cost kicker. Dimming options include phase dimmable with 0-10V and DALI dimming available on request.
Models

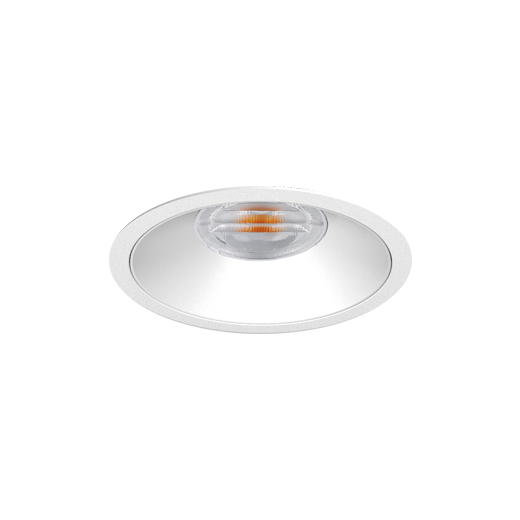

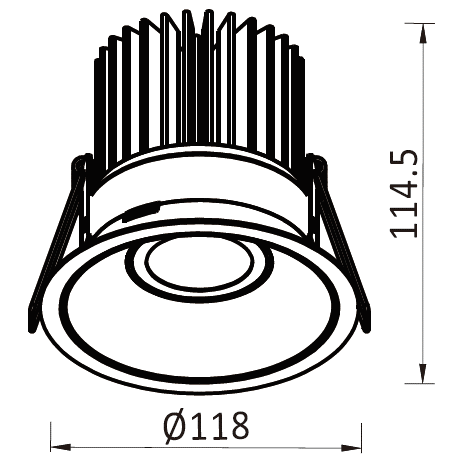

DR-A175
- Source Power:
- 17W / 25W
- System Power:
- 20W / 28W
- Source Lumens:
- Up to 3241Lm
- Delivered Lumens:
- Up to 2675Lm
- Beam Angle:
- 60°x60°
- Efficacy:
- Up to 104Lm/W
- Cut out:
- Ø107mm
General Specifications
Finish
Black/White
IP Rating
IP20
CRI
>80/>90
Lifetime
L80B50 (14K) 56,000 hours
Material
Aluminium
CCT
3000K/4000K
Voltage
220-240V
Dimming
Available on request
Accessories

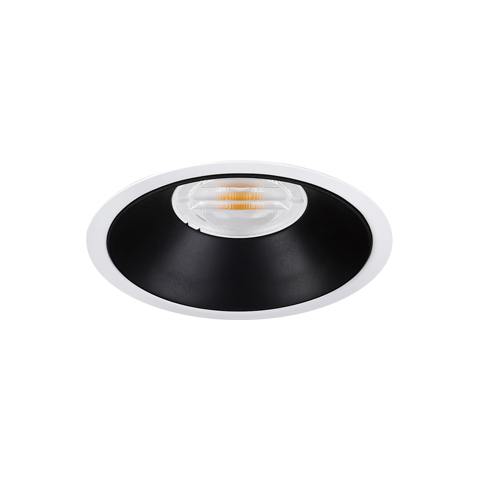

Zoe Black Reflector

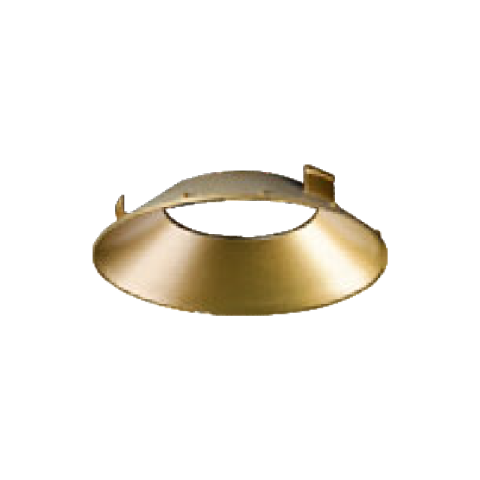

Zoe Golden Reflector

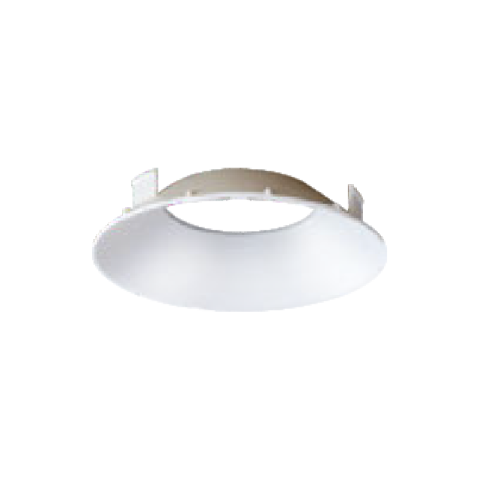

Zoe White Reflector

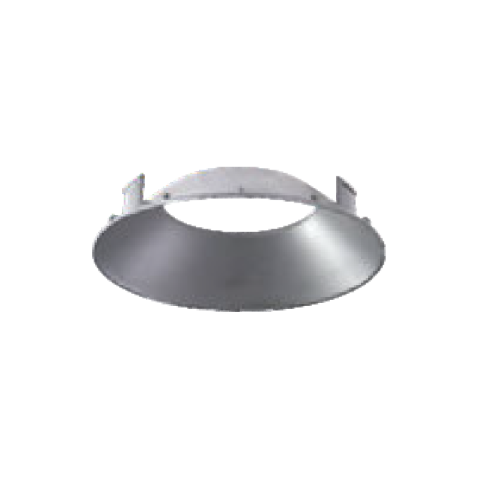

Zoe Silver Reflector
