Description

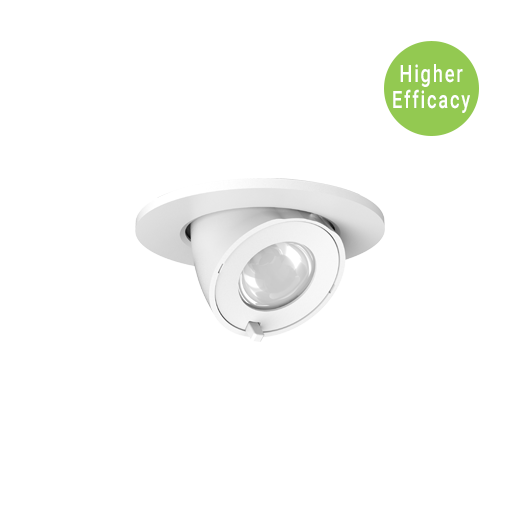

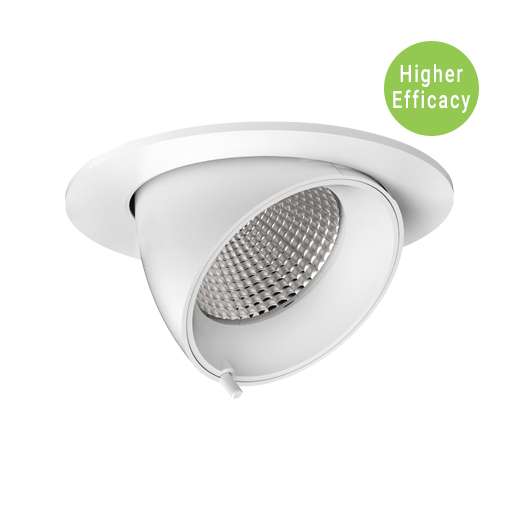

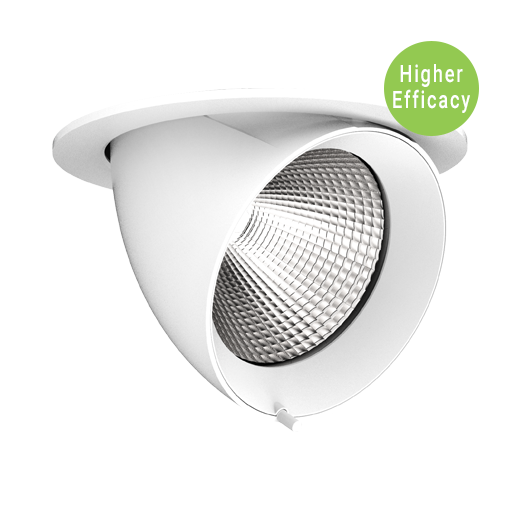

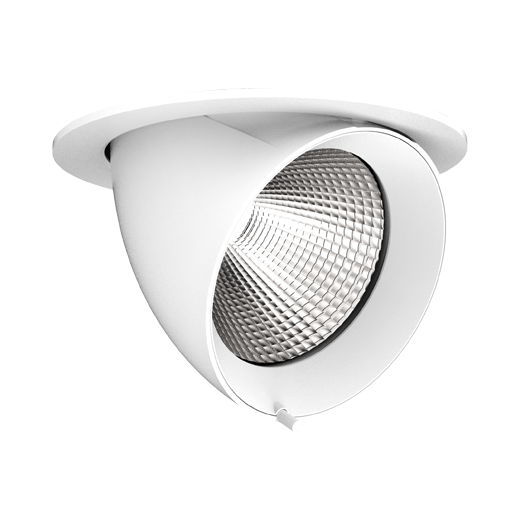

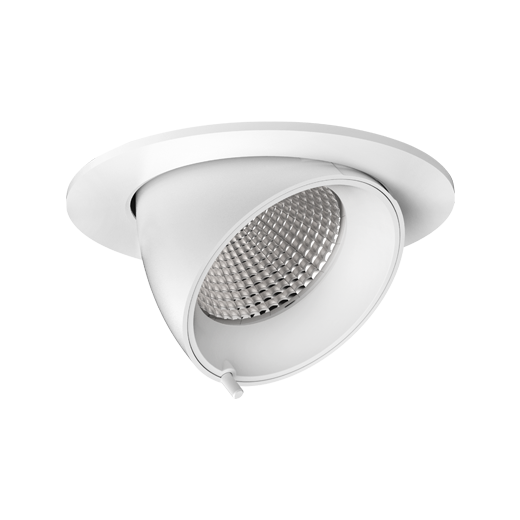

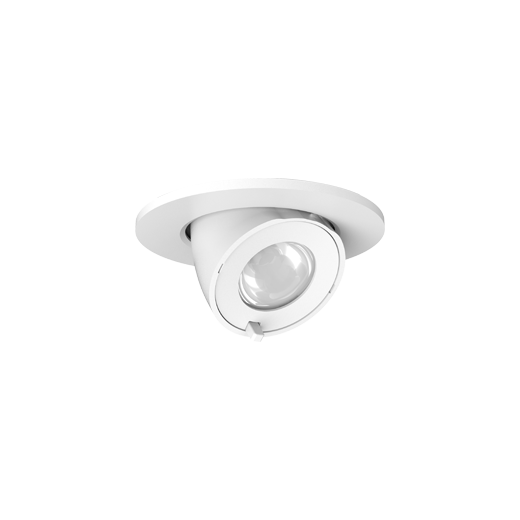

NANI ADJUSTABLE SPOTLIGHT

The Nani series is a fully adjustable downlight. With up to 70° tilt and 355° rotation, this downlight proves an excellent option for wide beam spread and wall washing in retail and commercial spaces.

Energy efficiency is a key component of our product focus and options for CCT colours and a glass lens are available.

Phase dimmable with 0-10V and DALI available upon request.

LED-QS39

Source Power: 17W / 25W
System Power: 20W / 30W
Source Lumens: Up to 3343Lm
Delivered Lumens: Up to 2669Lm
Beam Angle:  Very Narrow/Narrow/
Medium/Wide
Efficacy:  Up to 87Lm/W
Cut out:  Ø140mm
Tilt:  70°
Download:  Datasheet
IES Files

SR-A313

Source Power: 17W / 25W / 32W
System Power: 20W / 30W / 37W
Source Lumens: Up to 3850Lm
Delivered Lumens: Up to 3701Lm
Beam Angle:  Very  Narrow/Narrow/
Medium/Wide
Efficacy:  Up to 102Lm/W

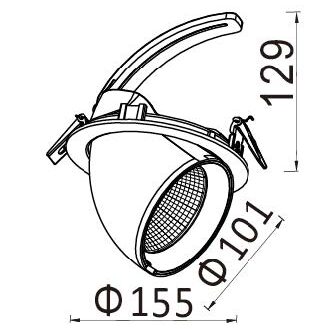

Cut out:  Ø162mm
Tilt:  70°
Download:  Datasheet
IES Files
Finish Black/White Material Aluminium
IP Rating IP20 CCT  3000K/4000K
CRI >80/>90 Voltage 230V, 50Hz
Lifetime >50,000 hours Dimming Available on request
