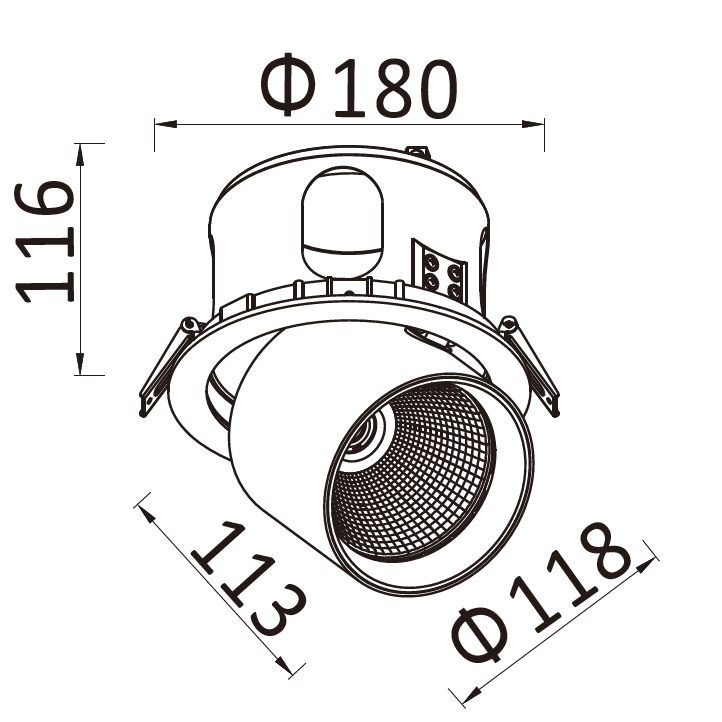

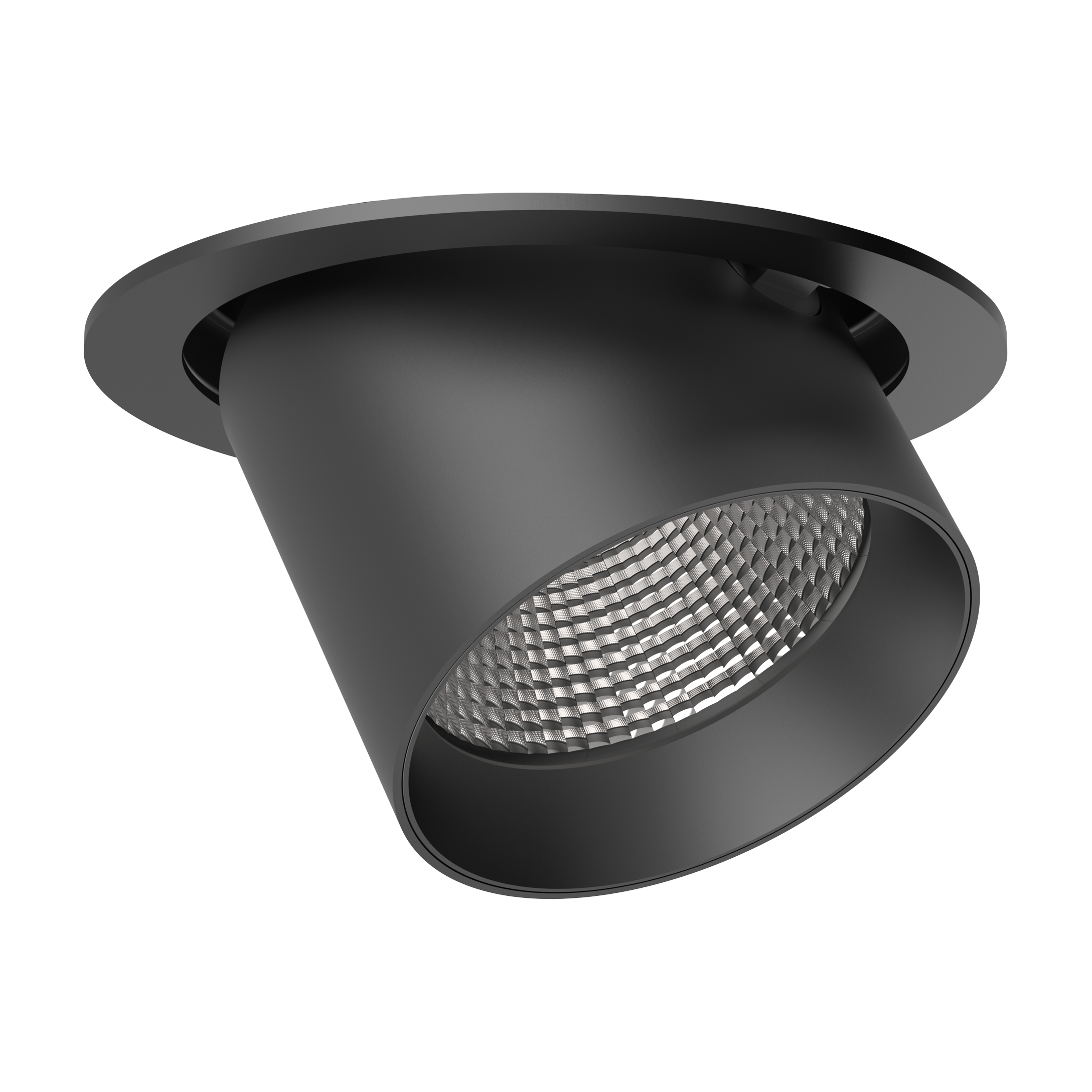

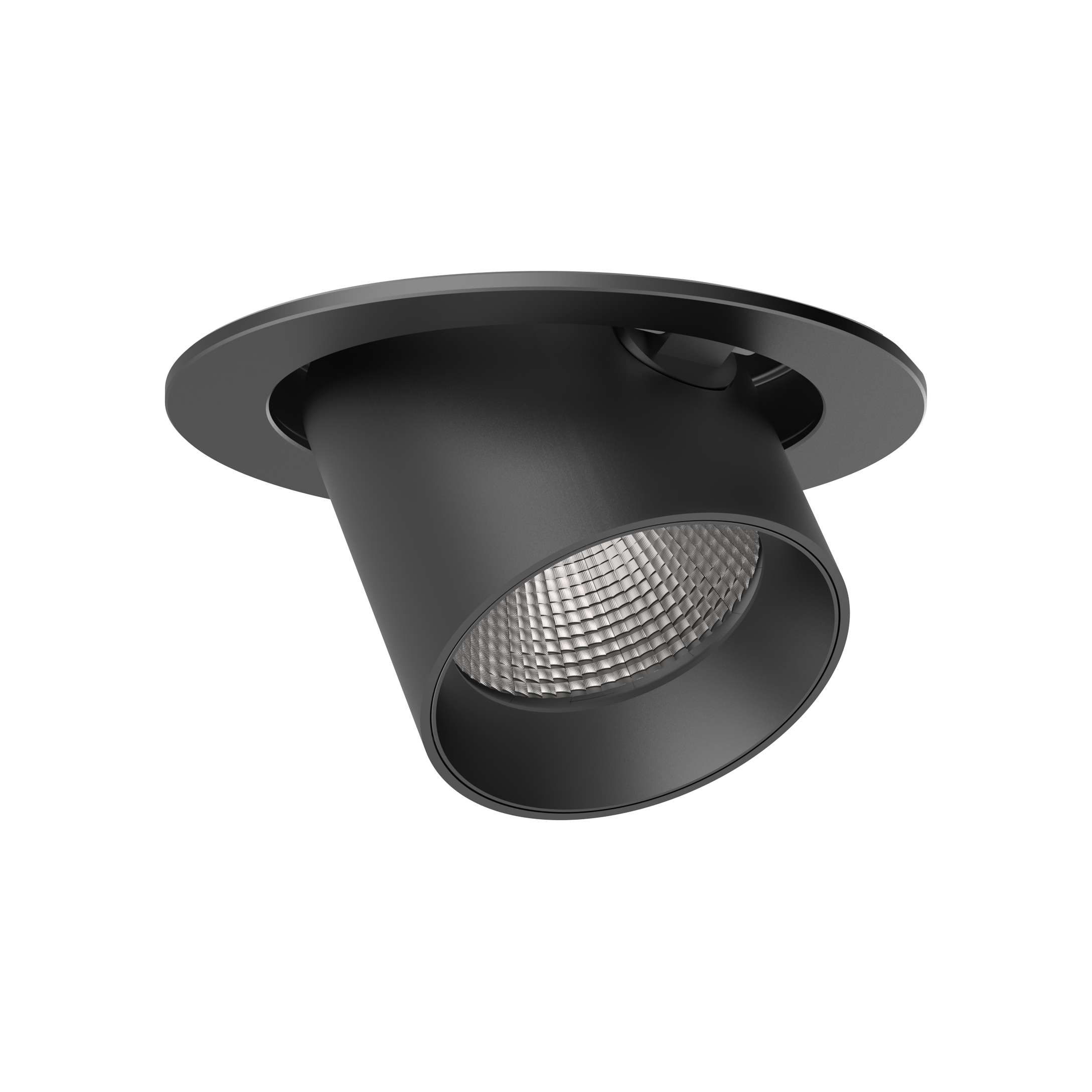

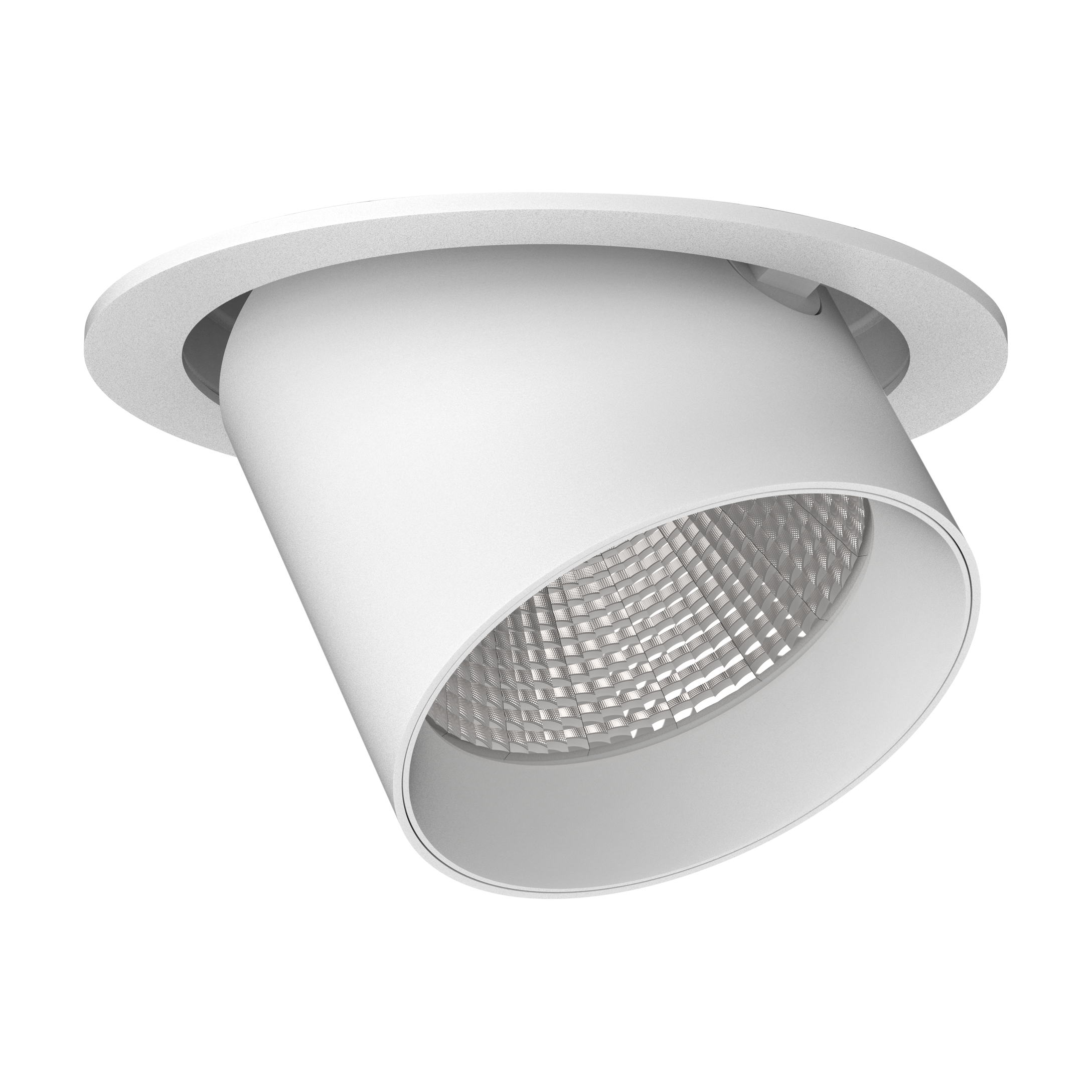

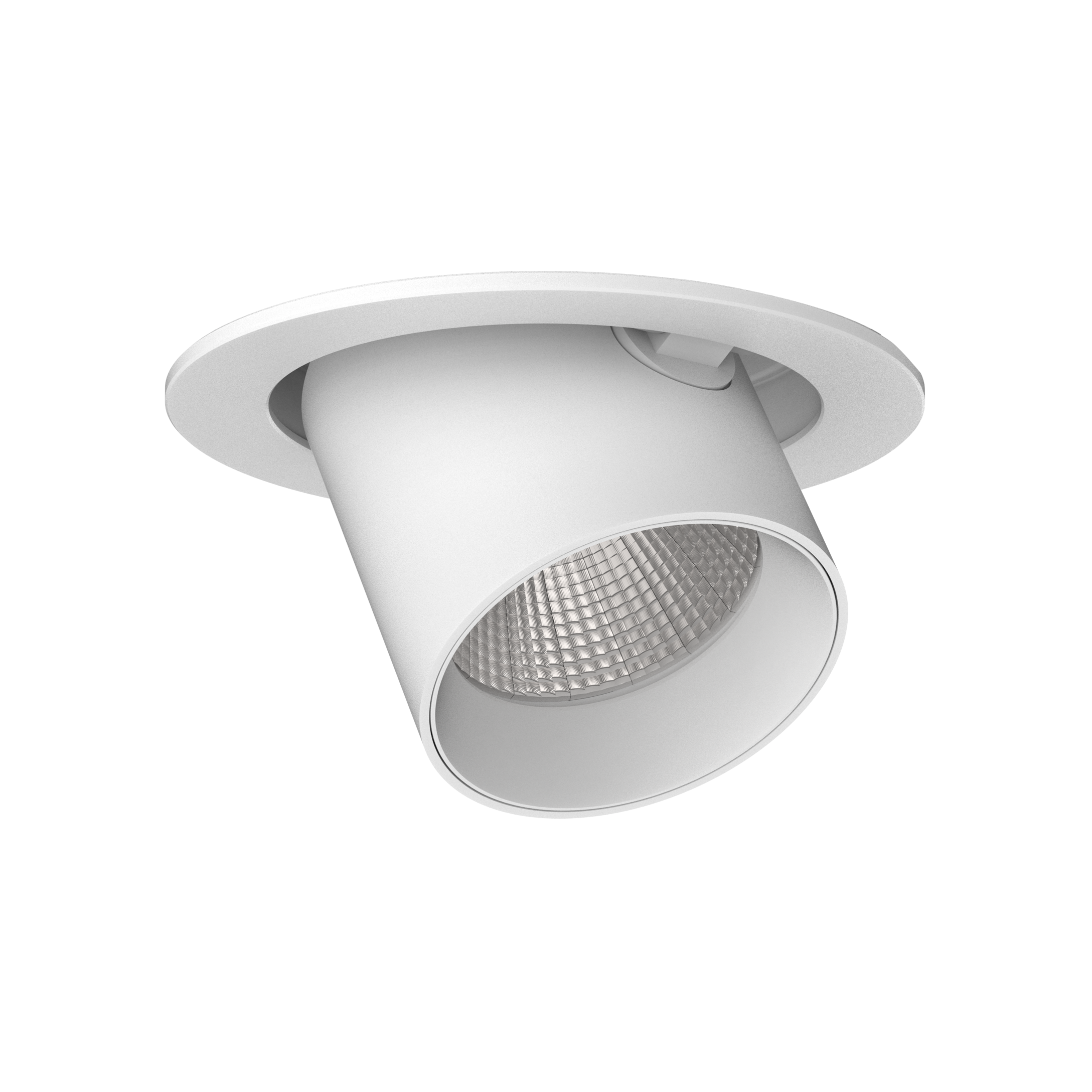

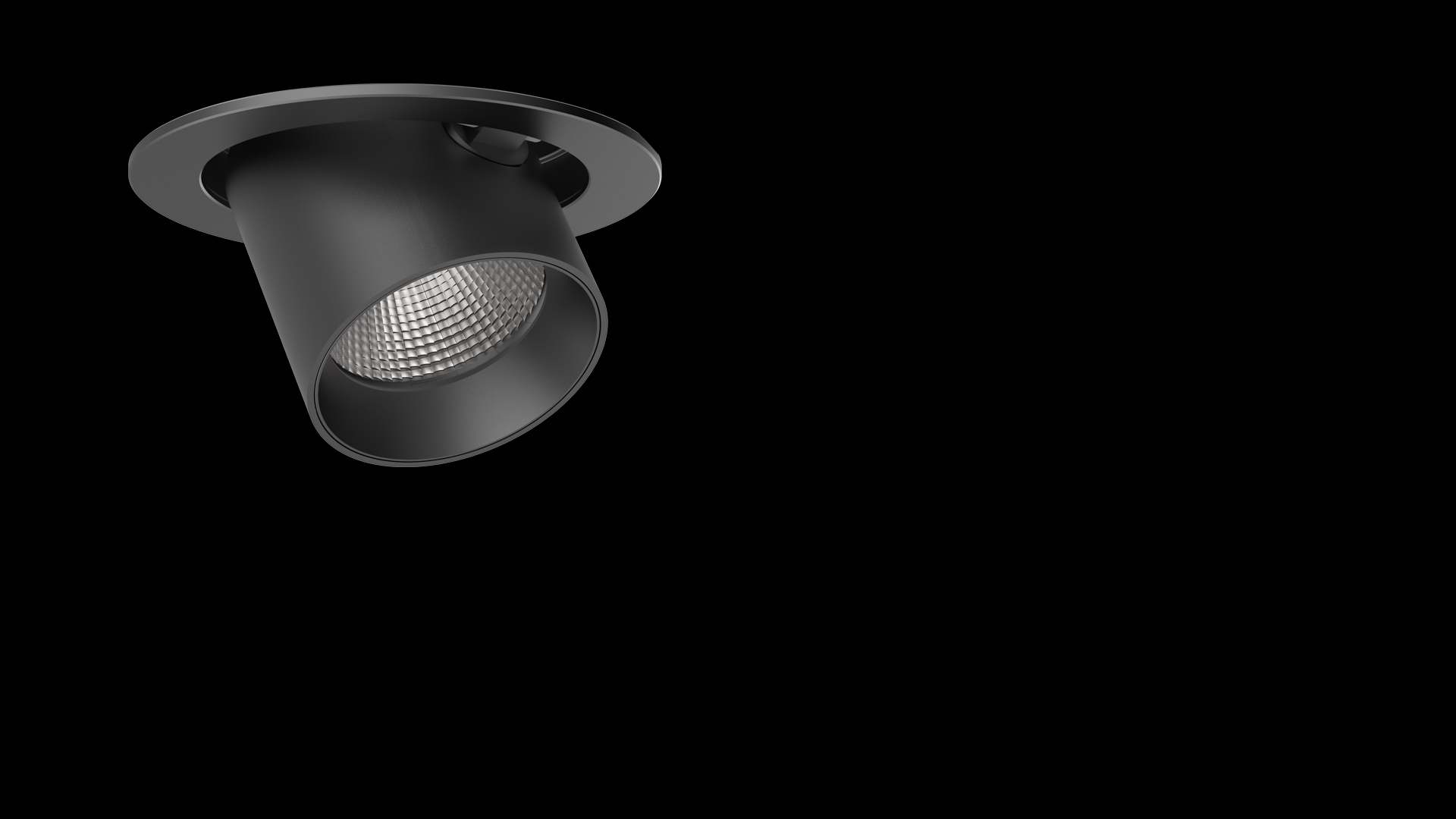

OCTOPUS ADJUSTABLE DOWNLIGHT

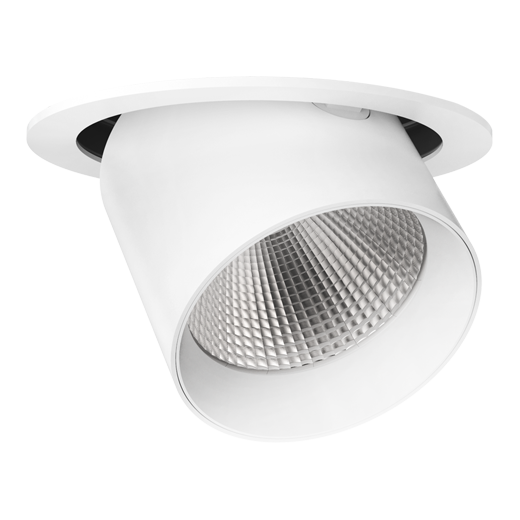

SR-C101

Source Power:

17W / 25W/ 32W / 36W

System Power:

19W / 27W/ 35W / 39W

Source Lumens:

Up to 4451Lm

Delivered Lumens:

Up to 4338Lm

Beam Angle:

12°20°43°58° 10°20°43°58° 12°20°43°58° 12°21°43°58°

Efficacy:

Up to 111Lm/W

Cut out:

Ø172mm

Tilt:

70°

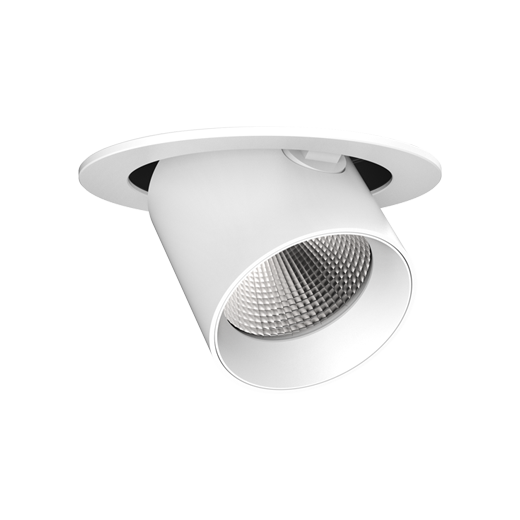

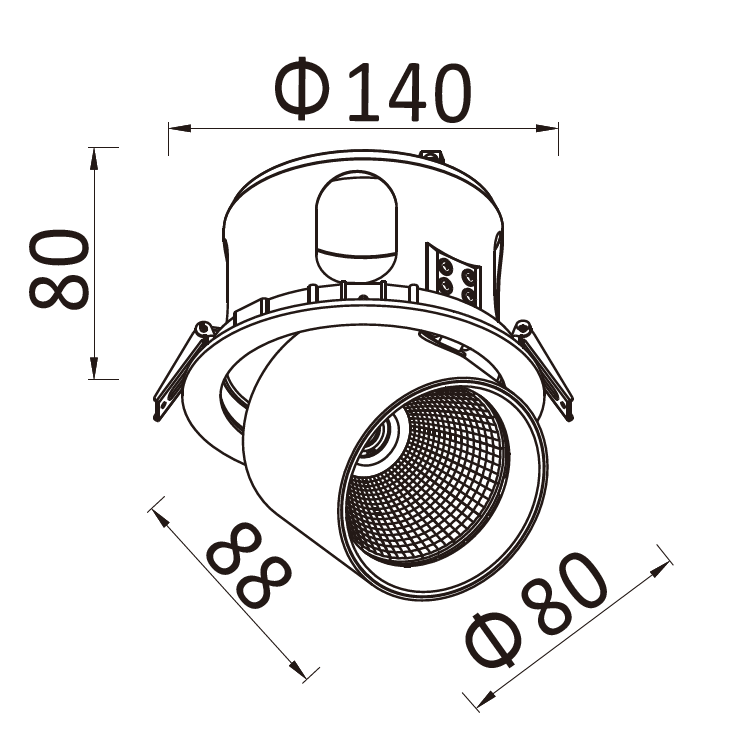

SR-C102

Source Power:

17W / 25W

System Power:

19W / 27W

Source Lumens:

Up to 3107Lm

Delivered Lumens:

Up to 2866Lm

Beam Angle:

14°22°36°58°

Efficacy:

Up to 107Lm/W

Cut out:

Ø130

Tilt:

70°

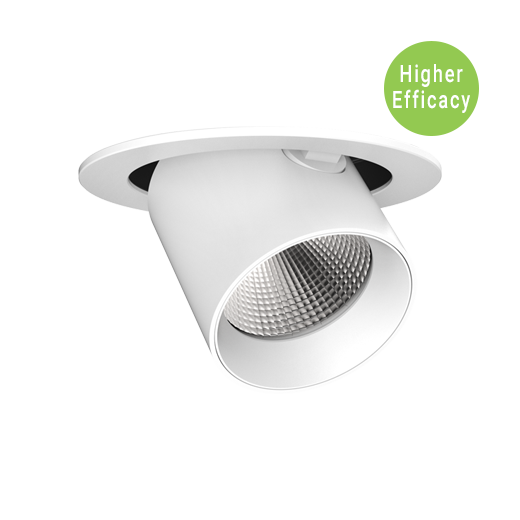

SR-C102 HE

System Power:

14W / 23W

Source Lumens:

Up to 3228Lm

Delivered Lumens:

Up to 2587Lm

Beam Angle:

15°22°36°58° 14°21°37°58°

Efficacy:

Up to 125Lm/W

Cut out:

Ø130

Tilt:

70°

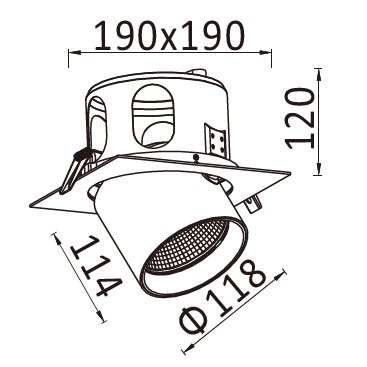

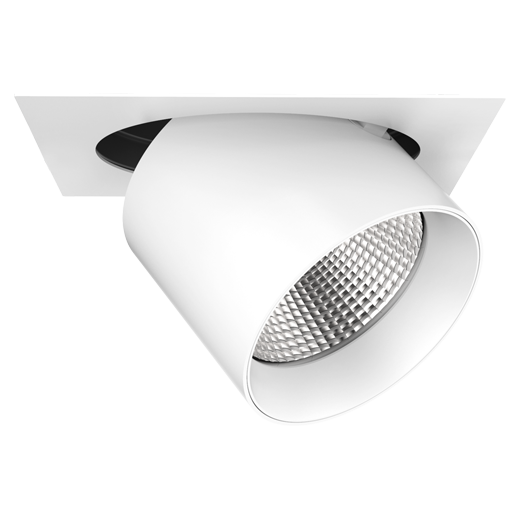

SR-C103

Source Power:

17W / 25W/ 32W / 36W

System Power:

19W / 27W/ 35W / 39W

Source Lumens:

Up to 4454Lm

Delivered Lumens:

Up to 4338Lm

Beam Angle:

12°20°43°58° 10°20°43°58° 10°20°43°58° 12°21°43°58°

Efficacy:

Up to 111Lm/W

Cut out:

175×175

Tilt:

70°

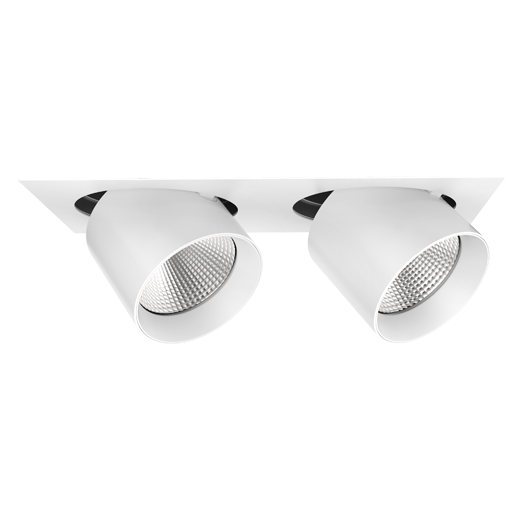

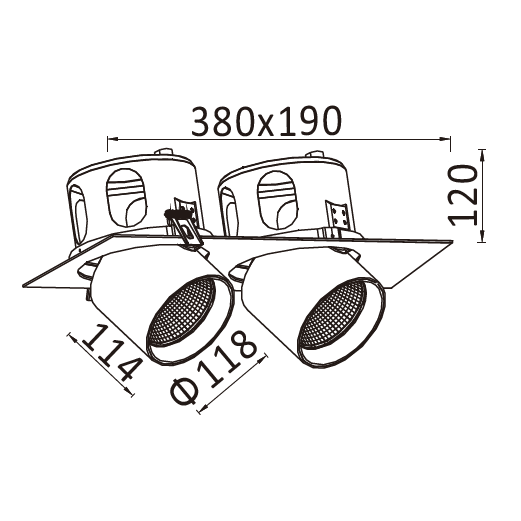

SR-C103-2

Source Power:

34W / 50W/ 64W / 72W

System Power:

38W / 54W/ 70W / 78W

Source Lumens:

Up to 8908Lm

Delivered Lumens:

Up to 8676Lm

Beam Angle:

12°20°43°58° 10°20°43°58° 10°20°43°58° 12°21°43°58°

Efficacy:

Up to 111Lm/W

Cut out:

365×175

Tilt:

70°

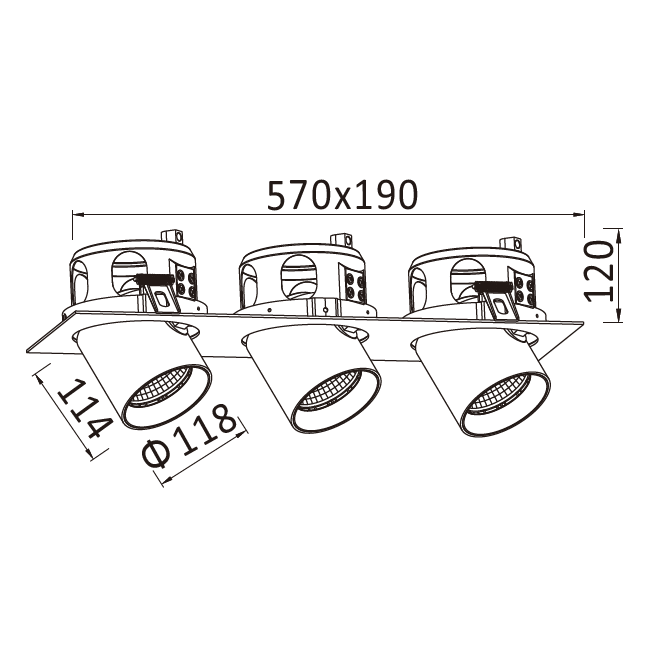

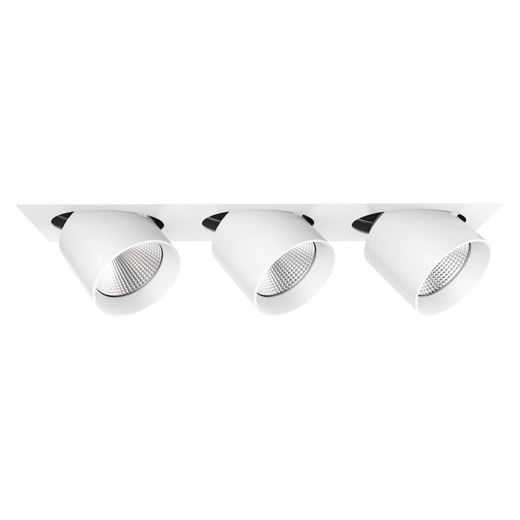

SR-C103-3

Source Power:

51W / 75W/ 96W / 108W

System Power:

77W / 87W/ 105W / 117W

Source Lumens:

Up to 13362Lm

Delivered Lumens:

Up to 13014Lm

Beam Angle:

12°20°43°58° 10°20°43°58° 12°20°43°58° 12°21°43°58°

Efficacy:

Up to 111Lm/W

Cut out:

555×175

Tilt:

70°

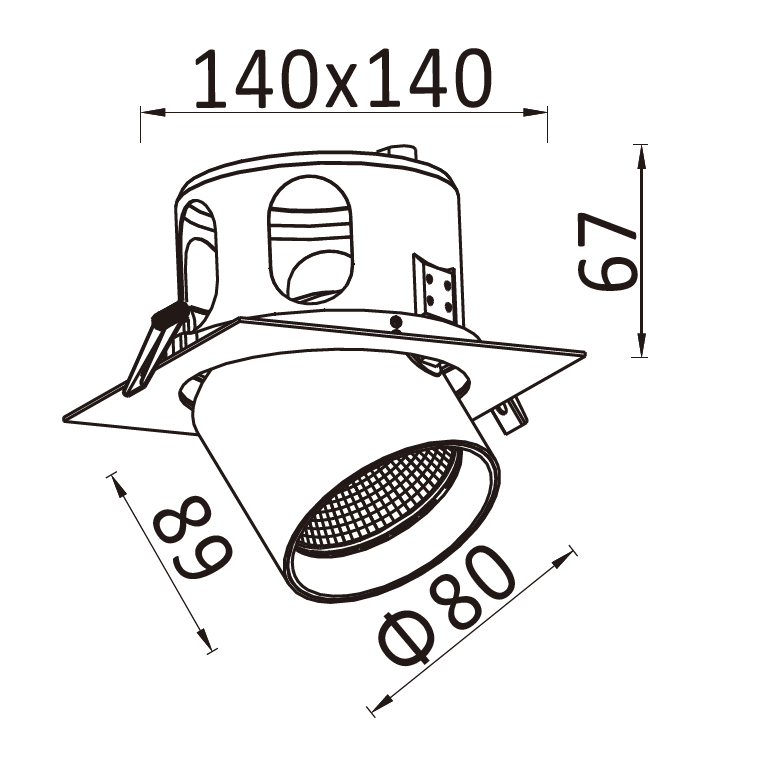

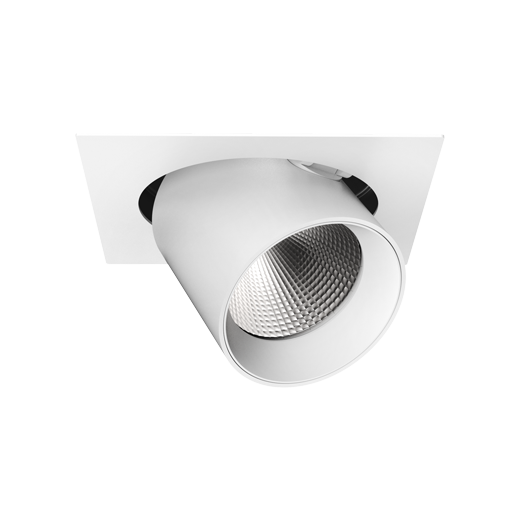

SR-C104

Source Power:

17W / 25W/ 32W / 36W

System Power:

19W / 27W/ 35W / 39W

Source Lumens:

Up to 4454Lm

Delivered Lumens:

Up to 4338Lm

Beam Angle:

12°20°43°58° 10°20°43°58° 10°20°43°58° 12°21°43°58°

Efficacy:

Up to 111Lm/W

Cut out:

175×175

Tilt:

70°

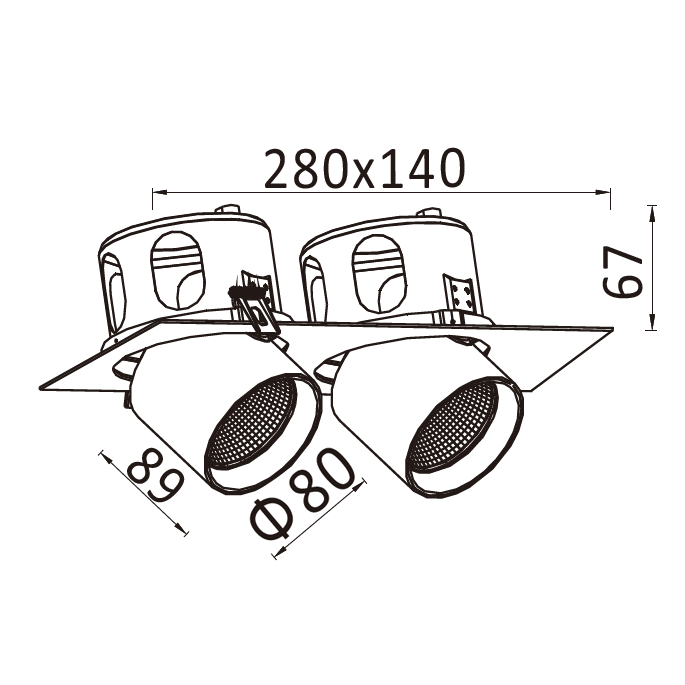

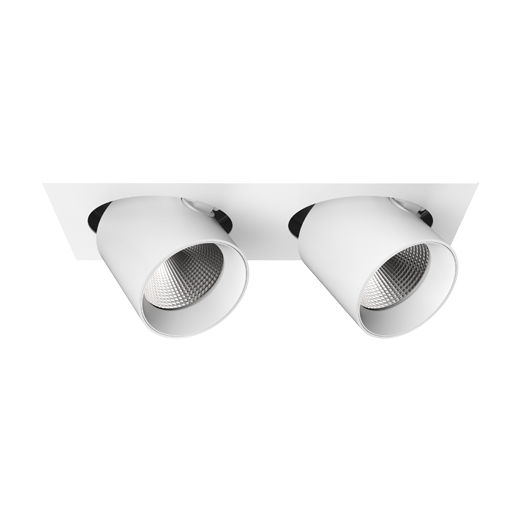

SR-C104-2

Source Power:

34W / 50W

System Power:

38W / 54W

Source Lumens:

Up to 6214Lm

Delivered Lumens:

Up to 5732Lm

Beam Angle:

14°22°36°58° 14°22°36°58°

Efficacy:

Up to 107Lm/W

Cut out:

270×130

Tilt:

70°

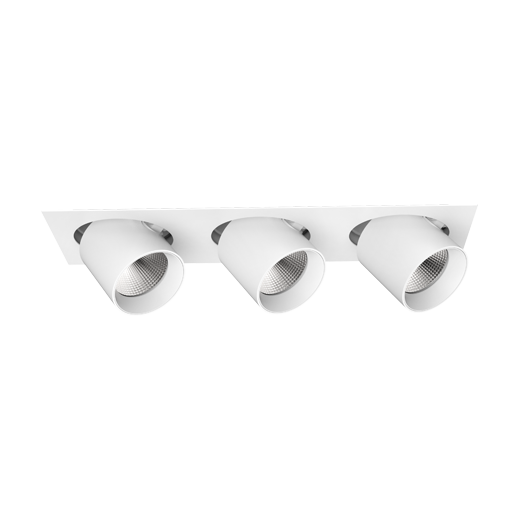

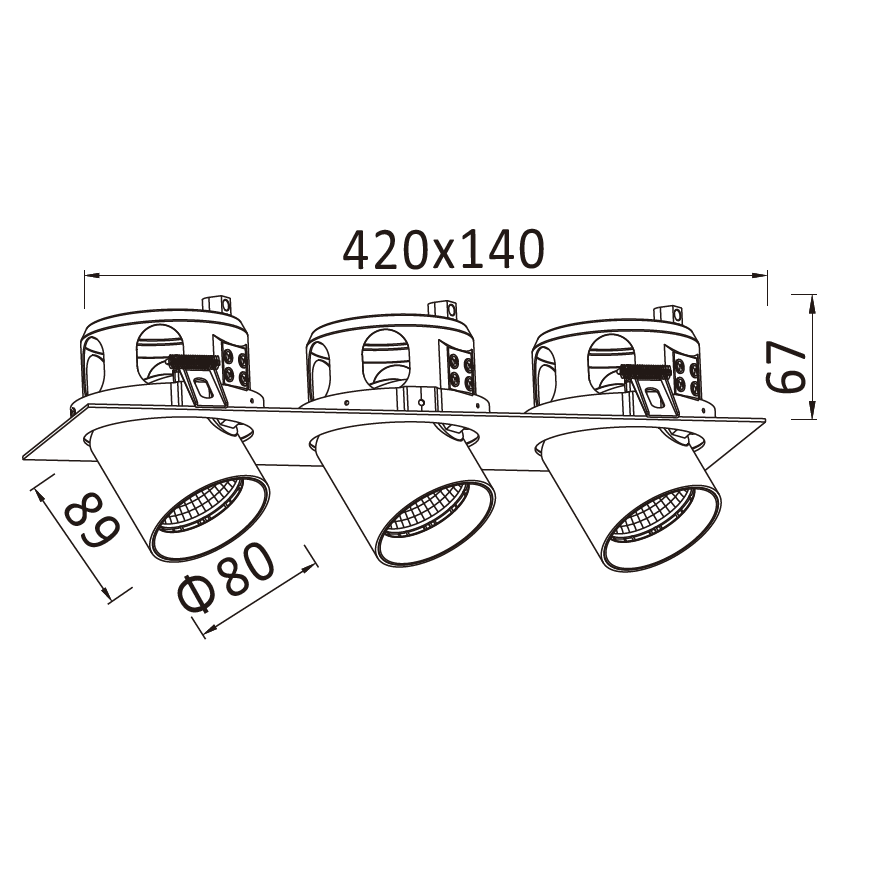

SR-C104-3

Source Power:

51W / 75W

System Power:

57W / 81W

Source Lumens:

Up to 9321Lm

Delivered Lumens:

Up to 8598Lm

Beam Angle:

14°22°36°58° 14°22°36°58°

Efficacy:

Up to 107Lm/W

Cut out:

410×130

Tilt:

70°
