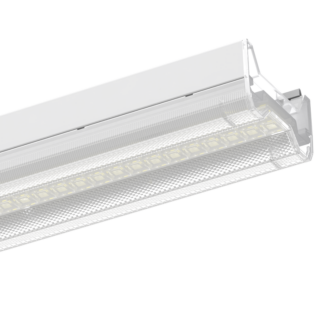

MODURAIL TRUNKING

The ModuRail trunking system is a versatile, next-generation lighting solution designed to meet the diverse demands of modern environments. Built around a fully modular, pre-wired trunking concept with continuous lighting capability, ModuRail allows luminaires and modules to be positioned freely along the rail, giving designers complete freedom to prioritise lighting performance over fixed layouts. Designed for fast installation and future adaptability, the system combines secure locking with plug-and-play integration for reliable, reconfigurable performance. Available with 8 or 13 conductors and optional emergency integration, ModuRail is ideally suited to commercial spaces, industrial facilities, retail environments, supermarkets, and warehouses.
RCM
CE
Class 1
CB
ENEC
IP40
CRI>80
CRI>90
5 Year Warranty
The ModuRail trunking system is a versatile, next-generation lighting solution designed to meet the diverse demands of modern environments. Built around a fully modular, pre-wired trunking concept with continuous lighting capability, ModuRail allows luminaires and modules to be positioned freely along the rail, giving designers complete freedom to prioritise lighting performance over fixed layouts. Designed for fast installation and future adaptability, the system combines secure locking with plug-and-play integration for reliable, reconfigurable performance. Available with 8 or 13 conductors and optional emergency integration, ModuRail is ideally suited to commercial spaces, industrial facilities, retail environments, supermarkets, and warehouses.

Models

MDR8-TRNK

MODEL
LENGTH
MDR8-TRNK2
562mm
MDR8-TRNK4
1124mm
MDR8-TRNK5
1405mm
MDR8-TRNK6
1686mm
MDR8-TRNK8
2248mm
MDR8-TRNK10
2810mm
MDR8-TRNK12
3372mm
MDR8-TRNK15
4215mm
MDR8-TRNK16
4496mm

MDR13-TRNK

MODEL
LENGTH
MDR13-TRNK2
562mm
MDR13-TRNK4
1124mm
MDR13-TRNK5
1405mm
MDR13-TRNK6
1686mm
MDR13-TRNK8
2248mm
MDR13-TRNK10
2810mm
MDR13-TRNK12
3372mm
MDR13-TRNK15
4215mm
MDR13-TRNK16
4496mm

General Specifications

Finish

White/Black

IP Rating

IP40

CRI

>80/>90

Lifetime

100,000 hrs (L80B20)

Material

Steel & Aluminium

MacAdams

SDCM 3

CCT

3000K/4000K (5000K/5700K/6500K)

Power Connection

Terminal Block

Voltage

220-240V, 50Hz

Dimming

Non-Dim/DALI-2

Accessories

ModuRail Start Feed
ModuRail Start Box (Cover)
ModuRail Mid Feed
ModuRail End Feed
ModuRail End Cap
ModuRail PVC Blank Cover
ModuRail L Node Connectors
ModuRail T Node Connectors
ModuRail X Node Connectors
ModuRail Surface Mounting Kit (15mm)
ModuRail Surface Mounting Kit (35mm)
ModuRail Suspension Kit with Loop
ModuRail Suspension Kit
ModuRail Monitored Emergency Module (AU Only)
ModuRail Emergency Module
ModuRail Motion & Daylight Sensor (5m)
ModuRail Motion & Daylight Sensor (5-10m)
