MDRX-LN4 (Opal)
- System Power:
- 32W - 60W
- System Lumens:
- Up to 11390Lm
- Beam Angle:
- 30°x30°/30°x45°/ 30°x90°/60°/ 60°x90°/90°/ Asymmetric 25° (Wall Washer)/ Double Asymmetric 25°
- Efficacy:
- Up to 190Lm/W

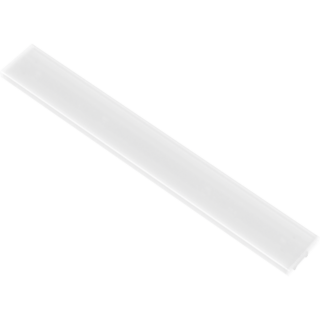

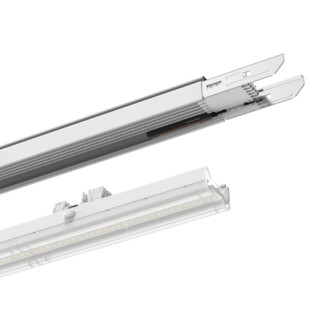

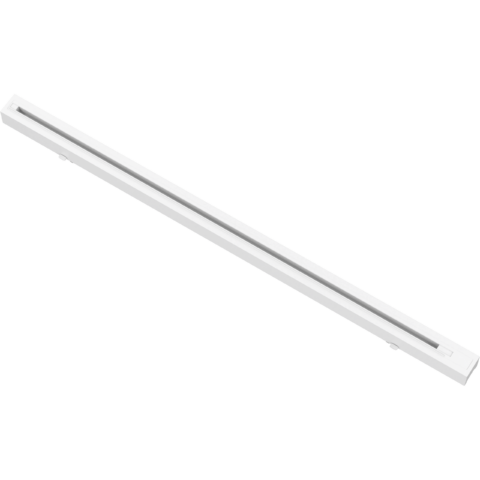

MODURAIL TRUNKING – OPAL LUMINAIRE

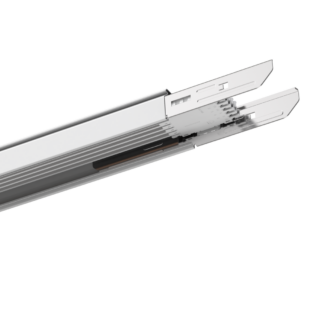

The ModuRail trunking system is a versatile, next-generation lighting solution designed to meet the diverse demands of modern environments. Built around a fully modular, pre-wired trunking concept with continuous lighting capability, ModuRail allows luminaires and modules to be positioned freely along the rail, giving designers complete freedom to prioritise lighting performance over fixed layouts.
Designed for fast installation and future adaptability, the system combines secure locking with plug-and-play integration for reliable, reconfigurable performance.
Available with 8 or 13 conductors and optional emergency integration, ModuRail is ideally suited to commercial spaces, industrial facilities, retail environments, supermarkets, and warehouses.
The ModuRail trunking system is a versatile, next-generation lighting solution designed to meet the diverse demands of modern environments. Built around a fully modular, pre-wired trunking concept with continuous lighting capability, ModuRail allows luminaires and modules to be positioned freely along the rail, giving designers complete freedom to prioritise lighting performance over fixed layouts.
Designed for fast installation and future adaptability, the system combines secure locking with plug-and-play integration for reliable, reconfigurable performance.
Available with 8 or 13 conductors and optional emergency integration, ModuRail is ideally suited to commercial spaces, industrial facilities, retail environments, supermarkets, and warehouses.
Models
MDRX-LN5 (Opal)
- System Power:
- 40W - 80W
- System Lumens:
- Up to 14260Lm
- Beam Angle:
- 30°x30°/30°x45°/ 30°x90°/60°/ 60°x90°/90°/ Asymmetric 25° (Wall Washer)/ Double Asymmetric 25°
- Efficacy:
- Up to 190Lm/W
MDRX-LN6 (Opal)
- System Power:
- 42W - 100W
- System Lumens:
- Up to 18021Lm
- Beam Angle:
- 30°x30°/30°x45°/ 30°x90°/60°/ 60°x90°/90°/ Asymmetric 25° (Wall Washer)/ Double Asymmetric 25°
- Efficacy:
- Up to 180Lm/W
General Specifications
Finish
White/Black
IP Rating
IP40
CRI
>80/>90
Lifetime
100,000 hrs (L80B20)
Material
Steel & Aluminium
MacAdams
SDCM 3
CCT
3000K/4000K (5000K/5700K/6500K on request)
Power Connection
Terminal Block
Voltage
220-240V, 50Hz
Dimming
Non-Dim/DALI-2
Accessories

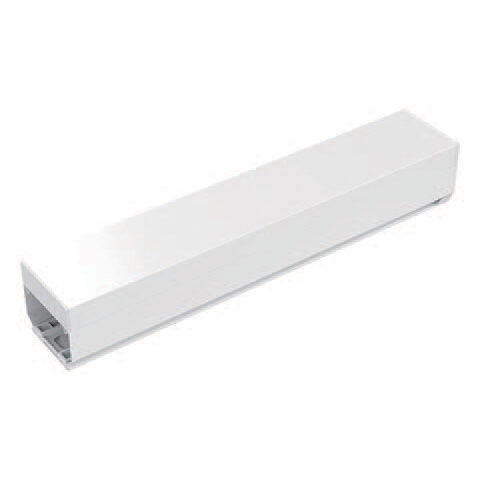

ModuRail Start Feed

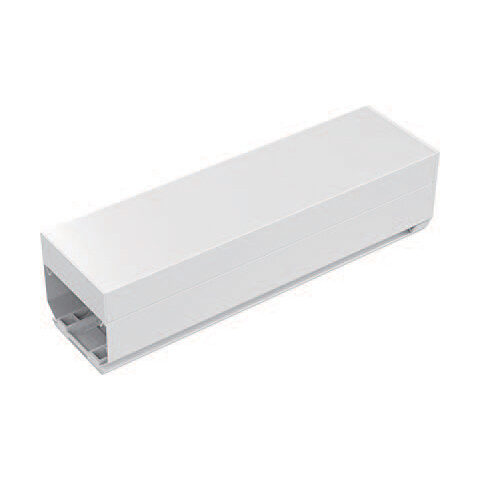

ModuRail Start Box (Cover)

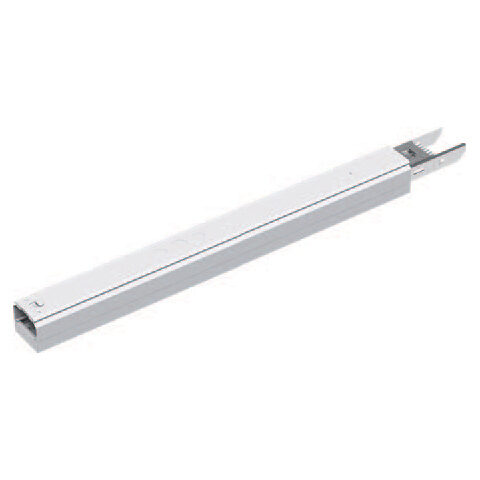

ModuRail Mid Feed

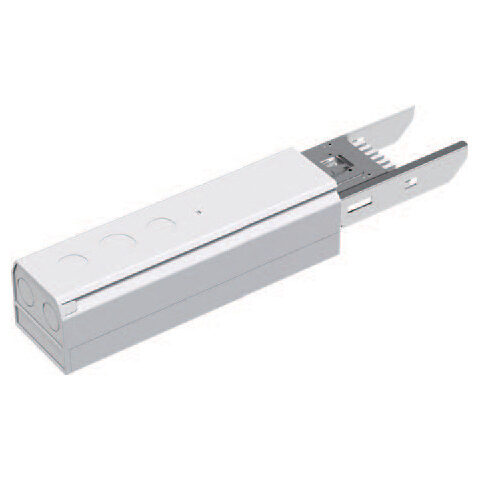

ModuRail End Feed

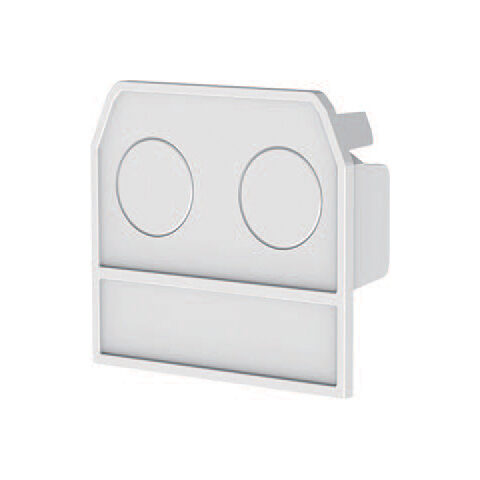

ModuRail End Cap

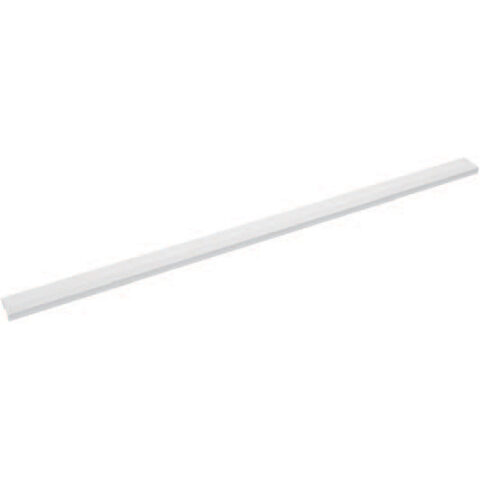

ModuRail PVC Blank Cover

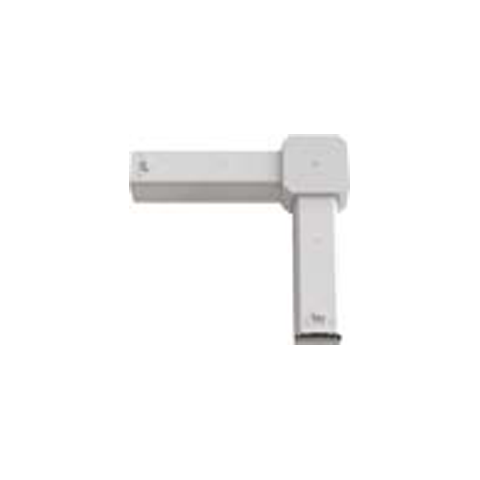

ModuRail L Node Connectors

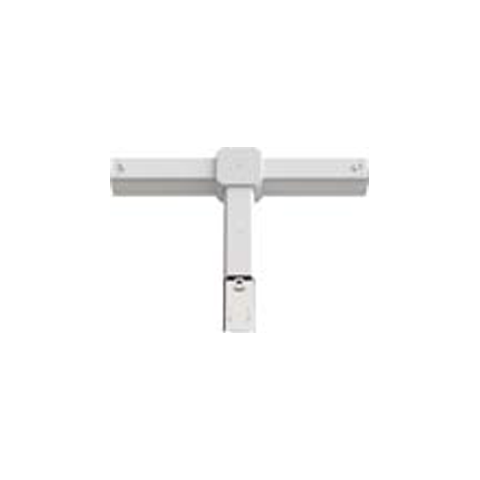

ModuRail T Node Connectors

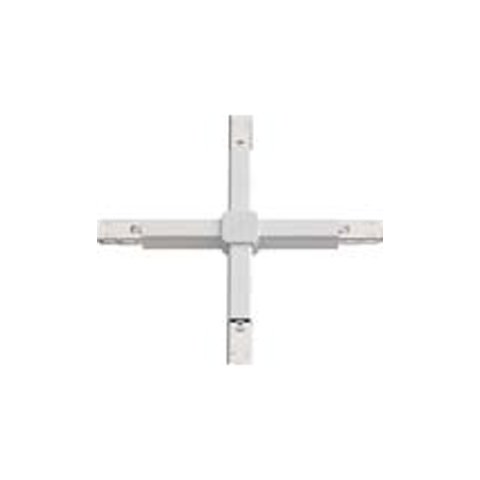

ModuRail X Node Connectors

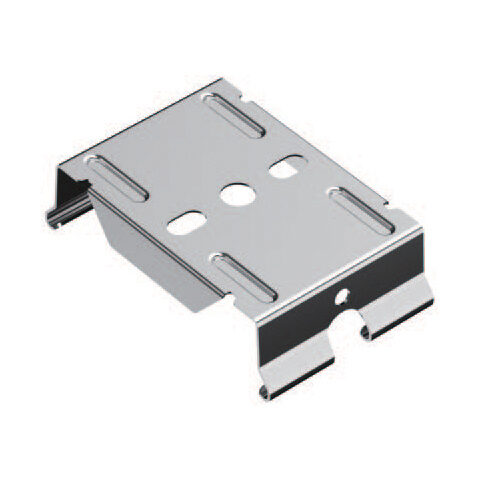

ModuRail Surface Mounting Kit (15mm)

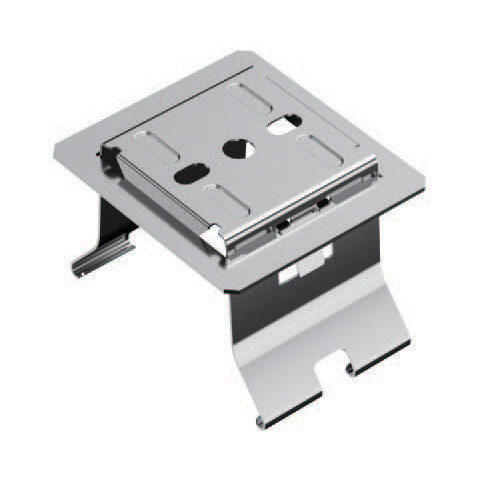

ModuRail Surface Mounting Kit (35mm)

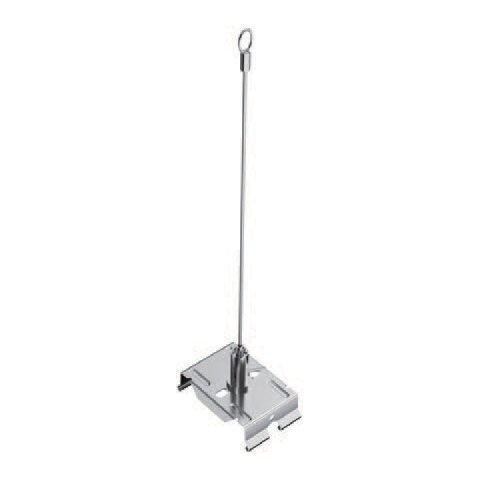

ModuRail Suspension Kit with Loop

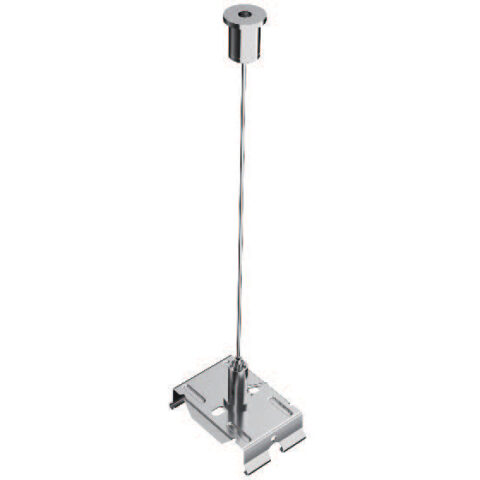

ModuRail Suspension Kit
ModuRail Monitored Emergency Module (AU Only)

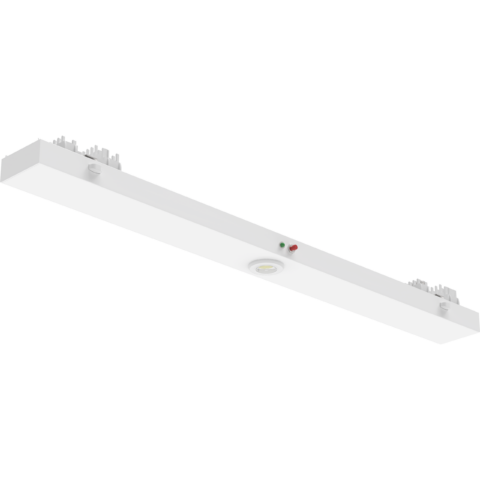

ModuRail Emergency Module

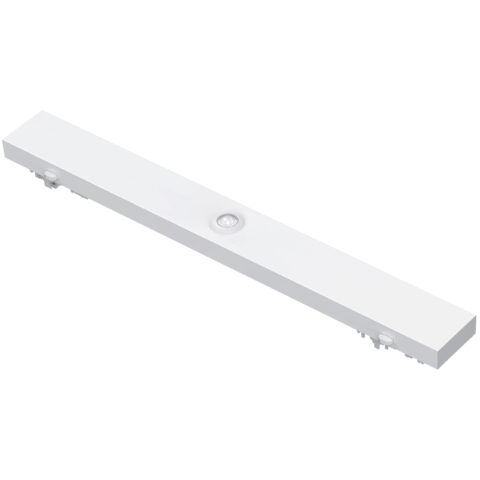

ModuRail Motion & Daylight Sensor (5m)
