OP-A127
- Source Power:
- 17W
- System Power:
- 20W
- Source Lumens:
- 2865Lm
- Delivered Lumens:
- 2183Lm
- Beam Angle:
- 107°
- Efficacy:
- Up to 109Lm/W

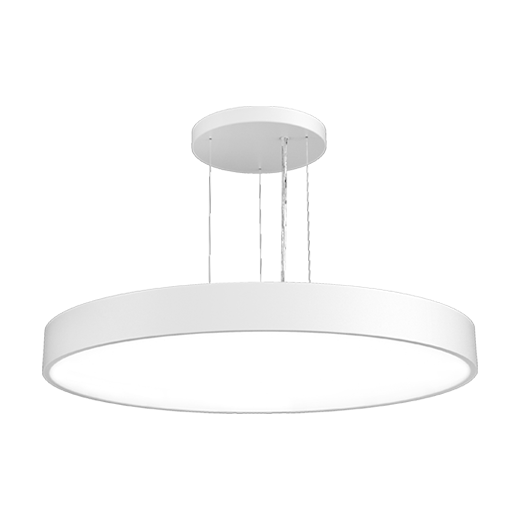

MAYA PENDANT
Maya is a high-performing luminaire suitable for a variety of applications. Choose from seven size options, the Maya delivers high efficiency using LED chips and an acrylic diffuser. An optional micro prismatic diffuser can be used to ensure a UGR<19 rating. Available in surface-mounted and pendant formats with the option of DALI, 1-10V and Casambi dimming.
Maya is a high-performing luminaire suitable for a variety of applications. Choose from seven size options, the Maya delivers high efficiency using LED chips and an acrylic diffuser. An optional micro prismatic diffuser can be used to ensure a UGR<19 rating. Available in surface-mounted and pendant formats with the option of DALI, 1-10V and Casambi dimming.
Models

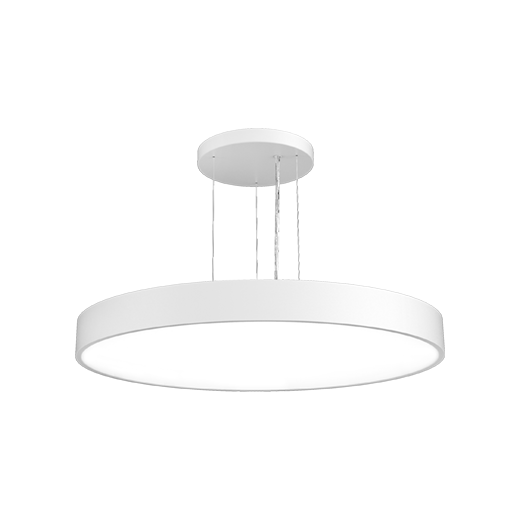

OP-A128
- Source Power:
- 24W
- System Power:
- 26W
- Source Lumens:
- 4087Lm
- Delivered Lumens:
- 2874Lm
- Beam Angle:
- 107°
- Efficacy:
- Up to 111Lm/W

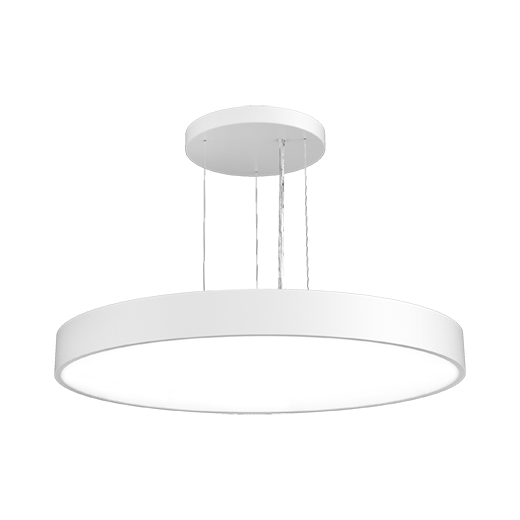

OP-A129
- Source Power:
- 30W
- System Power:
- 34W
- Delivered Lumens:
- 5267Lm
- Delivered Lumens:
- 3795Lm
- Beam Angle:
- 108°
- Efficacy:
- Up to 111Lm/W

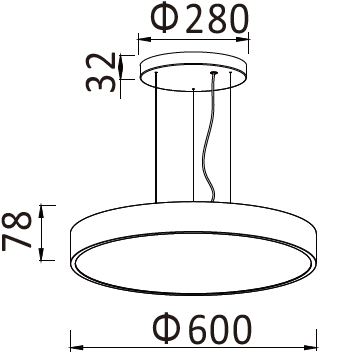

OP-A130
- Source Power:
- 40W
- System Power:
- 46W
- Delivered Lumens:
- 7334Lm
- Delivered Lumens:
- 5373Lm
- Beam Angle:
- 108°
- Efficacy:
- Up to 117Lm/W

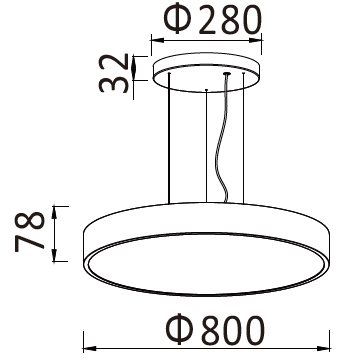

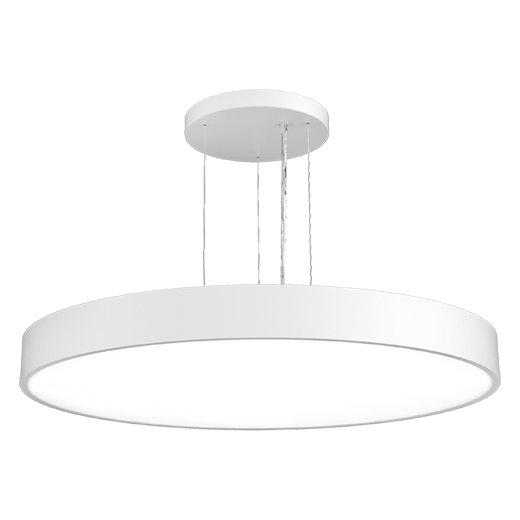

OP-A131
- Source Power:
- 45W
- System Power:
- 51W
- Delivered Lumens:
- 8588Lm
- Delivered Lumens:
- 6510Lm
- Beam Angle:
- 108°
- Efficacy:
- Up to 128Lm/W

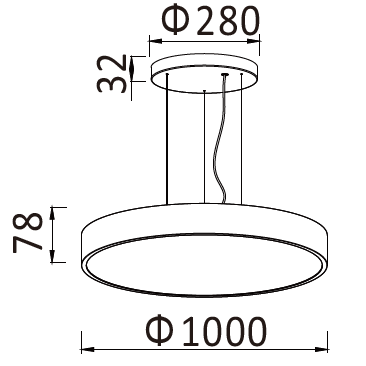

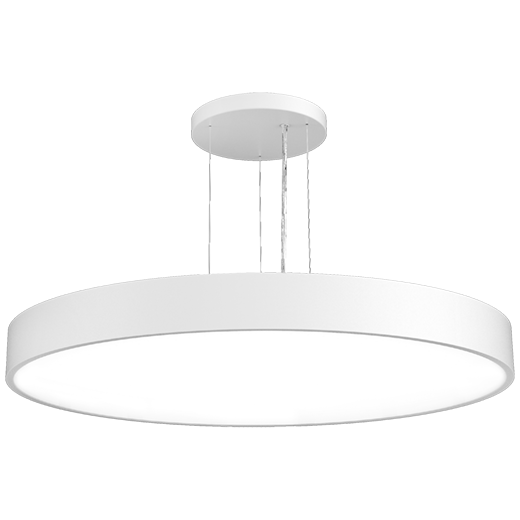

OP-A132
- Source Power:
- 58W/68W
- System Power:
- 65W/76W
- Delivered Lumens:
- 10665Lm/12383Lm
- Delivered Lumens:
- 9842Lm/11433Lm
- Beam Angle:
- 110°
- Efficacy:
- Up to 151Lm/W
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L70 (10K) > 60,000 hrs
Material
Aluminium
CCT
2700K/3000K/3500K/4000K/5000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
