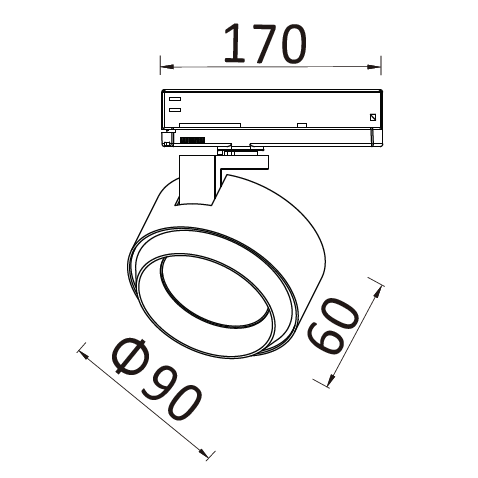

ST-C399
- Source Power:
- 7W / 11W / 16W
- System Power:
- 8W / 14W / 19W
- Source Lumens:
- Up to 2269Lm
- Delivered Lumens:
- Up to 1751Lm
- Beam Angle:
- 15°/19°/26°/47° 21°/25°/29°/48° 26°/30°/34°/47°
- Efficacy:
- Up to 95Lm/W
- Tilt:
- 90°
MASTER TRACK LIGHT
The newly designed Master series offers precision and versatility with its stylish appearance. Crafted with top-tier lenses as optical accessories and integrated driver adapters, glare is minimised to perfection, ensuring optimal illumination. Available in three sizes with accessory choices including cross louvre, honeycomb lens, wall washer, barn door and elliptic optical accessory. All fixtures fit a standard three-circuit track and adjust through 90° vertical plane and 355° horizontal plane.
The newly designed Master series offers precision and versatility with its stylish appearance. Crafted with top-tier lenses as optical accessories and integrated driver adapters, glare is minimised to perfection, ensuring optimal illumination. Available in three sizes with accessory choices including cross louvre, honeycomb lens, wall washer, barn door and elliptic optical accessory. All fixtures fit a standard three-circuit track and adjust through 90° vertical plane and 355° horizontal plane.
Models
ST-C399 HE
- System Power:
- 9W / 14W
- Source Lumens:
- Up to 2016Lm
- Delivered Lumens:
- Up to 1404Lm
- Beam Angle:
- 21°/25°/29°/47° 28°/31°/34°/46°
- Efficacy:
- Up to 106Lm/W
- Tilt:
- 90°

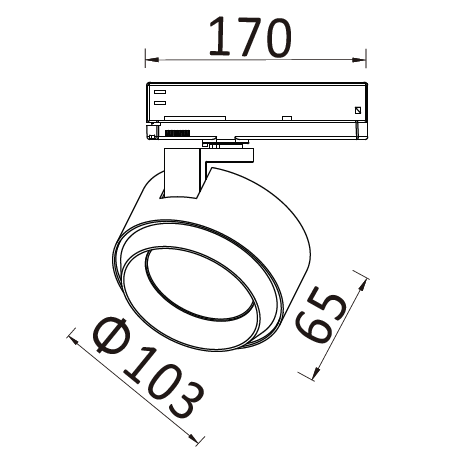

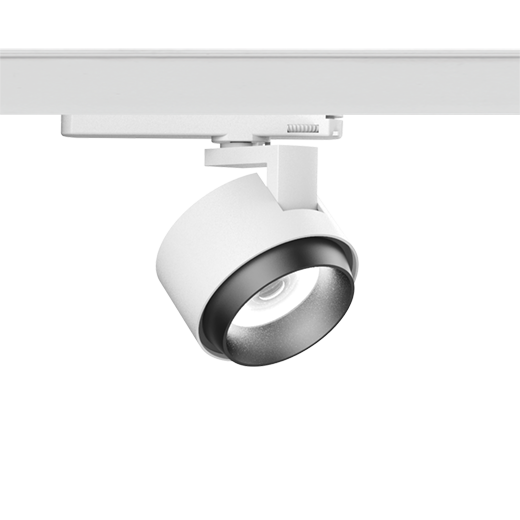

ST-C400
- Source Power:
- 12W / 16W / 24W
- System Power:
- 14W / 19W / 27W
- Source Lumens:
- Up to 3107Lm
- Delivered Lumens:
- Up to 2637Lm
- Beam Angle:
- 18°/22°/31°/52° 18°/26°/35°/54° 21°/26°/34°/53°
- Efficacy:
- Up to 104Lm/W
- Tilt:
- 90°
ST-C400 HE
- System Power:
- 9W / 14W
- Source Lumens:
- Up to 2016Lm
- Delivered Lumens:
- Up to 1616Lm
- Beam Angle:
- 14°/24°/34°/55° 18°/27°/35°/55°
- Efficacy:
- Up to 115Lm/W
- Tilt:
- 90°

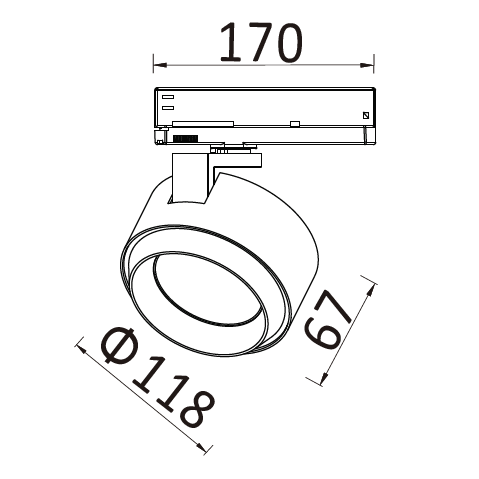

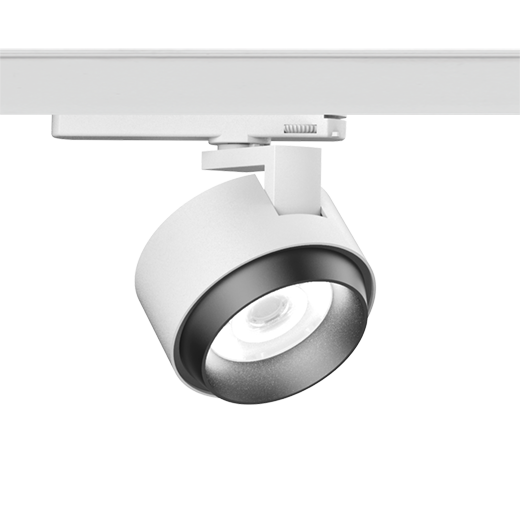

ST-C401
- Source Power:
- 16W / 24W / 32W
- System Power:
- 19W / 27W / 35W
- Source Lumens:
- Up to 3985Lm
- Delivered Lumens:
- Up to 3440Lm
- Beam Angle:
- 16°/23°/32°/56° 17°/23°/32°/56° 17°/23°/32°/56°
- Efficacy:
- Up to 107Lm/W
- Tilt:
- 90°
ST-C401 HE
- System Power:
- 14W / 23W / 26W
- Source Lumens:
- Up to 3849Lm
- Delivered Lumens:
- Up to 3023Lm
- Beam Angle:
- 17°/24°/32°/55° 17°/24°/32°/55° 19°/24°/31°/55°
- Efficacy:
- Up to 118Lm/W
- Tilt:
- 90°
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L80 (12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
L90 (12K) > 41,000 hrs (for HE)
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
Accessories
Honeycomb Louvre
Barn Door
Elliptical Optical Lens
Cross

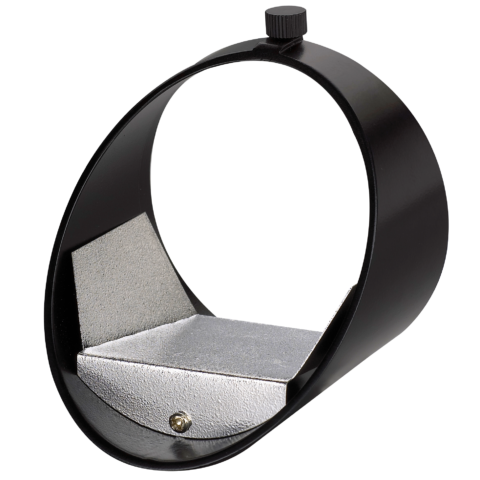

Wall Washer
