GALLERY TRACK LIGHT

The streamline and compact design of the Gallery series allows for a built-in driver. This compact luminaire is powerful enough for any commercial or retail application offering a versatile range of output levels and beam angle options, and our market leading colour rendering. This spotlight series offers a compact design with the highest performance standards using a Miro reflector.

All our fixtures fit standard three circuit track and adjust easily through 90° in the vertical plane and 355° in the horizontal plane. Options include the choice of CCT colour, body colour, Honeycomb Louvres, Miro reflectors for even higher efficiency, glass lens and barn door cut off control.

The Gallery series is available as a track spot or pendant configuration.

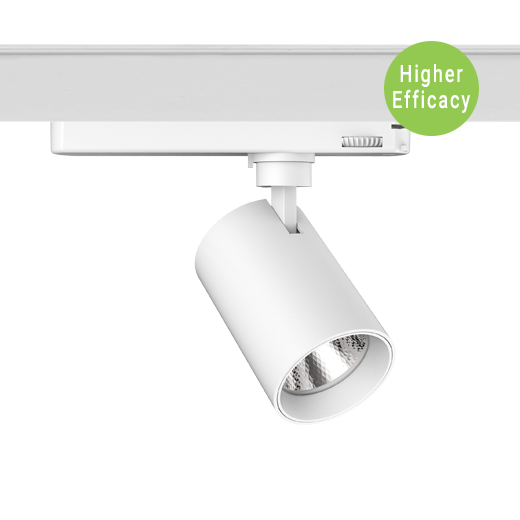

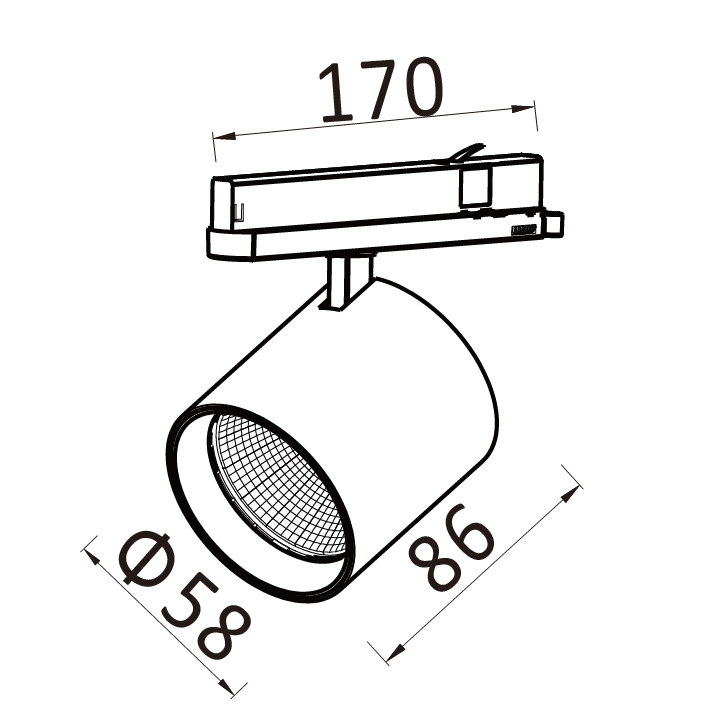

ST-A538

Source Power: 7W / 13W
System Power: 8W / 14W
Source Lumens: Up to 1586Lm
Delivered Lumens: Up to 1301Lm
Beam Angle:  11° 21° 34°
16° 27° 38°
Efficacy:  Up to 91Lm/W
Tilt:  90°
Downloads:  IES Files

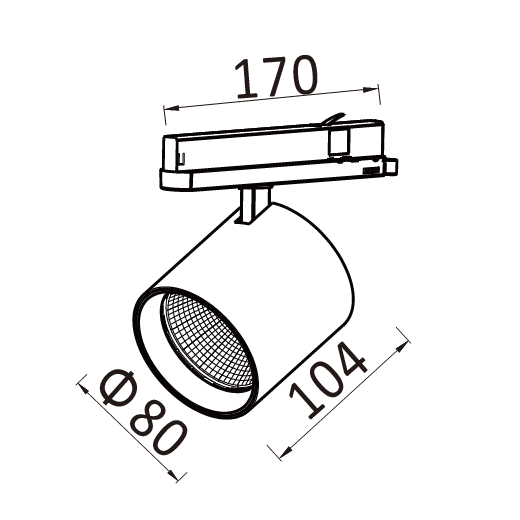

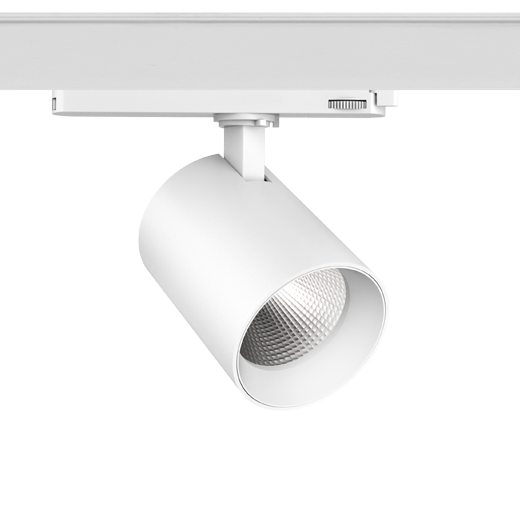

ST-C443

Source Power: 17W / 25W
System Power: 19W / 27W
Source Lumens: Up to 3107Lm
Delivered Lumens: Up to 2866Lm
Beam Angle:  14° 22° 36° 58°
14° 22° 36° 58°
Efficacy:  Up to 109Lm/W
Tilt:  90°
Downloads:  IES Files

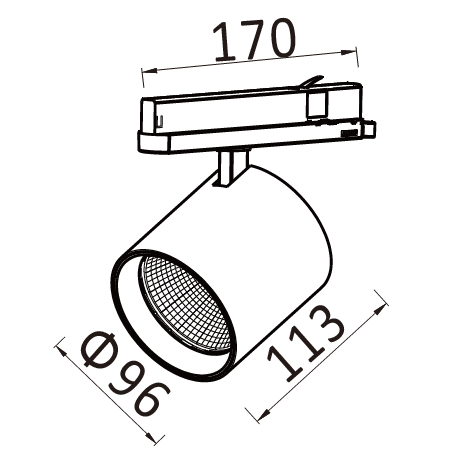

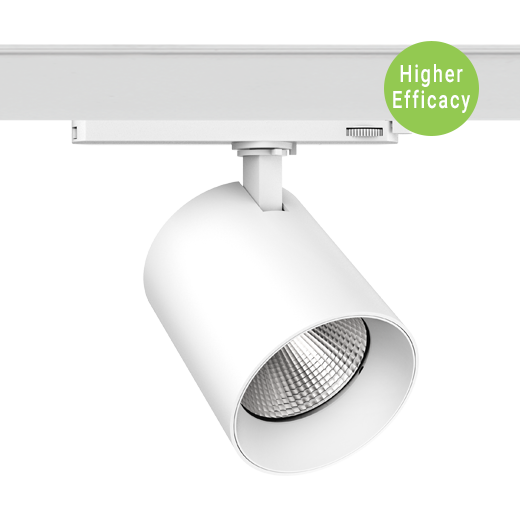

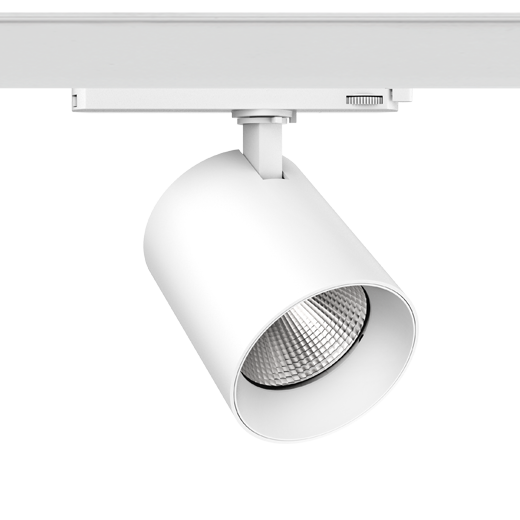

ST-C449

Source Power: 17W / 25W / 32W
System Power: 19W / 27W / 35W
Source Lumens: Up to 3985Lm
Delivered Lumens: Up to 3679Lm
Beam Angle:  15° 19° 41° 57°
14° 19° 41° 57°
14° 19° 41° 57°
Efficacy:  Up to 109Lm/W
Tilt:  90°
Downloads:  IES Files

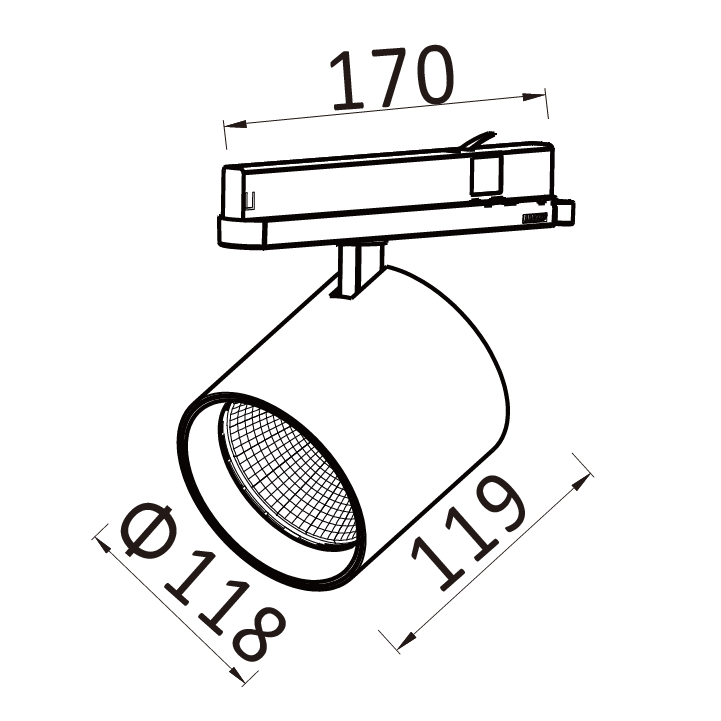

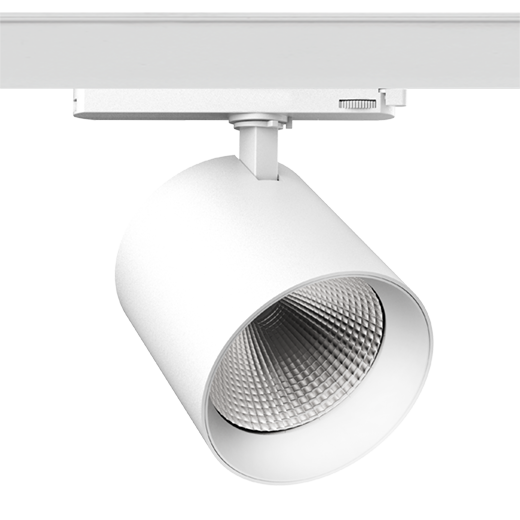

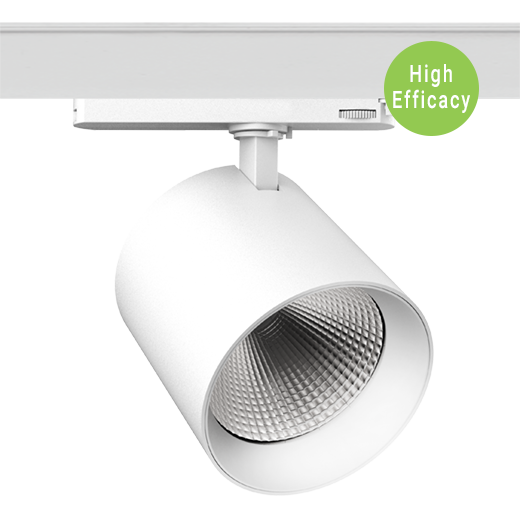

ST-C441

Source Power: 17W / 25W / 32W / 36W
System Power: 19W / 27W / 35W / 39W
Source Lumens: Up to 4454Lm
Delivered Lumens: Up to 4338Lm
Beam Angle:  12° 20° 43° 58°
10° 20° 43° 58°
12° 20° 43° 58°
12° 21° 43° 58°
Efficacy:  Up to 111Lm/W
Tilt:  90°
Downloads:  IES Files
Finish Black/White Material Aluminium
IP Rating IP20 CCT  3000K/4000K
CRI >90 Voltage 220-240V
Lifetime L80(12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
Dimming Available on request
