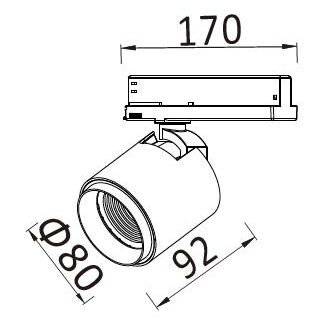

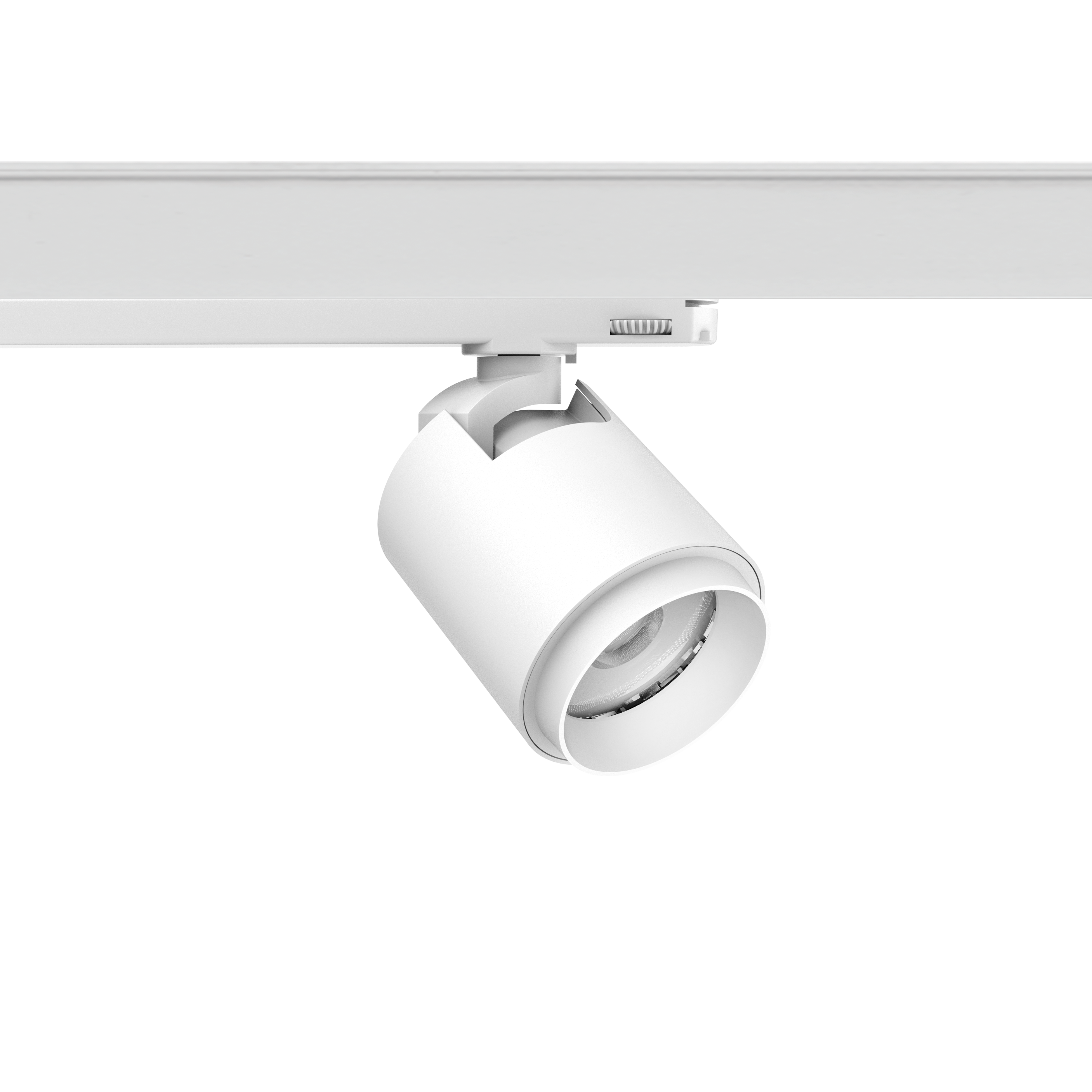

ST-A823
- Source Power:
- 17W / 25W
- System Power:
- 19W / 27W
- Source Lumens:
- Up to 3107Lm
- Delivered Lumens:
- Up to 2689Lm
- Beam Angle:
- 20°/24°/33°/58° 20°/24°/33°/57°
- Efficacy:
- Up to 108Lm/W
- Tilt:
- 90°
HERO TRACK LIGHT
The Hero series offers precise optics with a unique stylish appearance. No gearbox is required due to a driver in-track adapter offering better heat dissipation and superior spot lighting with a high-quality optical lens. This compact luminaire offers powerful accent lighting, paired with our market-leading energy efficiency and colour rendering. With a range of output levels and beam angles, the Hero series matches its namesake in retail, hospitality and general display lighting applications.
All our fixtures fit standard three-circuit track and adjust easily through 90° in the vertical plane and 355° in the horizontal plane.
The Hero series is available in a track and recessed spot light. The recessed option allows the body to be recessed into the ceiling.
The Hero series offers precise optics with a unique stylish appearance. No gearbox is required due to a driver in-track adapter offering better heat dissipation and superior spot lighting with a high-quality optical lens. This compact luminaire offers powerful accent lighting, paired with our market-leading energy efficiency and colour rendering. With a range of output levels and beam angles, the Hero series matches its namesake in retail, hospitality and general display lighting applications.
All our fixtures fit standard three-circuit track and adjust easily through 90° in the vertical plane and 355° in the horizontal plane.
The Hero series is available in a track and recessed spot light. The recessed option allows the body to be recessed into the ceiling.
Models

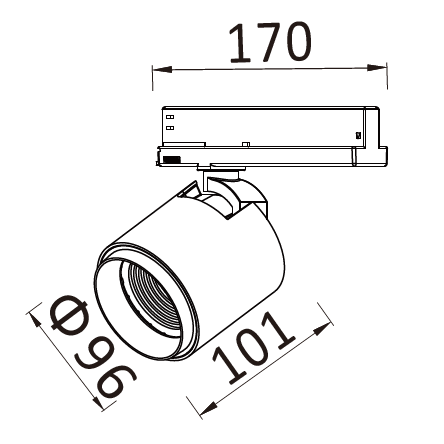

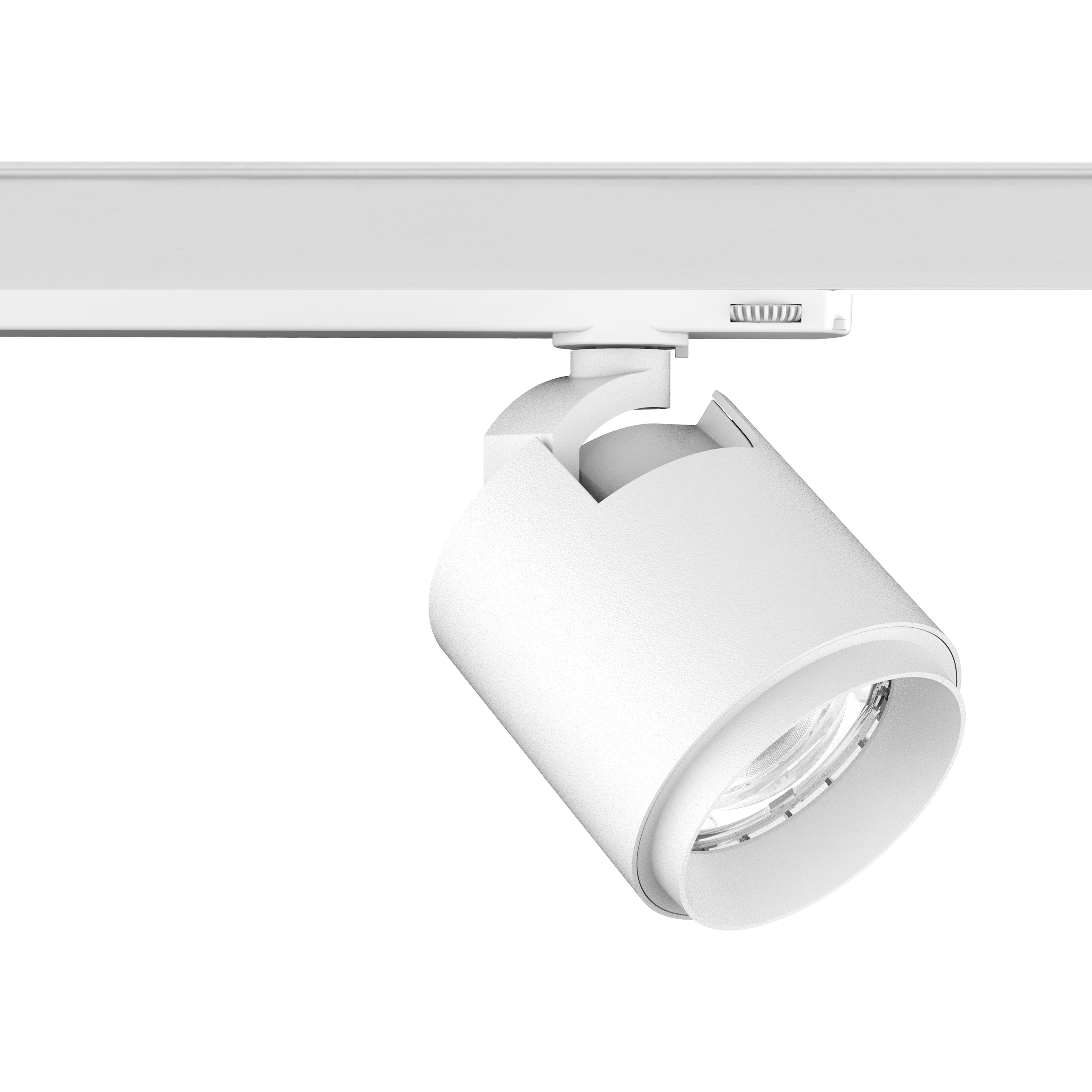

ST-A822
- Source Power:
- 17W / 25W / 32W
- System Power:
- 19W / 27W / 35W
- Source Lumens:
- Up to 3923Lm
- Delivered Lumens:
- Up to 3377Lm
- Beam Angle:
- 15°/22°/35°/57° 15°/22°/35°/58° 15°/22°/35°/58°
- Efficacy:
- Up to 108Lm/W
- Tilt:
- 90°

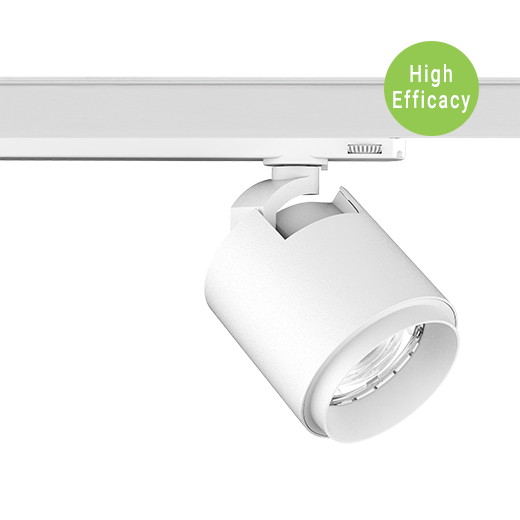

ST-A822 HE
- System Power:
- 13W / 14W / 23W
- Source Lumens:
- Up to 3229Lm
- Delivered Lumens:
- Up to 2734Lm
- Beam Angle:
- 16°/22°/35°/56° 11°/20°/33°/56° 16°/21°/33°/55°
- Efficacy:
- Up to 129Lm/W
- Tilt:
- 90°
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L80 (12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
L90 (12K) > 41,500 hrs (for HE)
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
Accessories
Honeycomb Louvre
Elliptical Optical Lens
