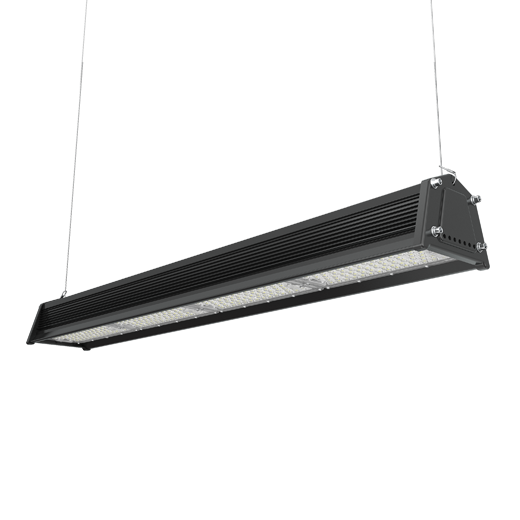

HORIZON PRO HIGHBAY

Horizon Pro linear highbay is designed specifically for applications that require a linear fixture, fitted with an appropriate optical solution such as warehouse aisles, big box retail, manufacturing etc. When used specifically in warehousing the asymmetric optic lens adapts to narrow aisle with high shelves due to the rectangular light pattern.

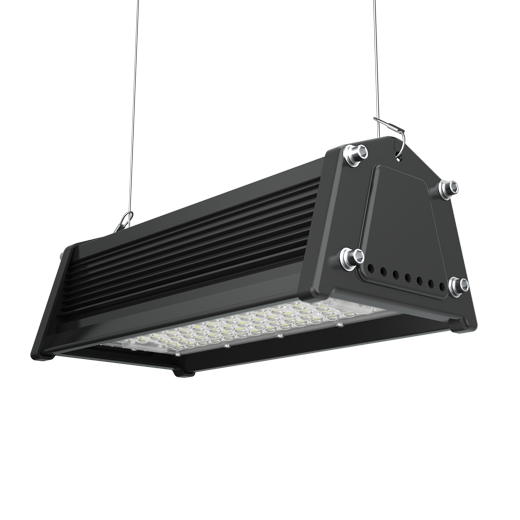

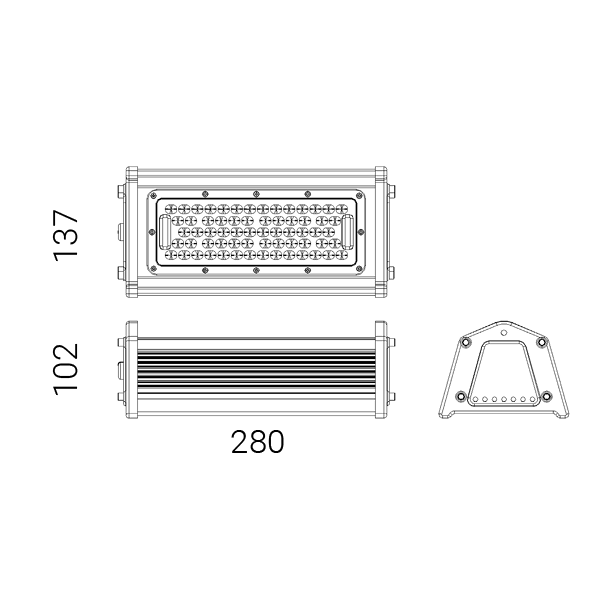

LHB-HOR-50

System Power: 50W
Delivered Lumens: 6800Lm
Beam Angle:  50×90°/40×120°
Efficacy:  Up to 136Lm/W
Download:  Datasheet
IES Files
Instructional Manual

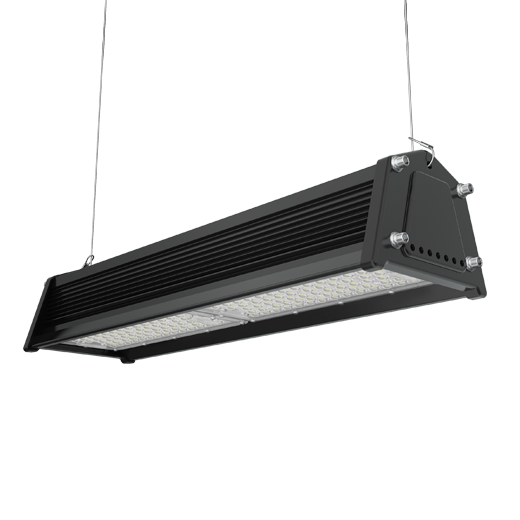

LHB-HOR-100

System Power: 100W
Delivered Lumens: 13600Lm
Beam Angle:  50×90°/40×120°
Efficacy:  Up to 136Lm/W
Download:  Datasheet
IES Files
Instructional Manual

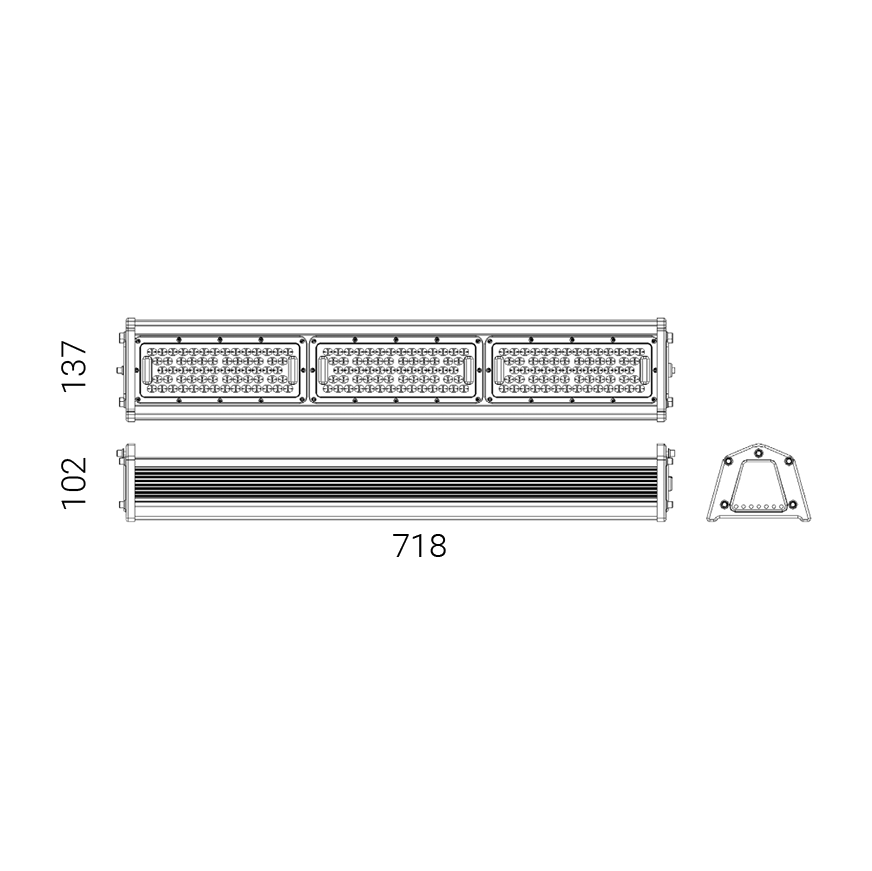

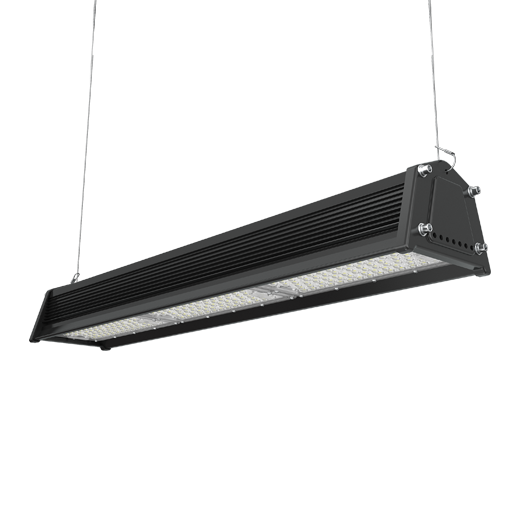

LHB-HOR-150

System Power: 150W
Delivered Lumens: 19600Lm
Beam Angle:  50×90°/40×120°
Efficacy:  Up to 130Lm/W
Download:  Datasheet
IES Files
Instructional Manual

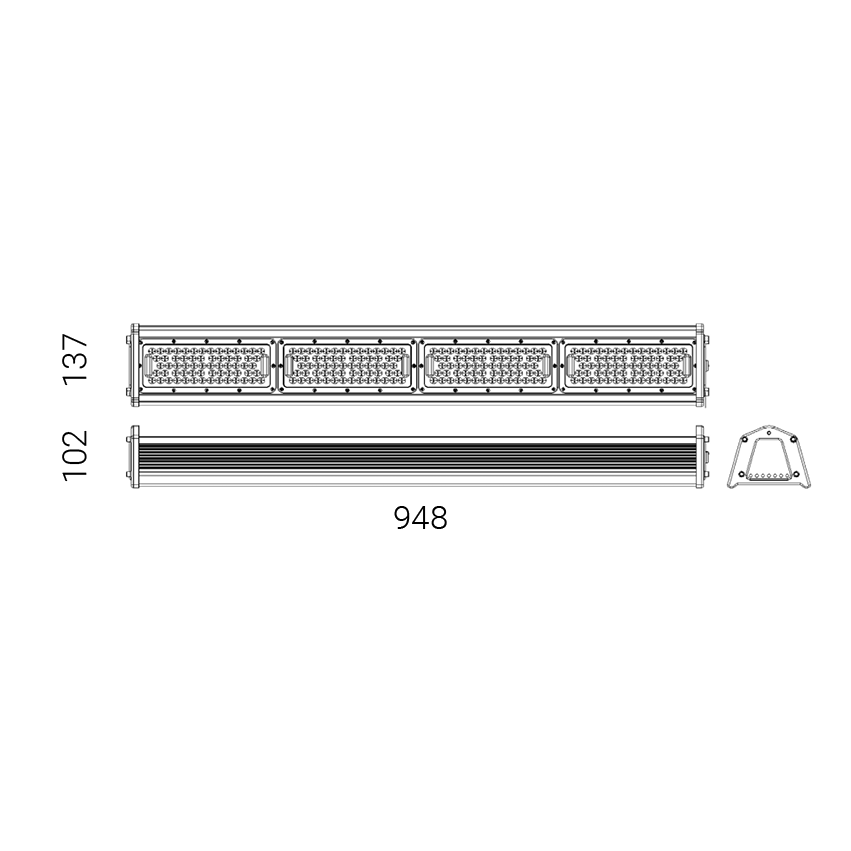

LHB-HOR-200

System Power: 200W
Delivered Lumens: 26700Lm
Beam Angle:  50×90°/40×120°
Efficacy:  Up to 134Lm/W
Download:  Datasheet
IES Files
Instructional Manual

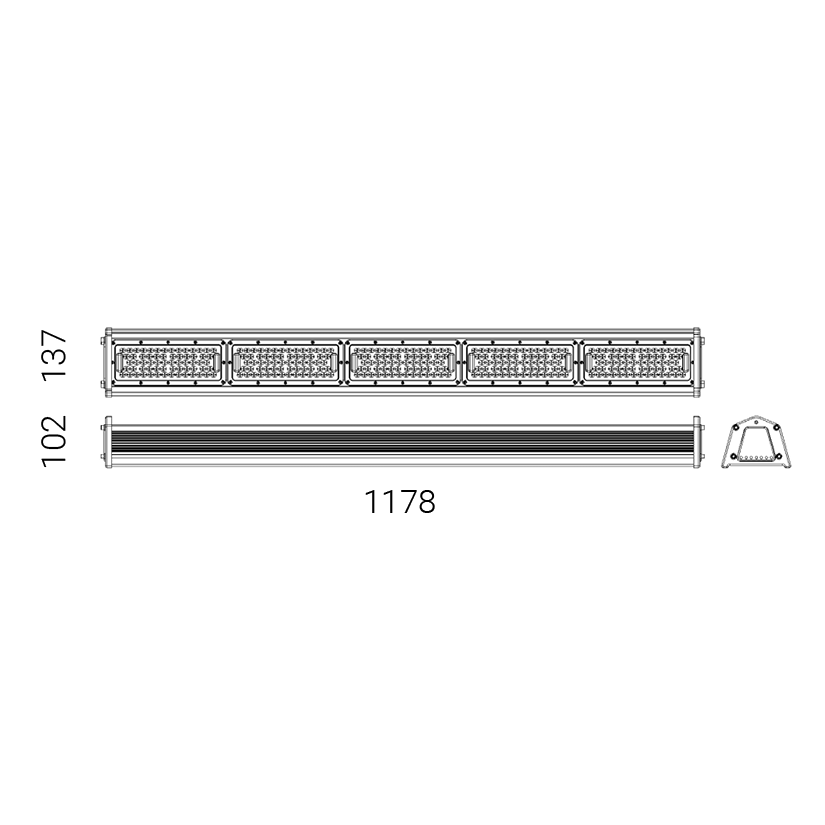

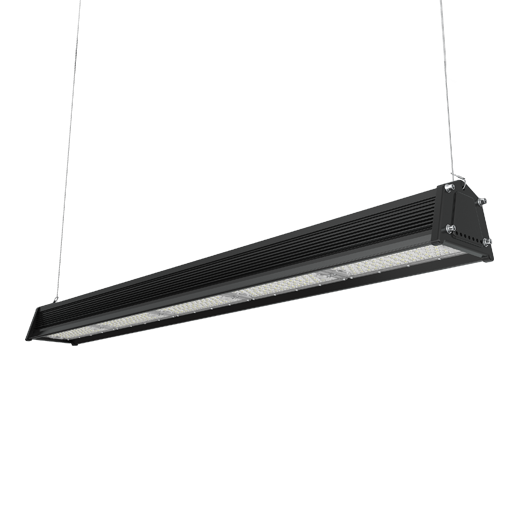

LHB-HOR-240

System Power: 240W
Delivered Lumens: 32100Lm
Beam Angle:  50×90°/40×120°
Efficacy:  Up to 134Lm/W
Download:  Datasheet
IES Files
Instructional Manual
Finish Black Material Aluminium
IP Rating IP65 CCT  5000K
CRI >70 Voltage 110-240V
Lifetime >50,000 hours Dimming Not suitable
