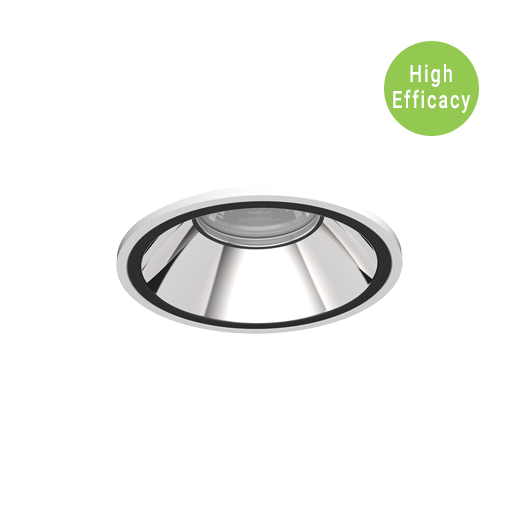

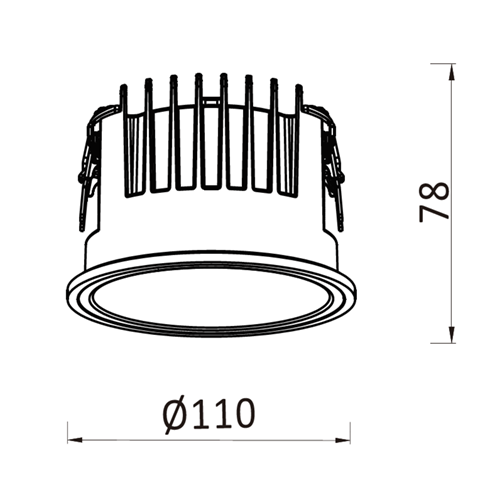

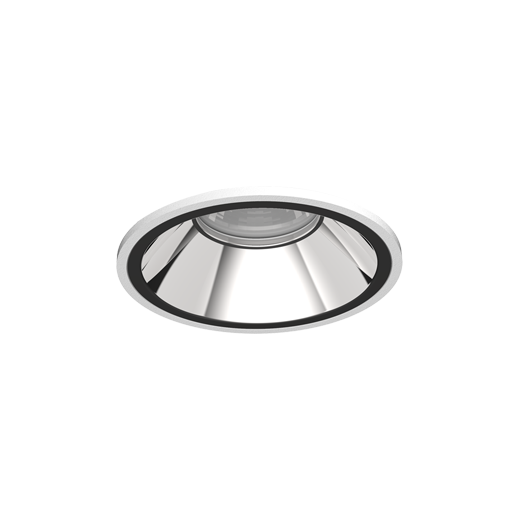

DR-A288
- Source Power:
- 12W / 17W / 25W
- System Power:
- 14W / 19W / 27W
- Source Lumens:
- Up to 3107Lm
- Delivered Lumens:
- Up to 2114Lm
- Beam Angle:
- 20°/33°/64° 24°/35°/64° 24°/35°/62°
- Efficacy:
- Up to 86Lm/W
- Cut out:
- Ø100mm
HEMER DOWNLIGHT
The Hemer is a modern and compact downlight ideal for commercial applications. Offering flexibility through its range of sizes and power wattages, the Hemer series is a great choice to ensure your lighting layout will look its best. Available reflector colours are white, black, silver, golden and specular chrome.
Energy efficiency is a key component of our product focus and the Hemer downlight series will ensure significant energy savings over traditional solutions.
The Hemer is also available with a cyanosis COI option ideal for healthcare and medical facilities.
The Hemer is a modern and compact downlight ideal for commercial applications. Offering flexibility through its range of sizes and power wattages, the Hemer series is a great choice to ensure your lighting layout will look its best. Available reflector colours are white, black, silver, golden and specular chrome.
Energy efficiency is a key component of our product focus and the Hemer downlight series will ensure significant energy savings over traditional solutions.
The Hemer is also available with a cyanosis COI option ideal for healthcare and medical facilities.
Models
DR-A288 HE
- System Power:
- 9W / 14W / 23W
- Source Lumens:
- Up to 3229Lm
- Delivered Lumens:
- Up to 2124Lm
- Beam Angle:
- 23°/33°/62° 27°/36°/61° 27°/36°/61°
- Efficacy:
- Up to 103Lm/W
- Cut out:
- Ø100mm

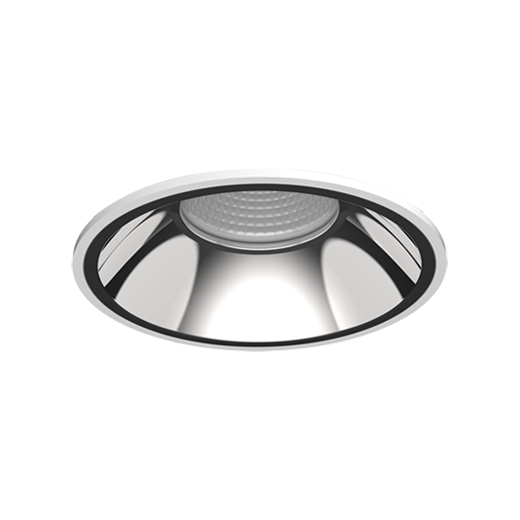

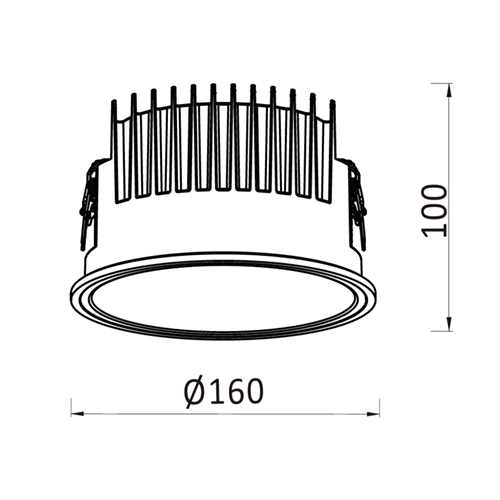

DR-A289
- Source Power:
- 17W / 25W / 32W / 36W / 43W
- System Power:
- 19W / 27W / 35W / 39W / 49W
- Source Lumens:
- Up to 5103Lm
- Delivered Lumens:
- Up to 4429Lm
- Beam Angle:
- 19°/22°/41°/57° 19°/22°/41°/57° 19°/22°/41°/57° 20°/23°/43°/56° 18°/21°/44°/59°
- Efficacy:
- Up to 109Lm/W
- Cut out:
- Ø150mm

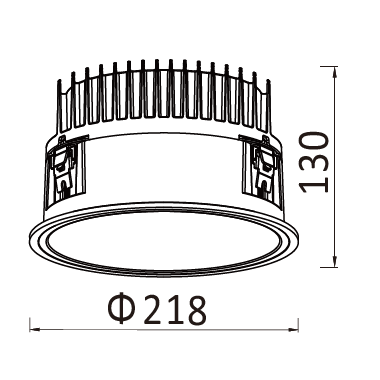

DR-A290
- Source Power:
- 17W / 25W / 32W / 36W / 43W / 50W
- System Power:
- 19W / 27W / 35W / 39W / 49W / 57W
- Source Lumens:
- Up to 5566Lm
- Delivered Lumens:
- Up to 4862Lm
- Beam Angle:
- 14°/21°/41°/57° 14°/21°/41°/57° 15°/21°/41°/57° 14°/22°/41°/57° 14°/22°/41°/58° 14°/22°/41°/58°
- Efficacy:
- Up to 108Lm/W
- Cut out:
- Ø200mm
DR-A289 HE
- System Power:
- 14W / 17W / 26W / 35W / 39W
- Source Lumens:
- Up to 5241Lm
- Delivered Lumens:
- Up to 4379Lm
- Beam Angle:
- 17°/20°/42°/58° 17°/20°/42°/58° 18°/22°/43°/58° 18°/21°/43°/58° 19°/22°/45°/61°
- Efficacy:
- Up to 126Lm/W
- Cut out:
- Ø150mm
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP54
CRI
>90
Lifetime
L80 (12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
L90 (12K) > 41,000 hrs (for HE)
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
Accessories

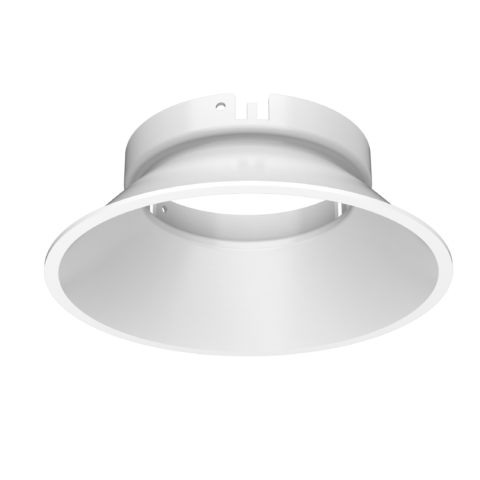

Hemer White Reflector

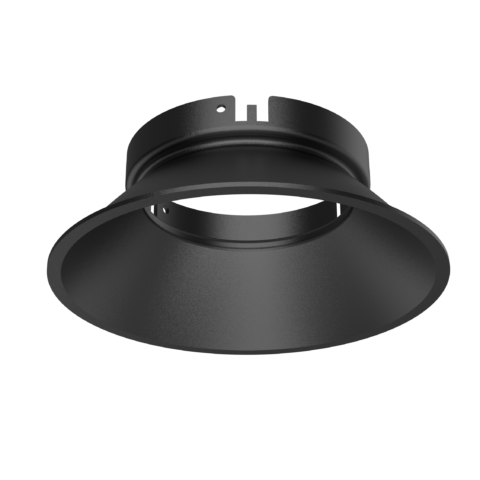

Hemer Black Reflector

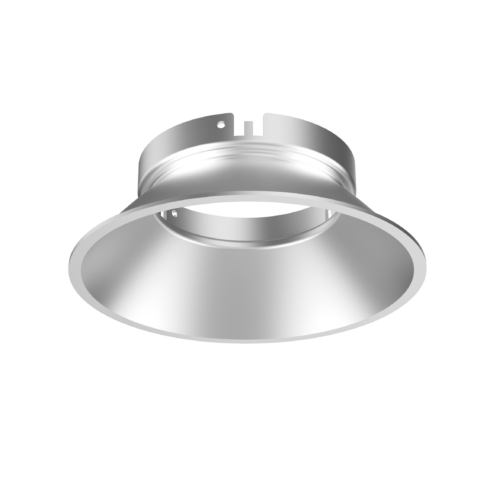

Hemer Silver Reflector

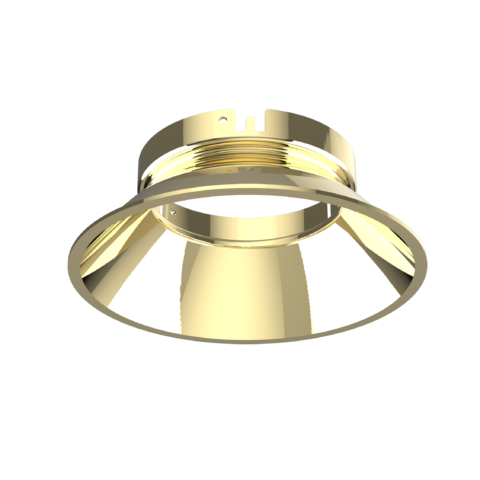

Hemer Golden Reflector

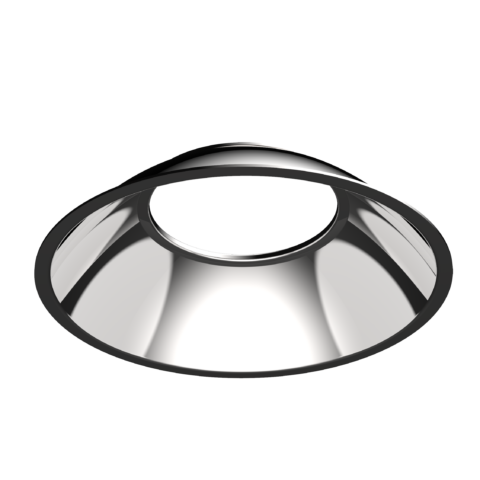

Hemer Specular Mirror Reflector
