Description

GRACE DOWNLIGHT

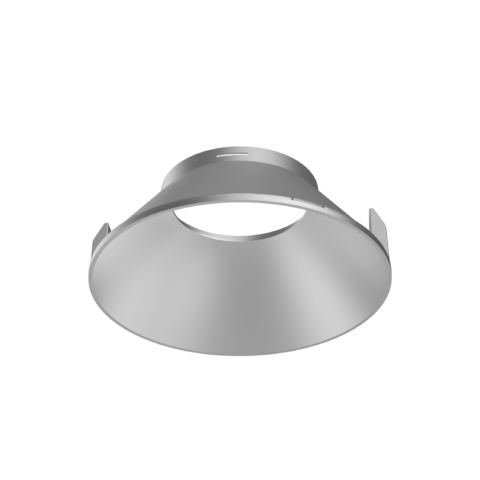

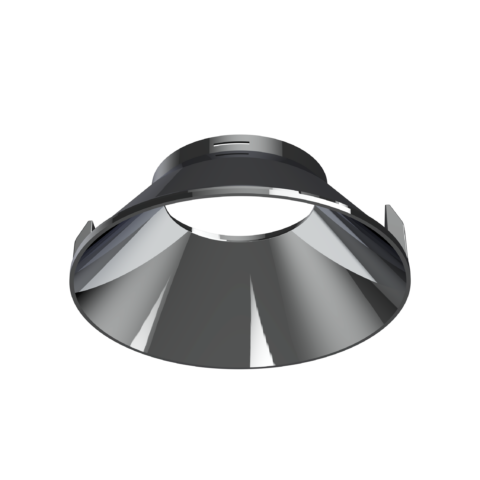

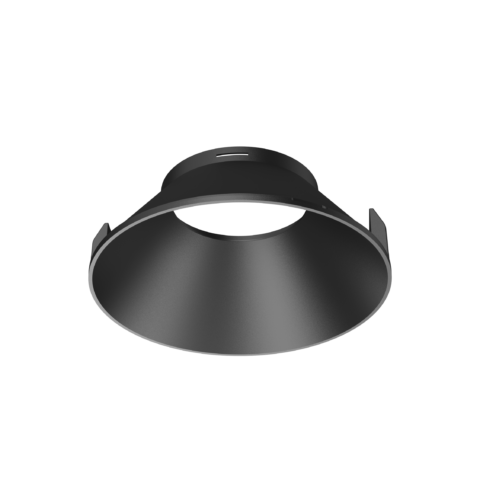

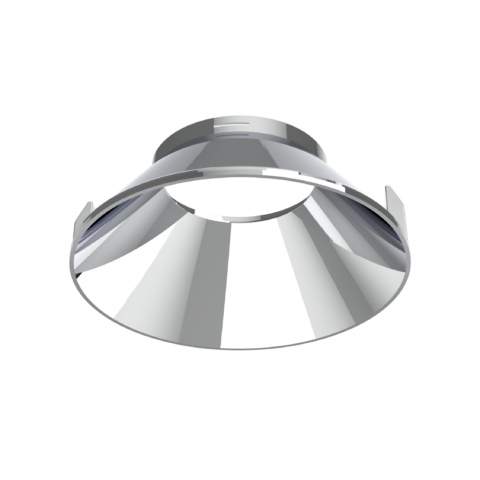

Grace adopts an innovative all-in-one design integrating the heatsink and outer trim. It effectively expands the heat dissipation area and improves the lifetime of the light fixtures. Equipped with lenses as optical accessories and offering a variety of front reflector colours, the Grace series effectively minimises glare. Available in fixed, adjustable and surface-mounted versions to suit your specific needs.

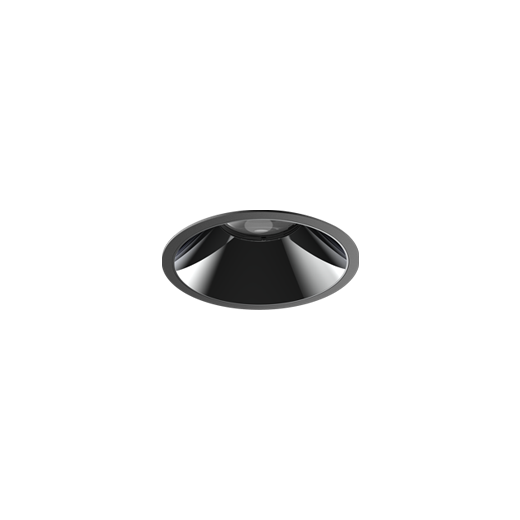

DR-A381

Source Power: 7W / 8W
System Power: 12W / 14W
Source Lumens: Up to 1586Lm
Delivered Lumens: Up to 1370Lm
Beam Angle:  19°/23°/28°/49°
26°/32°/41°/48°
Efficacy:  Up to 98Lm/W
Cut Out:  Ø75
Download:  Datasheet
IES Files

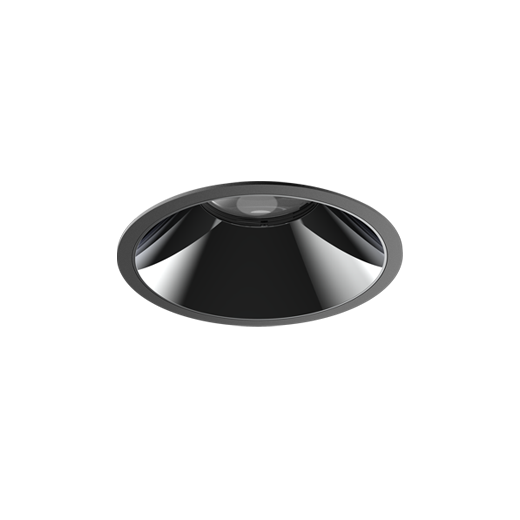

DR-A382

Source Power: 7W / 12W / 17W
System Power: 8W / 14W / 19W
Source Lumens: Up to 2120Lm
Delivered Lumens: Up to 1980Lm
Beam Angle:  16°/18°/32°/57°
21°/23°/34°/56°
21°/23°/35°/56°
Efficacy:  Up to 106Lm/W
Cut Out:  Ø100
Download:  Datasheet
IES Files

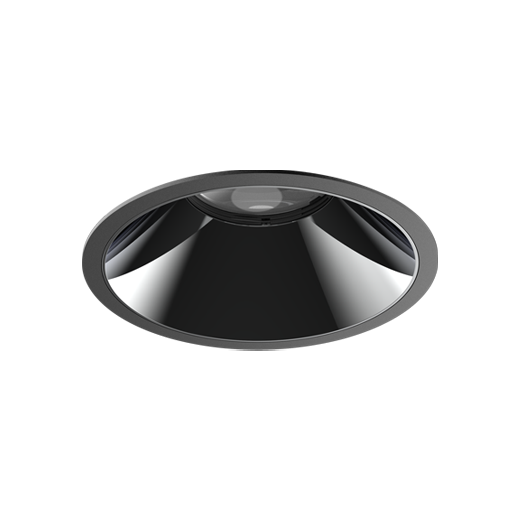

DR-A383

Source Power: 12W / 17W / 25W
System Power: 14W / 19W / 27W
Source Lumens: Up to 3107Lm
Delivered Lumens: Up to 2747Lm
Beam Angle:  16°/26°/37°/54°
22°/29°/42°/54°
22°/29°/42°/55°
Efficacy:  Up to 107Lm/W
Cut Out:  Ø125
Download:  Datasheet
IES Files

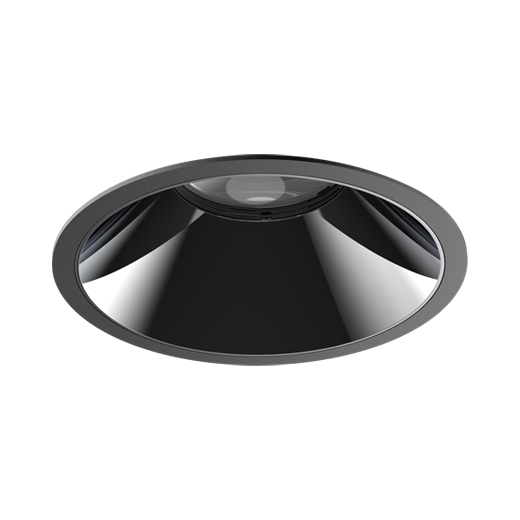

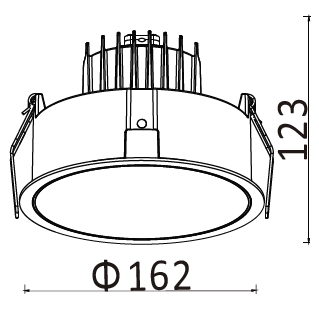

DR-A384

Source Power: 17W / 25W / 32W / 36W
System Power: 19W / 27W / 35W / 39W
Source Lumens: Up to 4454Lm
Delivered Lumens: Up to 4282Lm
Beam Angle:  16°/22°/35°/46°
16°/22°/35°/46°
16°/22°/34°/48°
18°/24°/37°/50°
Efficacy:  Up to 114Lm/W
Cut Out:  Ø150
Download:  Datasheet
IES Files

DR-A382 (High Efficacy)

System Power: 6W / 9W / 14W
Source Lumens: Up to 2016Lm
Delivered Lumens: Up to 1642Lm
Beam Angle:  16°/19°/33°/57°
21°/23°/35°/56°
26°/29°/41°/56°
Efficacy:  Up to 117Lm/W
Cut Out:  Ø100
Download:  Datasheet
IES Files

Finish Black/White Material Aluminium
IP Rating IP20 CCT  3000K/4000K
CRI >90 Voltage 220-240V
Lifetime L80 (12K) > 66,000 hrs
L90 (12K) > 41,500 hrs		 Dimming Available on request
