HB-ELE2-160
- System Power:
- 160W
- Delivered Lumens:
- 82° - 24410Lm
110° - 24288Lm
- Beam Angle:
- 85°/110°
- Efficacy:
- Up to 160Lm/W

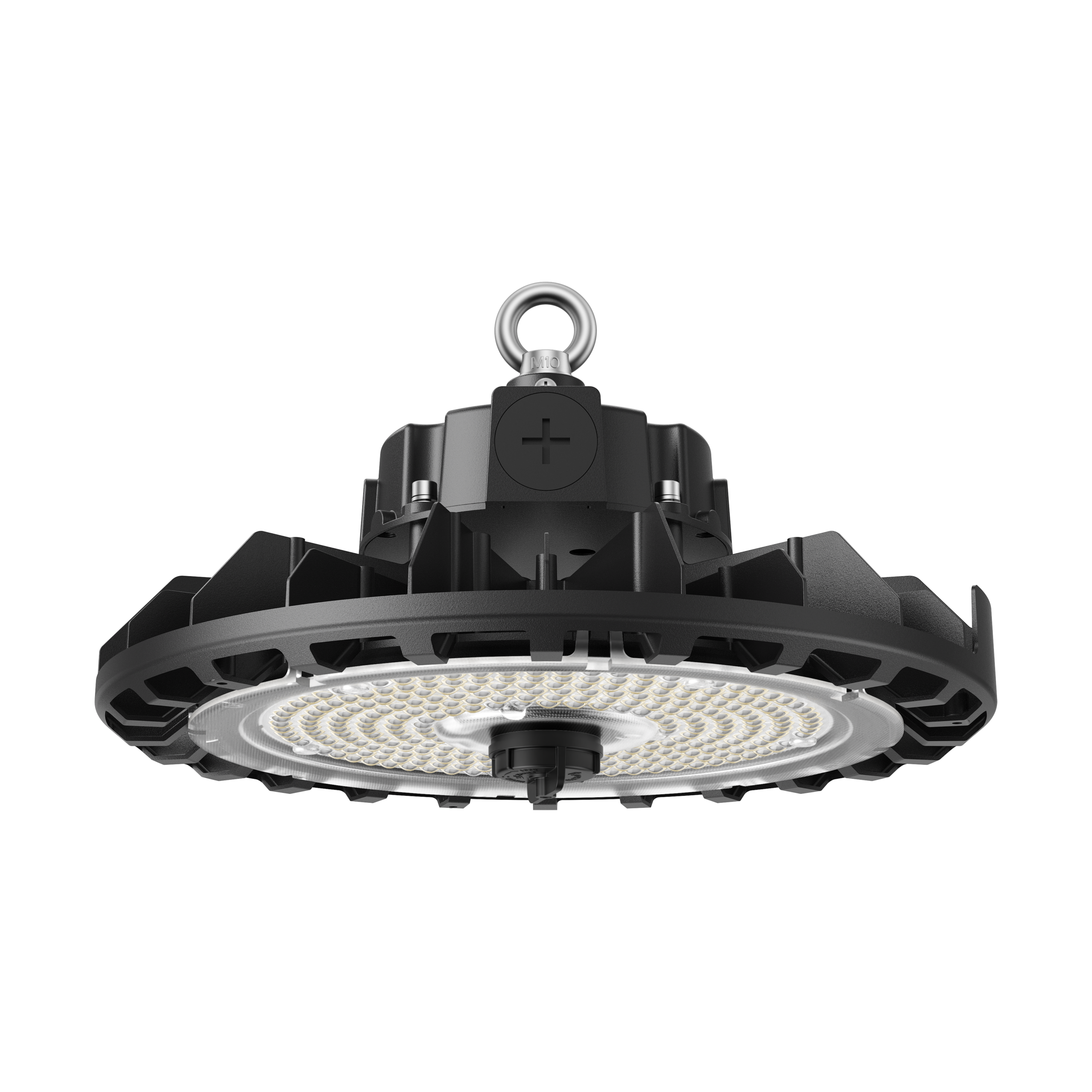

ELEVATION 2 HIGHBAY
Elevation 2 is an economical and compact highbay. It is the perfect choice for any warehouse, fitness centre or application with high ceilings. With high lumen efficiency, the Elevation 2 highbay provides a high-quality light output. A key feature is the adjustable power which can be set to 100%, 80% and 60%. Elevation 2 offers quality performance and value for money.
Elevation 2 is an economical and compact highbay. It is the perfect choice for any warehouse, fitness centre or application with high ceilings. With high lumen efficiency, the Elevation 2 highbay provides a high-quality light output. A key feature is the adjustable power which can be set to 100%, 80% and 60%. Elevation 2 offers quality performance and value for money.
Models
HB-ELE2-100
- System Power:
- 100W
- Delivered Lumens:
- 82° - 15666Lm
110° - 15642Lm
- Beam Angle:
- 85°/110°
- Efficacy:
- Up to 160Lm/W
HB-ELE2-200
- System Power:
- 200W
- Delivered Lumens:
- 82° - 31889Lm
110° - 31599Lm
- Beam Angle:
- 85°/110°
- Efficacy:
- Up to 160Lm/W
General Specifications
Finish
Black
IP Rating
IP65
CRI
>70/>80
Lifetime
>102,000 hrs (L70)
>54,000 hrs (L90)
Material
Aluminium
CCT Switchable
4000K - 5000K
Voltage
220-240V, 50/60Hz
Dimming
Non-Dim/0-10V/DALI 2
Accessories

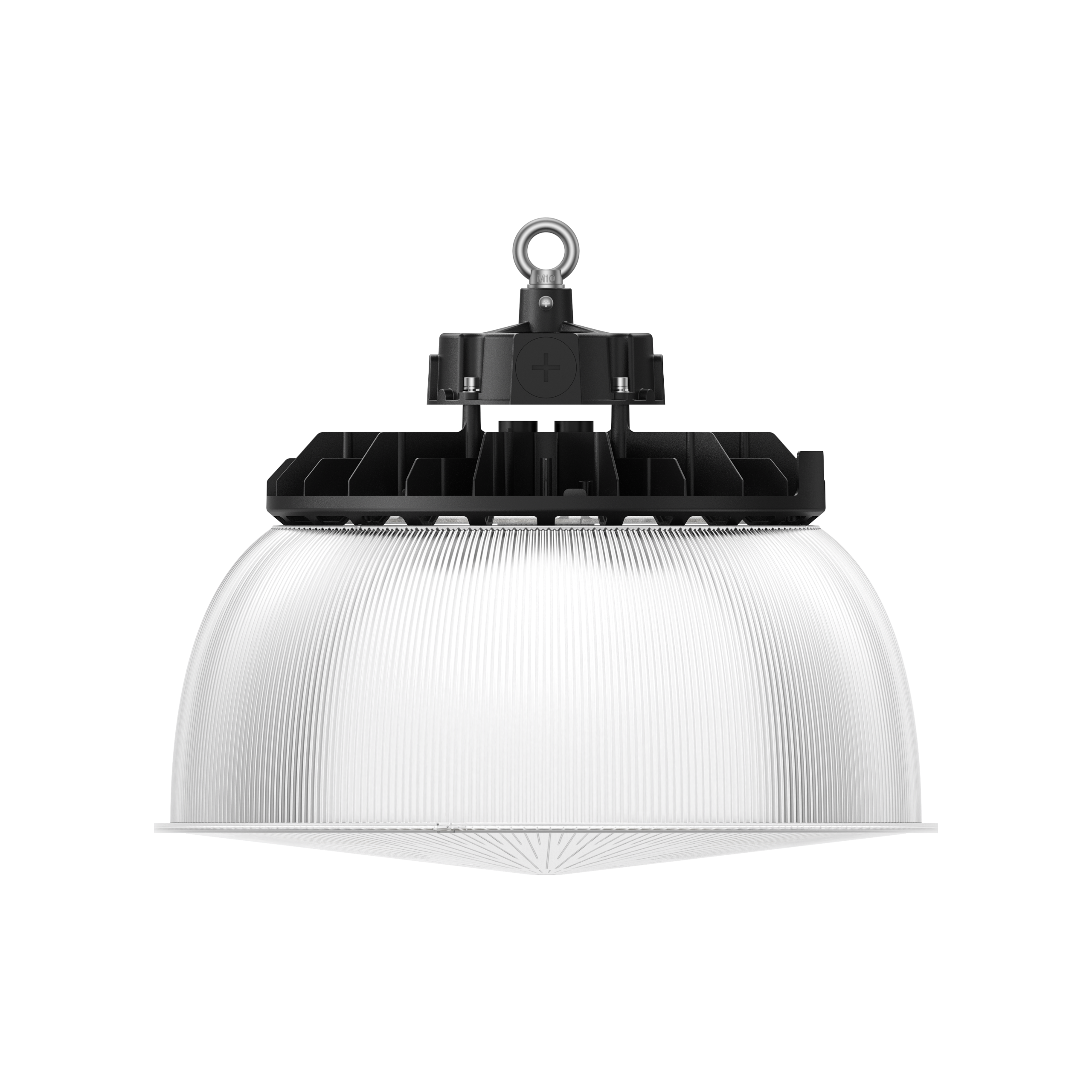

PC Reflector (90D)

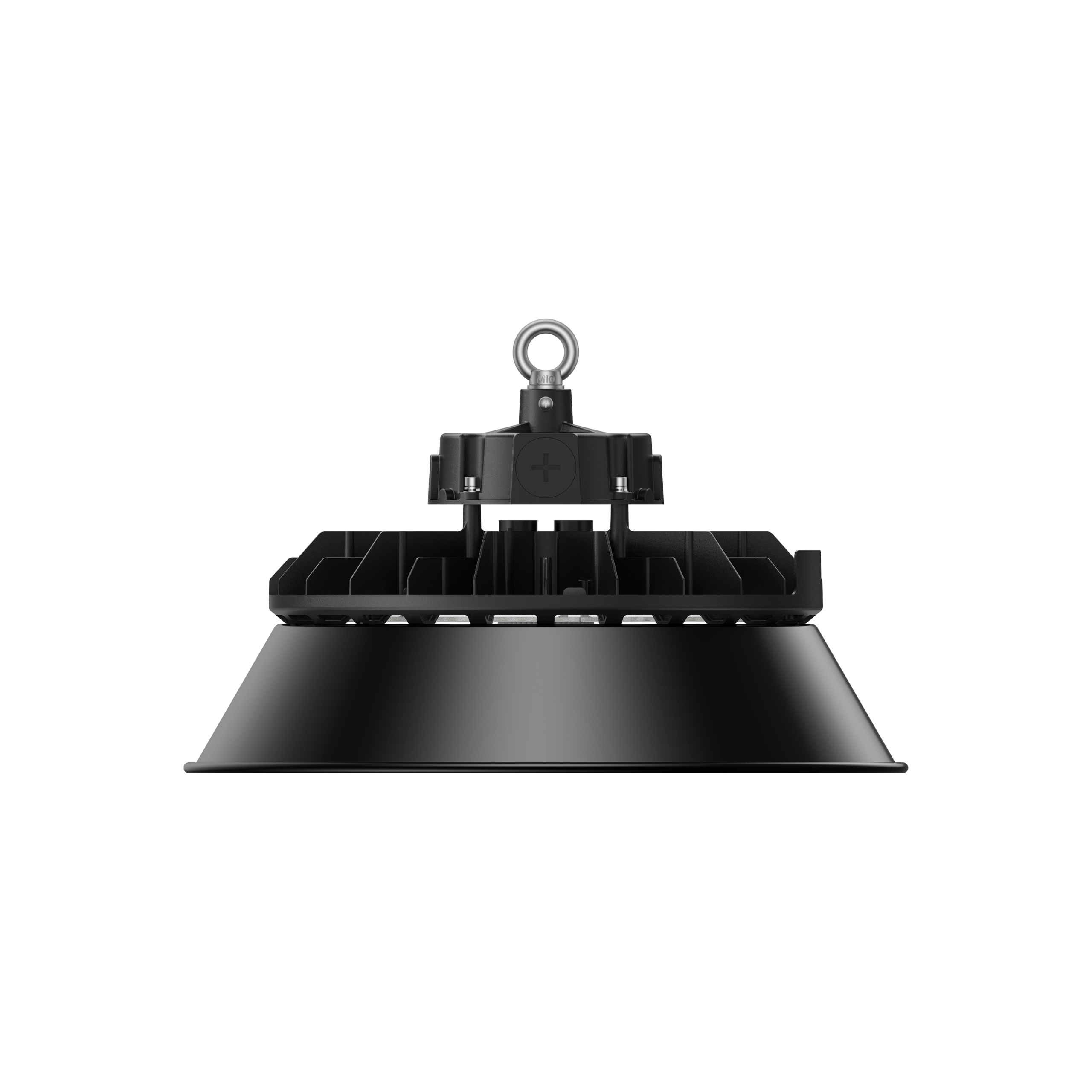

Aluminium Reflector (90D)

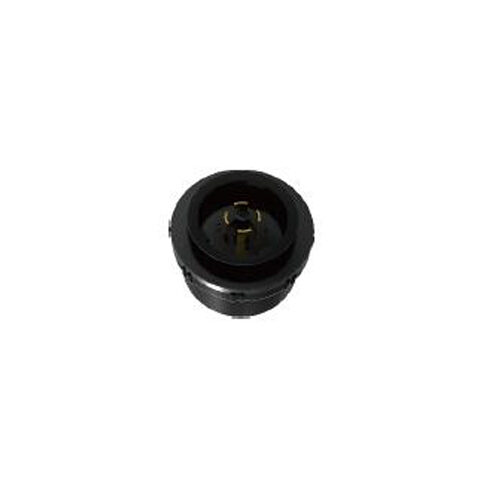

Elevation 2 Zhaga Microwave Motion Sensor

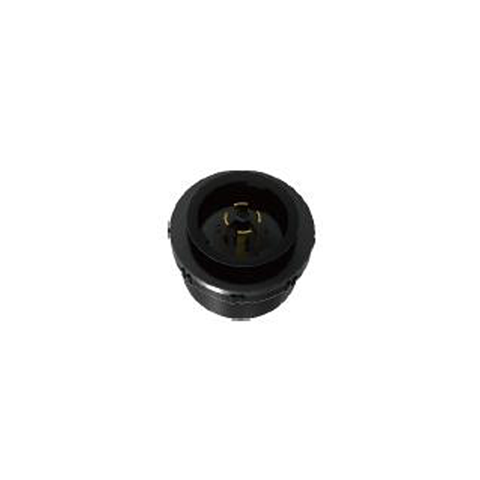

Elevation 2 Zhaga PIR Sensor

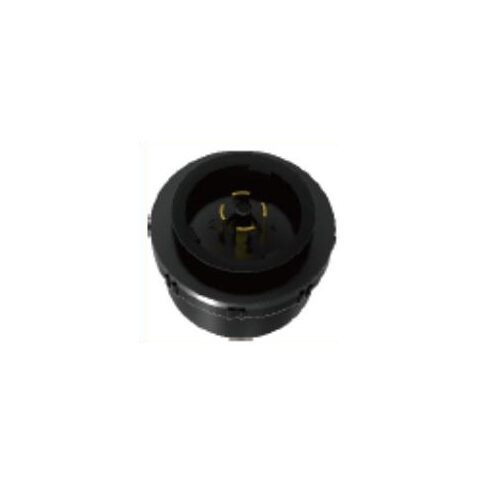

Casambi Ready Wireless Module

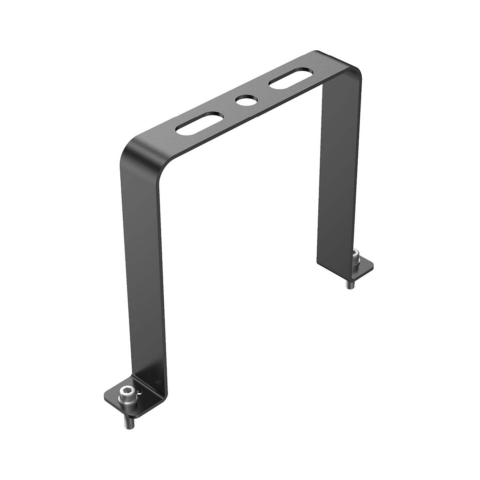

Elevation 2 Ceiling Bracket

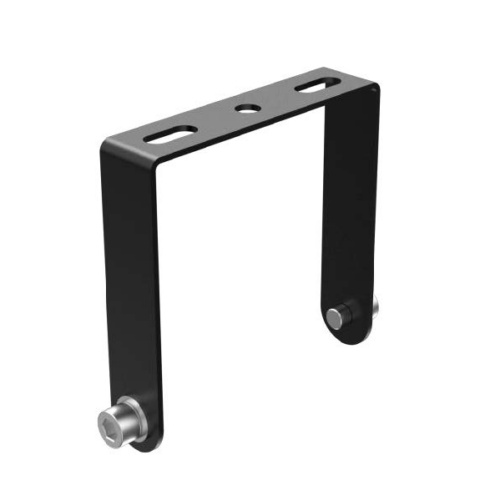

Elevation 2 Adjustable Bracket (30D)

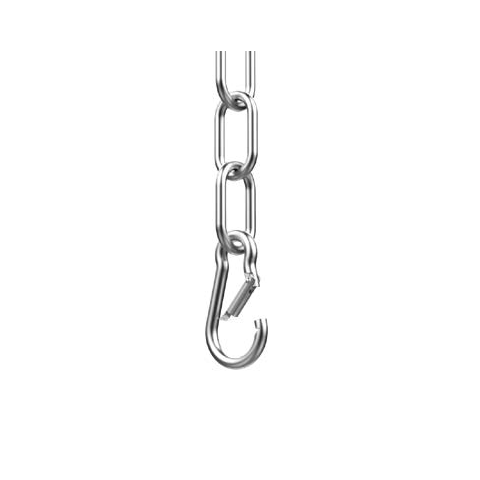

Safety Chain
