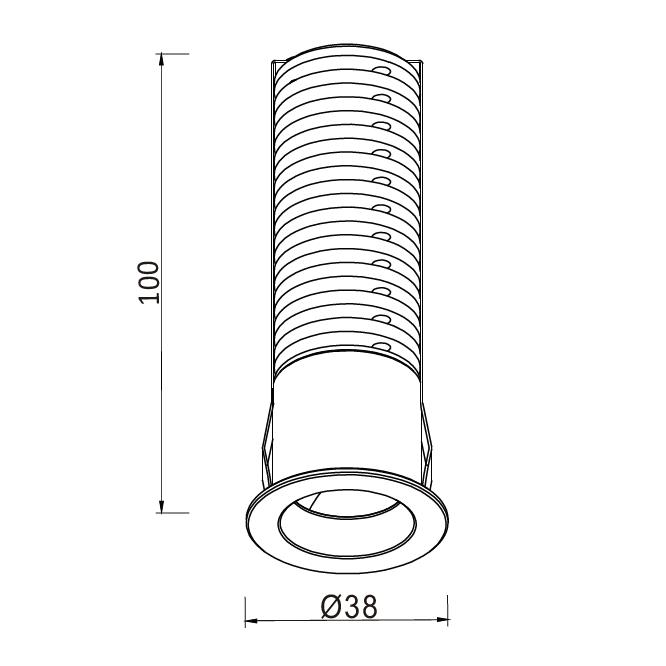

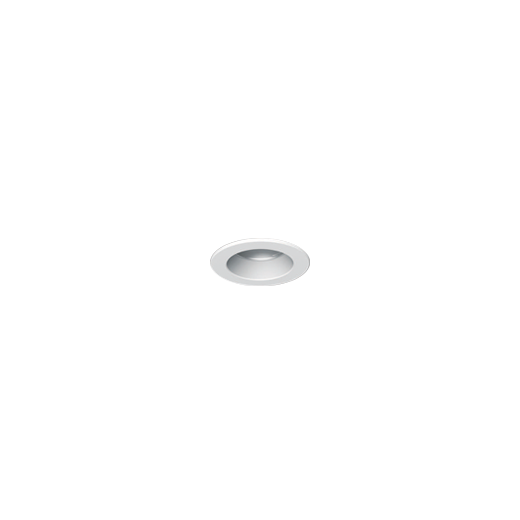

DR-A694
- Source Power:
- 9W
- System Power:
- 11W
- Source Lumens:
- 1057Lm
- Delivered Lumens:
- Up to 877Lm
- Beam Angle:
- 24°/29°/40°/53°
- Efficacy:
- 84Lm/W
- Cut out:
- Ø32mm
EDEN SMALL RECESSED DOWNLIGHT
Compact and efficient, the Eden recessed downlight is designed for smaller spaces where subtle, discreet lighting is essential. Ideal for joinery, cabinetry, architectural details, and residential settings, Eden delivers refined illumination without visual clutter. With optional CCT colour temperatures and a range of finishes, it offers both flexibility and aesthetic harmony.
Compact and efficient, the Eden recessed downlight is designed for smaller spaces where subtle, discreet lighting is essential. Ideal for joinery, cabinetry, architectural details, and residential settings, Eden delivers refined illumination without visual clutter. With optional CCT colour temperatures and a range of finishes, it offers both flexibility and aesthetic harmony.
Models

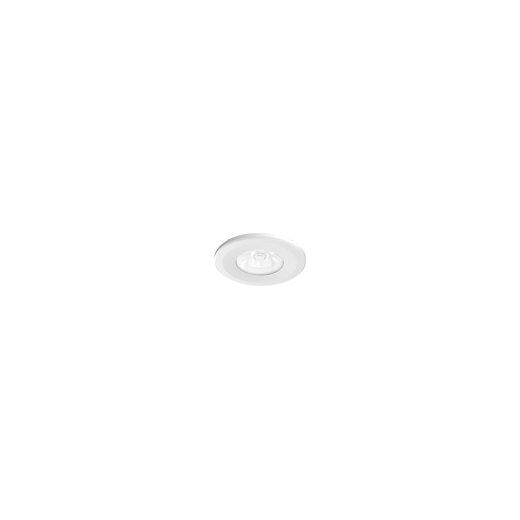

DR-A087
- Source Power:
- 2W
- System Power:
- 3W
- Source Lumens:
- Up to 189Lm
- Delivered Lumens:
- Up to 171Lm
- Beam Angle:
- 14°/19°/33°/55°
- Efficacy:
- Up to 50Lm/W
- Cut out:
- Ø30mm

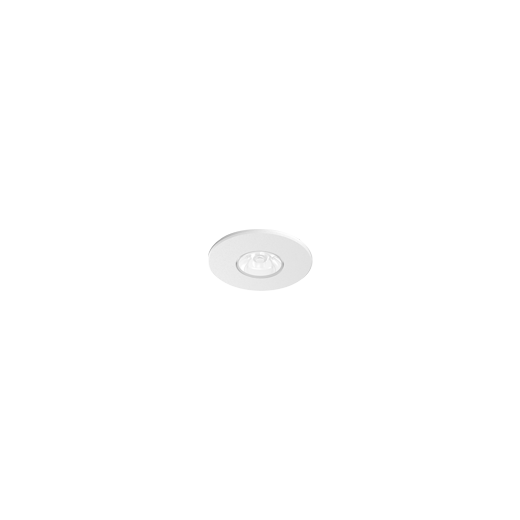

DR-A088
- Source Power:
- 2W
- System Power:
- 3W
- Source Lumens:
- Up to 189Lm
- Delivered Lumens:
- Up to 171Lm
- Beam Angle:
- 14°/19°/33°/55°
- Efficacy:
- Up to 50Lm/W
- Cut out:
- Ø35mm

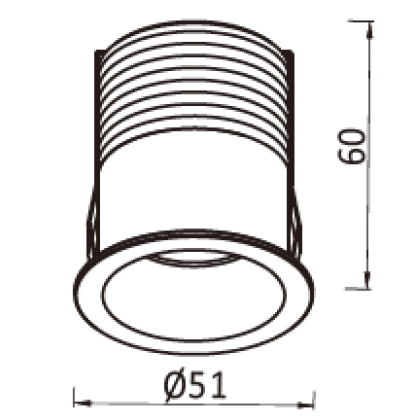

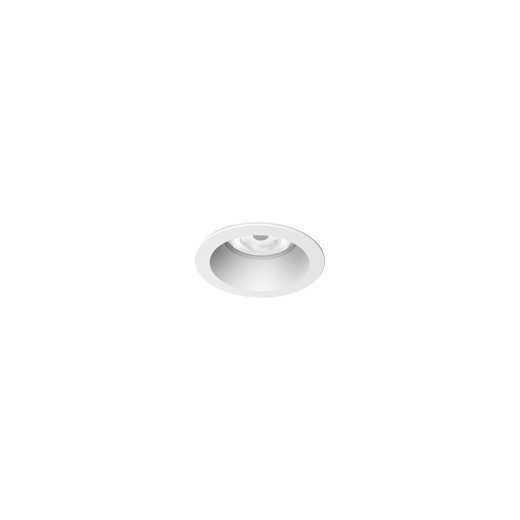

DR-A089
- Source Power:
- 7W
- System Power:
- 8W
- Source Lumens:
- Up to 872Lm
- Delivered Lumens:
- Up to 743Lm
- Beam Angle:
- 17°/33°
- Efficacy:
- Up to 93Lm/W
- Cut out:
- Ø45mm
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>80/>90
Lifetime
L80 (12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
Accessories
