Description

ZALE VANDALPROOF BATTENS

The Zale batten range has been designed for specifically vandal resistant applications where a higher level of impact protection is required. Providing high lumen output with high efficacy, the Zale provides reliability and excellent working performance. The aluminium die-cast lamp body is ideal for many indoor and outdoor surfaces and with an IK10 rating this vandal-proof batten is perfect for applications such as industrial corridors, schools, security lighting, garages, correctional facilities.

Datasheets
IES Files
Installation Manual
Models:

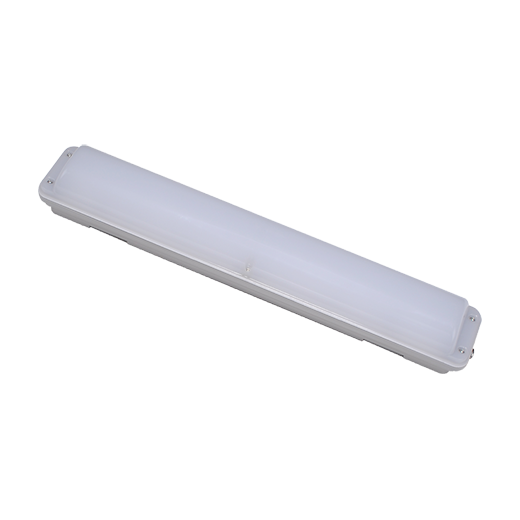

BTWP-ZAL-25
(680mm)

25W
3,250Lm @ 3000K/4000K/5000K CCT
Beam Angle: 120°

BTWP-ZAL-35
(1190mm)

35W
4,550Lm @ 3000K/4000K/5000K CCT
Beam Angle: 120°

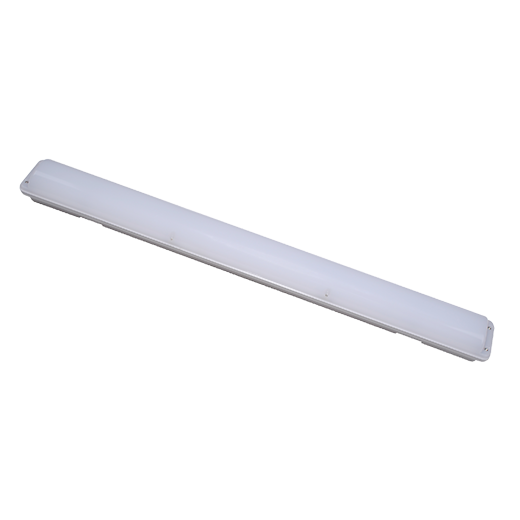

BTWP-ZAL-50
(1195mm)

50W
6,500Lm @ 3000K/4000K/5000K CCT
Beam Angle: 120°
Product Information:
Source: LG IP Rating: IP66 CCT: 3000K/4000K/5000K Driver: OSRAM
Finish: Powder Coating IK Rating: IK10 CRI: <80 Power Factor: >0.9
Colour: Grey Warranty: 5 years Efficacy: 120Lm/W
Material: Polycarbonate Lifetime: 50,000 hours
