Description

LEVI WALL WASHER DOWNLIGHT

Levi is a recessed luminaire designed for wall washing applications. Perfect for foyers, office spaces, shopping centres, art galleries and many other spaces, the Levi range offers luminaries that blend into the architecture due to their streamline and compact housing.

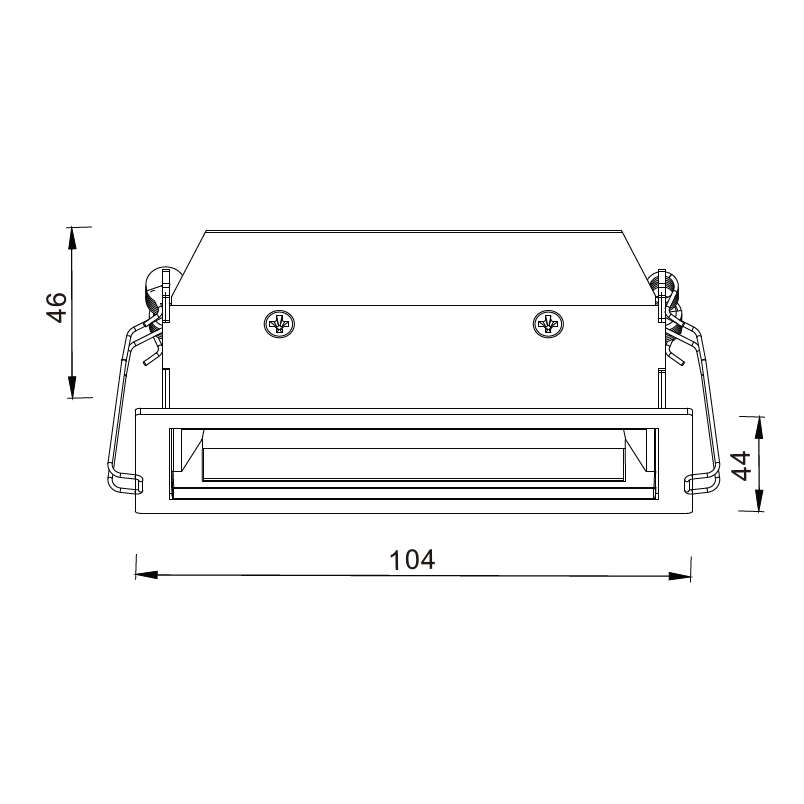

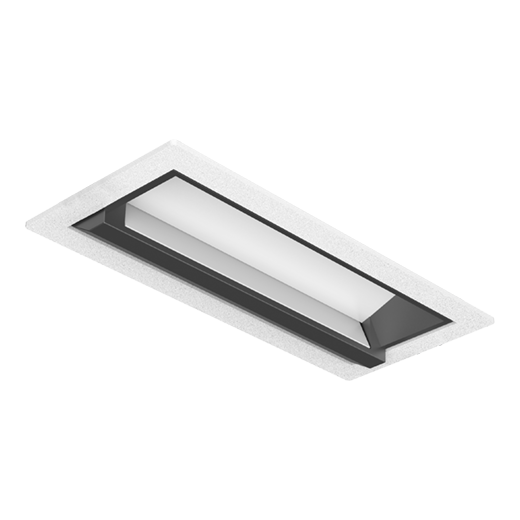

DR-A569

Source Power: 2.1x3W
System Power: 9W
Source Lumens: 641Lm
Delivered Lumens: 330Lm
Beam Angle:  82°
Efficacy:  Up to 37Lm/W
Cut out:  97x36mm
Download:  Datasheet
IES Files

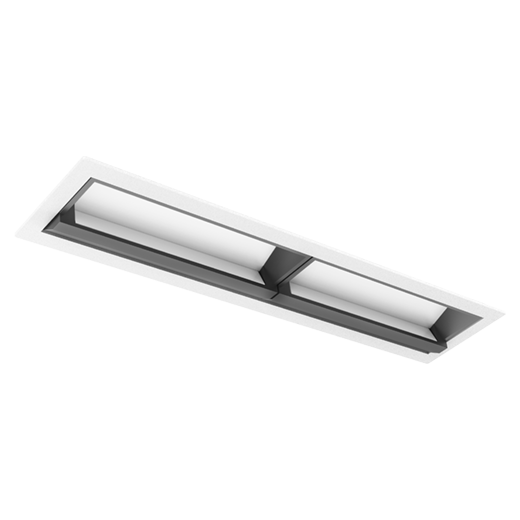

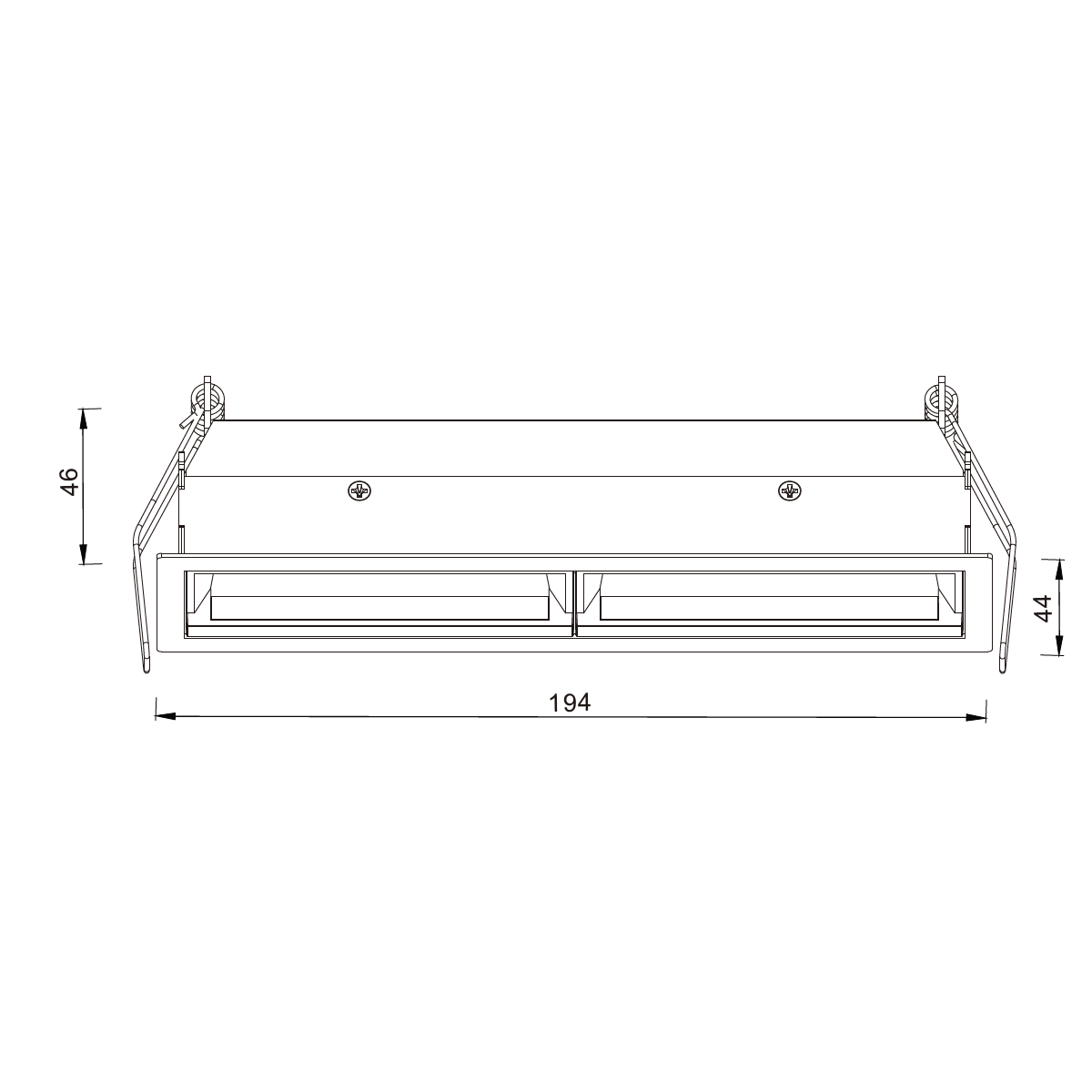

DR-A569-2

Source Power: 2.1x6W
System Power: 16W
Source Lumens: 1433Lm
Delivered Lumens: 760Lm
Beam Angle:  84°
Efficacy:  Up to 48Lm/W
Cut out:  187x36mm
Download:  Datasheet
IES Files

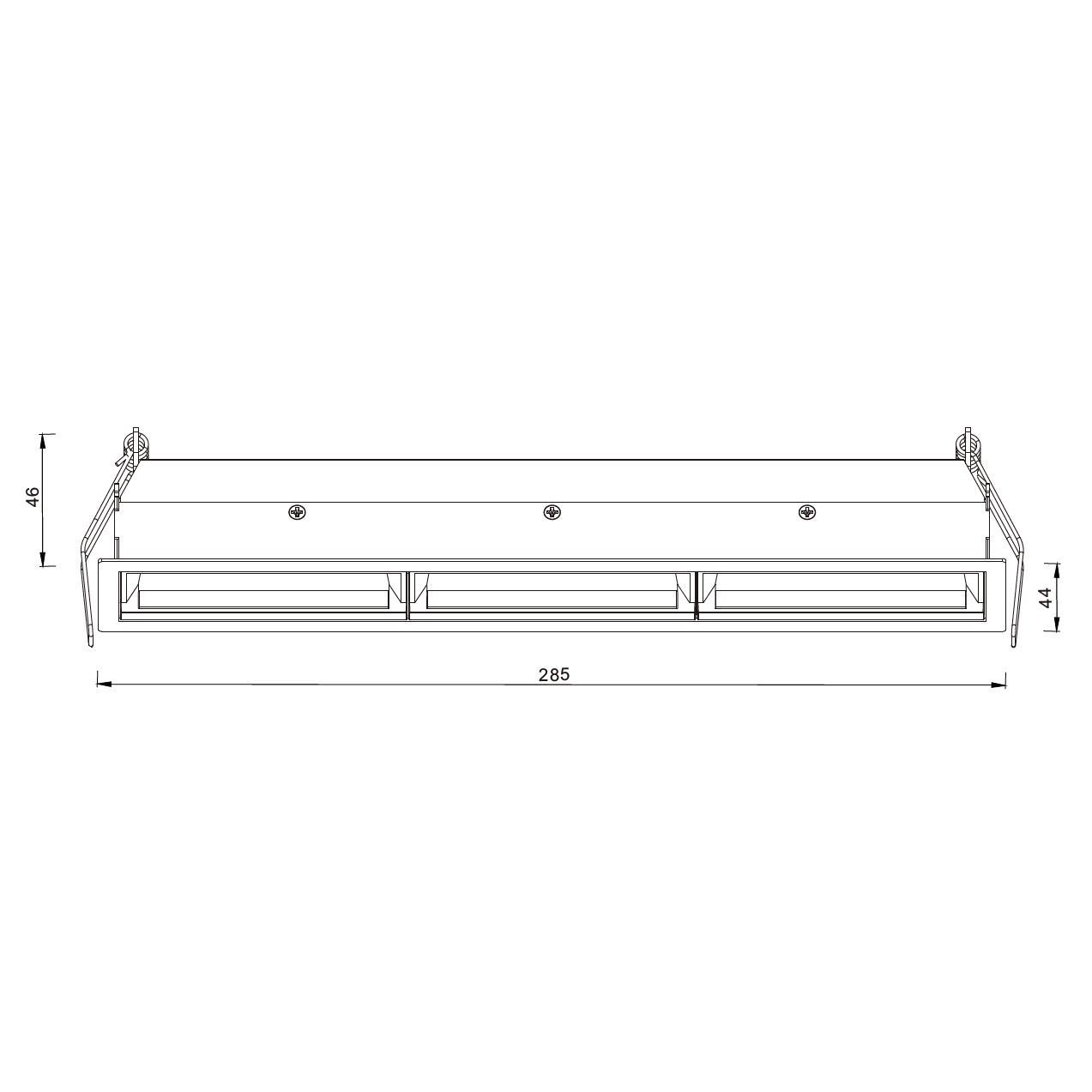

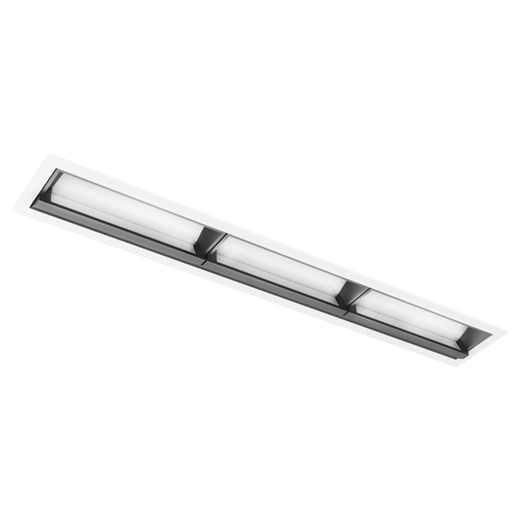

DR-A569-3

Source Power: 2.1x9W
System Power: 23W
Source Lumens: 2127Lm
Delivered Lumens: 1122Lm
Beam Angle:  85°
Efficacy:  Up to 49Lm/W
Cut out:  278x36mm
Download:  Datasheet
IES Files

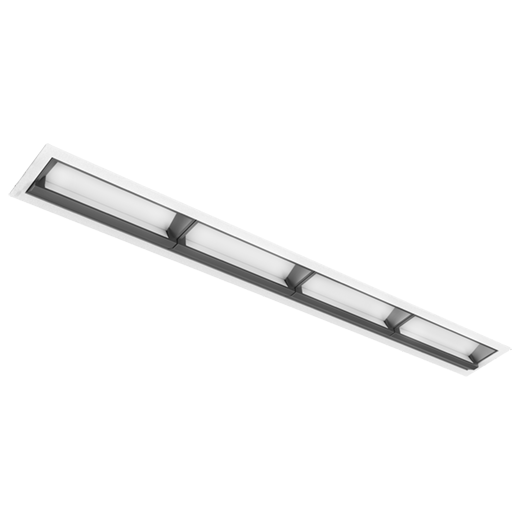

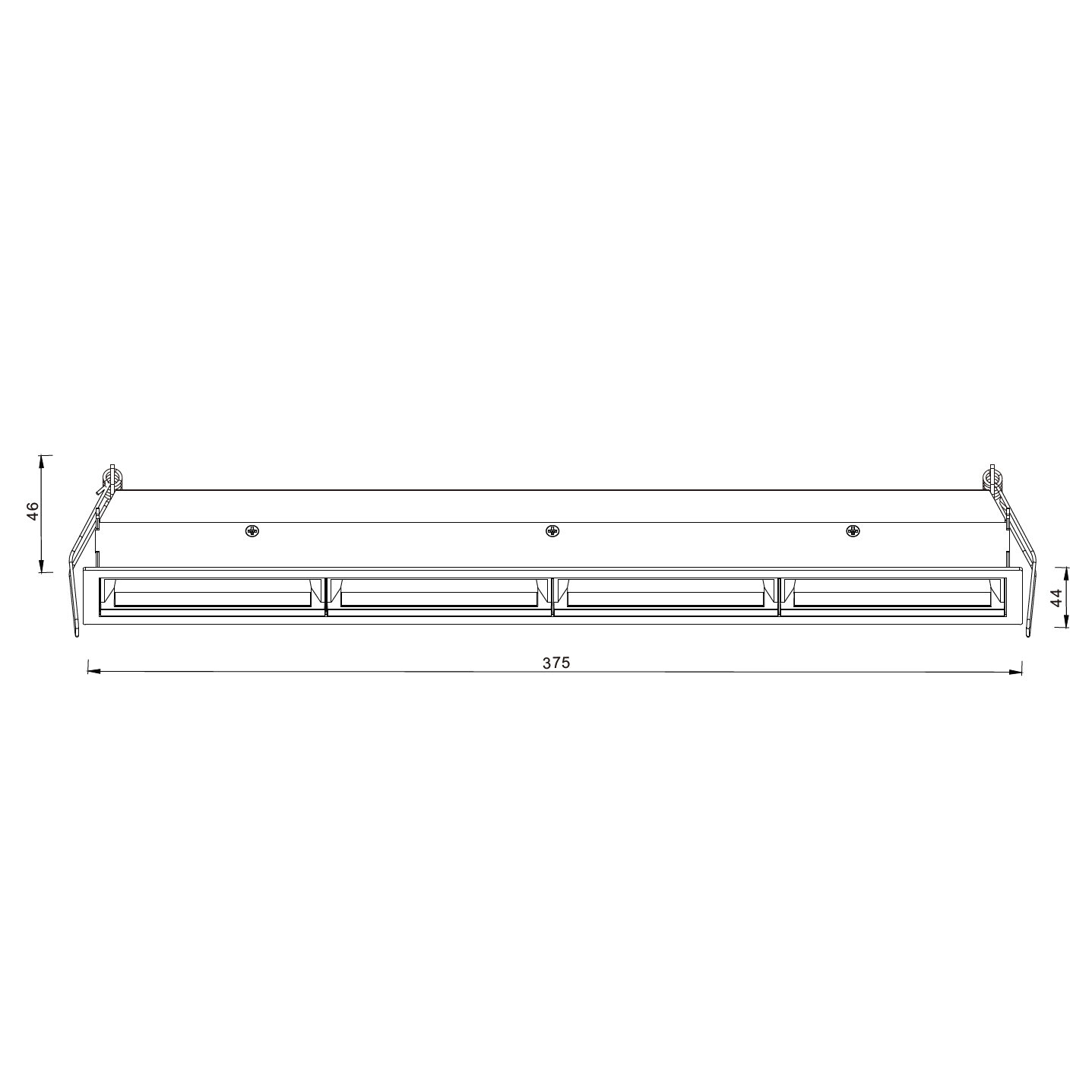

DR-A569-4

Source Power: 2.1x12W
System Power: 29W
Source Lumens: 2810Lm
Delivered Lumens: 1484Lm
Beam Angle:  84°
Efficacy:  Up to 51Lm/W
Cut out:  368x36mm
Download:  Datasheet
IES Files
Finish Black/White Material Aluminium
IP Rating IP20 CCT  3000K/4000K
CRI >80/>90 Voltage 220-240V, 50Hz
Lifetime L90 (9K) >54,400 hrs Dimming Non-Dim/DALI
