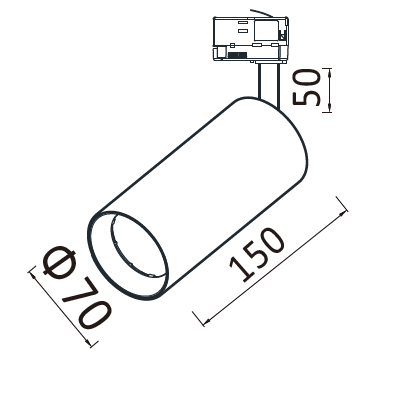

ST-A014
- Source Power:
- 7W / 12W
- System Power:
- 8W / 14W
- Source Lumens:
- Up to 1586Lm
- Delivered Lumens:
- Up to 1250Lm
- Beam Angle:
- 17°20°28°59° 19°24°32°58°
- Efficacy:
- Up to 92Lm/W
- Tilt:
- 90°

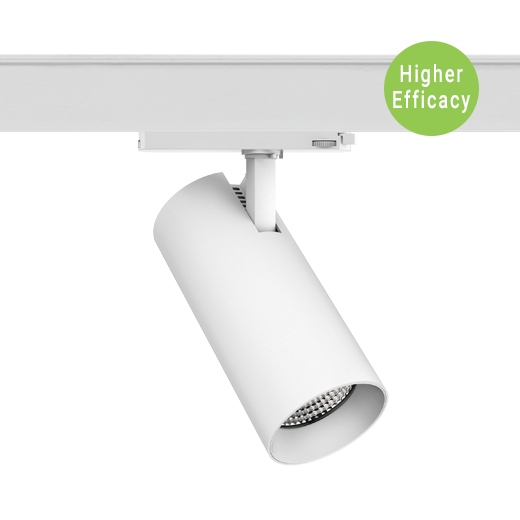

DORA TRACK LIGHT
The Dora series is a sophisticated LED track light option for accent lighting in retail, hospitality and general display applications. Our market-leading colour rendering and easy adjustability confirms Dora’s excellent suitability for these commercial applications. All fixtures fit a standard three-circuit track and adjust through 90° vertical plane and 355° horizontal plane.
The Dora series is a sophisticated LED track light option for accent lighting in retail, hospitality and general display applications. Our market-leading colour rendering and easy adjustability confirms Dora’s excellent suitability for these commercial applications. All fixtures fit a standard three-circuit track and adjust through 90° vertical plane and 355° horizontal plane.
Models

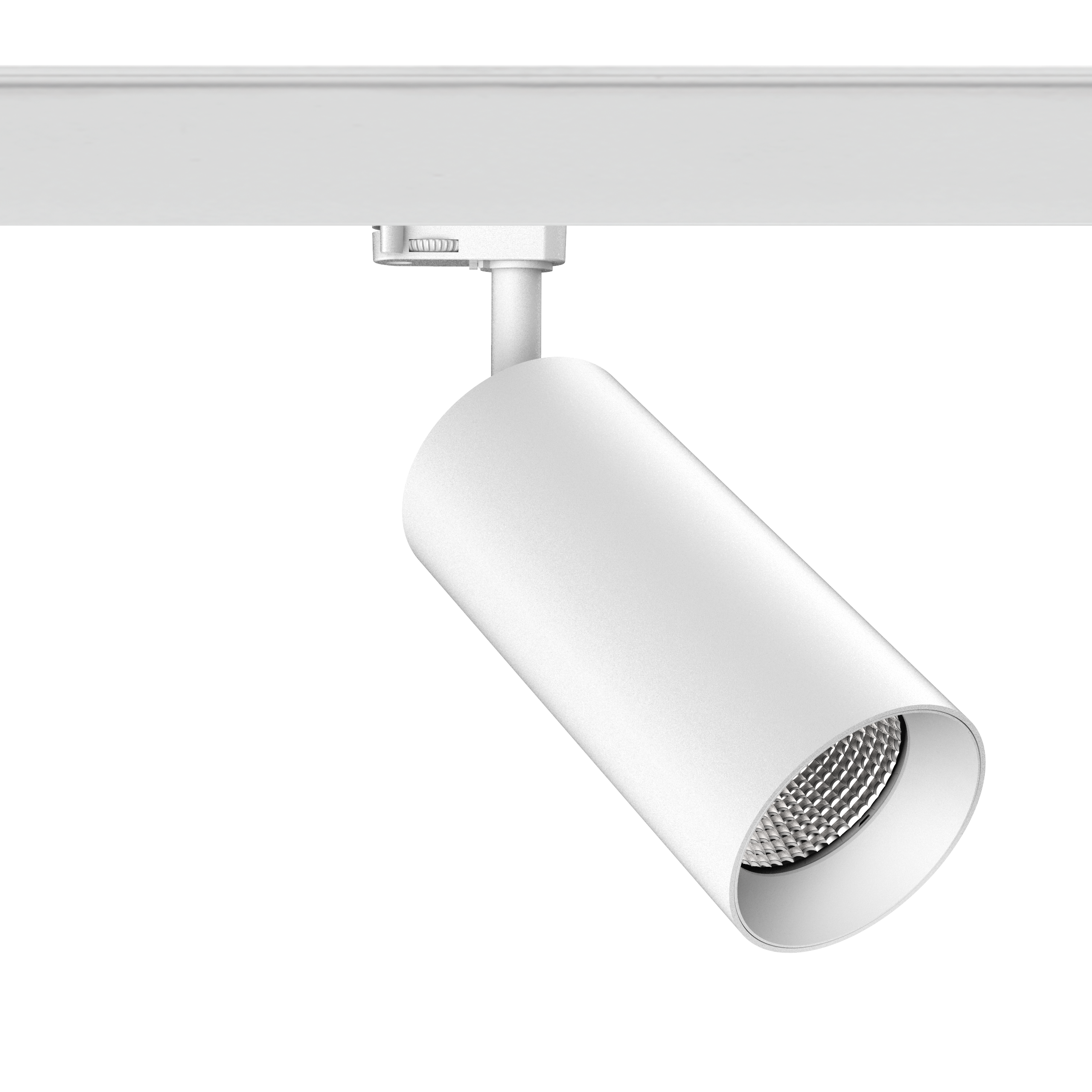

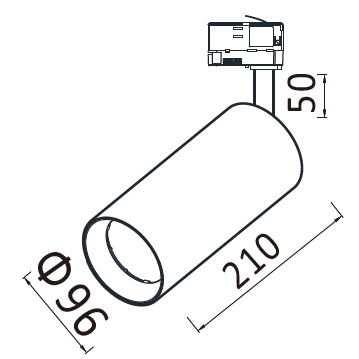

ST-C463
- Source Power:
- 17W / 25W
- System Power:
- 19W / 27W
- Source Lumens:
- Up to 3107Lm
- Delivered Lumens:
- Up to 2943Lm
- Beam Angle:
- 15°19°41°57° 14°19°41°57°
- Efficacy:
- Up to 110Lm/W
- Tilt:
- 90°

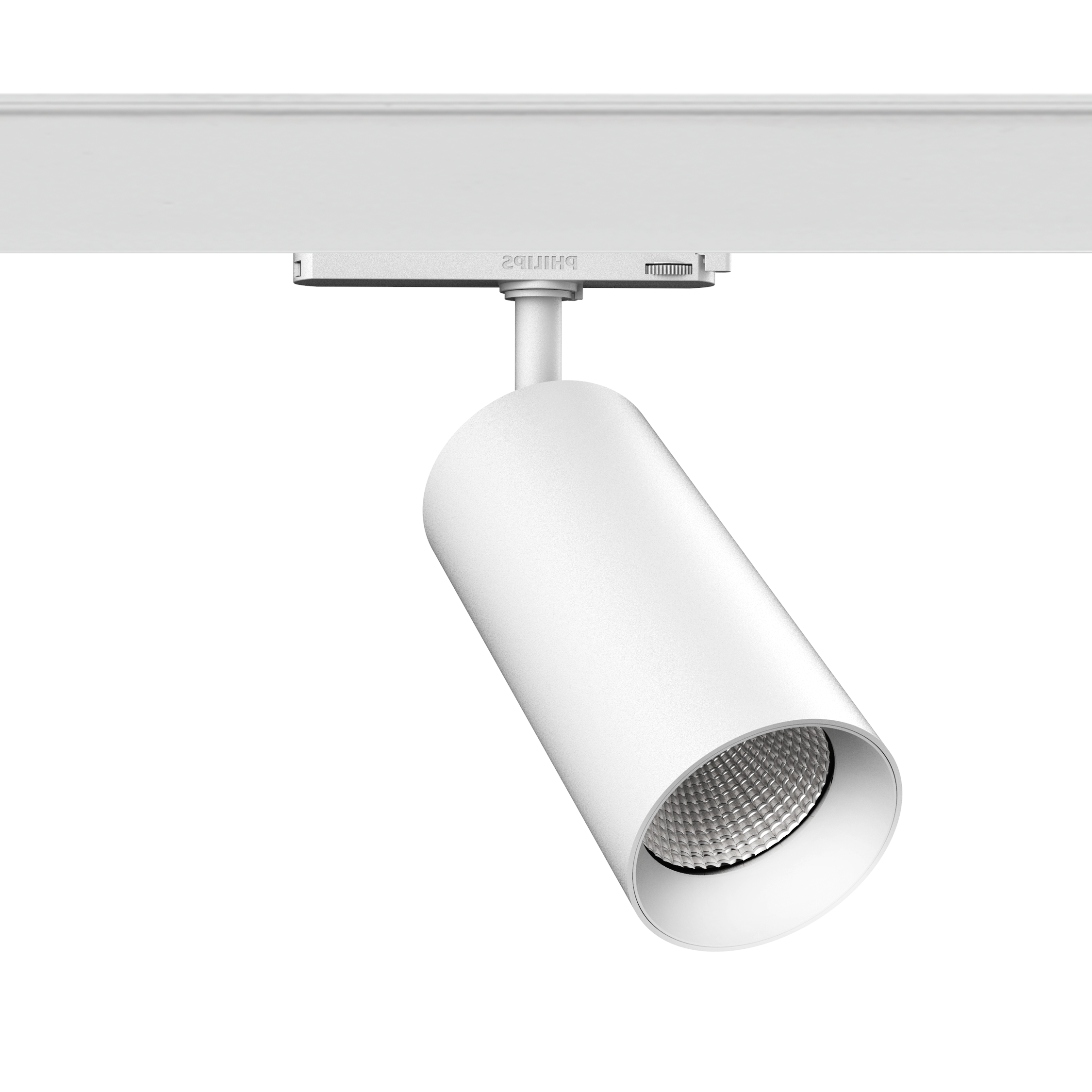

ST-C464
- Source Power:
- 17W / 25W / 32W / 36W
- System Power:
- 19W / 27W / 35W / 39W
- Source Lumens:
- Up to 4454Lm
- Delivered Lumens:
- Up to 3948Lm
- Beam Angle:
- 15°19°41°57° 14°19°41°57° 15°19°41°57° 16°21°43°57°
- Efficacy:
- Up to 110Lm/W
- Tilt:
- 90°

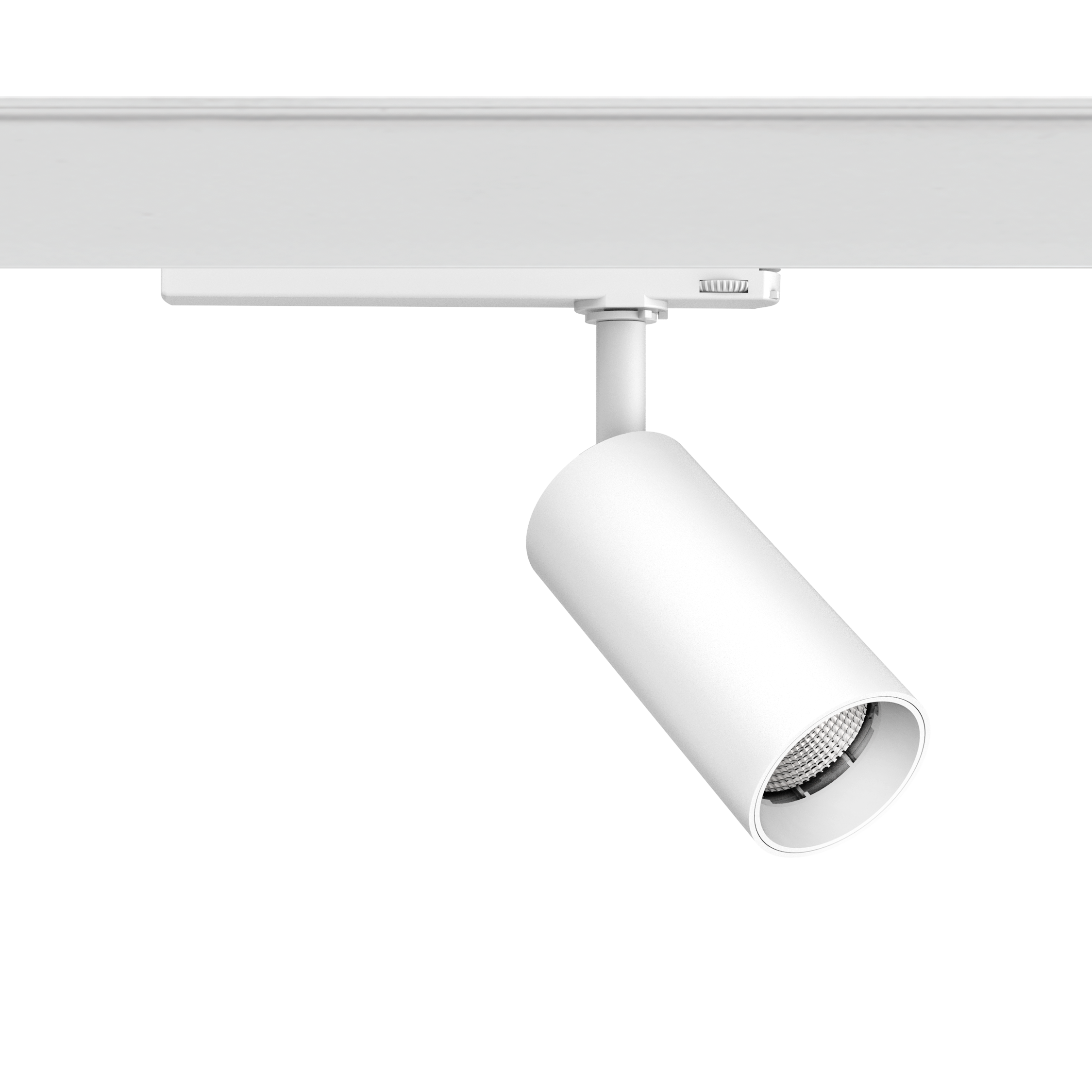

ST-A390
- Source Power:
- 12W / 17W / 25W
- System Power:
- 14W / 19W / 27W
- Source Lumens:
- Up to 3017Lm
- Delivered Lumens:
- Up to 2192Lm
- Beam Angle:
- 19°24°32°58° 23°27°35°58° 23°27°35°57°
- Efficacy:
- Up to 92Lm/W
- Tilt:
- 90°
General Specifications

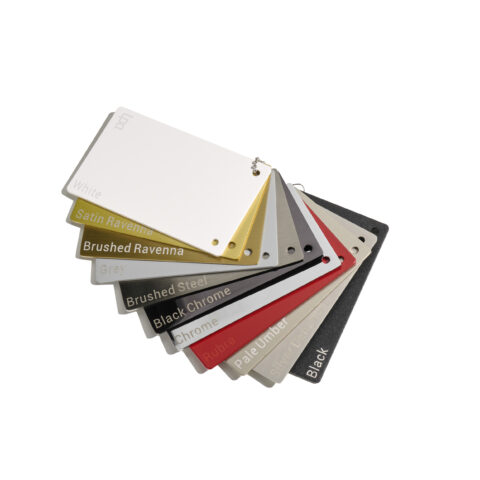

Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L80 (12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
L90 (12K) > 41,500 hrs (for HE)
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
Accessories

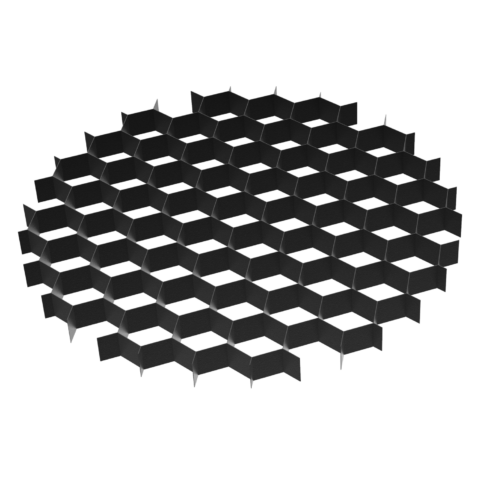

Honeycomb Louvre

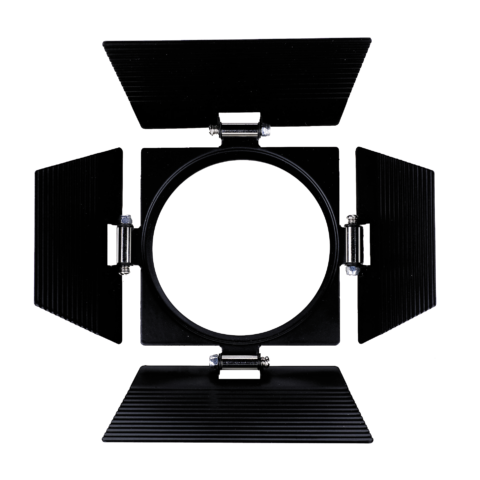

Barn Door
Elliptical Optical Lens
Glass

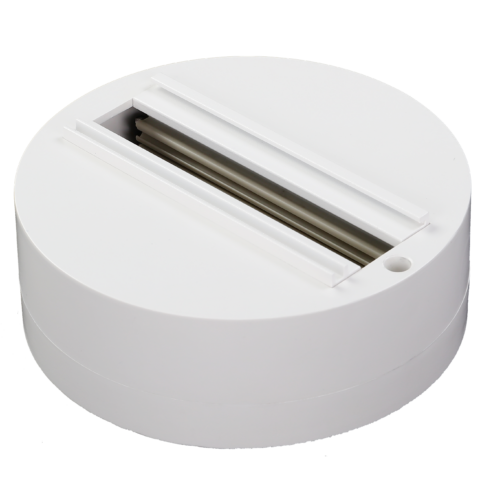

Surface Mounted Canopy
