PA-ZEN120120-60
- System Power:
- 60W
- Delivered Lumens:
- Up to 4800Lm
- Beam Angle:
- 120°
- Efficacy:
- Up to 80Lm/W

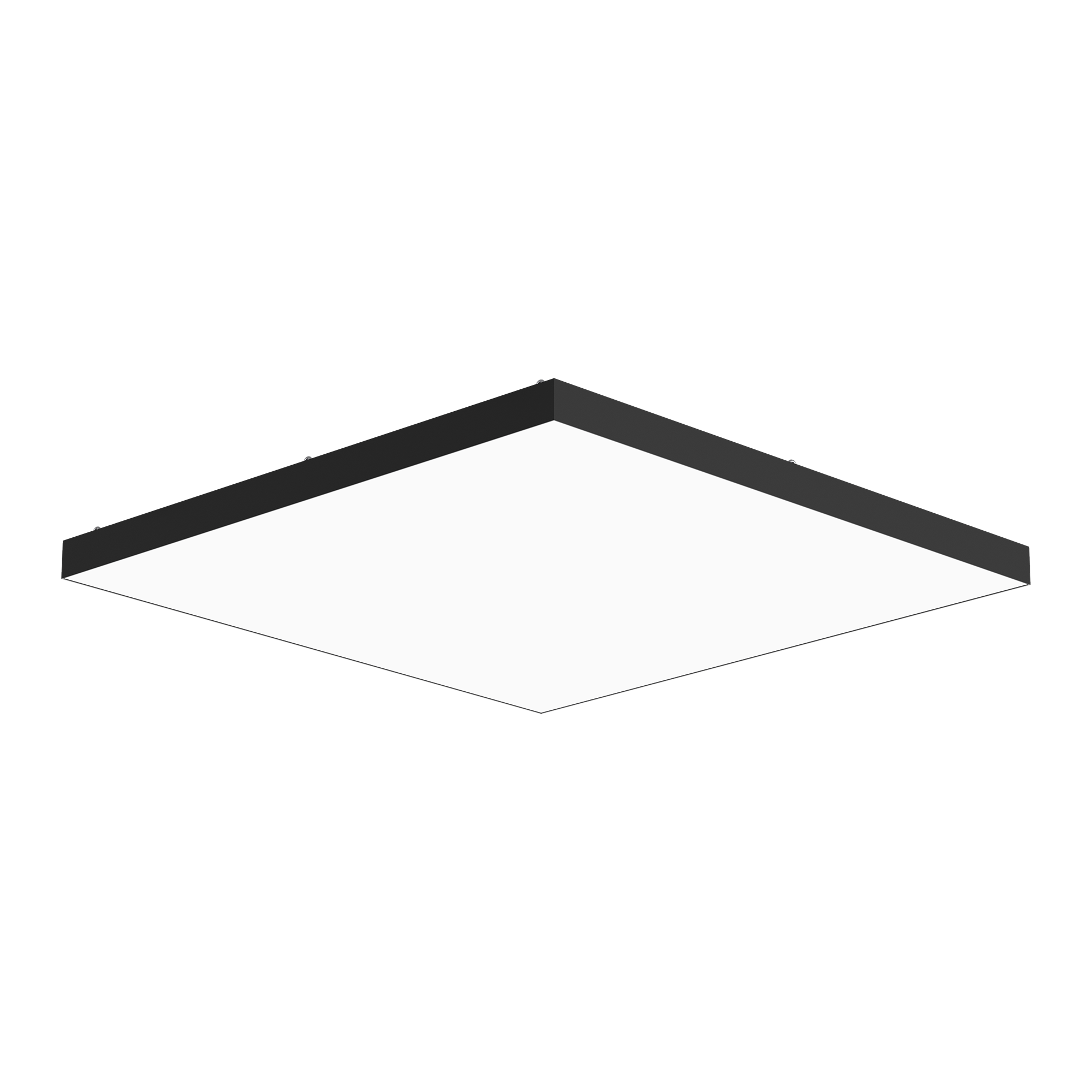

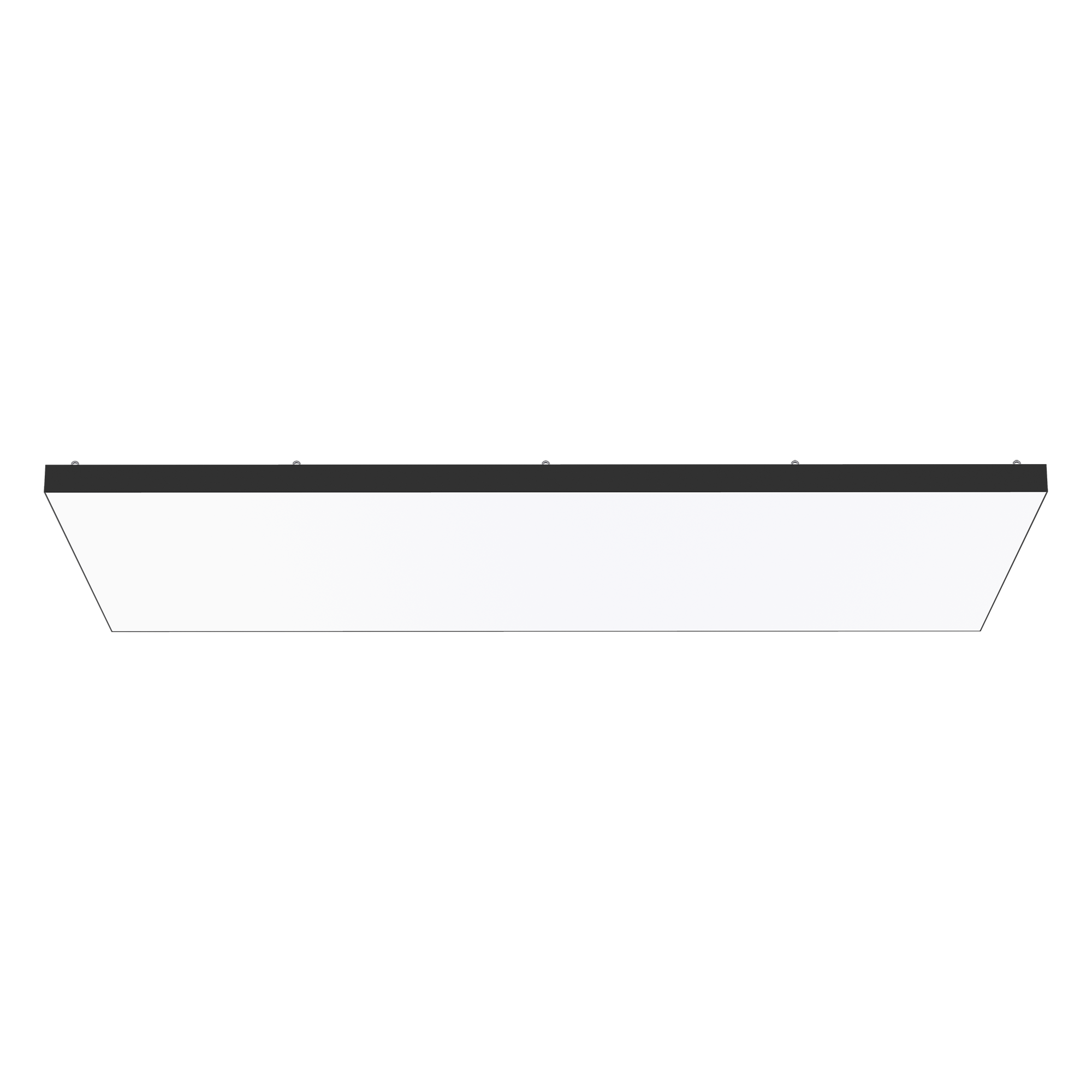

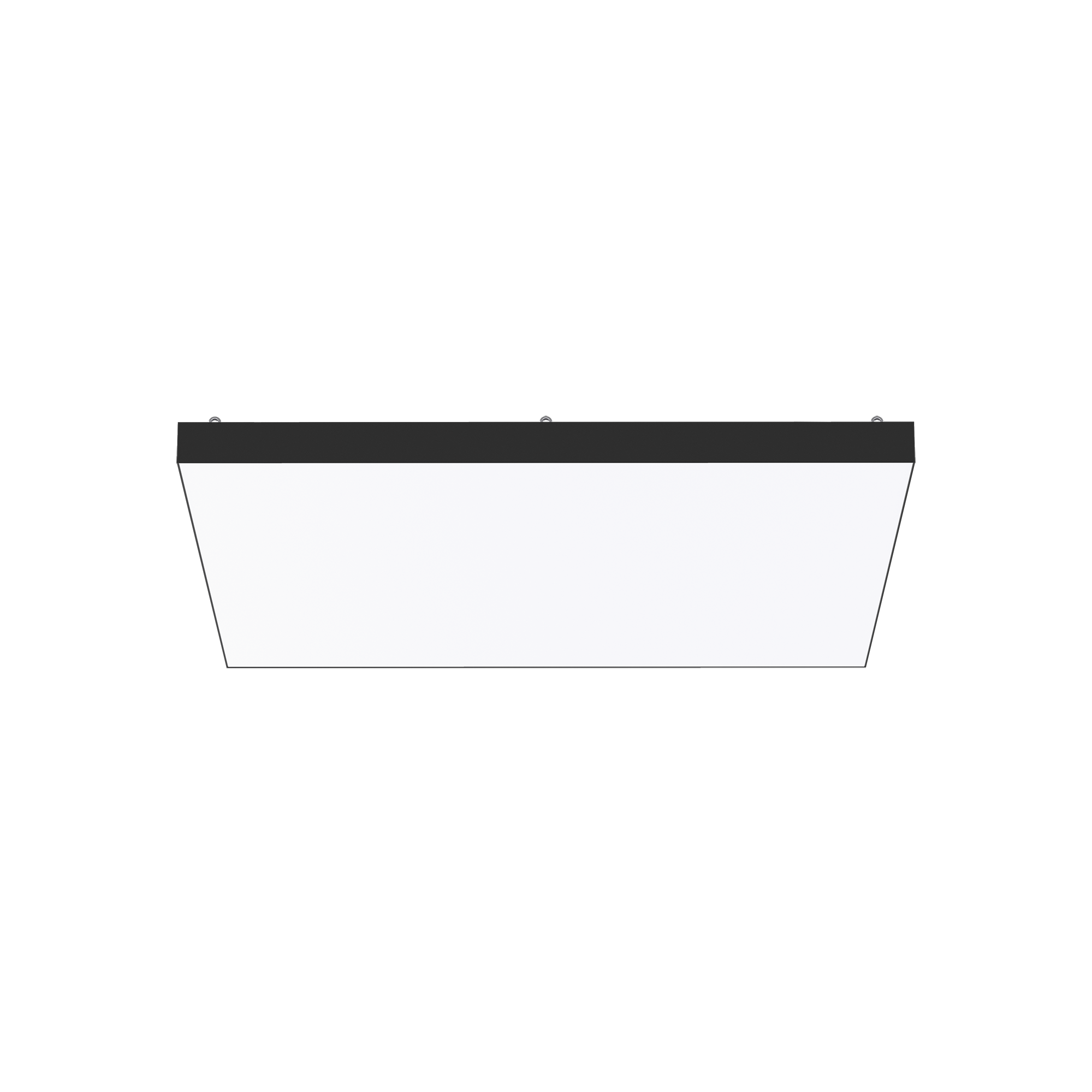

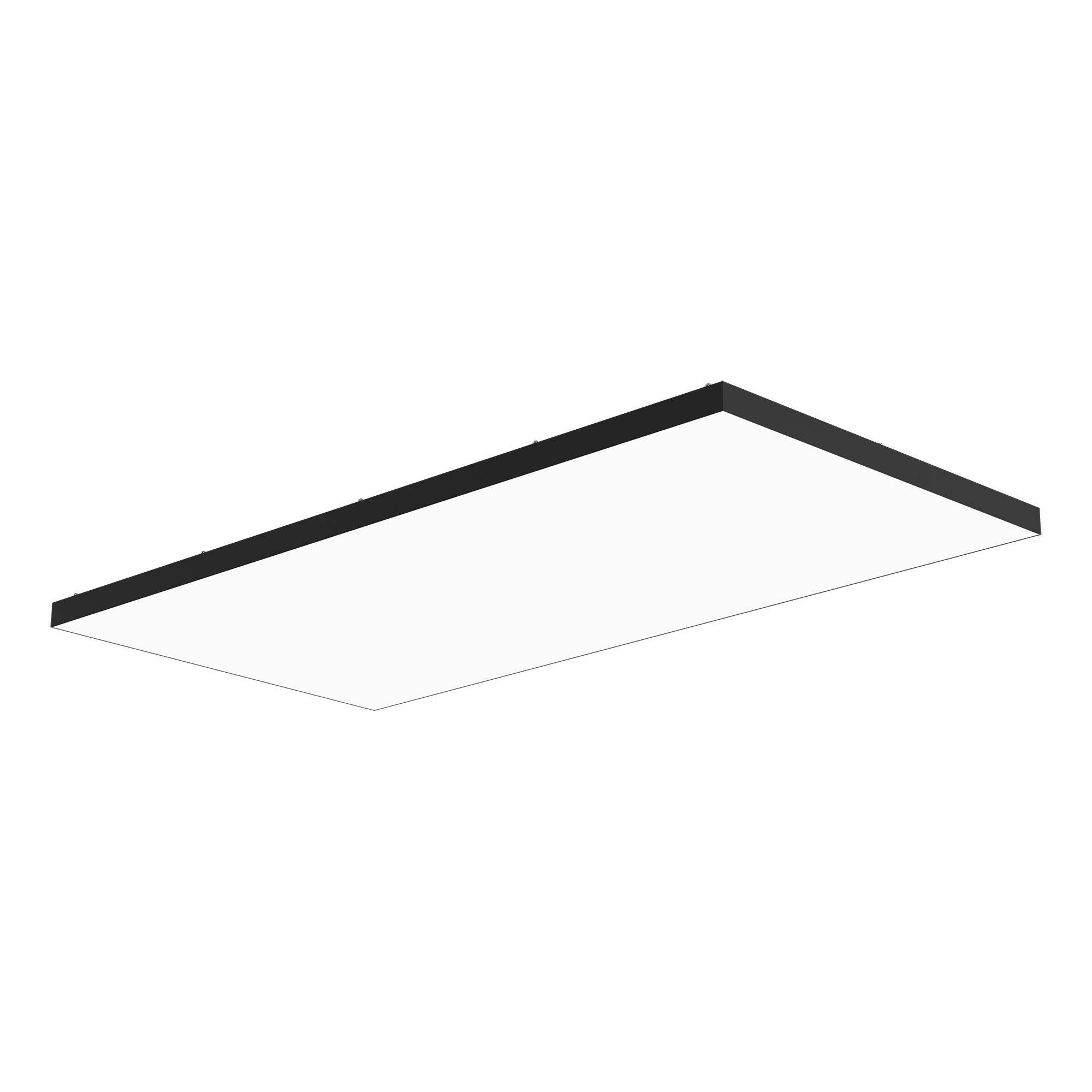

ZENTRA LIGHTBOX

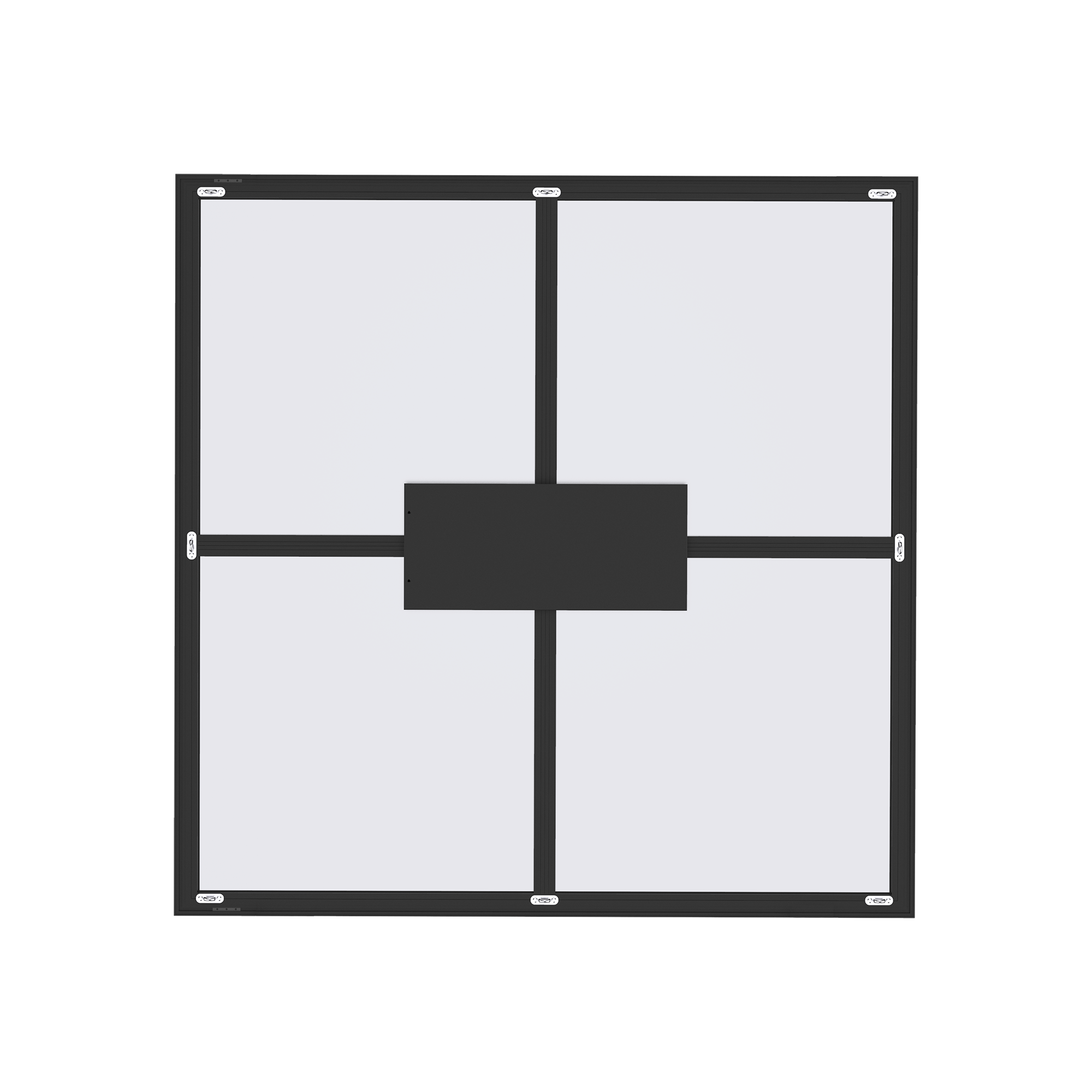

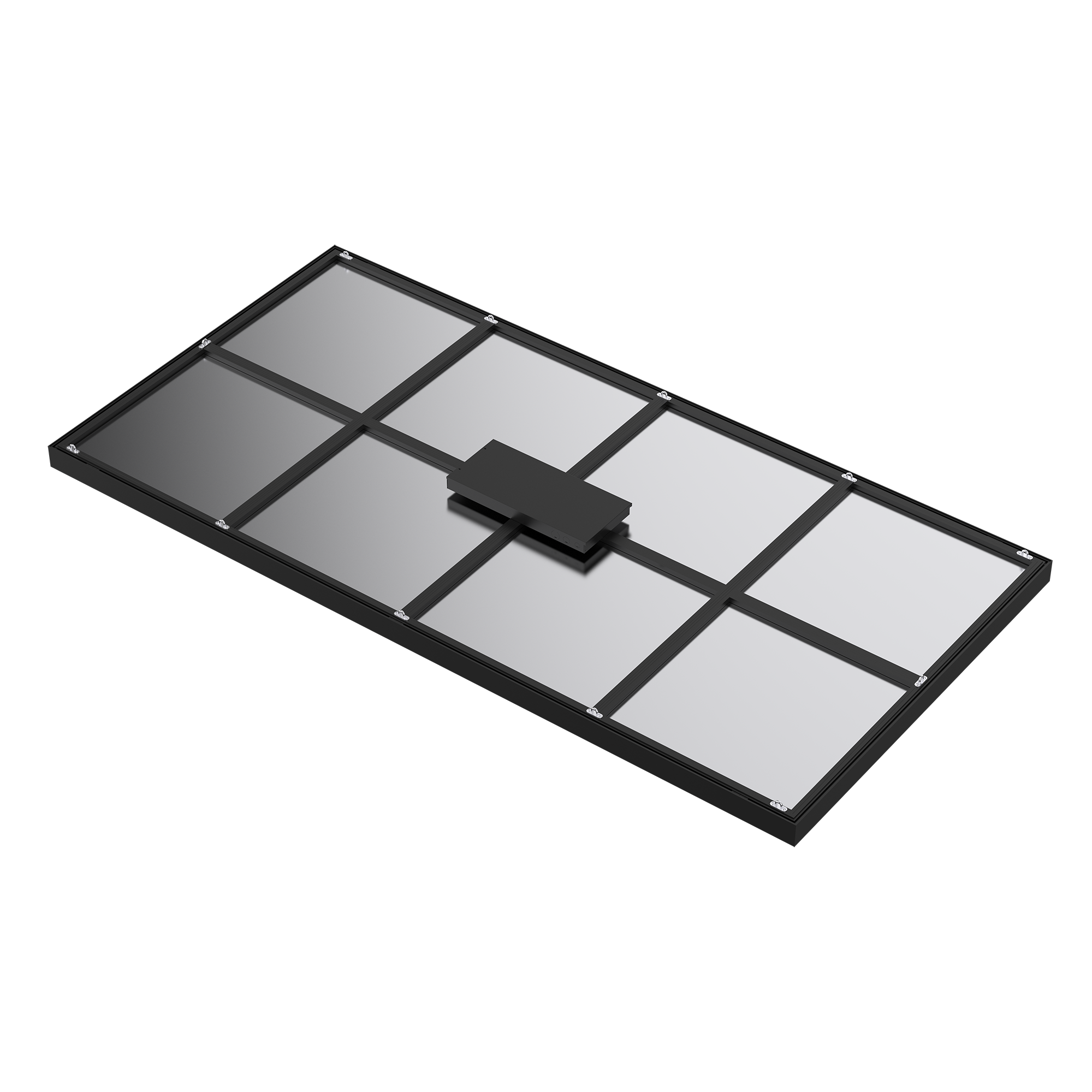

The Zentra is a premium lightbox designed for large-format, direct lighting applications, delivering uniform illumination and a high CRI for vivid colour accuracy. Its wide 120° beam angle and secondary optical design ensure smooth, glare-free lighting, while the fire-rated B1-grade soft film diffuser offers both safety and a refined visual finish. Built with a durable 0.5mm aluminium backplate for structural integrity and thermal efficiency, the Zentra Lightbox can be surface mounted or suspended to suit a variety of design needs. It also features an external flicker-free driver compatible with 0–10V and DALI dimming systems, ideal for showrooms, retail spaces, automotive dealerships, and commercial interiors.
The Zentra is a premium lightbox designed for large-format, direct lighting applications, delivering uniform illumination and a high CRI for vivid colour accuracy. Its wide 120° beam angle and secondary optical design ensure smooth, glare-free lighting, while the fire-rated B1-grade soft film diffuser offers both safety and a refined visual finish. Built with a durable 0.5mm aluminium backplate for structural integrity and thermal efficiency, the Zentra Lightbox can be surface mounted or suspended to suit a variety of design needs. It also features an external flicker-free driver compatible with 0–10V and DALI dimming systems, ideal for showrooms, retail spaces, automotive dealerships, and commercial interiors.

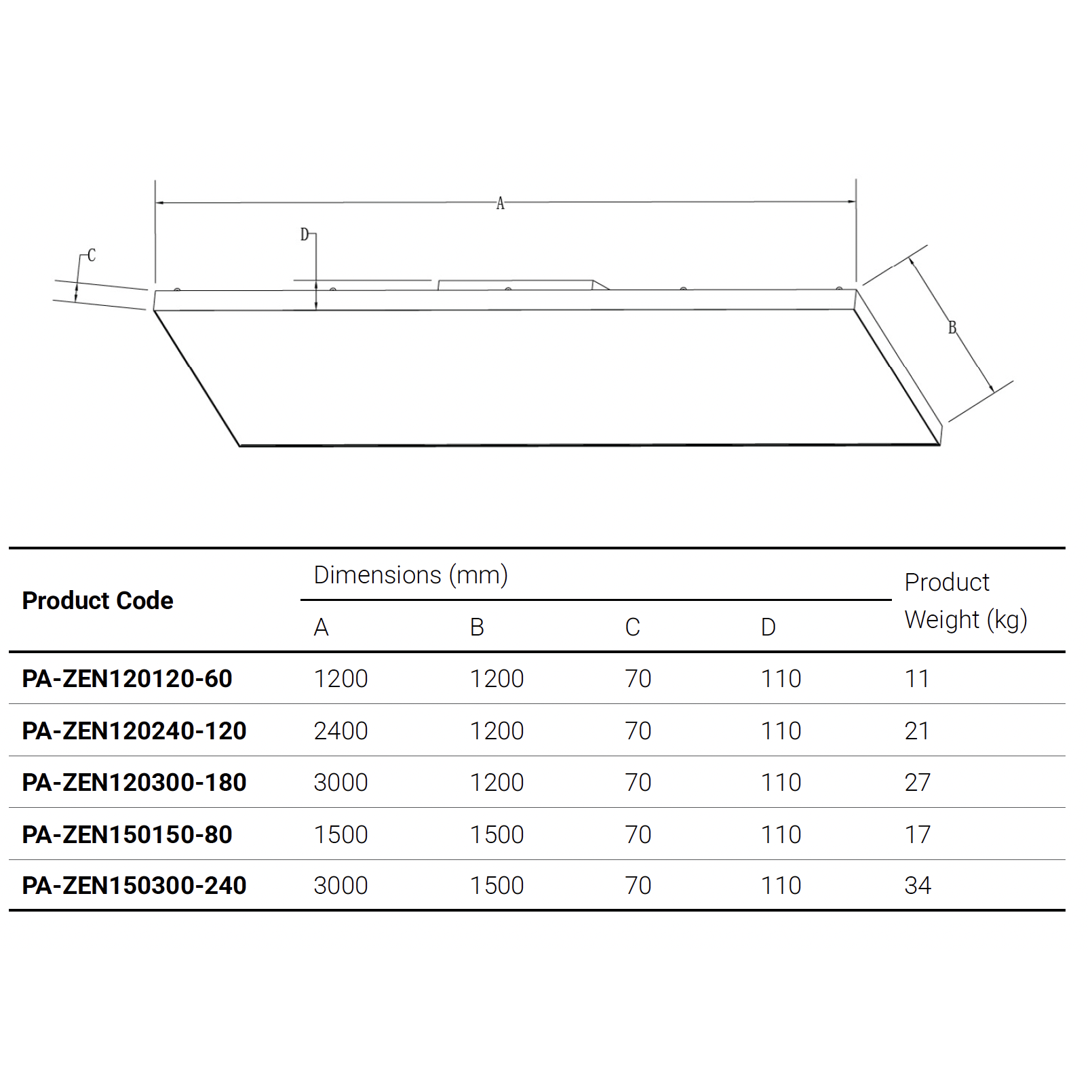

Models
PA-ZEN120240
- System Power:
- 120W
- Delivered Lumens:
- Up to 9600Lm
- Beam Angle:
- 120°
- Efficacy:
- Up to 80Lm/W
PA-ZEN150150-80
- System Power:
- 80W
- Delivered Lumens:
- Up to 6400Lm
- Beam Angle:
- 120°
- Efficacy:
- Up to 80Lm/W
PA-ZEN120300-180
- System Power:
- 180W
- Delivered Lumens:
- Up to 14400Lm
- Beam Angle:
- 120°
- Efficacy:
- Up to 80Lm/W
PA-ZEN150300-240
- System Power:
- 240W
- Delivered Lumens:
- Up to 19200Lm
- Beam Angle:
- 120°
- Efficacy:
- Up to 80Lm/W
General Specifications
Finish
Black/White
IP Rating
IP40
CRI
>90
Lifetime
50,000 hours
Material
Aluminium / PVC Soft film
CCT
3000K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Non-Dim/DALI/0-10V
