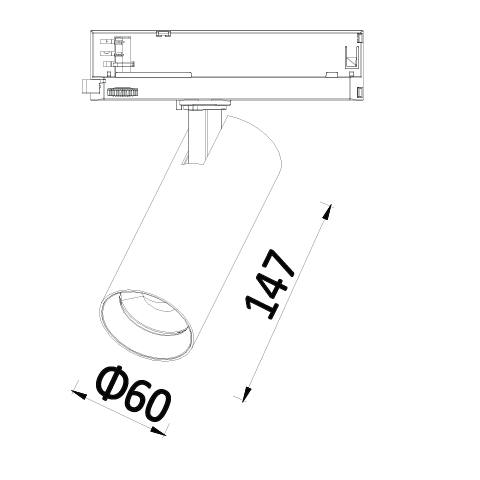

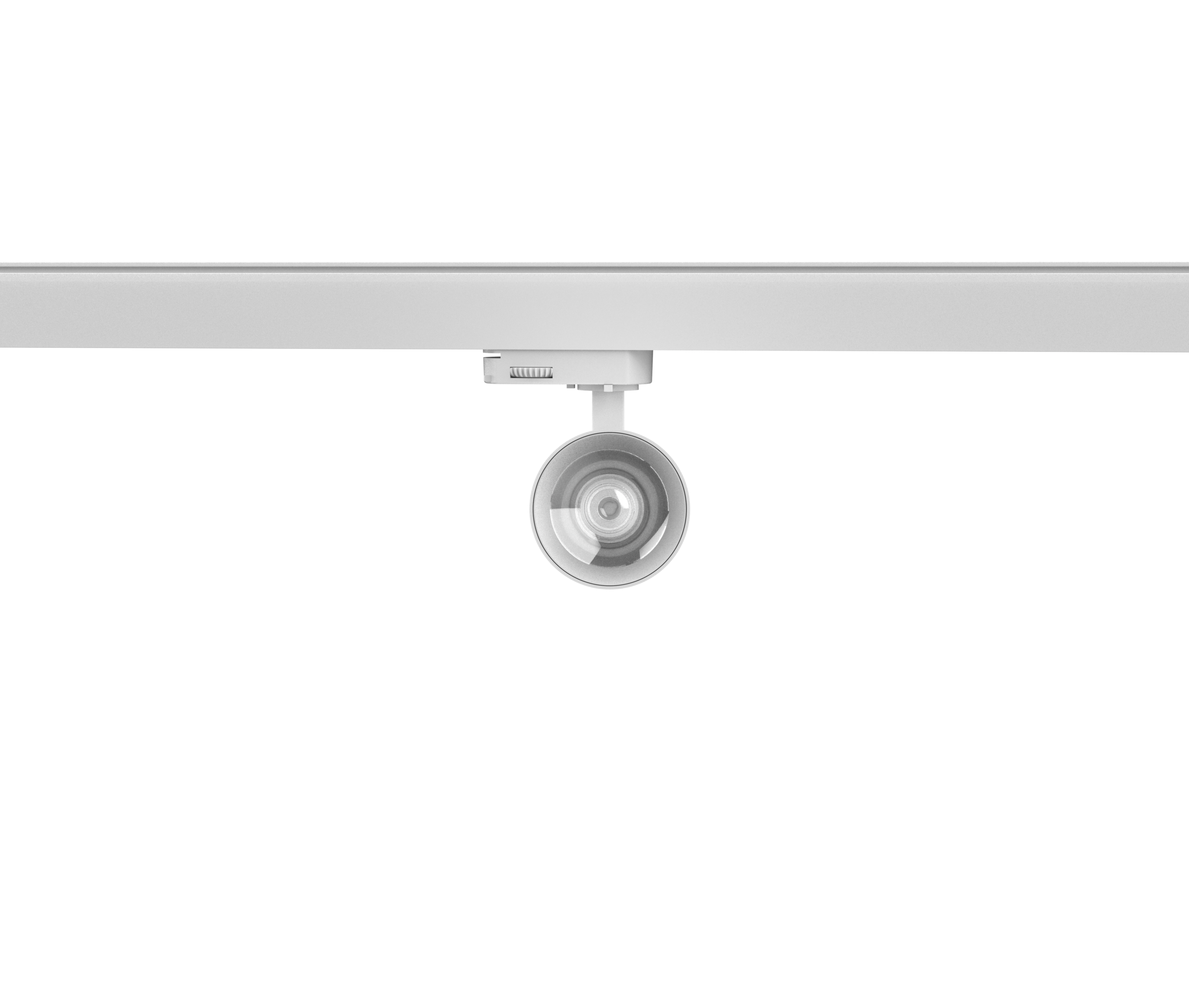

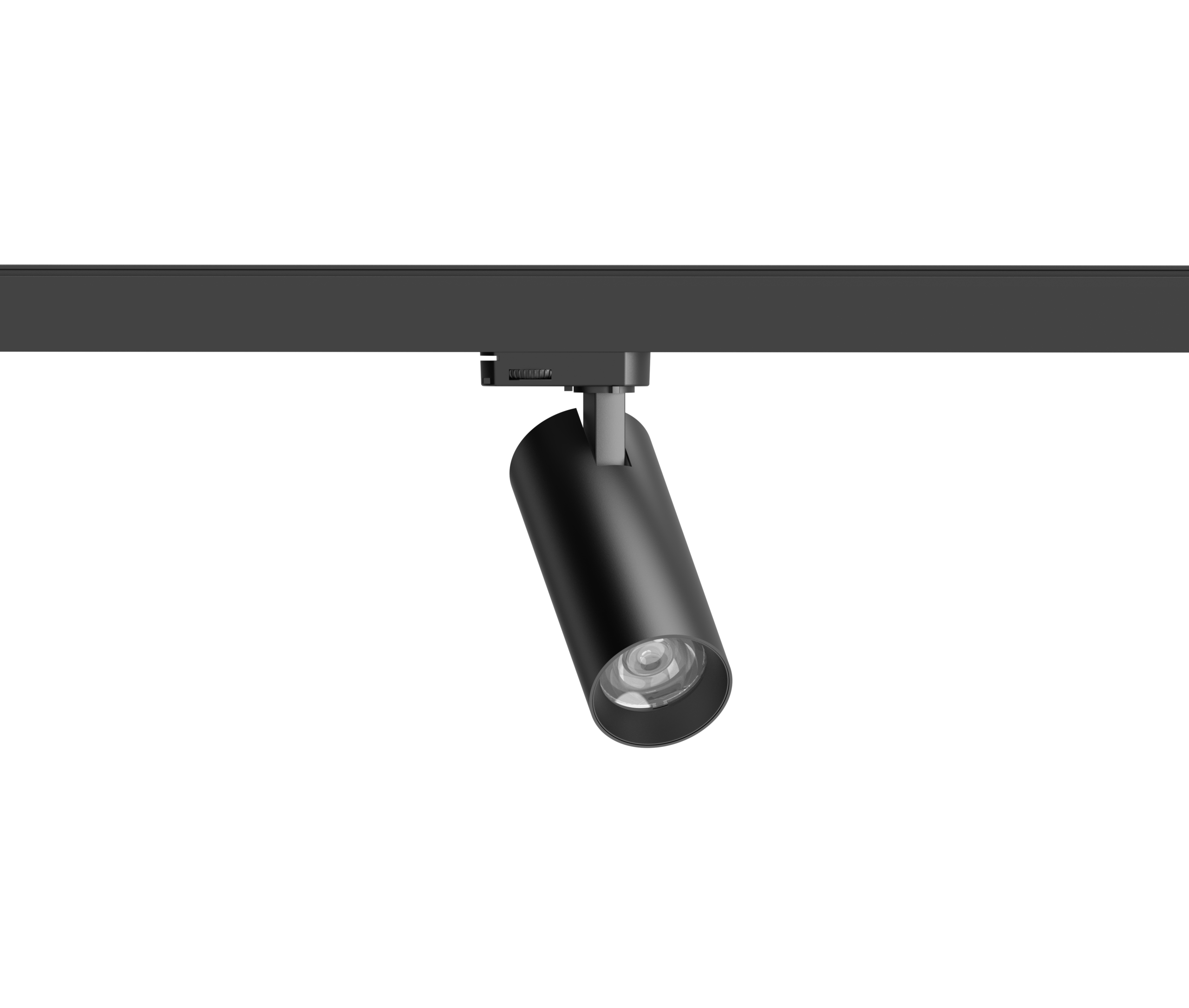

ST-TENS
Tenor Trackspot Small
- Source Power:
- 11W | 15W | 18W
- System Power:
- 12W | 16W | 20W
- Source Lumens:
- Up to 3343lm
- Delivered Lumens:
- Up to 3064lm
- Beam Angle:
- 20° | 30° | 39 | 54°
- Efficacy:
- Up to 157Lm/W
- Size
- Ø60 x 147mm

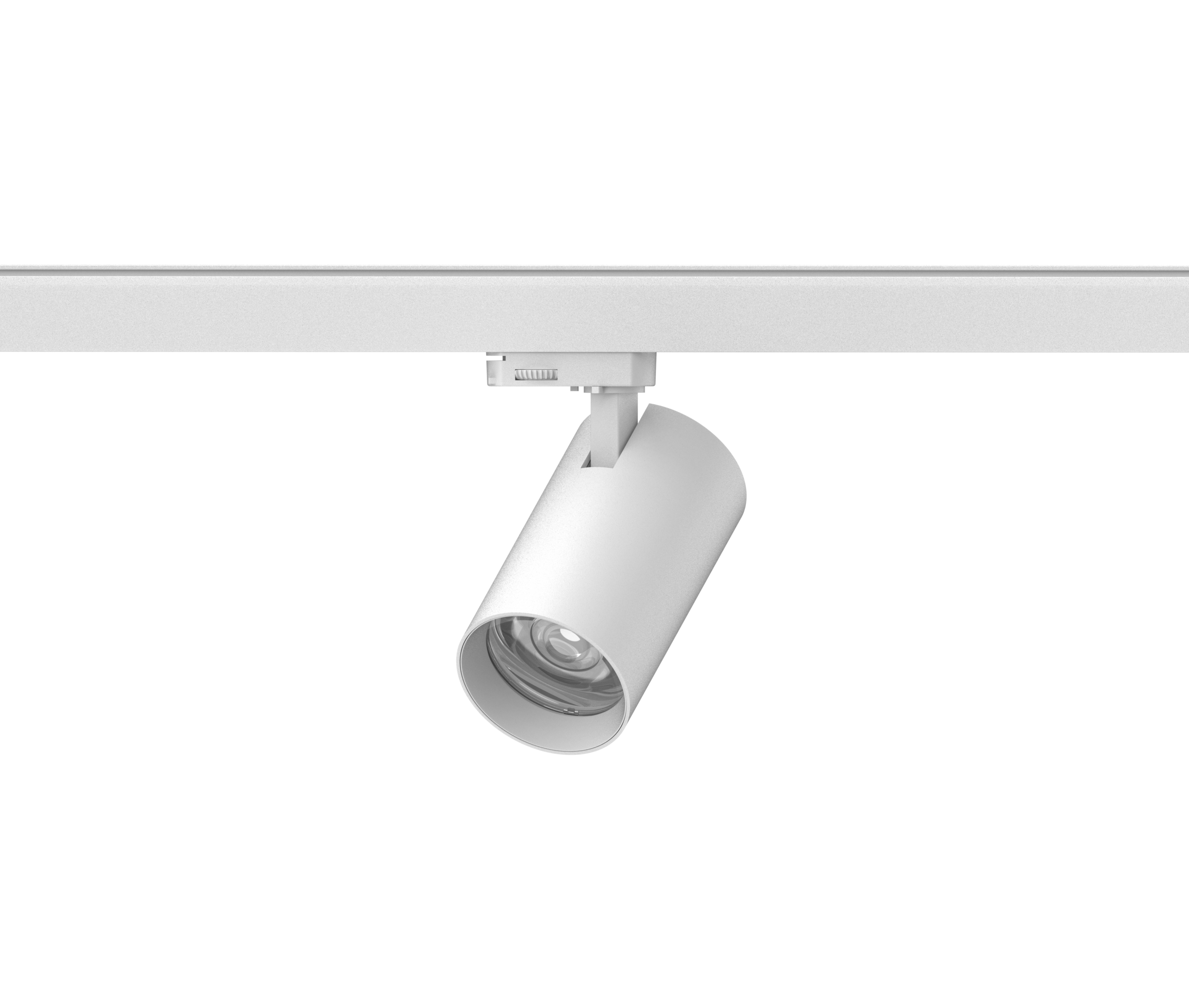

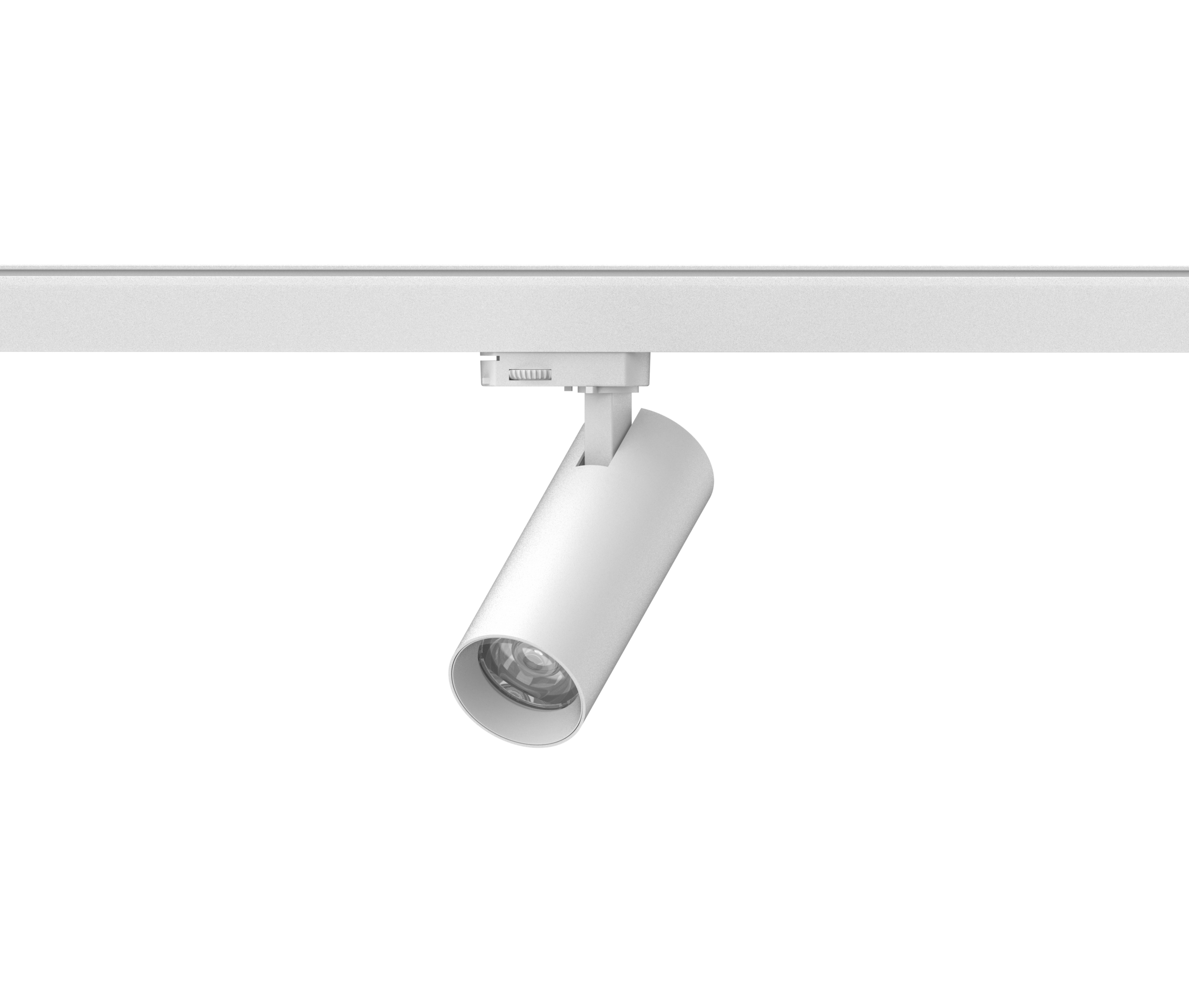

Tenor Track Light

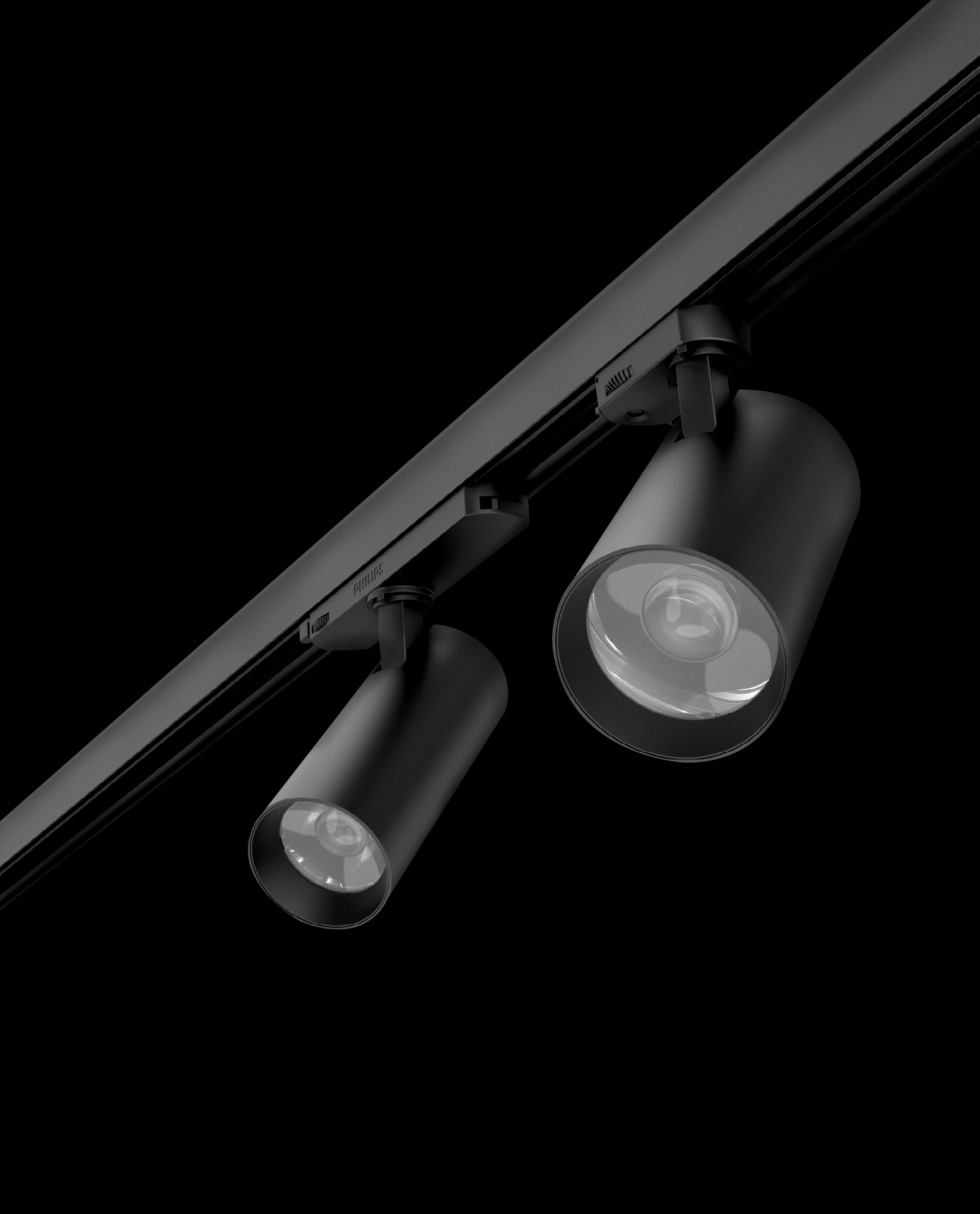

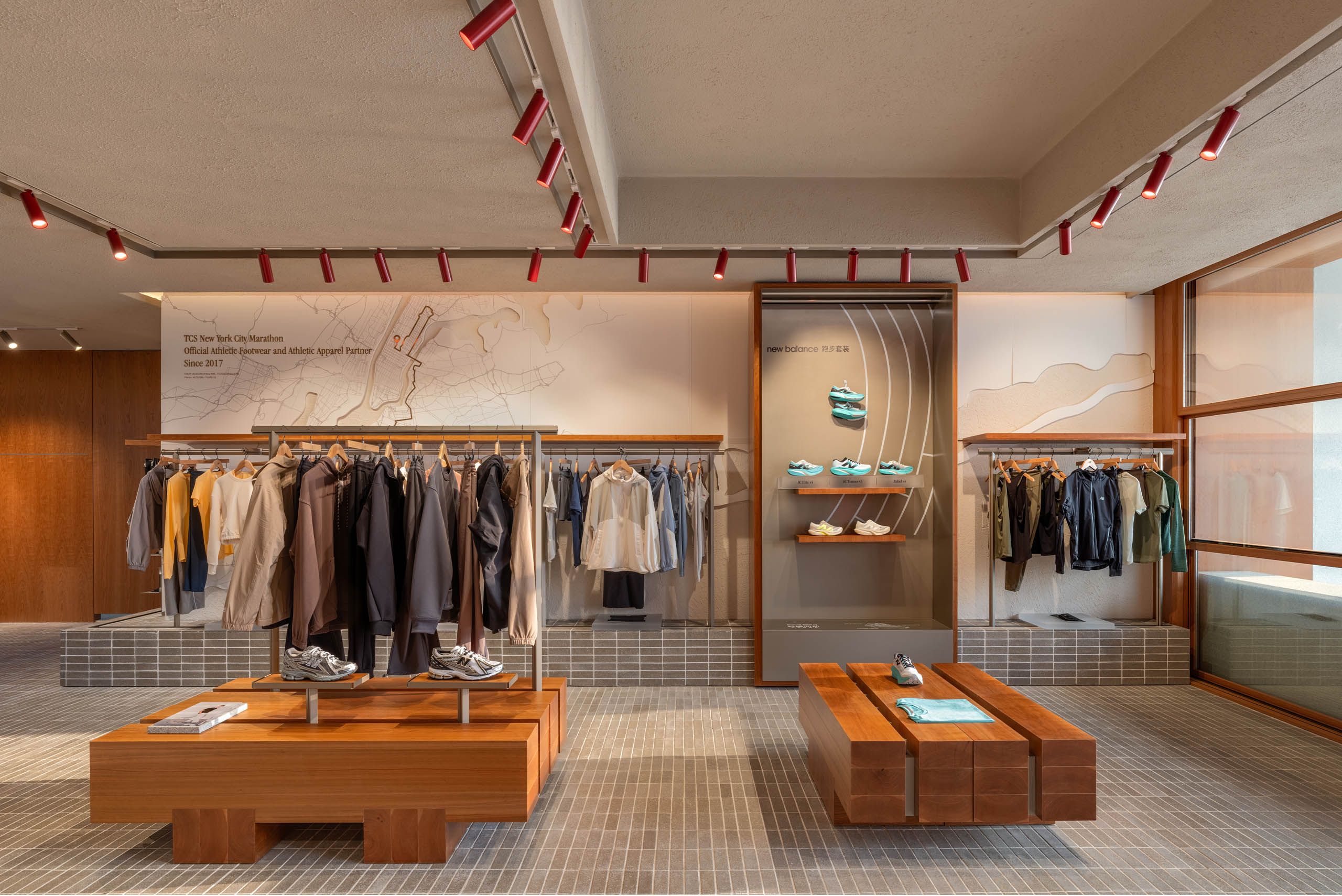

The Tenor is a precision track spotlight designed for retail, hospitality, and commercial environments where directional accuracy and energy performance are essential. Available in small and medium sizes with standard or integral driver configurations, the Tenor delivers up to 4500lm with efficacy to 160lm/W, making it one of the most efficient options in its class.
With a 90° tilt and full 355° rotation, the Tenor provides precise, flexible aiming across any space. A lens optic ensures controlled, high-quality light output with CRI >90, UGR as low as 17, and flicker-free performance as standard. Each fixture includes an integrated track adaptor for straightforward installation onto 3-circuit track systems.
Compatible with DALI2, 0-10V, Triac, and Casambi, the Tenor integrates seamlessly into any lighting control ecosystem. Available in white, black, grey, or RAL to suit any interior scheme.
The Tenor is a precision track spotlight designed for retail, hospitality, and commercial environments where directional accuracy and energy performance are essential. Available in small and medium sizes with standard or integral driver configurations, the Tenor delivers up to 4500lm with efficacy to 160lm/W, making it one of the most efficient options in its class.
With a 90° tilt and full 355° rotation, the Tenor provides precise, flexible aiming across any space. A lens optic ensures controlled, high-quality light output with CRI >90, UGR as low as 17, and flicker-free performance as standard. Each fixture includes an integrated track adaptor for straightforward installation onto 3-circuit track systems.
Compatible with DALI2, 0-10V, Triac, and Casambi, the Tenor integrates seamlessly into any lighting control ecosystem. Available in white, black, grey, or RAL to suit any interior scheme.
Models

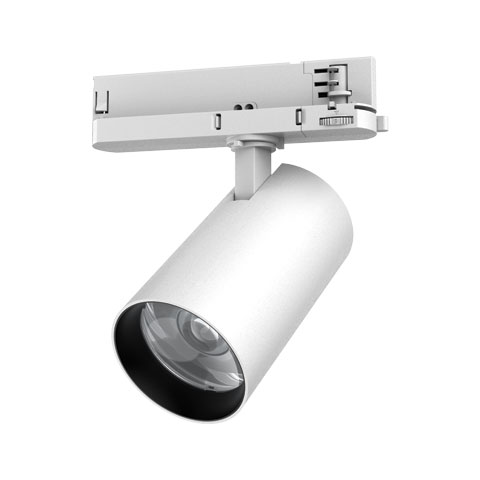

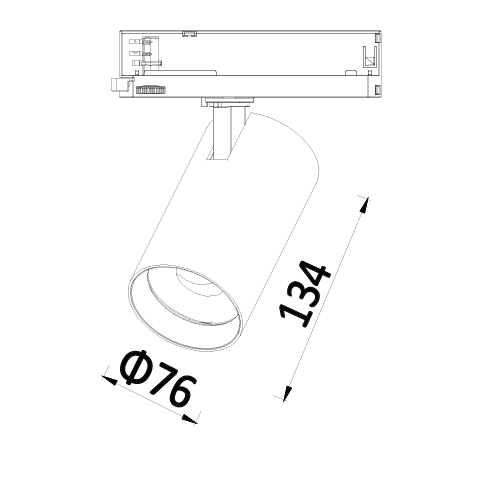

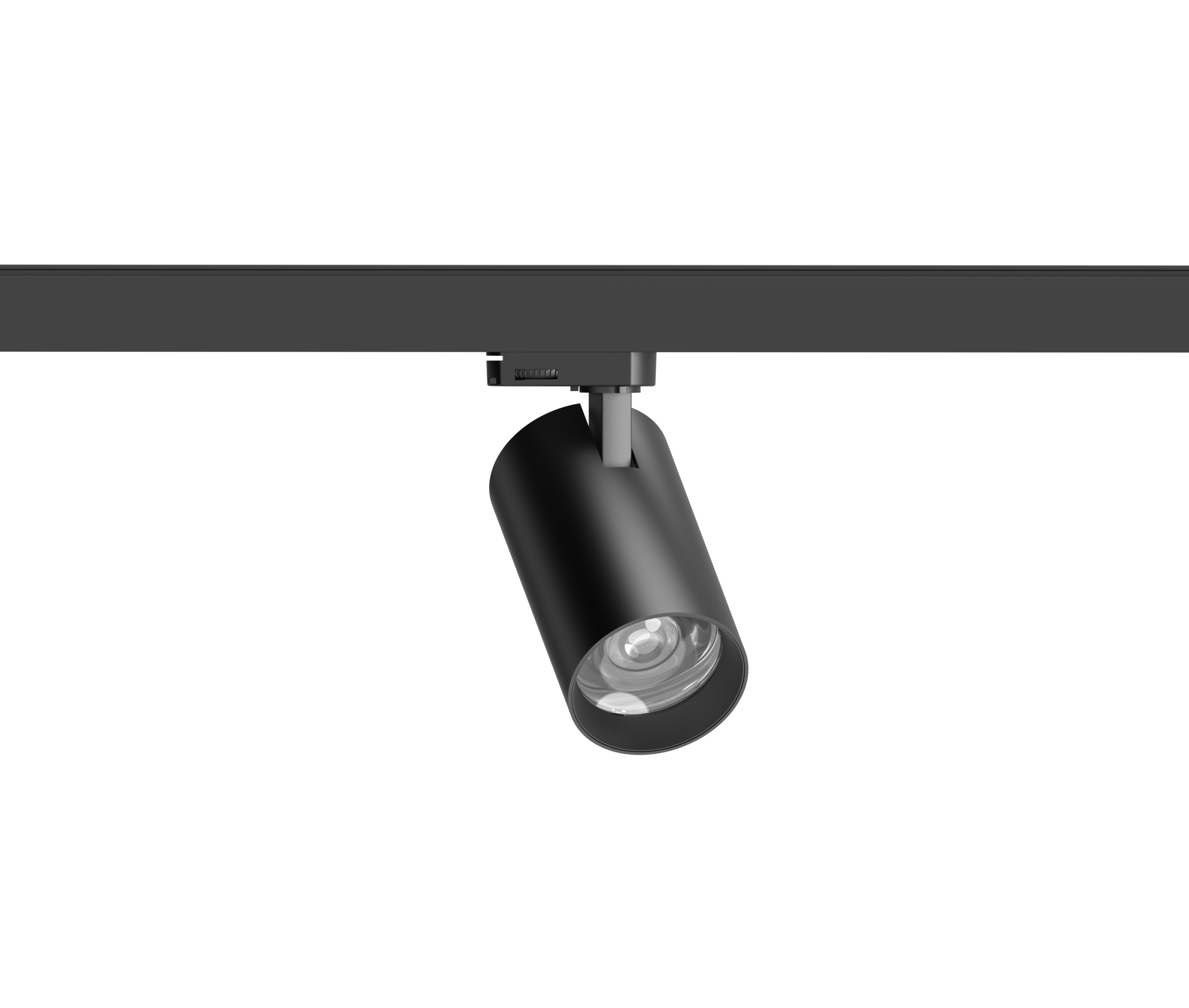

ST-TENM
Tenor Trackspot Small
- Source Power:
- 13W | 19W | 23W
- System Power:
- 14W | 20W | 25W
- Source Lumens:
- Up to 3995lm
- Delivered Lumens:
- Up to 3757lm
- Beam Angle:
- 23° | 26° | 36° | 60°
- Efficacy:
- Up to 160Lm/W
- Size
- Ø76 x 134mm

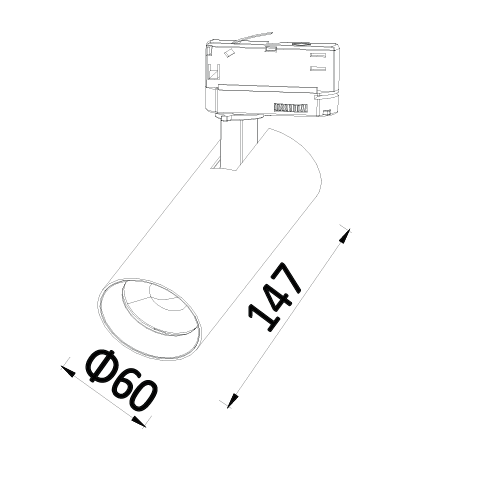

ST-TENS (Integral)
Tenor Integral Trackspot Small
- Source Power:
- 11W
- System Power:
- 12W
- Source Lumens:
- 1838lm
- Delivered Lumens:
- Up to 1719lm
- Beam Angle:
- 20° | 23° | 32° | 54°
- Efficacy:
- Up to 157Lm/W
- Size
- Ø60 x 147mm

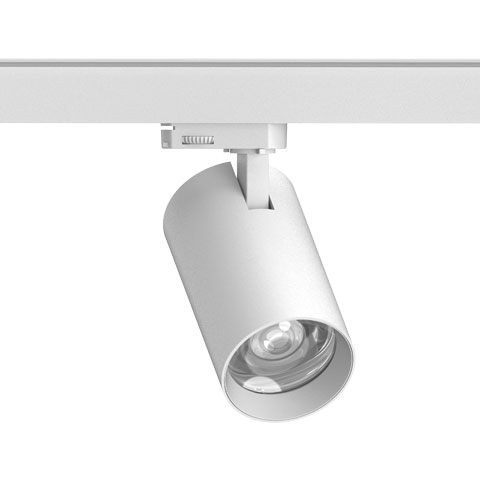

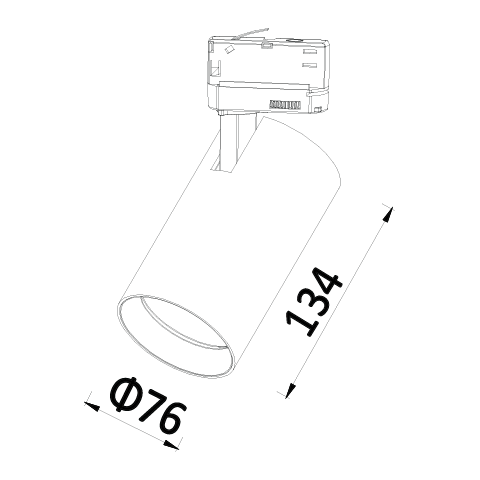

ST-TENM (Integral)
Tenor Integral Trackspot Small
- Source Power:
- 13W | 19W
- System Power:
- 14W | 20W
- Source Lumens:
- Up to 3343lm
- Delivered Lumens:
- Up to 3171lm
- Beam Angle:
- 23° | 26° | 36° | 60°
- Efficacy:
- Up to 160Lm/W
- Size
- Ø76 x 134mm
General Specifications
Finish
Black | White | Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L80 > 86,000 hrs
Material
Aluminium
CCT
2700K | 3000K | 3500K | 4000K
Voltage
220-240V
Dimming
Switchable
Dali2
0-10V
Triac
Casambi
Accessories
Honeycomb Louvre
Barn Door
Glass
Elliptical Optical Lens
