MERLIN CANOPY
Merlin is an exceptional canopy light combining a stylish design with outstanding functionality. Crafted from a lightweight yet robust aluminium die-casting heat sink, it ensures excellent thermal performance and low maintenance. Merlin features a built-in dip switch offering the convenience of three CCT and four-wattage adjustability to suit a range of applications. When choosing to add a reflector, the luminiaire provides soft and uniformed lighting for visual comfort. It offers multiple energy-saving features including a plug-and-play microwave or PIR sensor control on request.
SM-MER-DIP
| System Power: | 75W – 120W |
| Delivered Lumens: | Up to 20308Lm |
| Beam Angle: | 115°/116°/117° |
| Efficacy:Â | Up to 174Lm/W |
| Download:Â | Datasheet IES Files Installation Instructions |
| Finish | White | Material | Aluminium |
| IP Rating | IP65 | CCT Switchable | 3000K – 4000K – 5000K |
| CRI | >70/>80 | Voltage | 220-240V, 50Hz |
| Lifetime | >93,000 hours (L80) | Dimming | Non-Dim/0-10V/Dali |

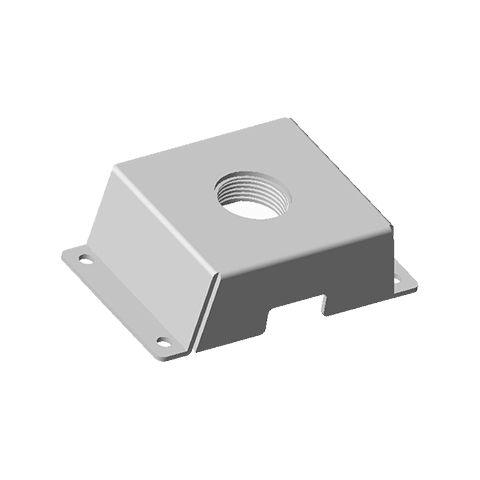

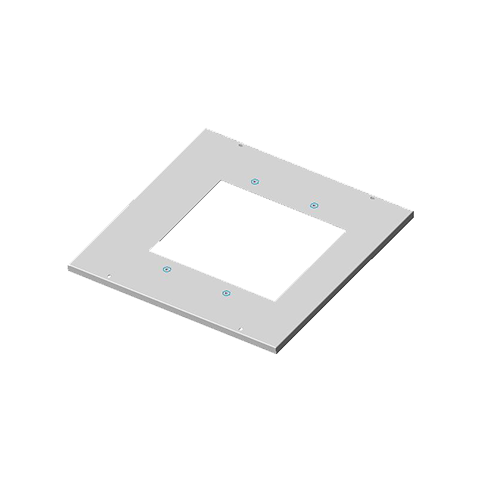

Associated Products
