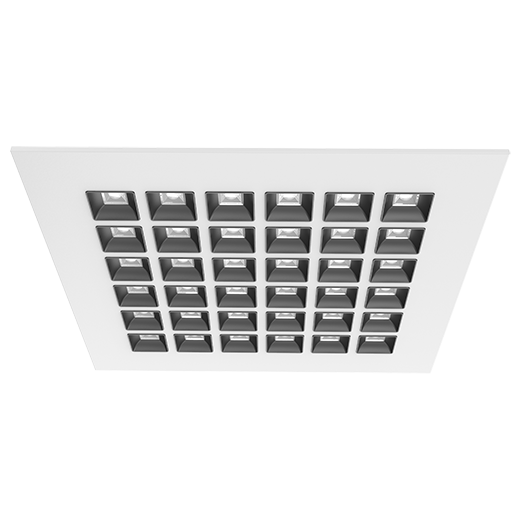

OR-A012
- System Power:
- 23W / 31W
- Source Lumens:
- 2456Lm – 2782Lm 3249Lm – 3649Lm
- Delivered Lumens:
- Up to 3028Lm
- Beam Angle:
- 83°
- Efficacy:
- Up to 121Lm/W

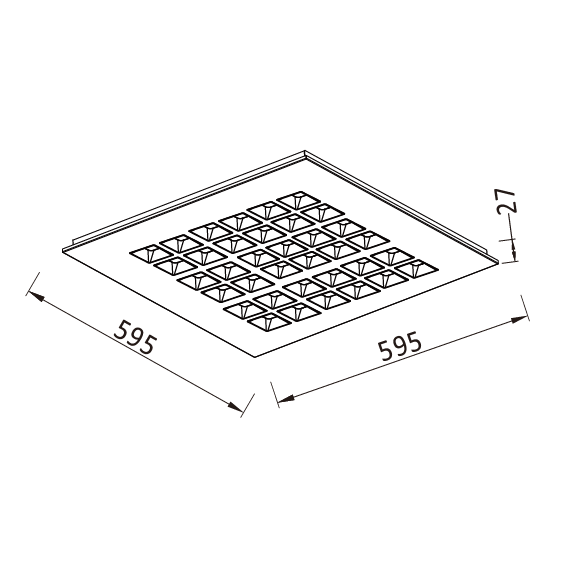

- Cut Out:
- 575x575mm
MARK RECESSED (square)
The Mark panel range is designed for both efficacy and versatility. It adopts a high transmittance lens and an anti-glare reflector to provide uniform light distribution. With tuneable white technology, you can seamlessly adjust the colour temperature from 2700K to 6500K while maintaining consistent luminous flux ensuring optimal lighting for commercial applications.
The Mark panel range is designed for both efficacy and versatility. It adopts a high transmittance lens and an anti-glare reflector to provide uniform light distribution. With tuneable white technology, you can seamlessly adjust the colour temperature from 2700K to 6500K while maintaining consistent luminous flux ensuring optimal lighting for commercial applications.
Models
OR-A018
- System Power:
- 24W / 32W
- Source Lumens:
- Up to 4031Lm
- Delivered Lumens:
- Up to 2943Lm
- Beam Angle:
- 83°
- Efficacy:
- Up to 128Lm/W
- Cut Out:
- 575x575mm

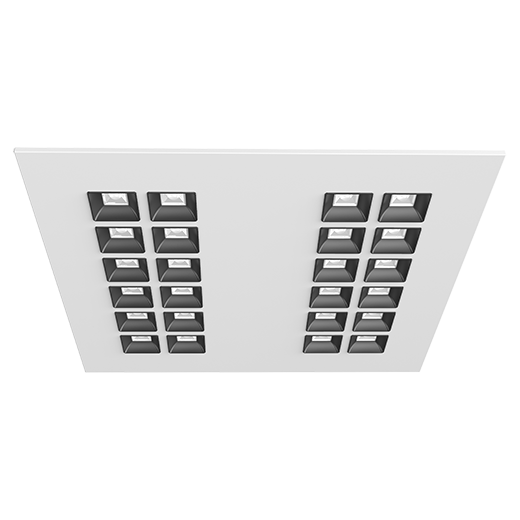

OR-A013
- System Power:
- 23W / 31W
- Source Lumens:
- 2314LM~2652lm (2700K~6500K) 3024LM~3398LM (2700K~6500K)
- Beam Angle:
- 83°
- Efficacy:
- 100Lm/W~113Lm/W (2700K~6500K) 96Lm/W~108Lm/W (2700K~6500K)
- Cut-out:
- 575x575mm
OR-A019
- System Power:
- 24W / 33W
- Source Lumens:
- Up to 3033LM/3866LM
- Delivered Lumens:
- Up to 2943Lm
- Beam Angle:
- 83°
- Efficacy:
- Up to 122Lm/W

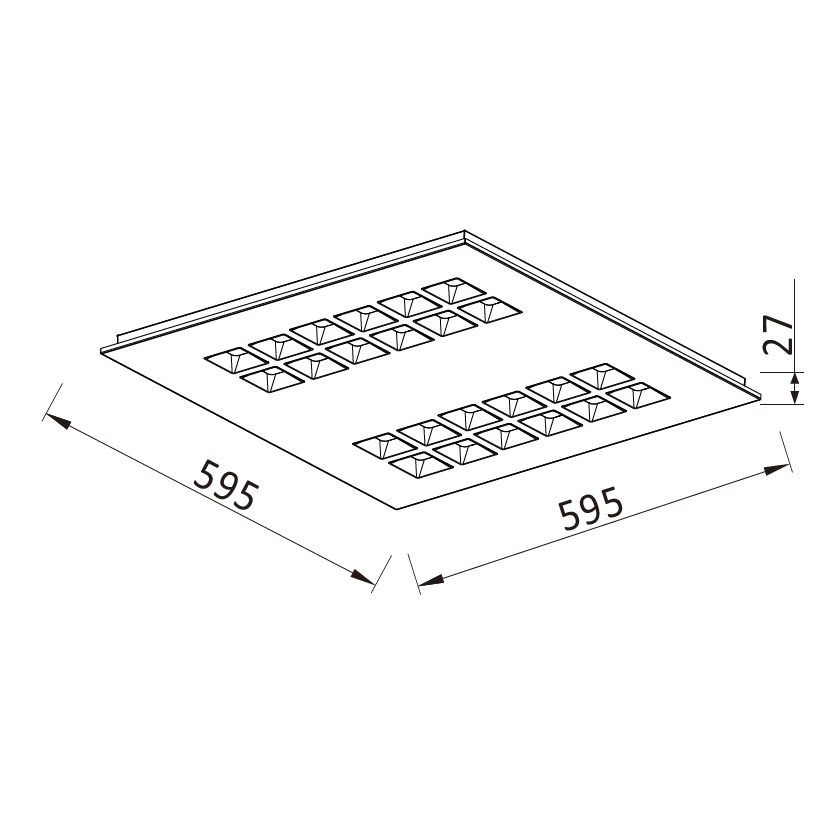

- Cut-out:
- 575x575mm
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>80/>90
Lifetime
>50,000 hours
Material
Aluminium
CCT
3000K/4000K/Tuneable White (2700K-6500K)
Voltage
220-240V, 50Hz
Dimming
Available on request
