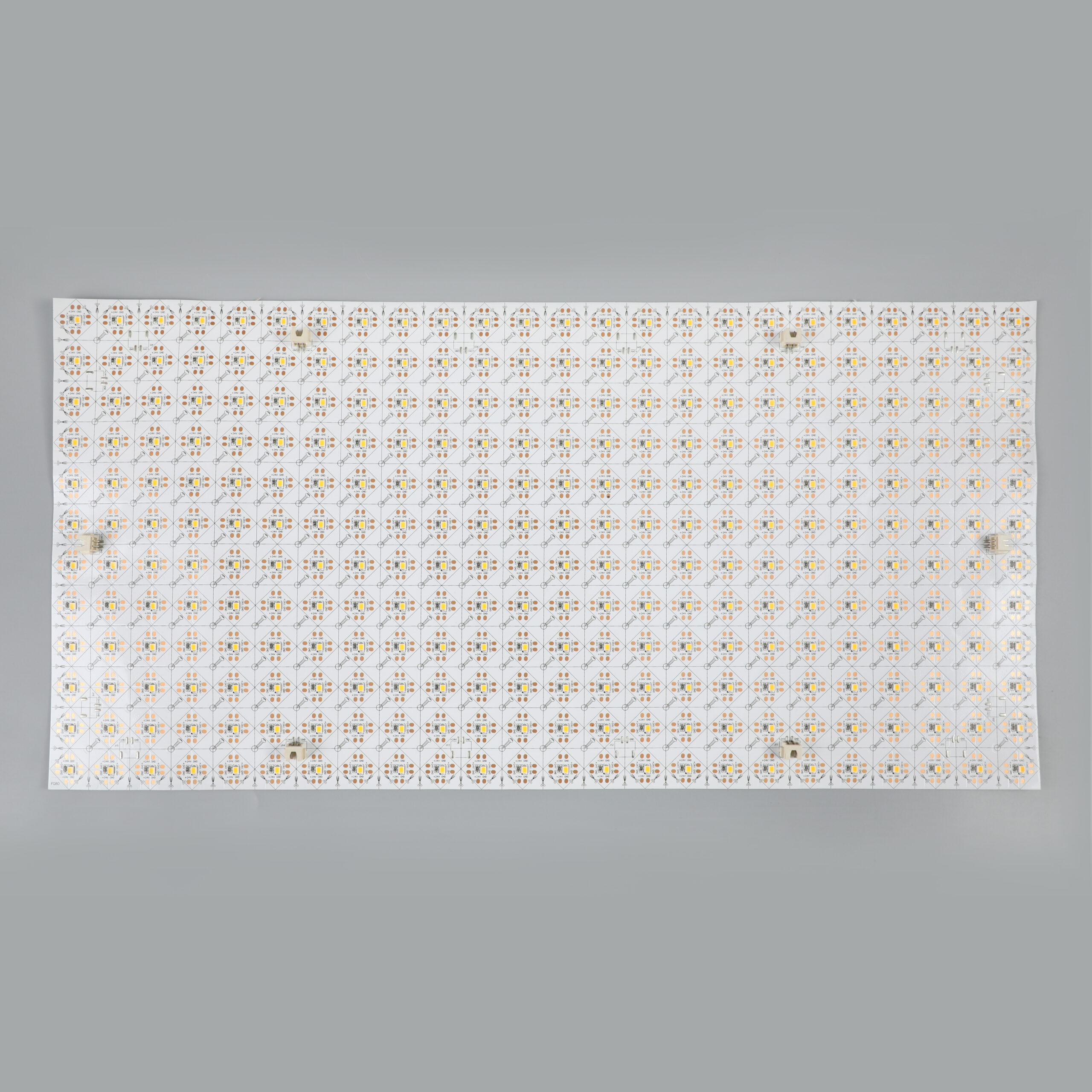

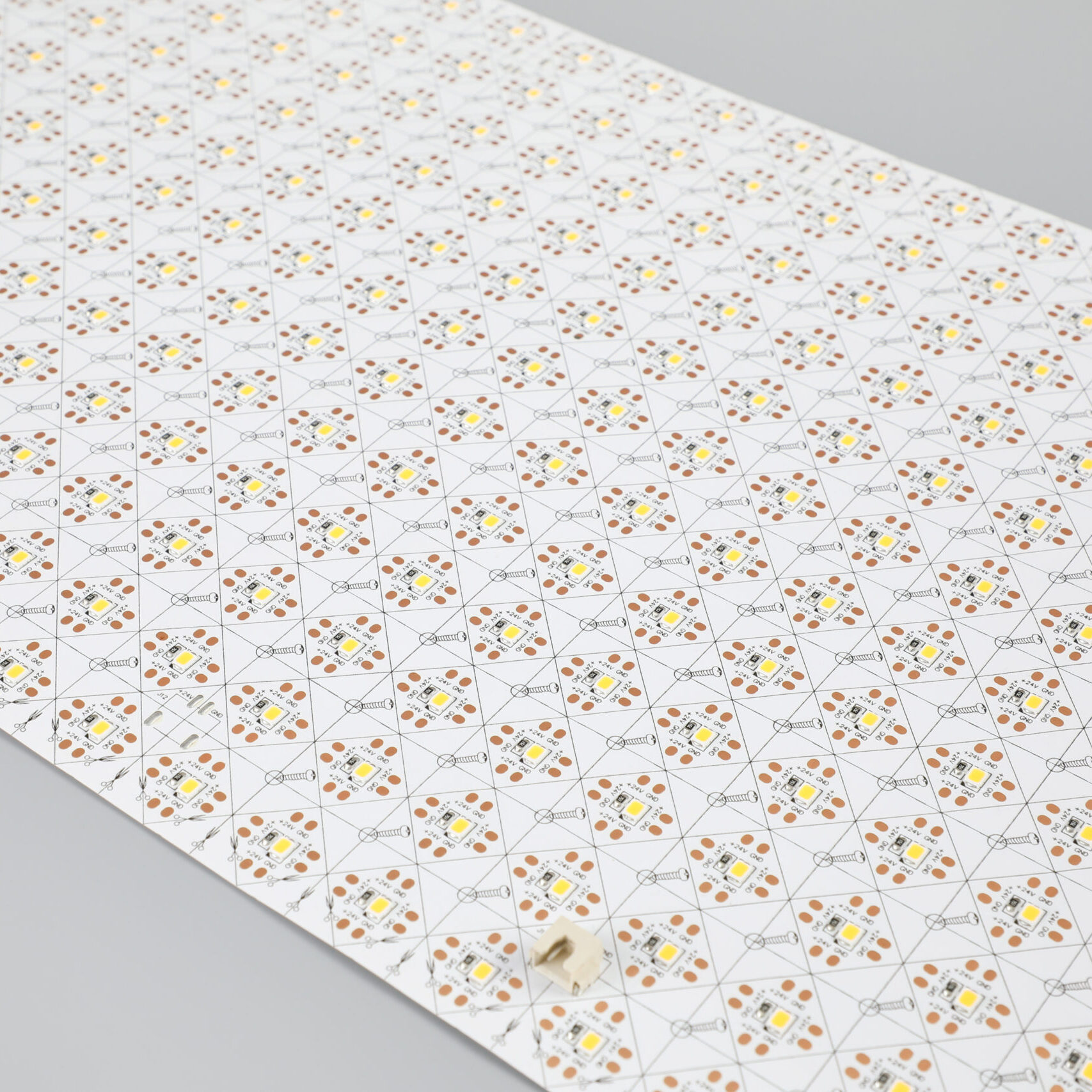

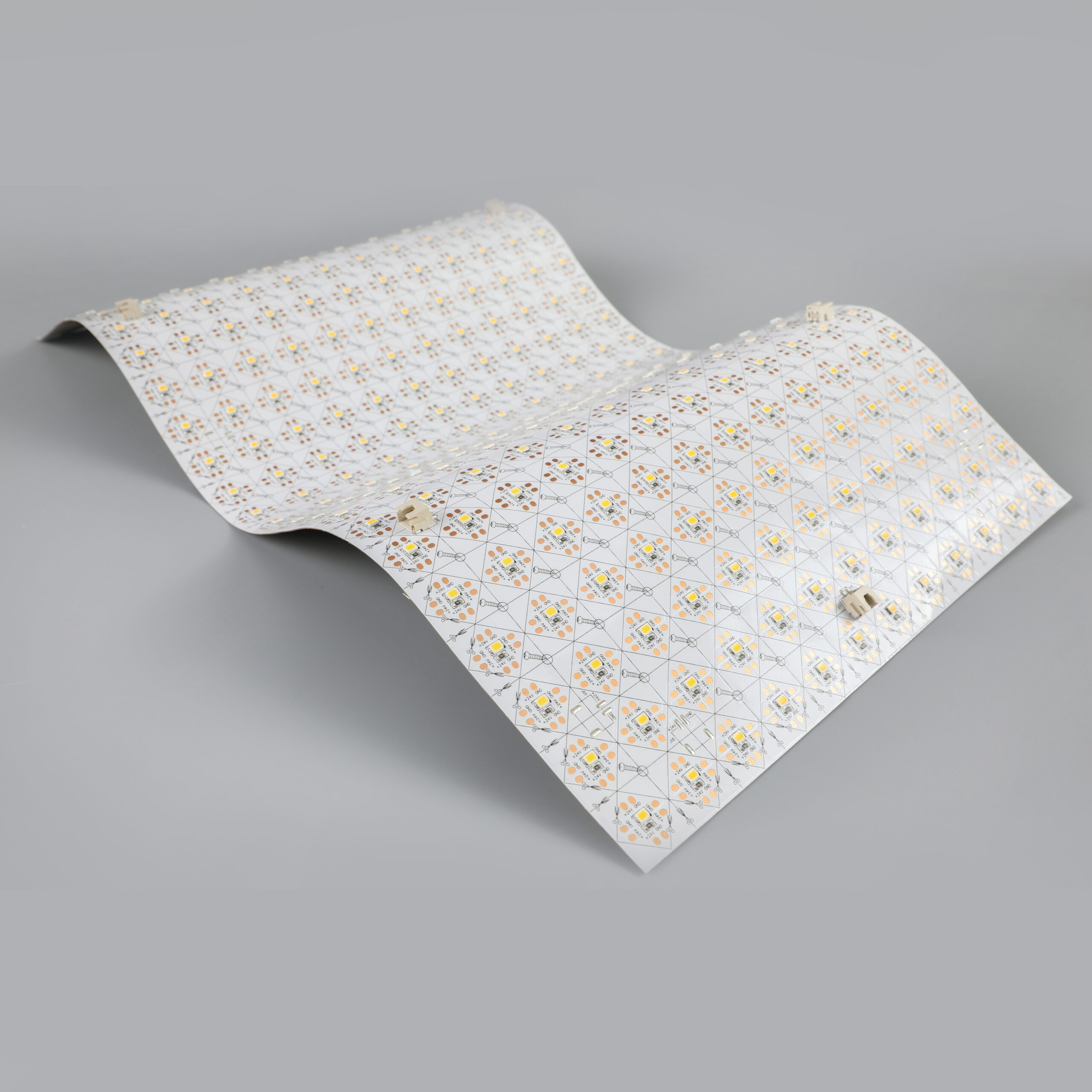

LED LIGHT SHEET

LPA’s LED light sheet provides a flexible and efficient solution for backlighting and display applications. Designed for projects that require thin, adaptable lighting, the sheet can be easily cut and configured into a wide range of shapes to suit different installations and design needs. Delivering high-quality, even illumination with outputs of up to 115 lm/W per sheet and consistent colour performance, it is ideal for retail displays, light boxes and feature lighting. Available in multiple colour temperatures, this LED light sheet offers a versatile solution for creating seamless illuminated surfaces across a variety of applications.
RCM
CE
UKCA
UL
Class 3
IP20
CRI>90
Plastic Free Packaging
5 Year Warranty
LPA’s LED light sheet provides a flexible and efficient solution for backlighting and display applications. Designed for projects that require thin, adaptable lighting, the sheet can be easily cut and configured into a wide range of shapes to suit different installations and design needs. Delivering high-quality, even illumination with outputs of up to 115 lm/W per sheet and consistent colour performance, it is ideal for retail displays, light boxes and feature lighting. Available in multiple colour temperatures, this LED light sheet offers a versatile solution for creating seamless illuminated surfaces across a variety of applications.

Models

FLS-LS4824-100

Sheet Power:
10W/sheet
Sheet W/m²:
87W/m²
Sheet W/ft²:
8W/ft²
Sheet Source Lumens:
1010Lm/sheet @ 4000K
Sheet Lm/m²:
8790Lm/m² @ 4000K
Sheet Lm/ft²:
810Lm/ft² @ 4000K
Efficacy:
101Lm/W/M
LED Per Sheet:
288 LEDS/m

FLS-LS4824-200

Sheet Power:
20W/sheet
Sheet W/m²:
174W/m²
Sheet W/ft²:
16W/ft²
Sheet Source Lumens:
1980Lm/sheet @ 4000K
Sheet Lm/m²:
17190Lm/m² @ 4000K
Sheet Lm/ft²:
1590Lm/ft² @ 4000K
Efficacy:
99Lm/W/m
LED Per Sheet:
288 LEDS/m

General Specifications

IP Rating

IP20

CCT

2700K/3000K/3500K/
4000K/5000K/6500K

CRI

>90 standard
>80/>97 options on request

MacAdam

3 SDCM
2 SDCM on request

Voltage

24V DC

Lifetime

50,000hrs L70

Dimming

Available on request

Accessories

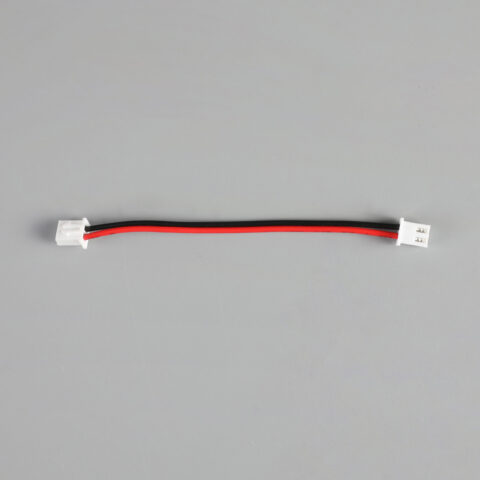

FLS-CONXH-CONXH

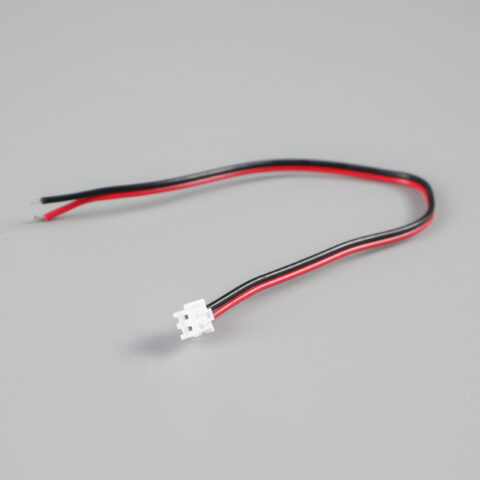

FLS-CONXH-200
