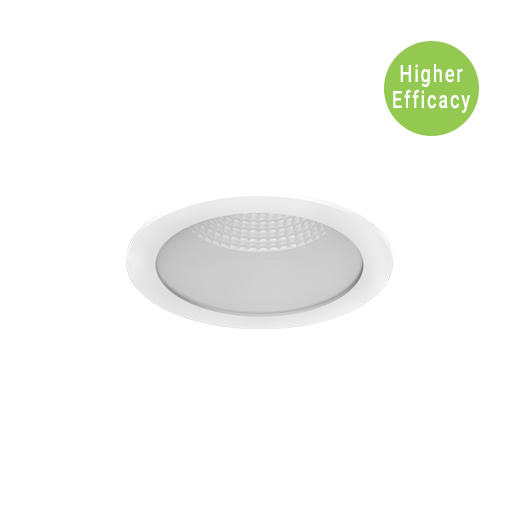

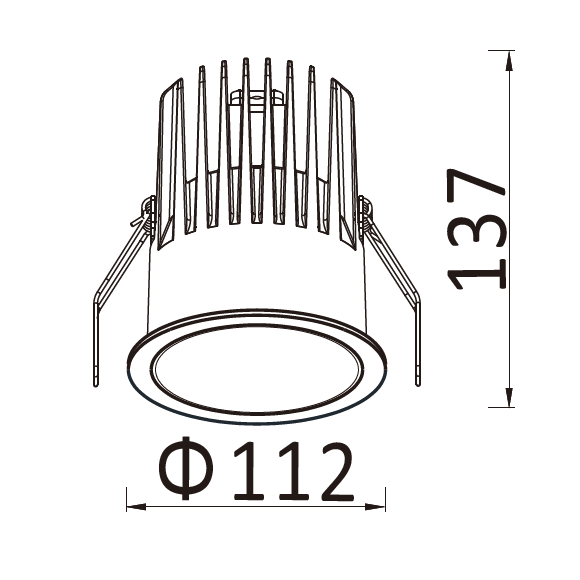

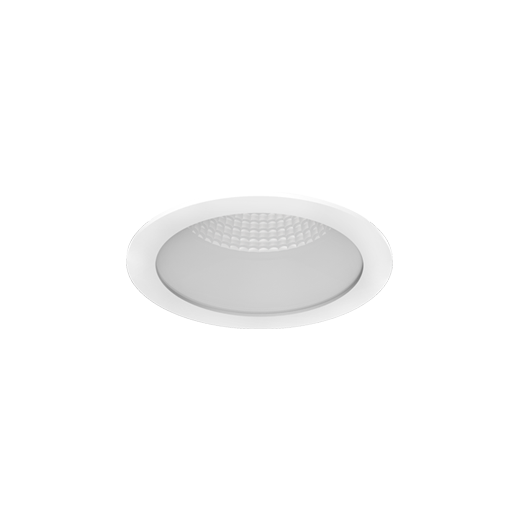

DR-A594 (IP54) HE
- System Power:
- 14W / 23W / 26W / 36W
- Source Lumens:
- Up to 4672Lm
- Delivered Lumens:
- Up to 3802Lm
- Beam Angle:
- 16°/19°/41°/56° 16°/19°/42°/56° 16°/21°/43°/55° 16°/21°/43°/55°
- Efficacy:
- Up to 112Lm/W
- Cut Out:
- Ø102mm
- Tilt:
- 30°
ELVIS DOWNLIGHT
Effortlessly accentuate specific areas or features with the Elvis downlight. Its adjustable design can accommodate the most varied applications and boasts an anti-glare device as well as an efficient heatsink ensuring the lifetime of the source. The Elvis series offers fixed, adjustable, IP, trimmed and trimless designs making this series a versatile solution for your lighting needs. This series is designed and manufactured to deliver optimum performance in any environment.
Effortlessly accentuate specific areas or features with the Elvis downlight. Its adjustable design can accommodate the most varied applications and boasts an anti-glare device as well as an efficient heatsink ensuring the lifetime of the source. The Elvis series offers fixed, adjustable, IP, trimmed and trimless designs making this series a versatile solution for your lighting needs. This series is designed and manufactured to deliver optimum performance in any environment.
Models

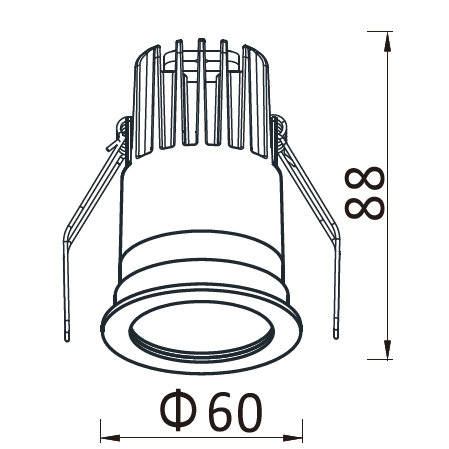

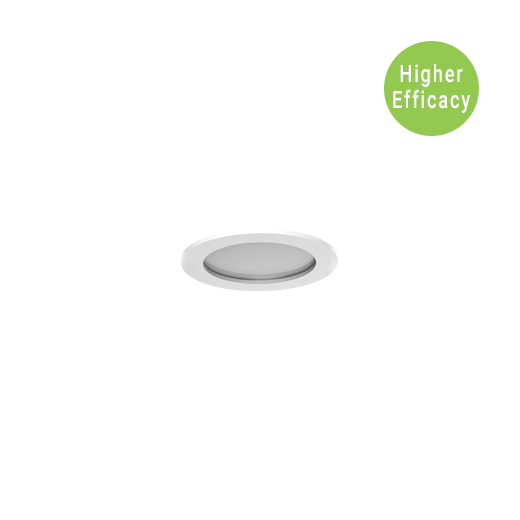

DR-A096 (IP54) HE
- System Power:
- 7W / 10W
- Source Lumens:
- Up to 1314Lm
- Delivered Lumens:
- Up to 792Lm
- Beam Angle:
- 16°/29° 23°/34°
- Efficacy:
- Up to 86Lm/W
- Cut Out:
- Ø54mm
- Tilt:
- 30°
DR-A594 (IP54)
- Source Power:
- 17W / 25W /32W / 36W
- System Power:
- 19W / 27W / 35W / 39W
- Source Lumens:
- Up to 4454Lm
- Delivered Lumens:
- Up to 4338Lm
- Beam Angle:
- 12°/20°/43°/58° 10°/20°/43°/58° 10°/20°/43°/58° 12°/21°/43°/58°
- Efficacy:
- Up to 115Lm/W
- Cut Out:
- Ø102mm
- Tilt:
- 30°

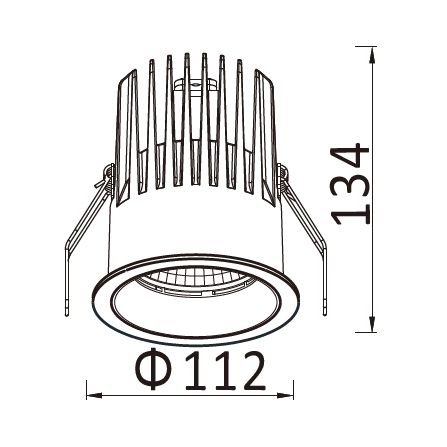

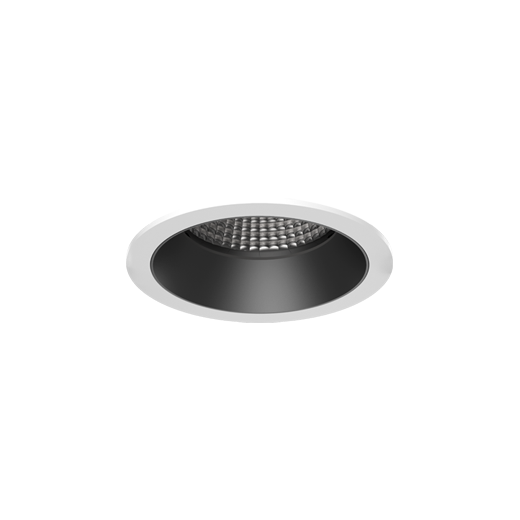

DR-A593
- Source Power:
- 17W / 25W /32W / 36W
- System Power:
- 19W / 27W / 35W / 39W
- Source Lumens:
- Up to 4454Lm
- Delivered Lumens:
- Up to 4338Lm
- Beam Angle:
- 12°/20°/43°/58° 10°/20°/43°/58° 10°/20°/43°/58° 12°/21°/43°/58°
- Efficacy:
- Up to 115Lm/W
- Cut Out:
- Ø102mm
- Tilt:
- 30°

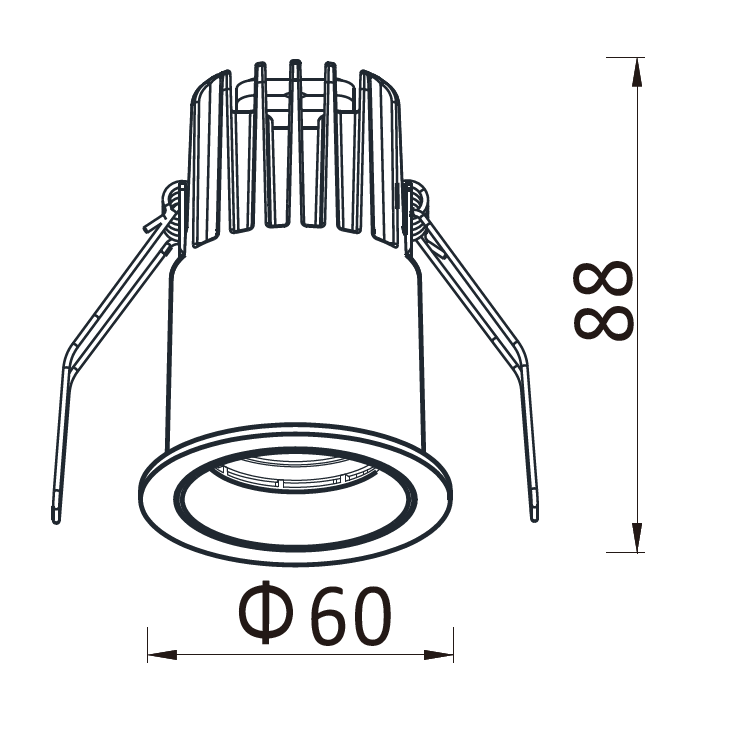

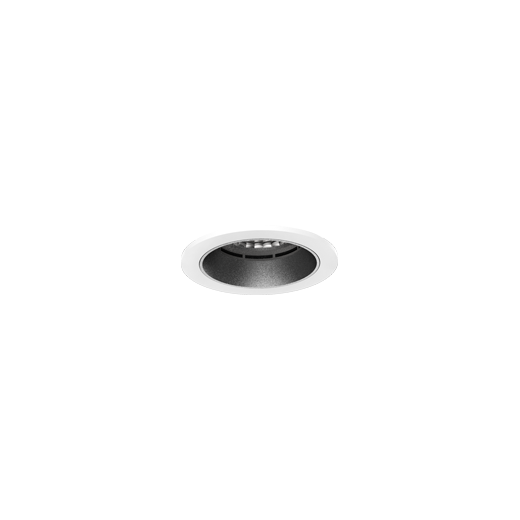

DR-A095
- Source Power:
- 6W / 12W
- System Power:
- 7W / 14W
- Source Lumens:
- Up to 1536Lm
- Delivered Lumens:
- Up to 1247Lm
- Beam Angle:
- 22°/36°
- Efficacy:
- Up to 95Lm/W
- Cut Out:
- Ø54mm
- Tilt:
- 30°

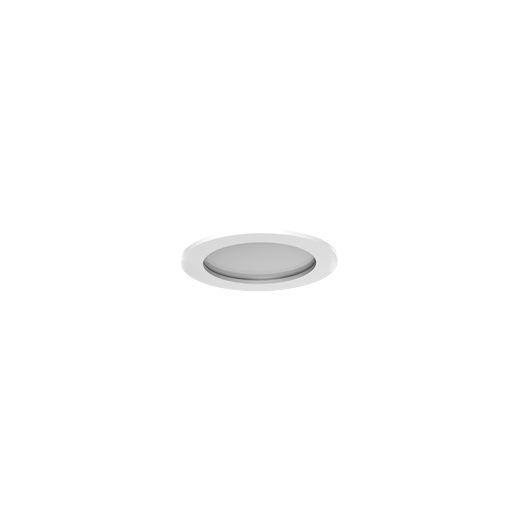

DR-A096 (IP54)
- Source Power:
- 6W / 12W
- System Power:
- 7W / 14W
- Source Lumens:
- Up to 1536Lm
- Delivered Lumens:
- Up to 1067Lm
- Beam Angle:
- 22°/36°
- Efficacy:
- Up to 81Lm/W
- Cut Out:
- Ø54mm
- Tilt:
- 30°

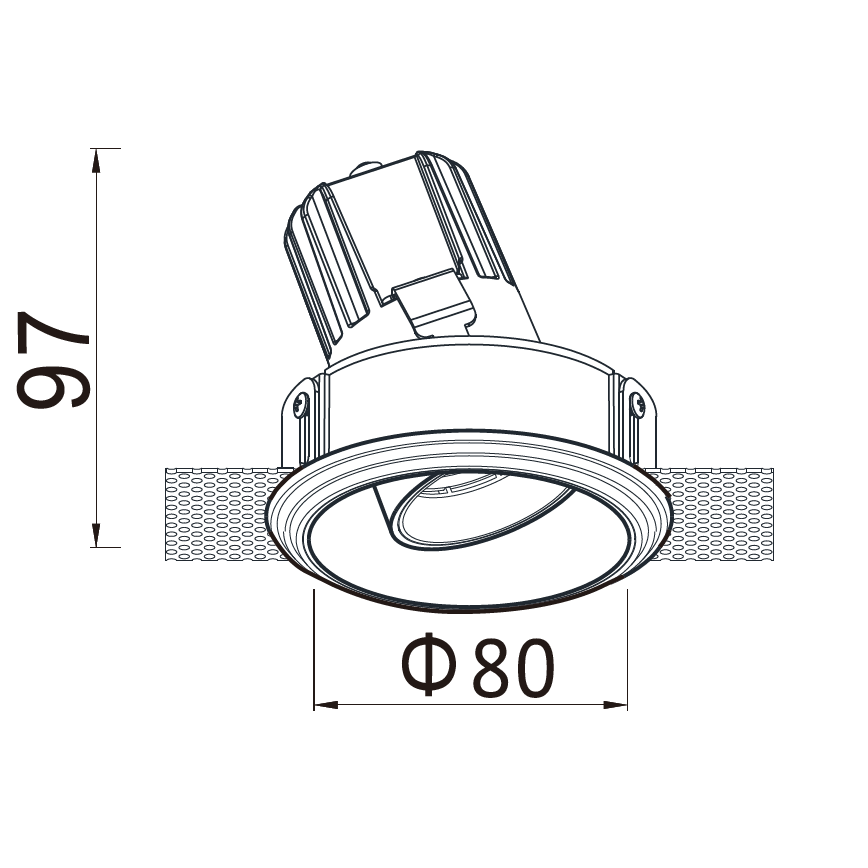

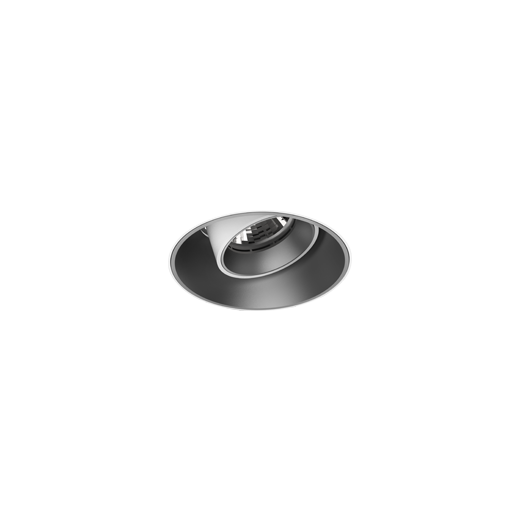

SR-A195
- Source Power:
- 6W / 12W
- System Power:
- 7W / 14W
- Source Lumens:
- Up to 1536Lm
- Delivered Lumens:
- Up to 1247Lm
- Beam Angle:
- 22°/36°
- Efficacy:
- Up to 95Lm/W
- Cut Out:
- Ø98mm
- Tilt:
- 30°

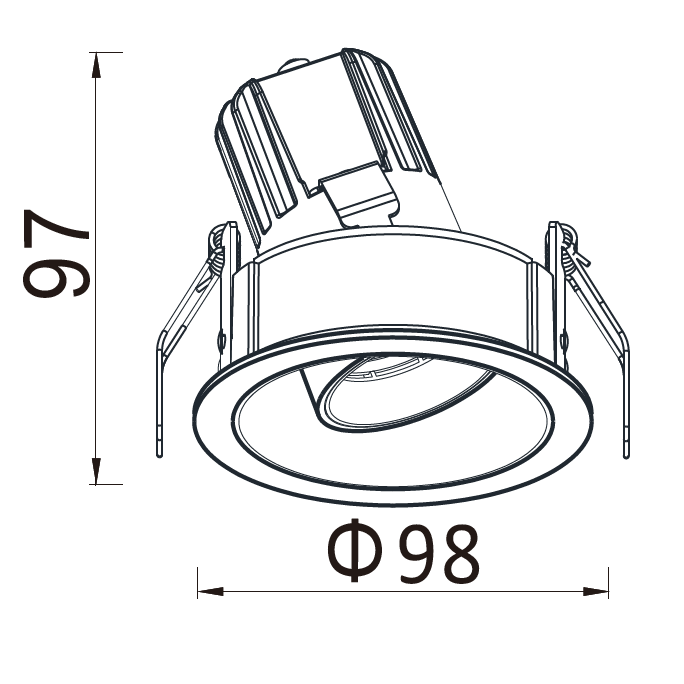

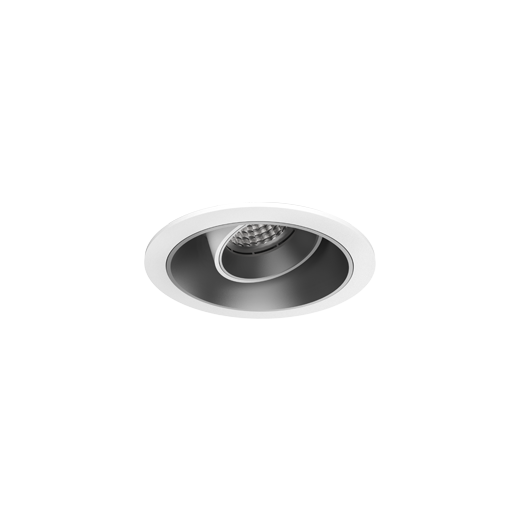

SR-A186
- Source Power:
- 6W / 12W
- System Power:
- 7W / 14W
- Source Lumens:
- Up to 1536Lm
- Delivered Lumens:
- Up to 1247Lm
- Beam Angle:
- 22°/36°
- Efficacy:
- Up to 95Lm/W
- Cut Out:
- Ø90mm
- Tilt:
- 30°

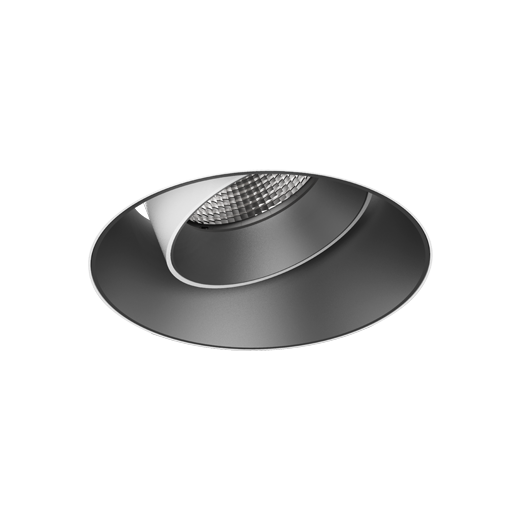

SR-C106
- Source Power:
- 17W / 25W /32W / 36W
- System Power:
- 19W / 27W / 35W / 39W
- Source Lumens:
- Up to 4454Lm
- Delivered Lumens:
- Up to 4338Lm
- Beam Angle:
- 12°/20°/43°/58° 10°/20°/43°/58° 10°/20°/43°/58° 12°/21°/43°/58°
- Efficacy:
- Up to 114Lm/W
- Cut Out:
- Ø162mm
- Tilt:
- 30°

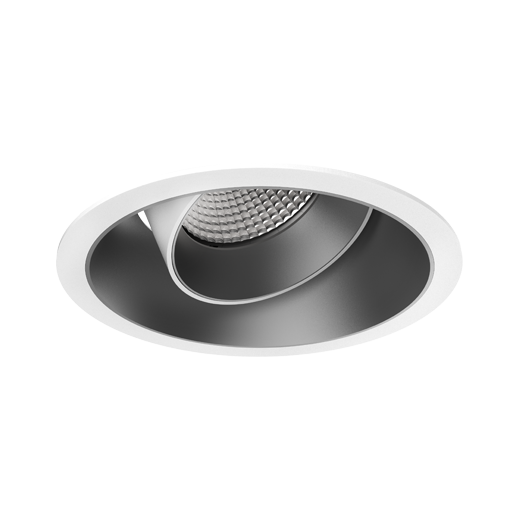

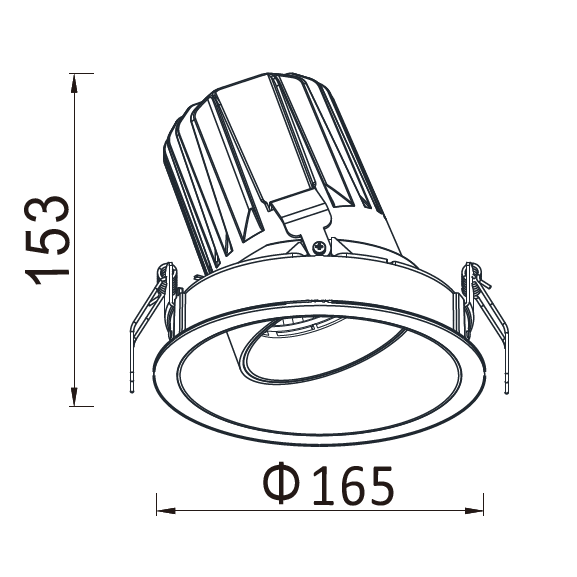

SR-C105
- Source Power:
- 17W / 25W /32W / 36W
- System Power:
- 19W / 27W / 35W / 39W
- Source Lumens:
- Up to 4454Lm
- Delivered Lumens:
- Up to 4338Lm
- Beam Angle:
- 12°/20°/43°/58° 10°/20°/43°/58° 10°/20°/43°/58° 12°/21°/43°/58°
- Efficacy:
- Up to 114Lm/W
- Cut Out:
- Ø162mm
- Tilt:
- 30°

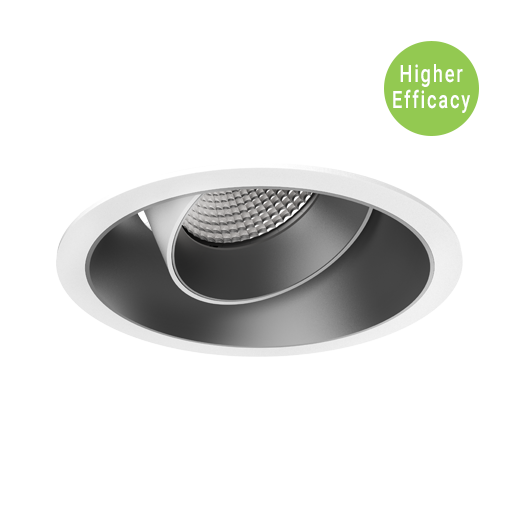

SR-C105 HE
- System Power:
- 14W / 24W / 27W / 35W / 41W
- Source Lumens:
- Up to 5241Lm
- Delivered Lumens:
- Up to 4655Lm
- Beam Angle:
- 15°/19°/41°/57° 16°/19°/41°/57° 16°/21°/43°/56° 16°/21°/43°/56° 17°/21°/43°/56°
- Efficacy:
- Up to 128Lm/W
- Cut Out:
- Ø162mm
- Tilt:
- 30°
General Specifications
Finish
Black/White/Bespoke Colours
IP Rating
IP20
CRI
>90
Lifetime
L80(12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
Material
Aluminium
CCT
2700K/3000K/3500K/4000K
Voltage
220-240V, 50/60Hz
Dimming
Available on request
Accessories
Honeycomb Louvre
Glass
Elliptical Optical Lens
