Description

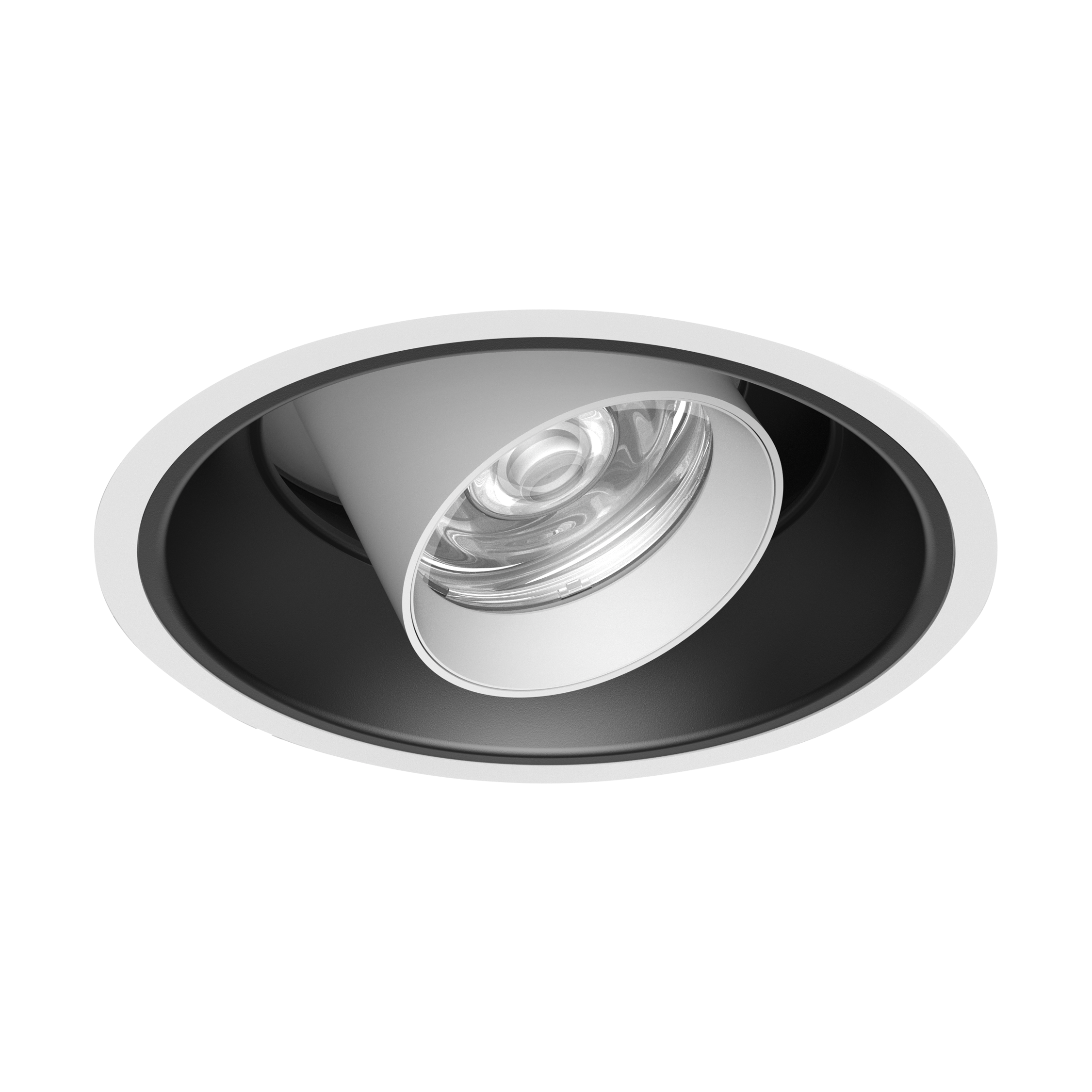

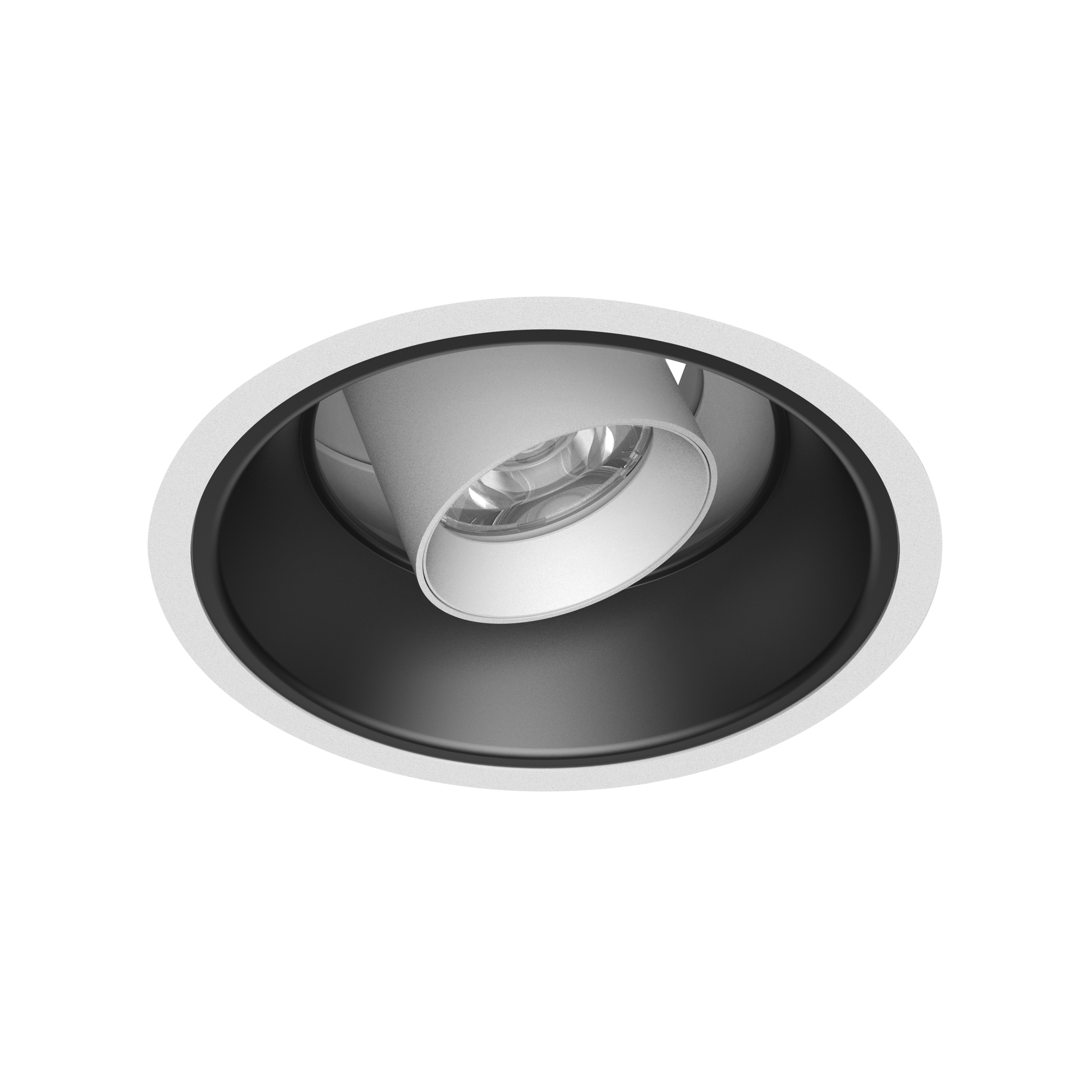

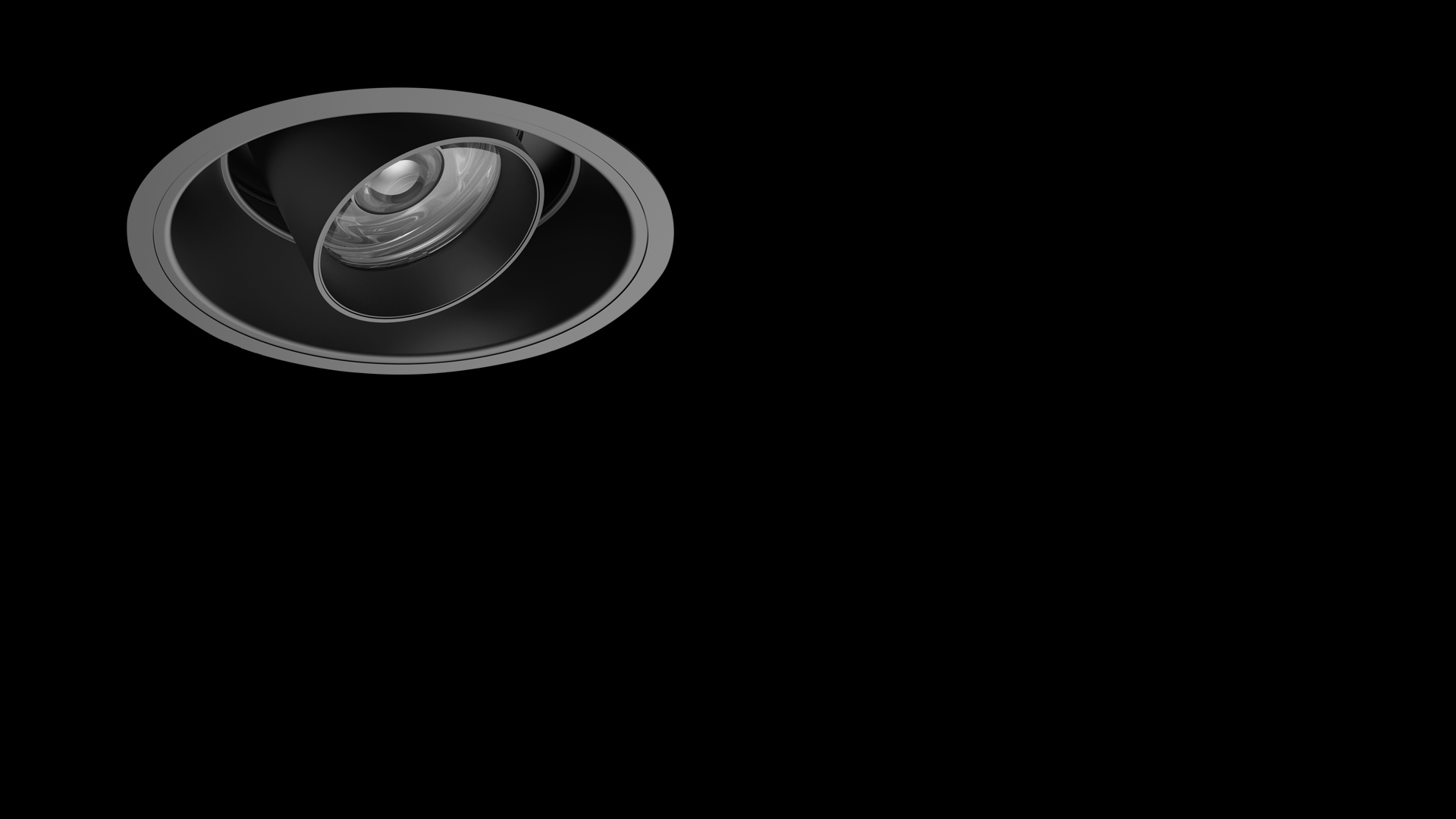

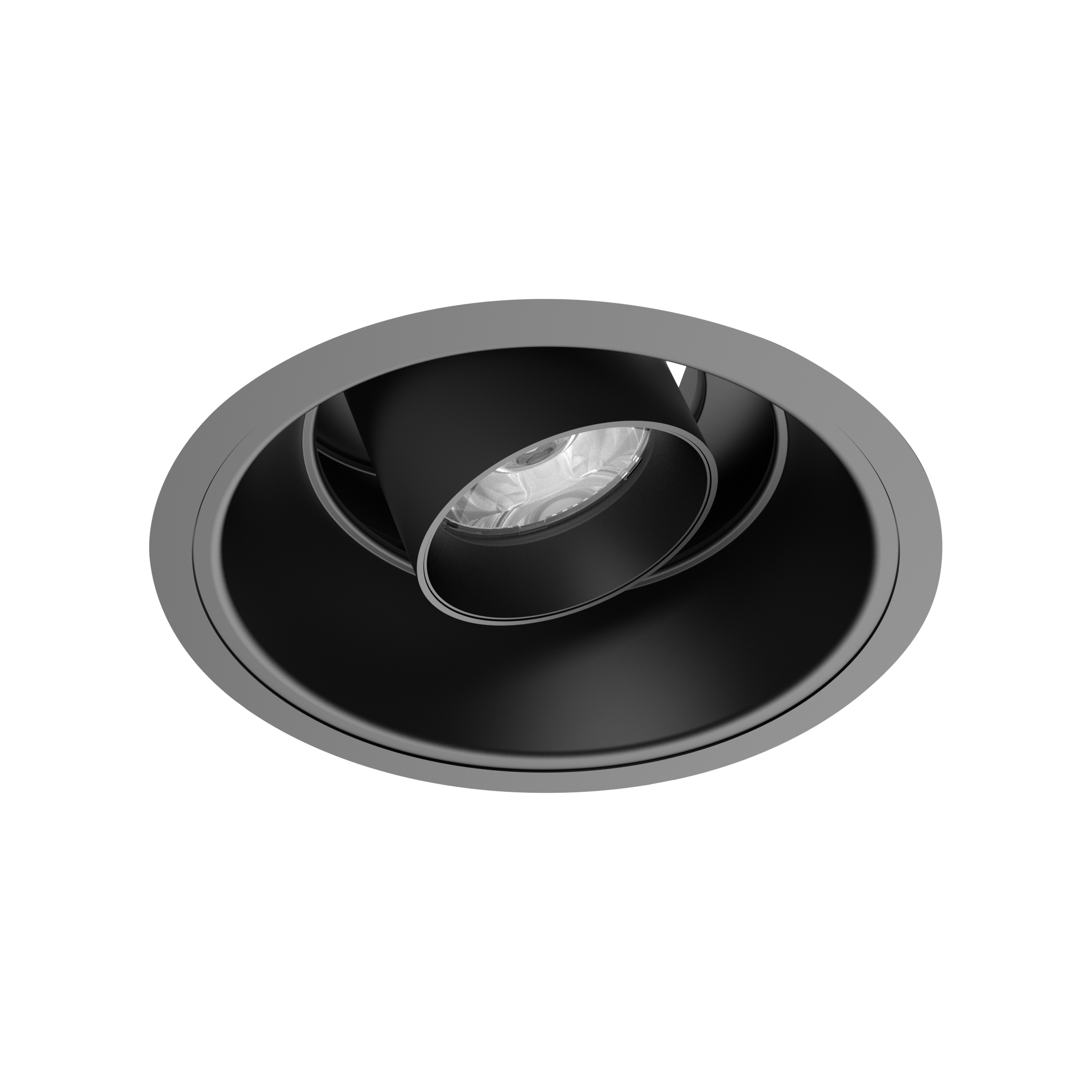

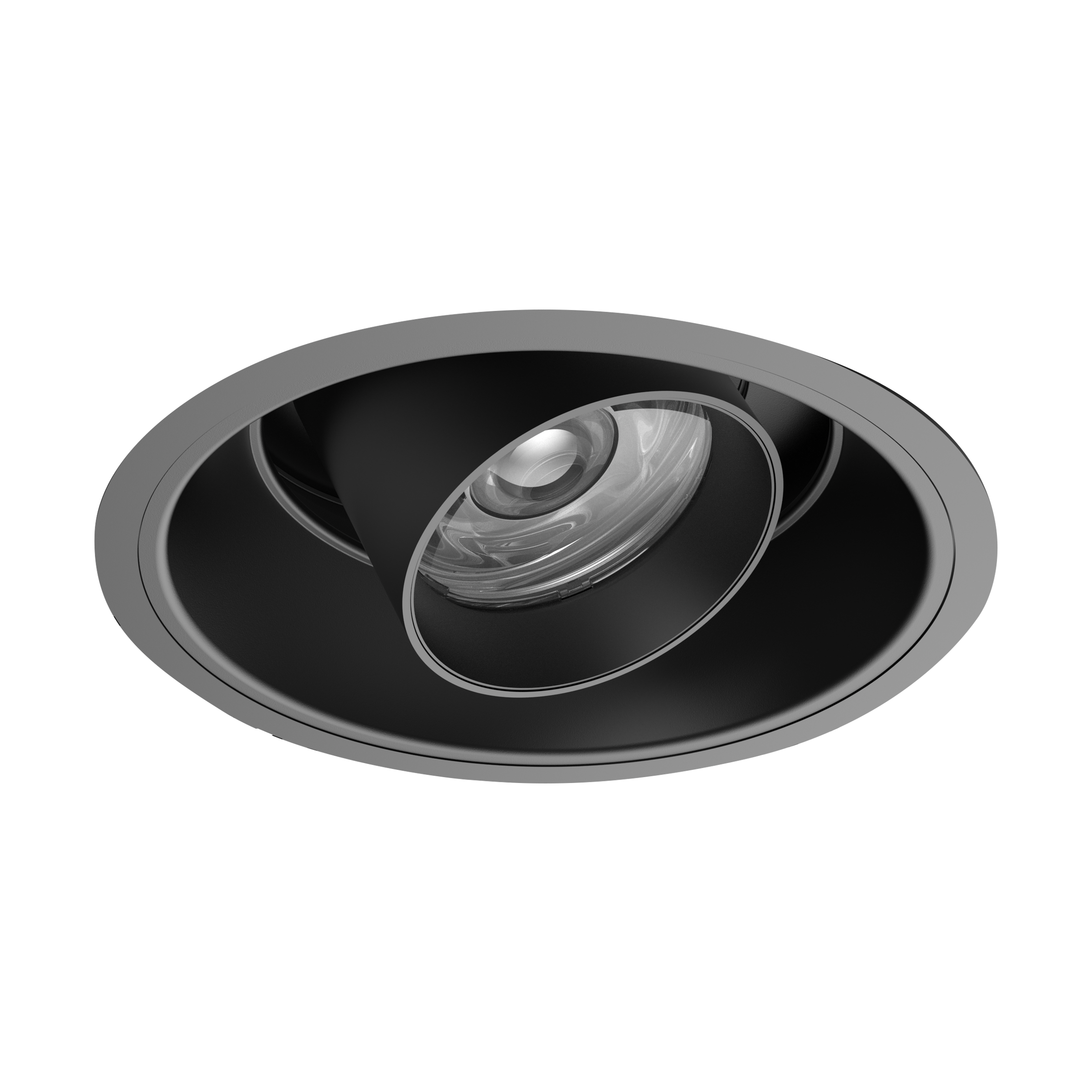

SUMMER ADJUSTABLE DOWNLIGHT

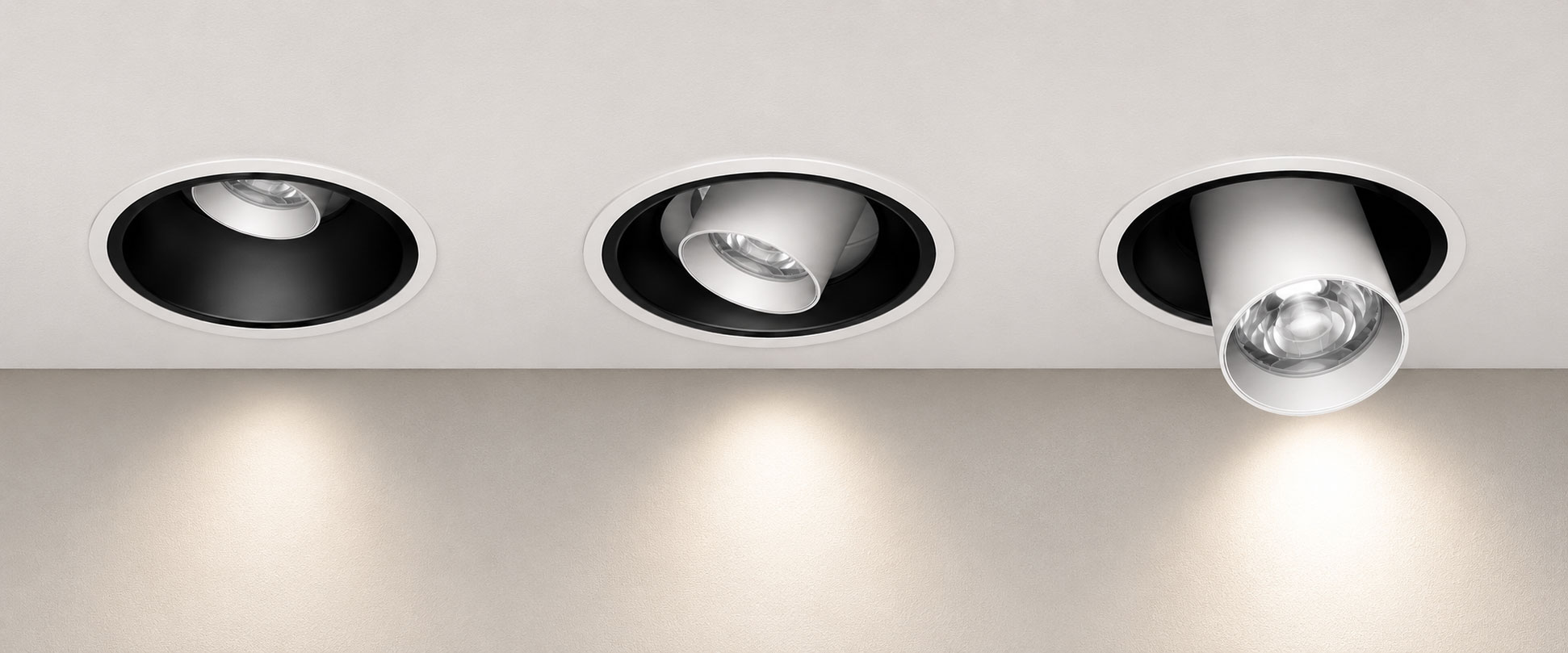

The Summer is an adjustable downlight series with the ability to shift modes as a recessed luminaire to a spotlight. Its high efficiency lens provides a uniformed light distribution. With a rotation up to 355° and vertical axis tilt of up to 30°, the Summer downlight series delivers flexibility to suit a variety of applications.

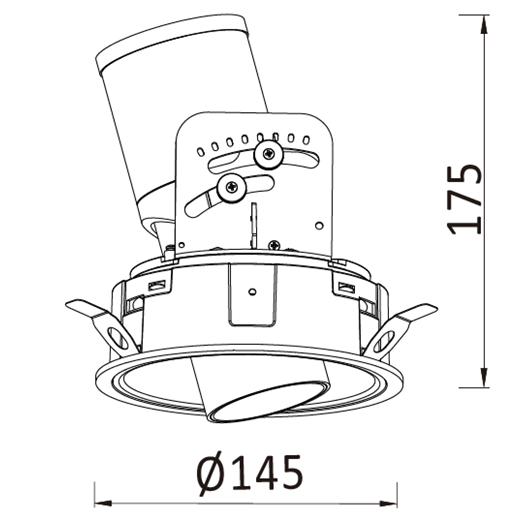

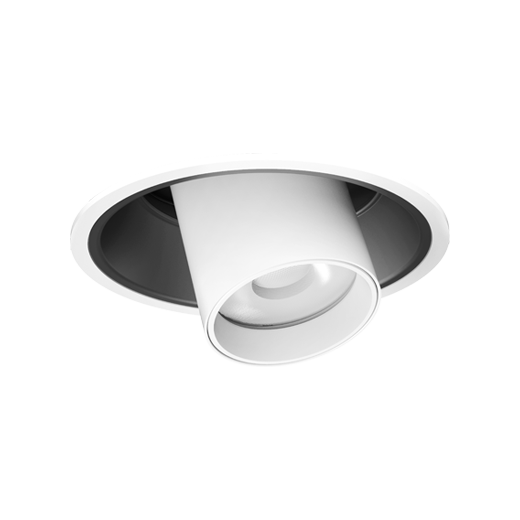

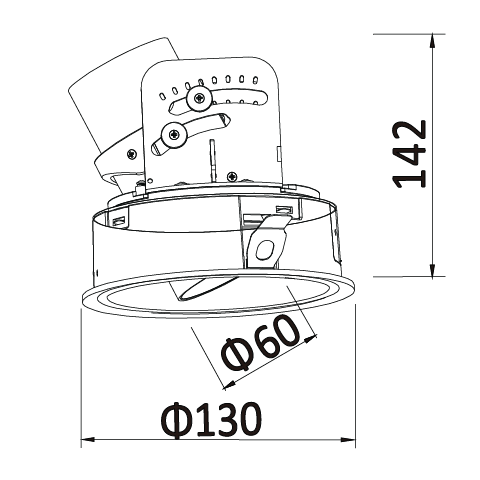

SR-A567

Source Power: 14W / 22W
System Power: 26W / 24W
Source Lumens: Up to 1960Lm
Delivered Lumens: Up to 1663Lm
Beam Angle:  12°24°33°45°
13°26°37°50°
Efficacy:  Up to 72Lm/W
Cut out:  Ø135mm
Tilt:  30°
Downloads: Datasheet
IES Files

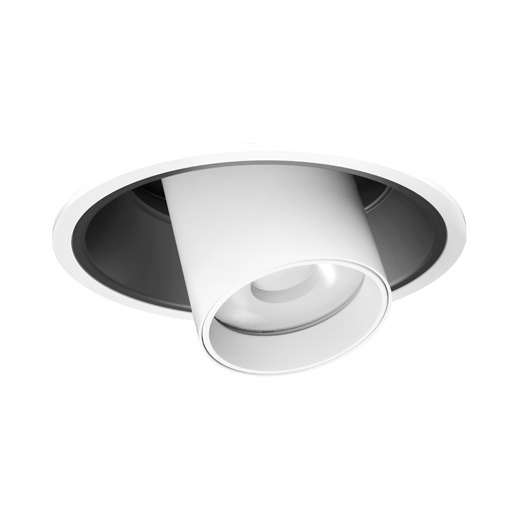

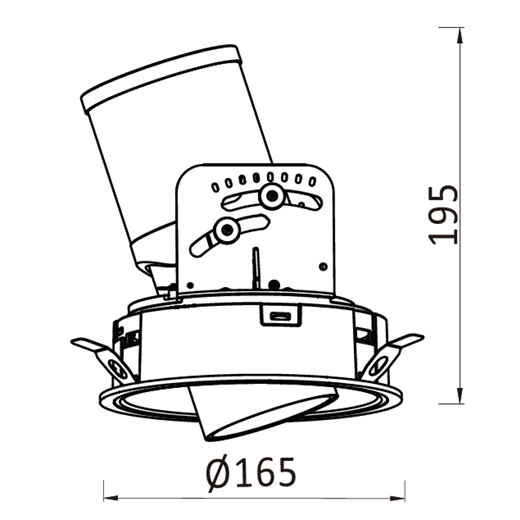

SR-A585

Source Power: 17W / 25W / 33W / 32W
System Power: 19W / 28W / 37W / 37W
Source Lumens: Up to 3985Lm
Delivered Lumens: Up to 3363Lm
Beam Angle:  14°23°36°54°
13°22°35°54°
13°23°35°54°
17°25°37°54°
Efficacy:  Up to 101Lm/W
Cut out:  Ø155mm
Tilt:  30°
Downloads Datasheet
IES Files

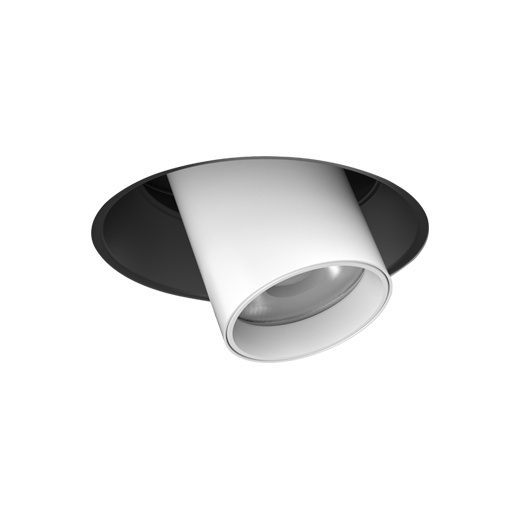

SR-A617

Source Power: 14W / 22W
System Power: 16W / 24W
Source Lumens: Up to 1960Lm
Delivered Lumens: Up to 1663Lm
Beam Angle:  12° 24° 33° 45°
13° 26° 37° 50°
Efficacy:  Up to 98Lm/W
Cut out:  Ø135mm
Tilt:  30°
Downloads: Datasheet
IES Files

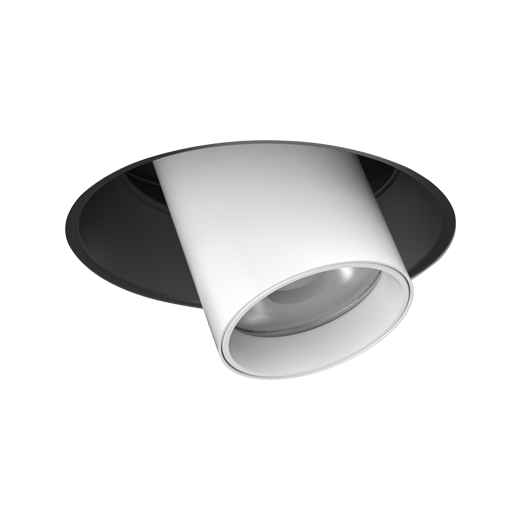

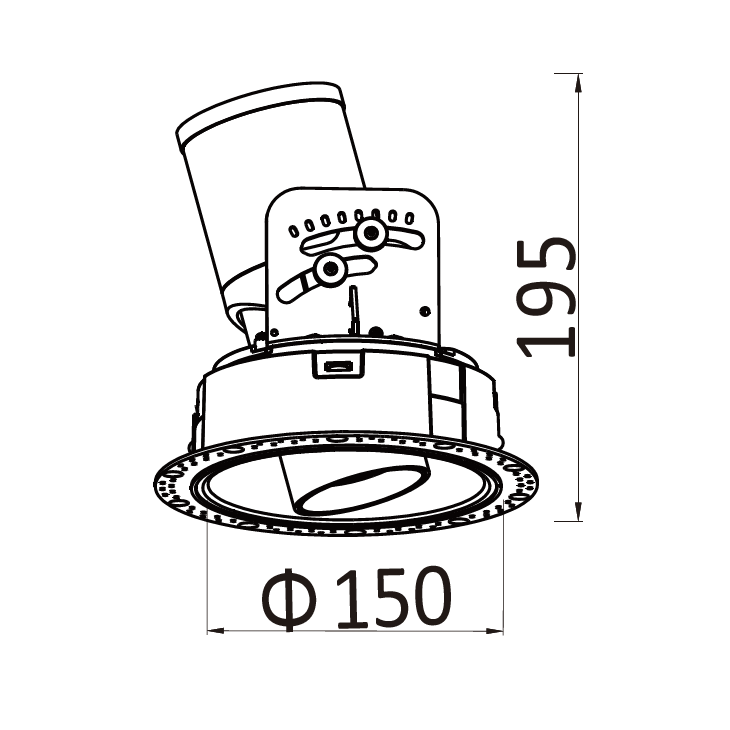

SR-A618

Source Power: 17W / 25W / 33W/ 32W
System Power: 19W / 28W / 37W / 35w
Source Lumens: Up to 3985Lm
Delivered Lumens: Up to 3363Lm
Beam Angle:  14° 23° 36° 54°
13° 22° 35° 54°
13° 23° 35° 54°
17° 25° 37° 54°
Efficacy:  Up to 101Lm/W
Cut out:  Ø155mm
Tilt:  30°
Downloads: Datasheet
IES Files

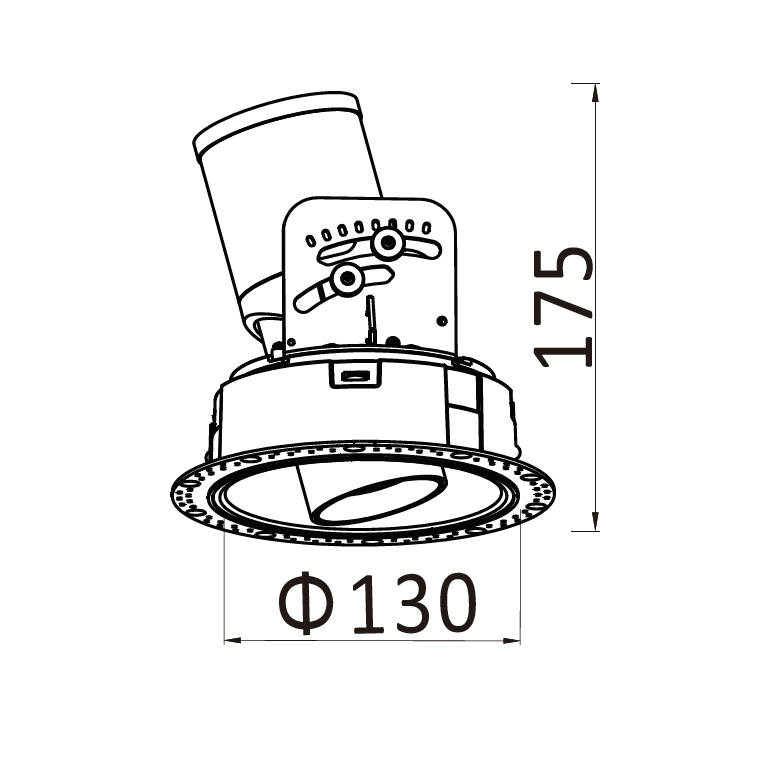

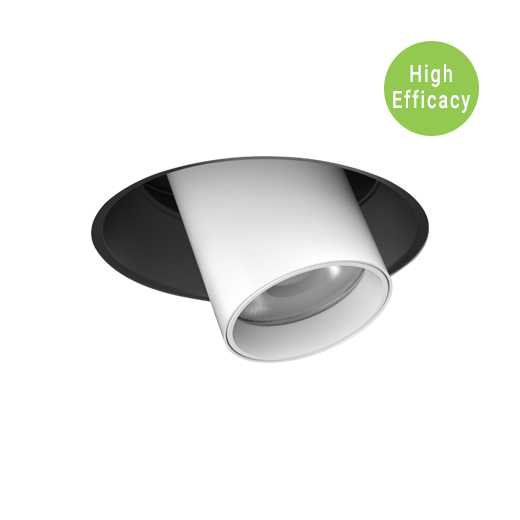

SR-A617

System Power: 8W / 14W
Source Lumens: Up to 1854Lm
Delivered Lumens: Up to 1518Lm
Beam Angle:  13° 24° 35° 47°
20° 31° 40° 52°
Efficacy:  Up to 113Lm/W
Cut out:  Ø135mm
Tilt:  30°
Downloads: Datasheet
IES Files

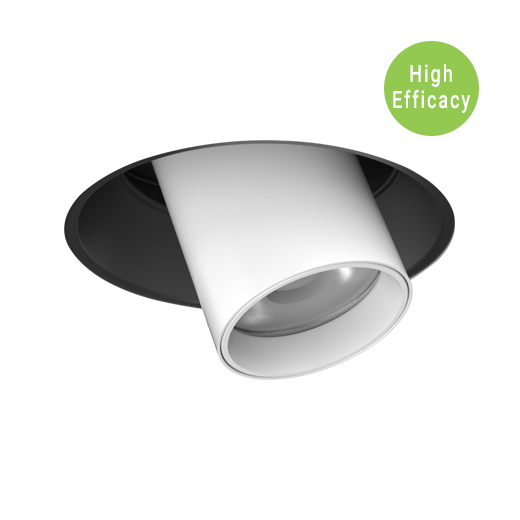

SR-A618

System Power: 9W / 14W / 23W / 26w
Source Lumens: Up to 3849Lm
Delivered Lumens: Up to 3446Lm
Beam Angle:  14° 23° 35° 53°
18° 25° 38° 54°
18° 25° 38° 54°
21° 27° 39° 54°
Efficacy:  Up to 133Lm/W
Cut out:  Ø155mm
Tilt:  30°
Downloads: Datasheet
IES Files

Finish Black/White Material Aluminium
IP Rating IP20 CCT  3000K/4000K
CRI >90 Voltage 220-240V
Lifetime L80(12K) > 66,000 hrs
L90 (12K) > 41,500 hrs
L90 (12K) > 41,000 hrs (for high efficacy)		 Dimming Available on request
