Description

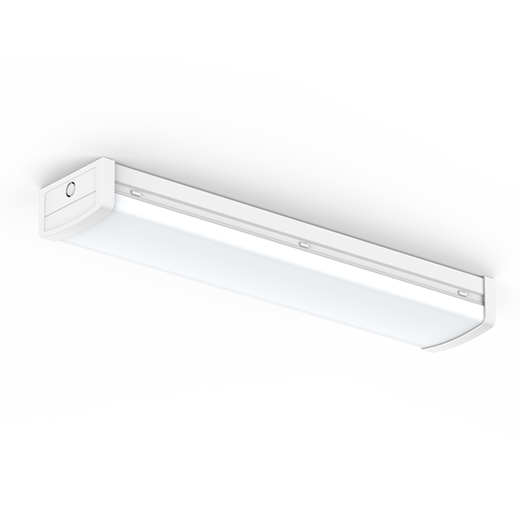

RILEY BATTENS

Adopting a separate light module design, the Riley has been designed to provide a wide light emitting area, limiting ingress of bugs and dust into the diffuser. The key feature being selectable colour temperature and switchable wattage, allowing variation in light output to suit the application. Installation for the Riley can be via surface mounted or suspended. With so many available adjustments and a clean aesthetic design, the Riley batten is the perfect fitting for multiple applications.

Datasheets
IES Files
Installation Manual
Models:

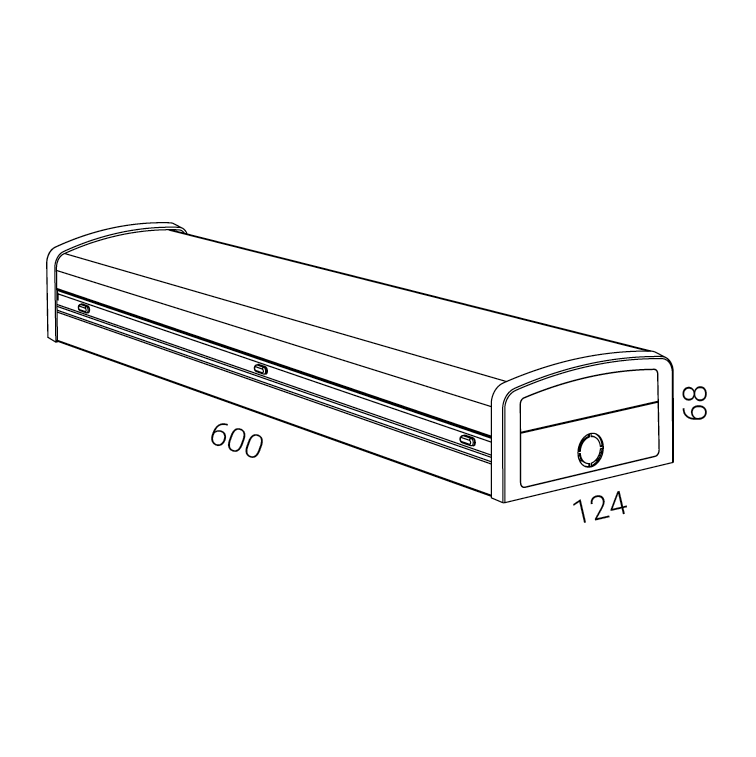

BT-RIL-25

10-25W
2,400-2,500Lm @ 3000K/4000K/5700K CCT
Beam Angle: 120°

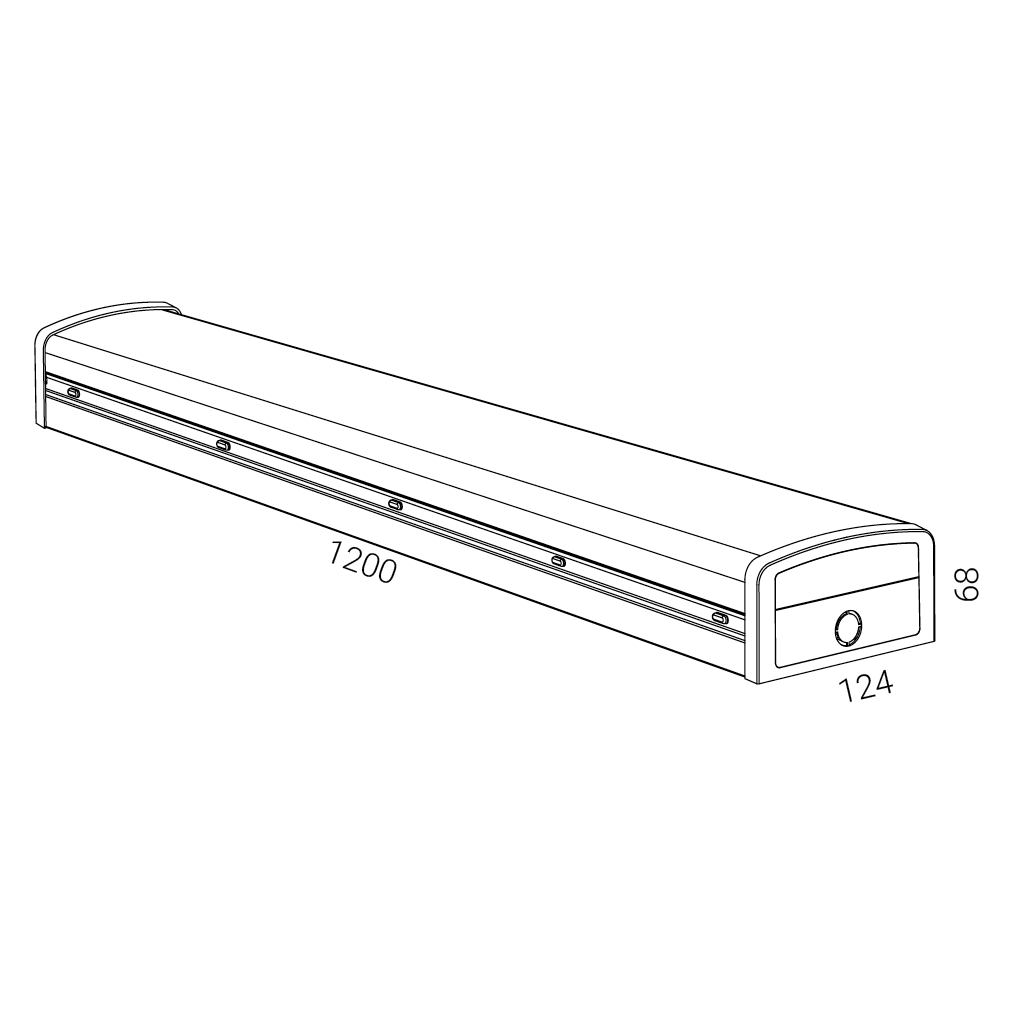

BT-RIL-42

20-42W
4,200-4,400Lm @ 3000K/4000K/5700K CCT
Beam Angle: 120°
Product Information:
Source: LG IP Rating: IP20 CCT: 3000K/4000K/5700K Driver: OSRAM
Finish: Powder Coating IK Rating: IK08 CRI: <80 Power Factor: >0.9
Colour: White Warranty: 5 years Efficacy: 115Lm/W Dimming: Not suitable
Material: Polycarbonate Lifetime: 50,000 hours
