Description

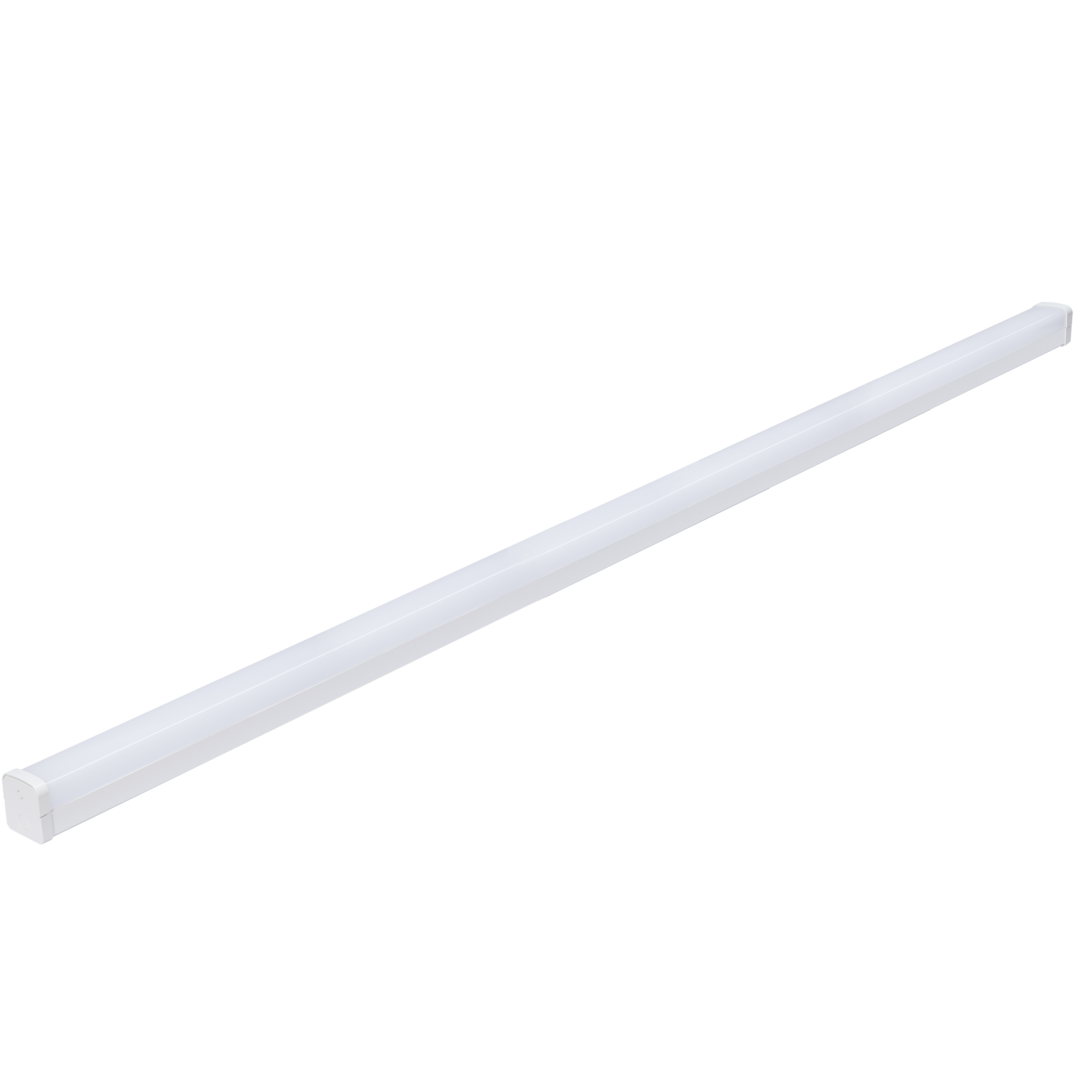

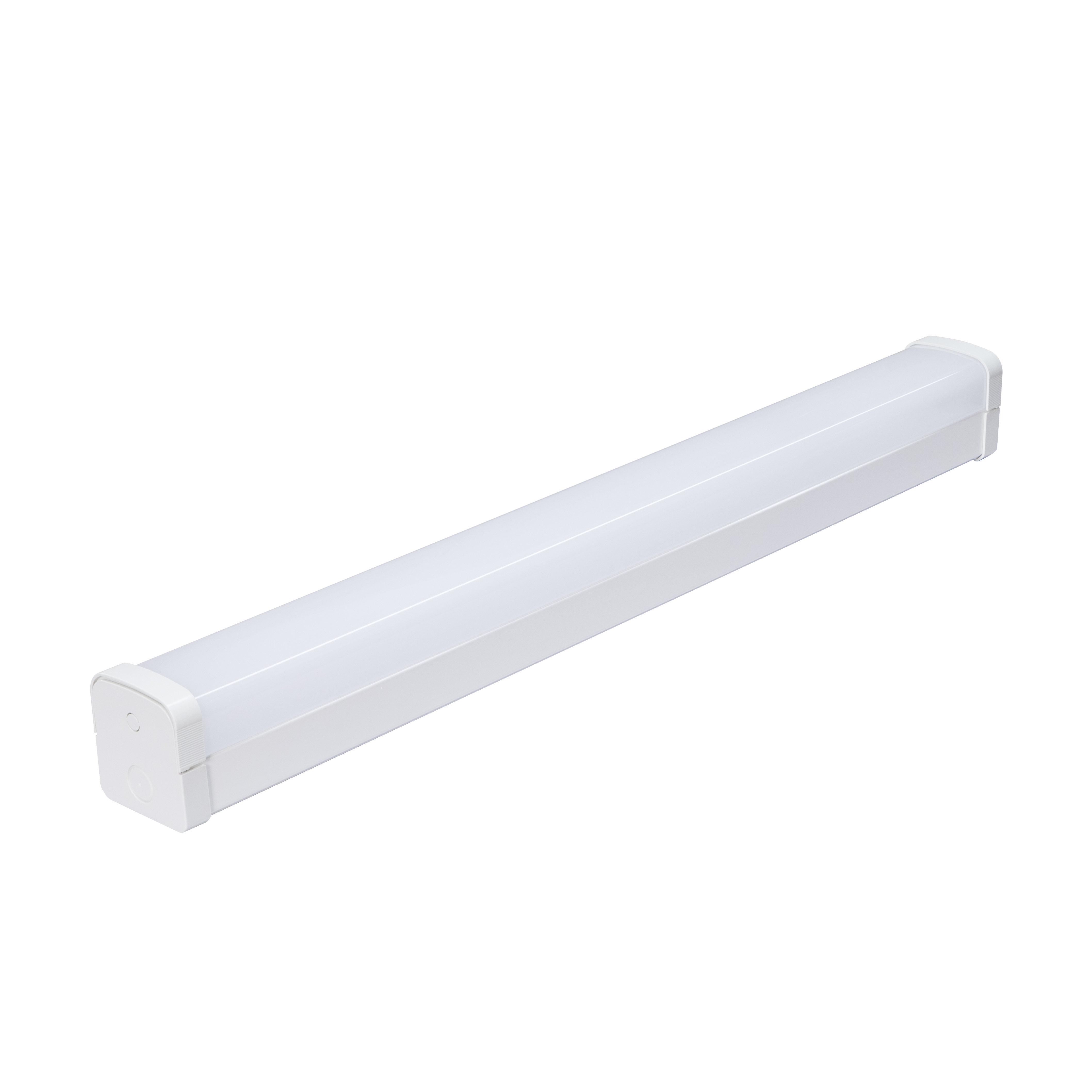

BLAINE BATTENS

The Blaine is the ideal batten providing even light distribution with anti-glare PC diffuser. The simple modular design construction ensures easy installation and ensures no ingress of bugs and dust into the diffuser. The Blaine is available in 600mm and 1200mm configurations with up to 4,500Lm. LPA indoor battens have a projected lamp life of 50,000 hours

Applications: Offices, classrooms, service areas, access areas, workrooms, workshops, storerooms, loading bays and private parking areas (weather protected).

Datasheets
IES Files
Installation Manual
Models:

BT-BLA-20

20W
2,049Lm/2,177Lm/2,045Lm @ 3000K/4000K/5000K CCT
Beam Angle: 120°

BT-BLA-40

40W
4,212Lm/4,501Lm/4,243Lm @ 3000K/4000K/5000K CCT
Beam Angle: 120°
Product Information:
Source: LG IP Rating: IP20 CCT: 3000K/4000K/5000K Driver: OSRAM
Finish: Powder Coating IK Rating: IK08 CRI: <80 Power Factor: >0.9
Colour: White/Grey Warranty: 5 years Efficacy: Up to 115Lm/W Dimming: Not suitable
Material: Polycarbonate Lifetime: 50,000 hours
